Mercedes Benz
>>
1994
>>
SL 320 (129.063) L6-3.2L (104.991)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

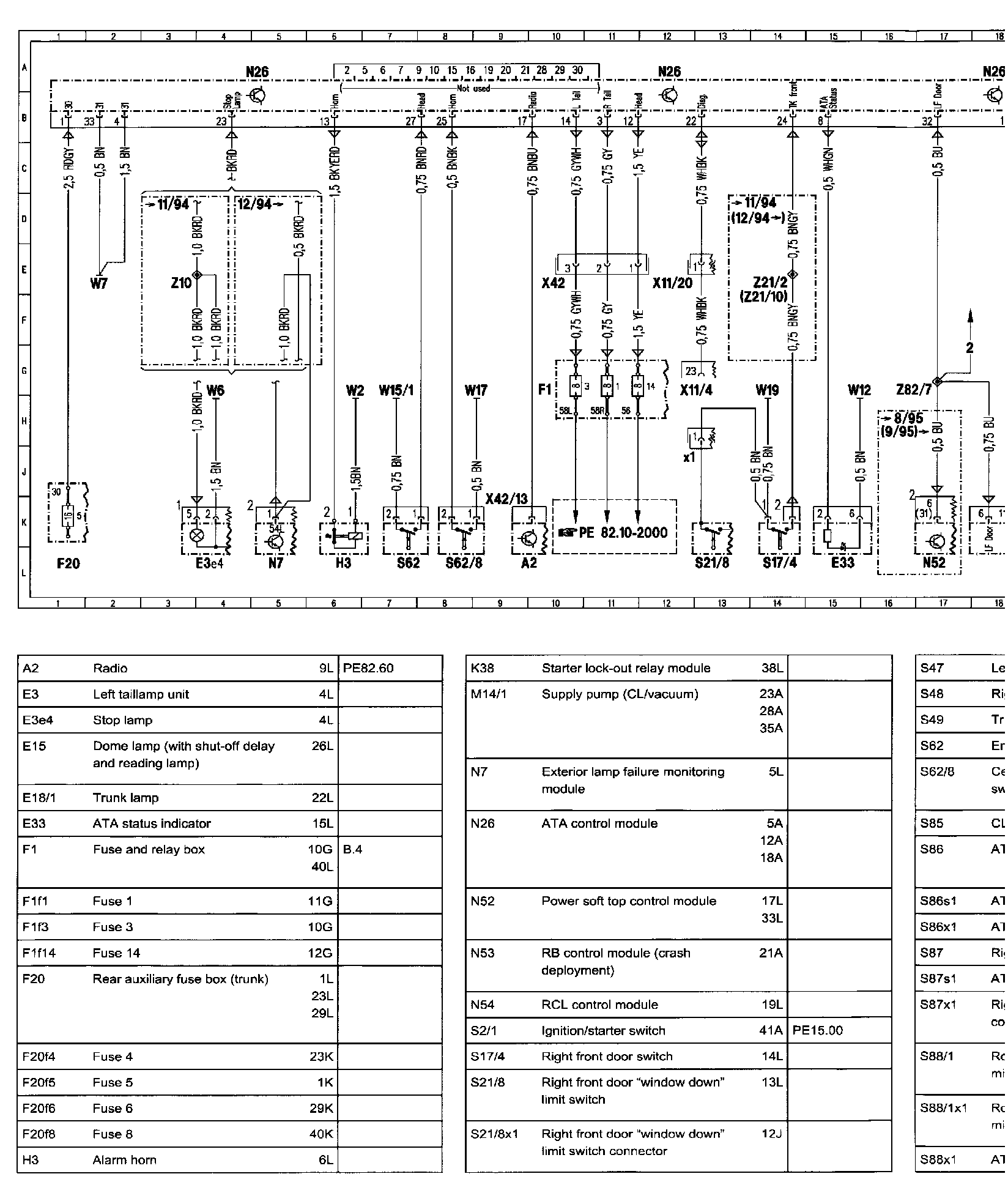

Wiring Diagram
�c�;ǵ;PE80.50-U-2000YC:

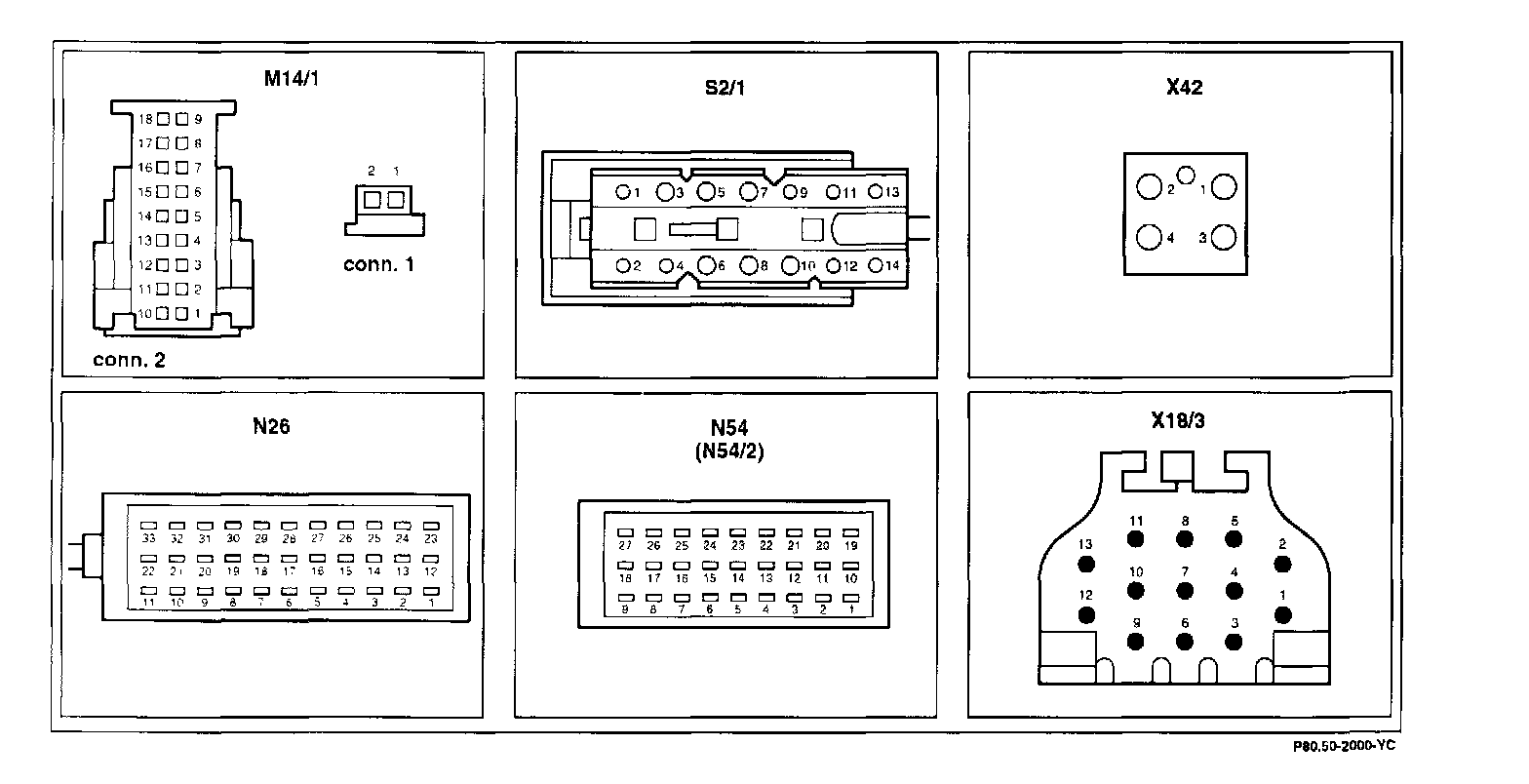

Connector Assignment:

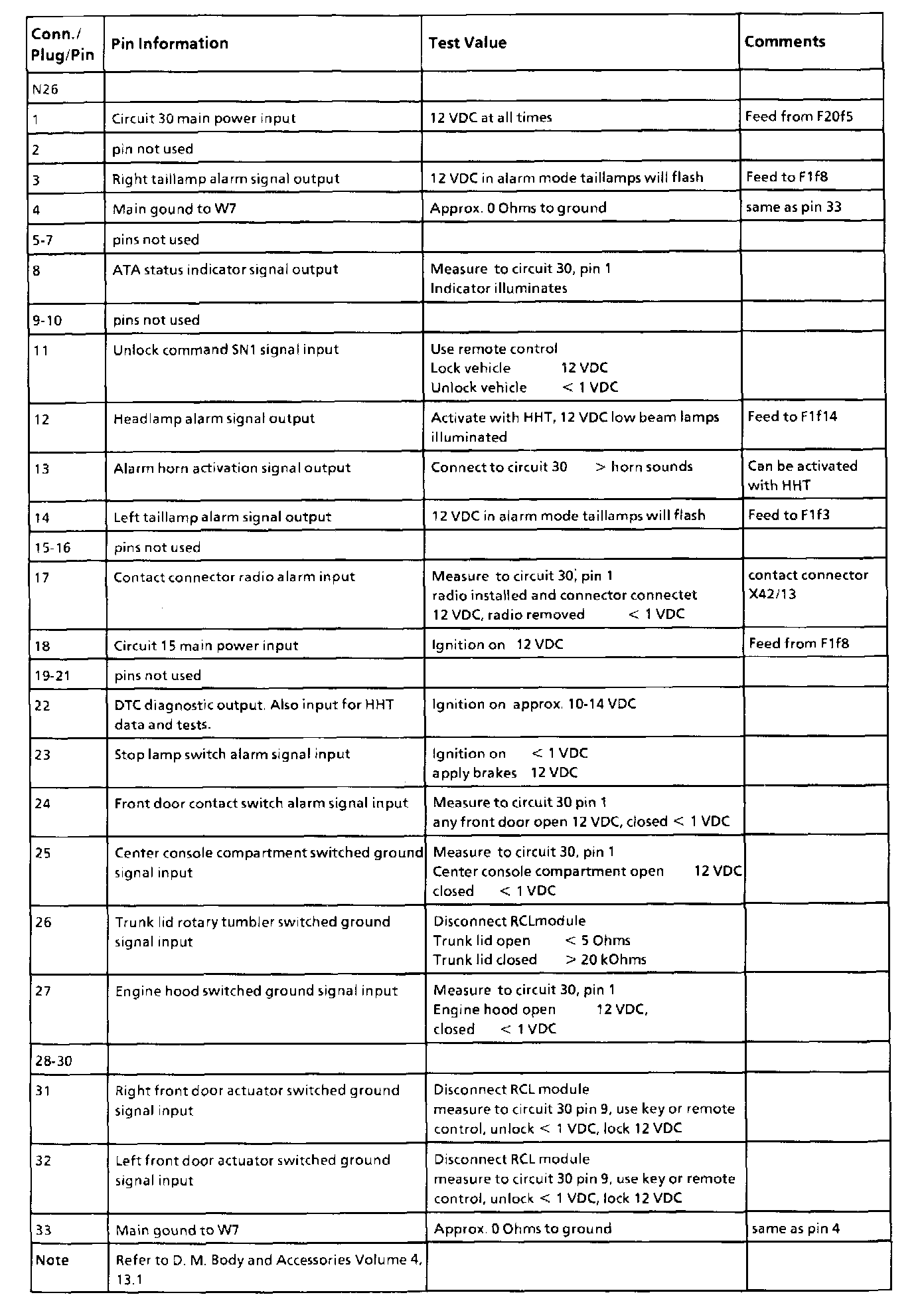

Pin Information:
All values measure to ground unless otherwise noted.
