Engine Compartment
HFM-SFI Sequential Multiport Fuel Injection/ Ignition System

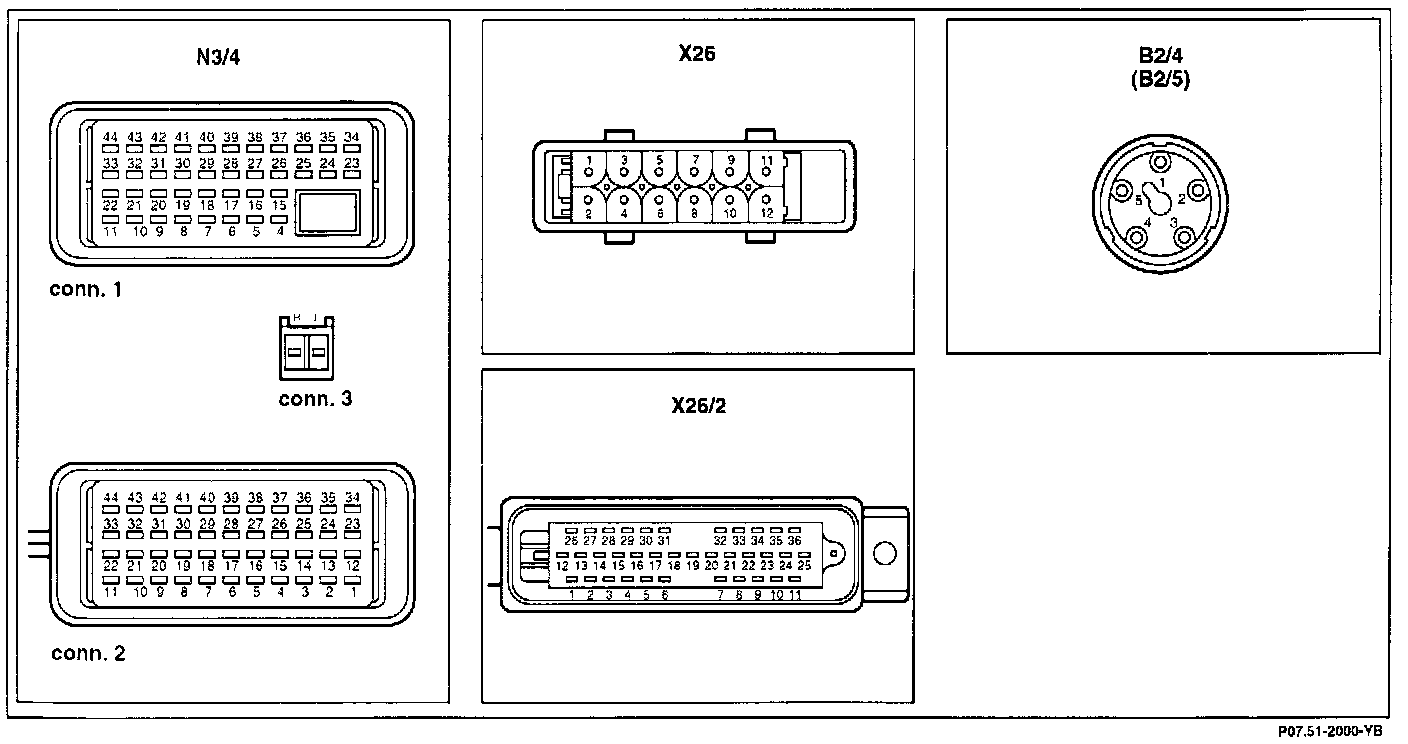

Connector Assignment:

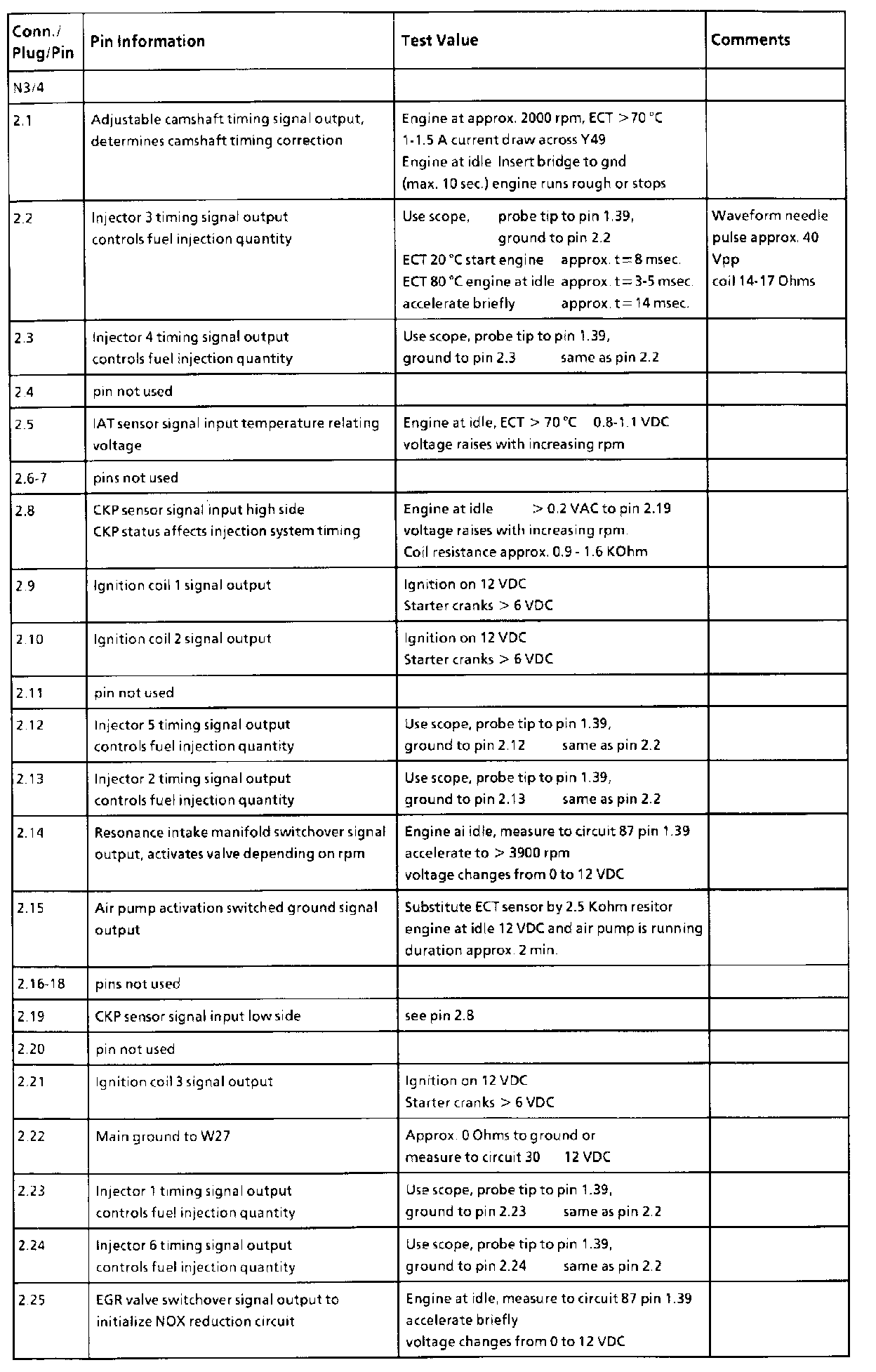

Pin Information, Part 1:
Pin Information, Part 2:
All values measure to ground unless otherwise noted
HFM-SFI Sequential Multiport Fuel Injection/ Ignition System
All values measure to ground unless otherwise noted
