Mercedes Benz
>>
1994
>>
SL 320 (129.063) L6-3.2L (104.991)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
System Diagram
>>
Electronic Accelerator/Cruise Control/Idle Speed Control
>>
CC/ISC
CC/ISC

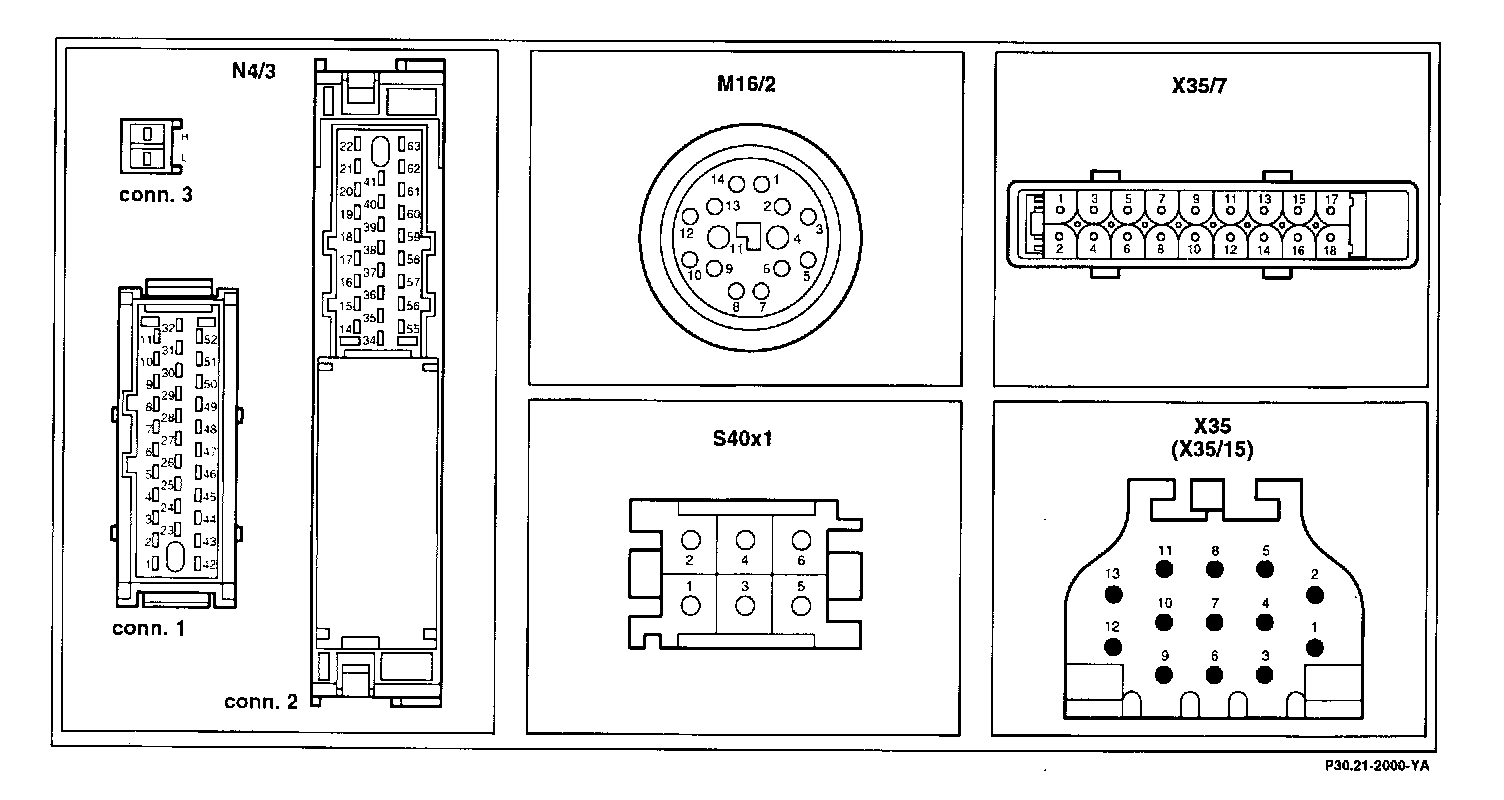

Connector Assignment:

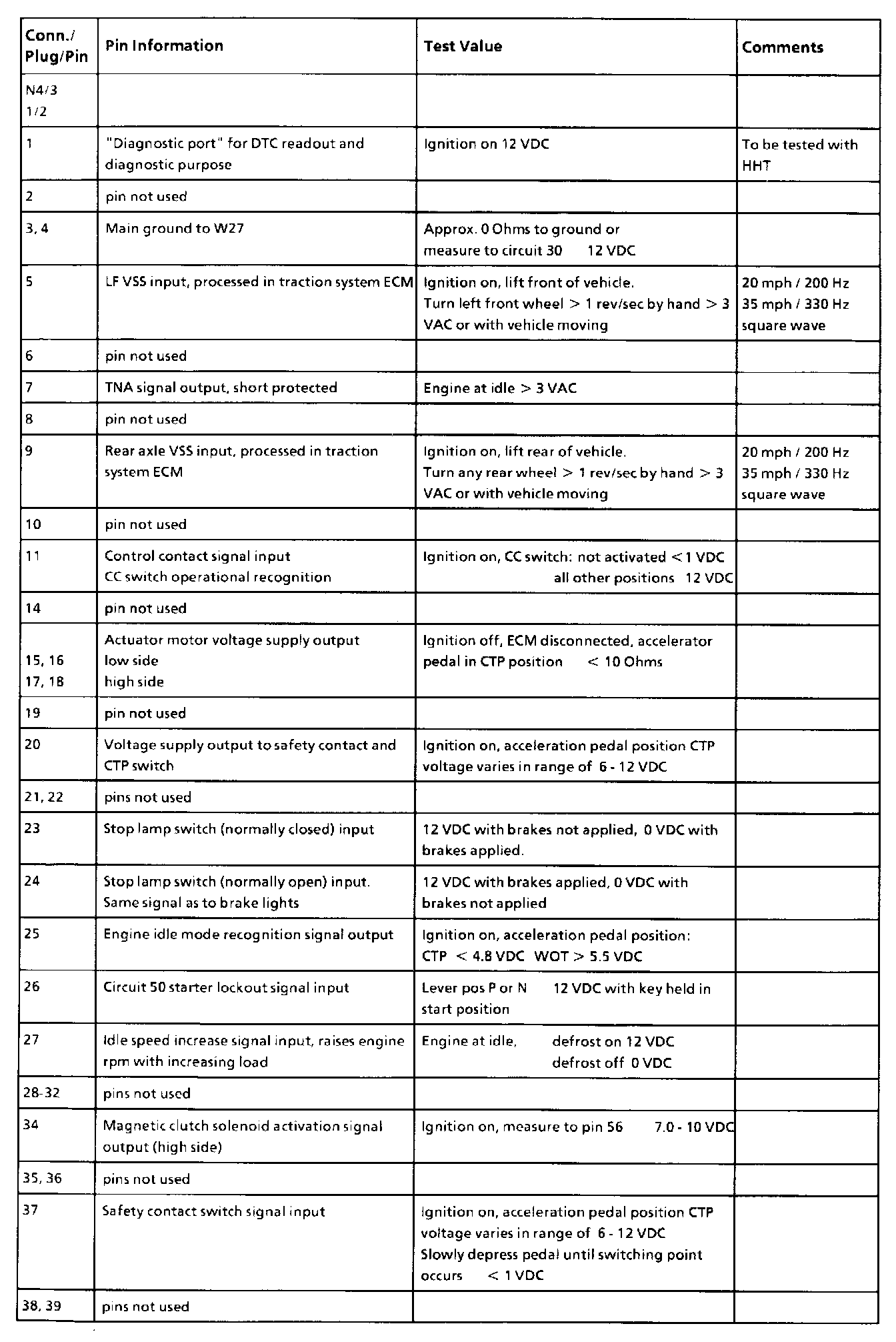

Pin Information, Part 1:

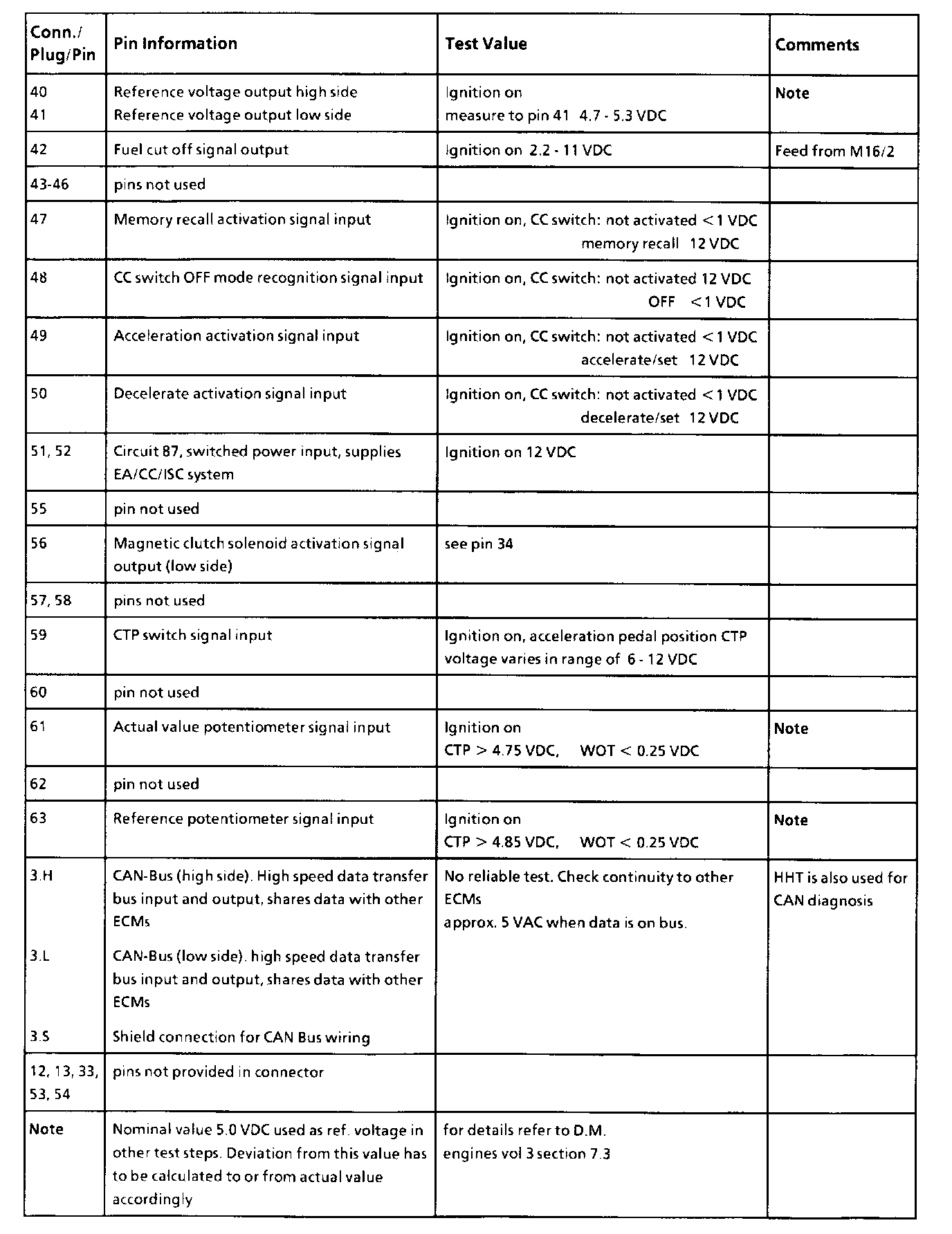

Pin Information, Part 2:
All values measured to ground unless otherwise noted
