Traction Systems and SPS (DTC Memory [12])
Traction Systems (ABS, ASR, ETS) and Speed-Sensitive Power Steering (SPS)
Models 129, 140 as of 06/94 up to 08/95 (ASR, ETS, SPS)
Preparation for DTC Readout
1. Connect impulse counter scan tool or Hand-Held Tester (HHT) to data link connector (X11/4) according to connection diagram. Scan Tool Connecting [0]
Note:
Connect yellow wire from impulse counter scan tool to:
ASR/SPS or ETS/SPS control module (N47-1 N47-2): socket 6
EA/CC/ISC control module (N4/1): socket 7
Base module (N16/1): socket 8
Engine control module (N3/4): socket 4
LH-SFI or right LH-SFI control module (N3/1, N3/3): socket 4
Left LH-SFI control module (N3/2): socket 5
DI or right DI control module (N1/3, N1/5): socket 17
Left DI control module (N1/4): socket 18
2. Ignition: ON

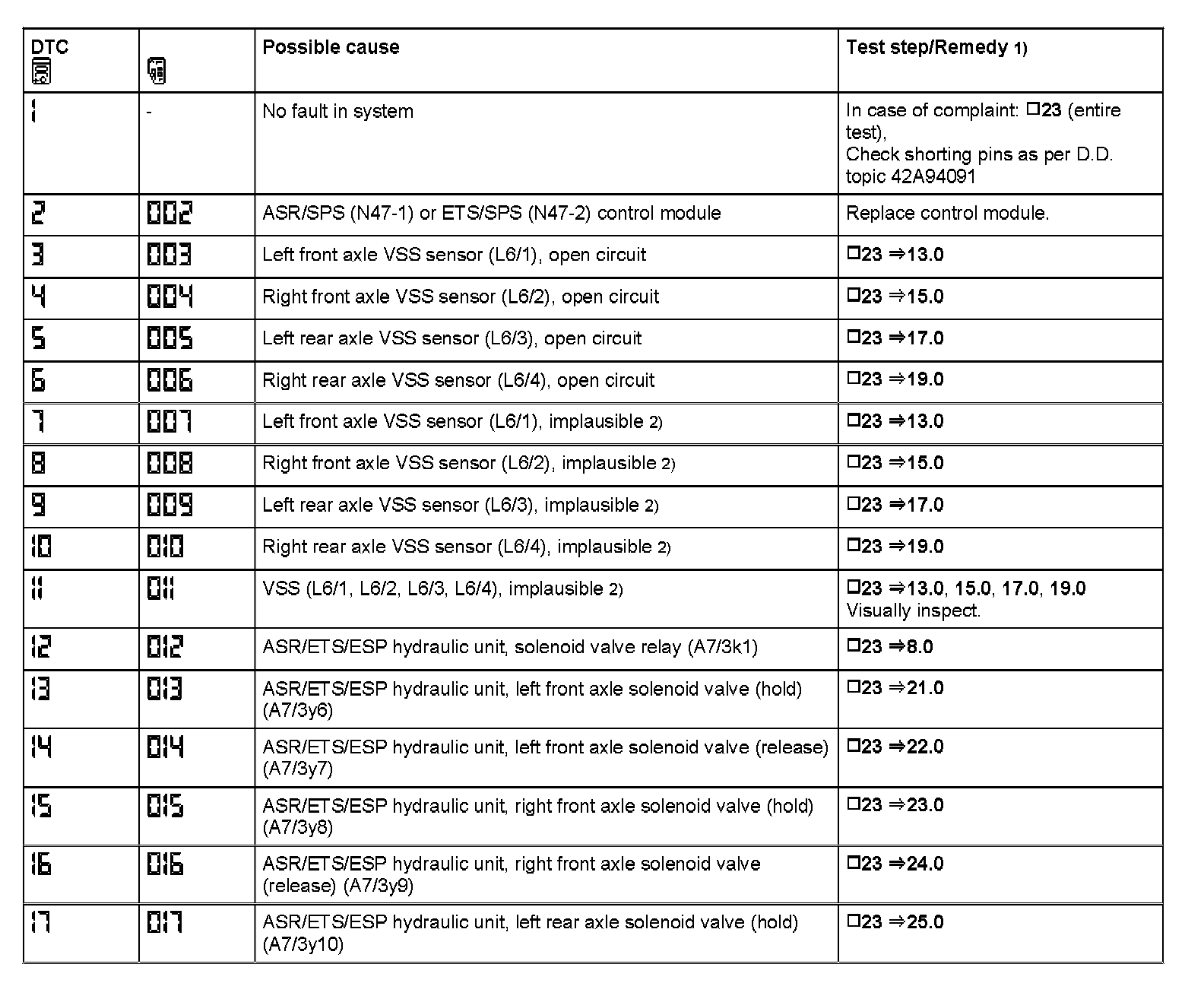

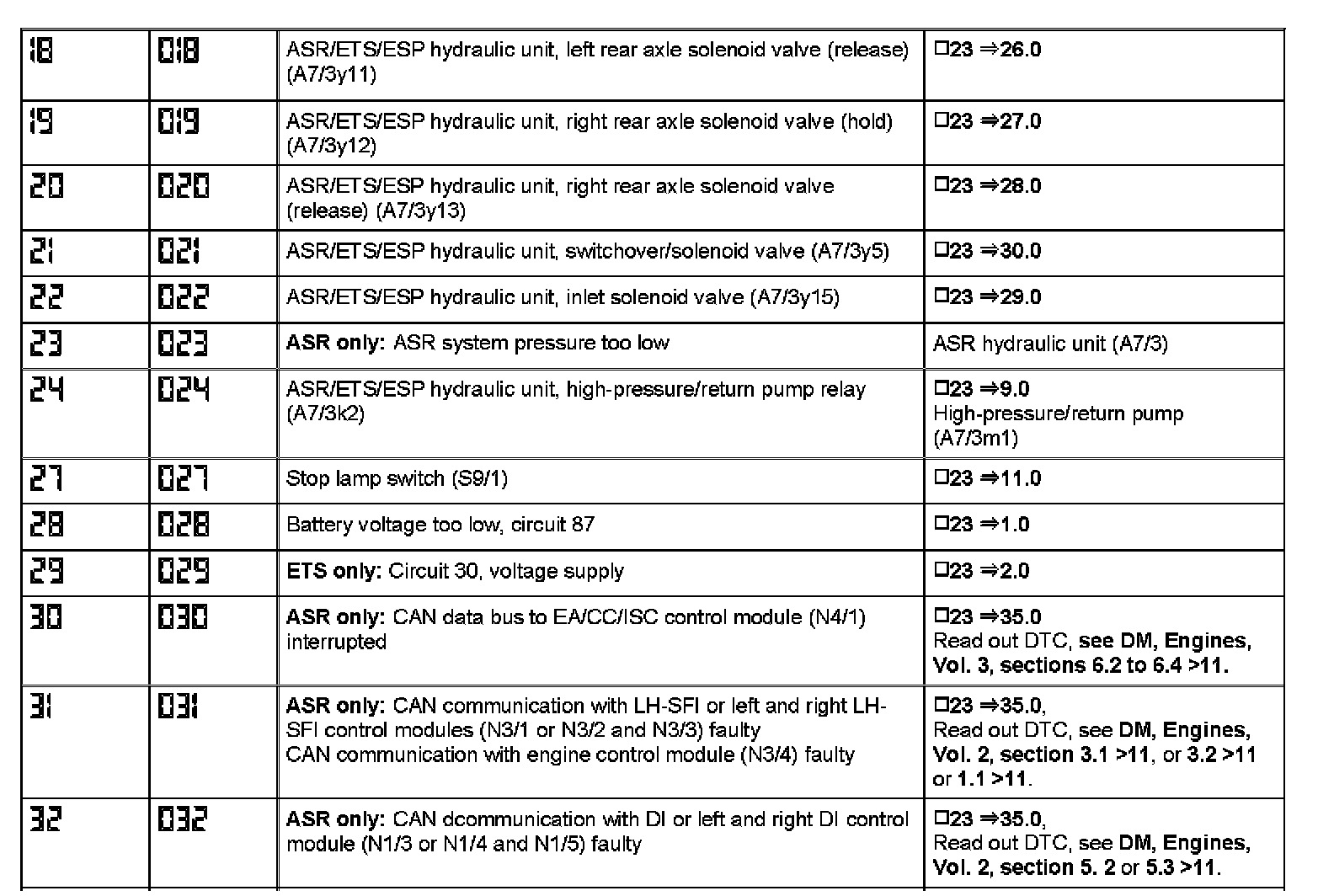

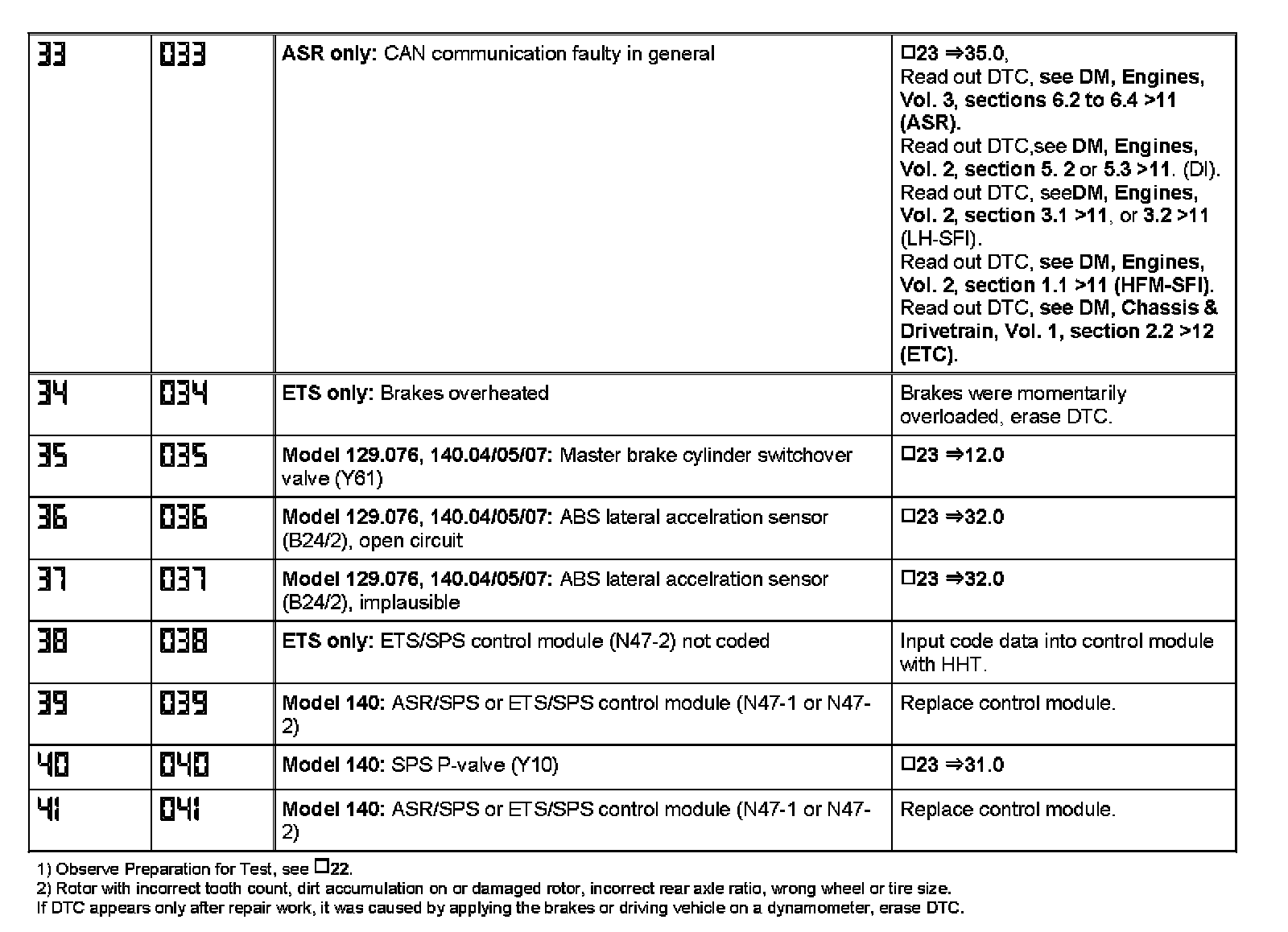

3. Read out DTC memory for control modules.

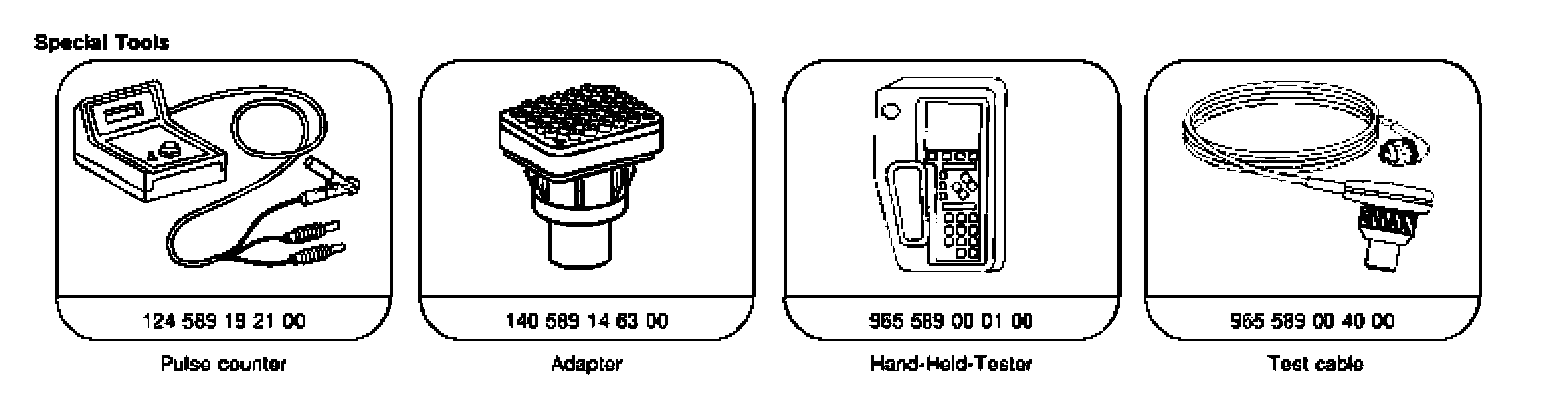

Special Tools:
