Anti-Lock Brake System (ABS) (DTC Memory [11])
Anti-Lock Brake System (ABS)
Models 124.034, 129 (HFM-SFI Only), 140
Preparation for DTC Readout
1. Connect impulse counter scan tool or Hand-Held Tester to data link connector (X11/4) as shown in section 0.
Note:
Connect yellow wire from impulse counter scan tool as follows:
ABS control module (N30) socket 6
Base module (N16/1) socket 8
2. Ignition: ON.

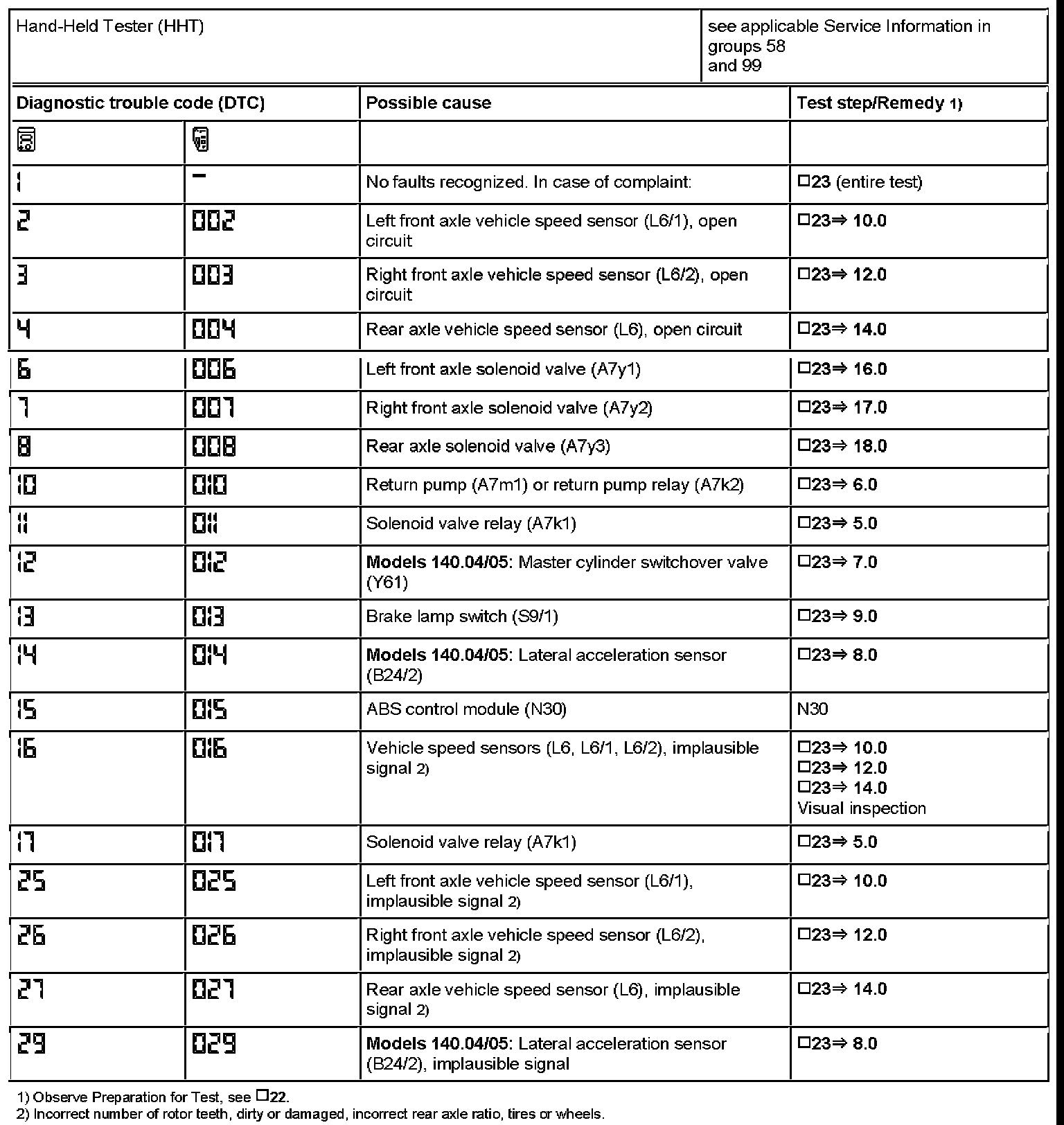

3. Read DTC memory of ABS control module (N30), and base module (N16/dule (N16/1).

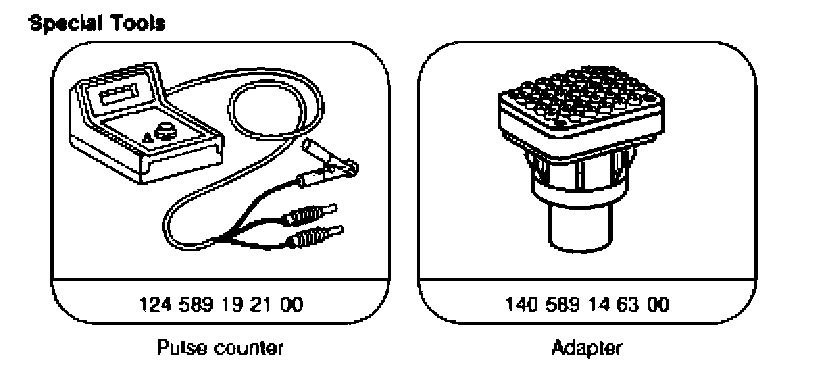

Special Tools:
