Accelerator Slip Regulation (ASR) (DTC Memory [12])
Accelerator Slip Regulation (ASR)
Model 124.034/036, 129.063/067/076, 140
Preparation for DTC Readout
1. Connect impulse counter scan tool or Hand-Held Tester (HHT) to data link connector (X11/4) according to connection diagram (see section 0).
Note:
Connect yellow wire from impulse counter scan tool to:
ABS/ASR control module (N30/1) socket 6
BM (N16/1) socket 8
SPS control module (N49/1) socket 12
ADS control module (N51) socket 11
TCM (N15/1) socket 10
EA/CC/ISC control module (N4/1) socket 7
Engine (N3/4), LH-SFI (N3/1) or Right LH-SFI control module (N3/3) socket 4
Left LH-SFI control module (N3/2) socket 5
DI (N1/3) or Right DI control module (N1/5) socket 17
Left DI control module (N1/4) socket 18
2. Ignition: ON

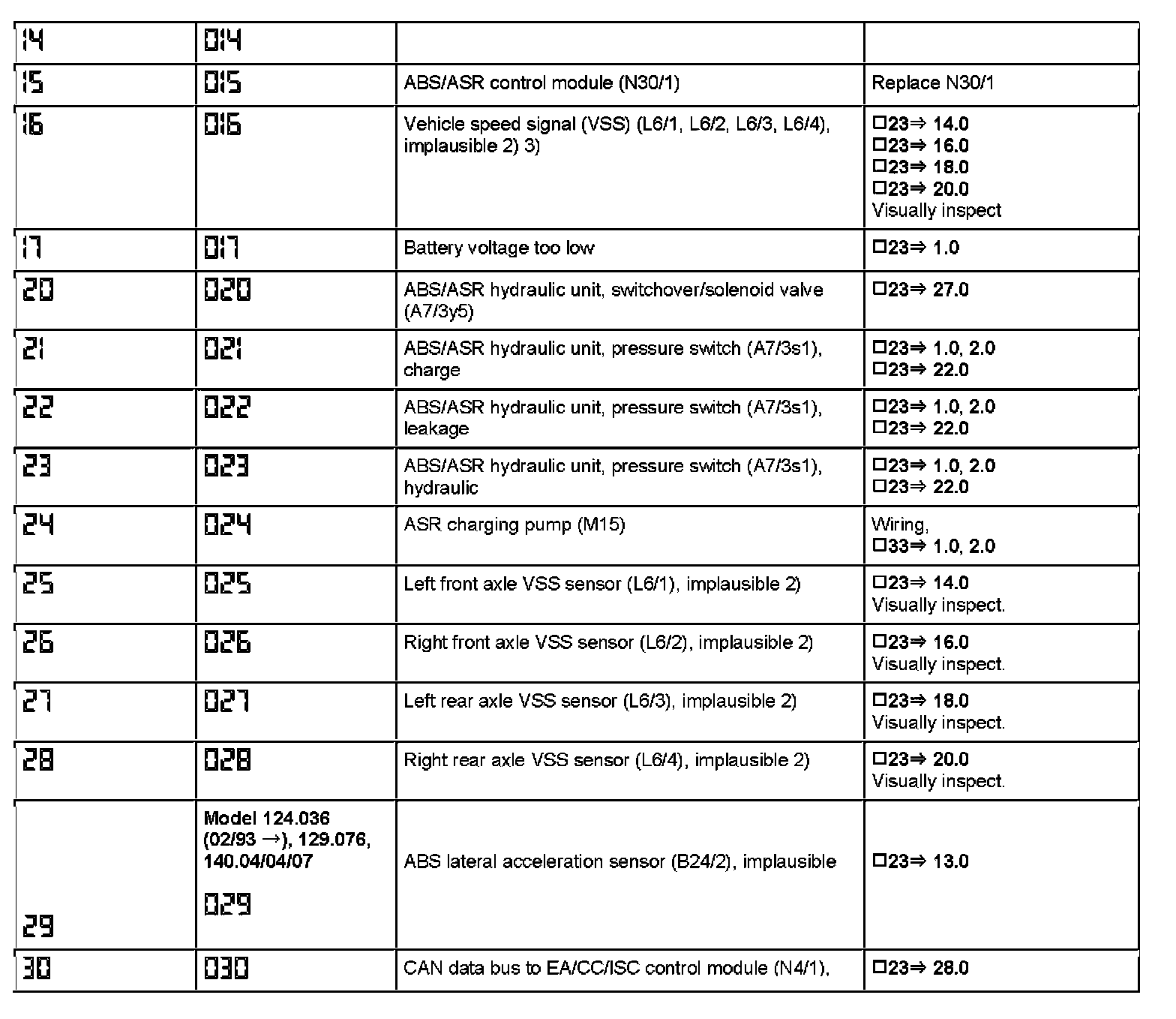

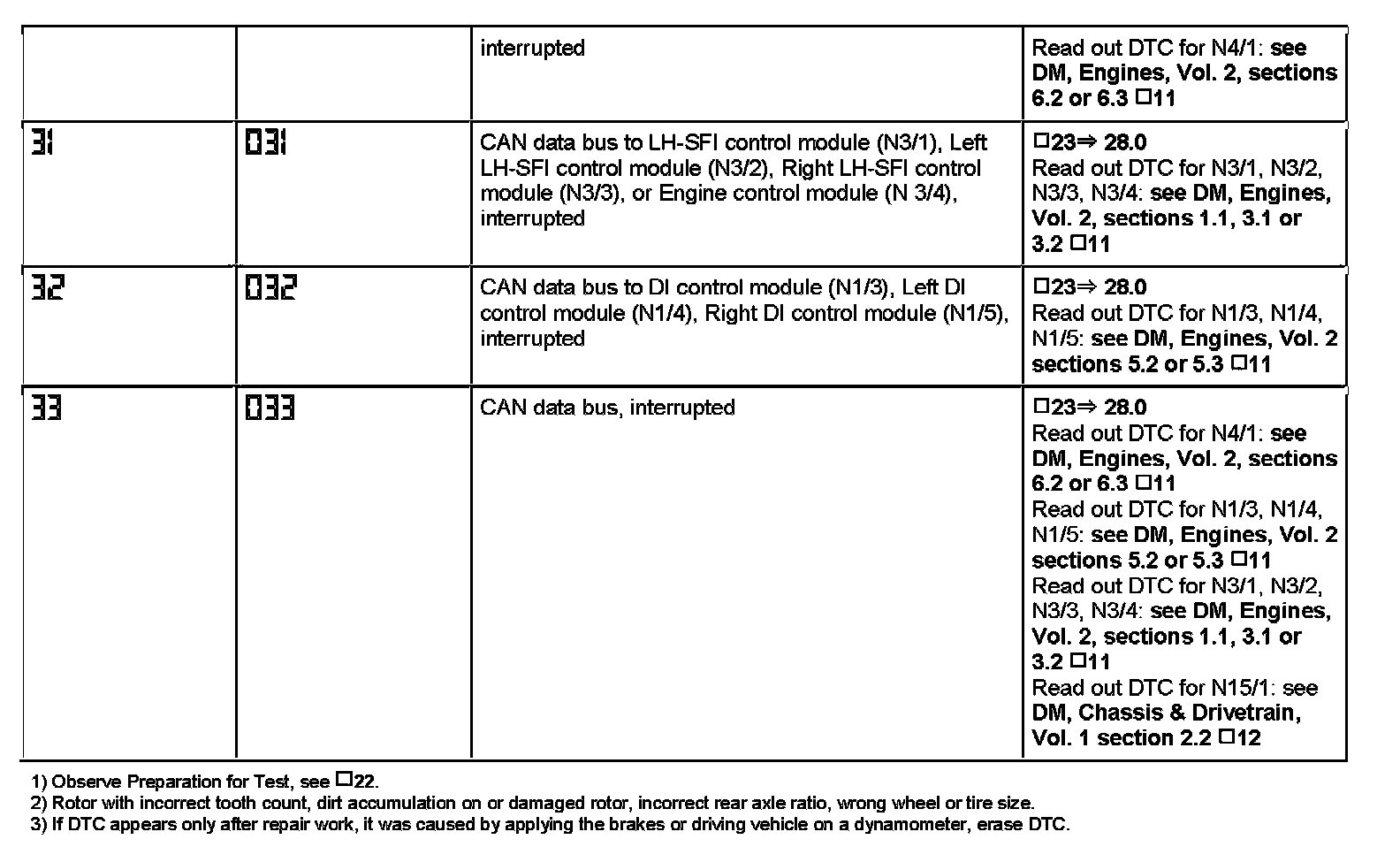

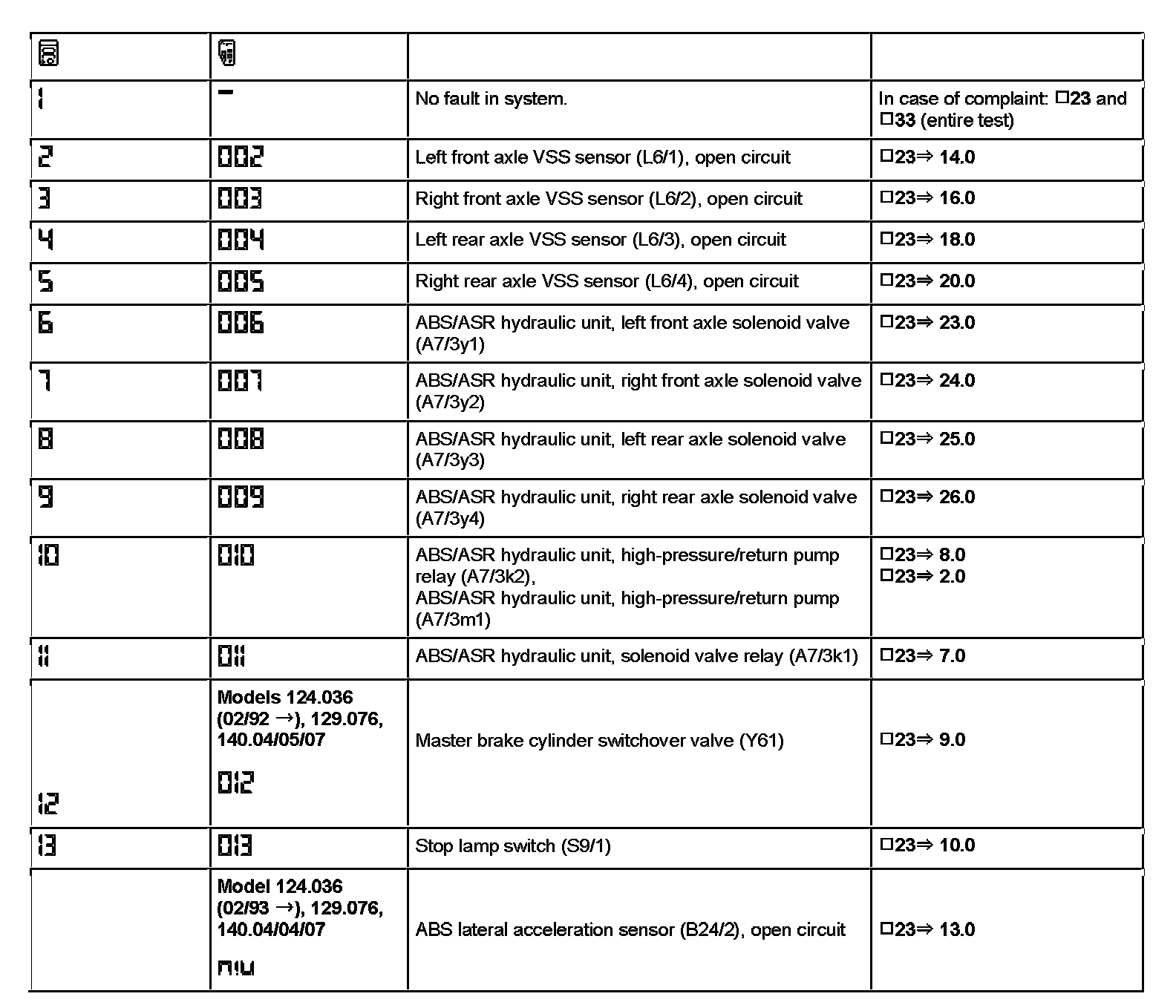

3. Read out DTC's for control modules listed.

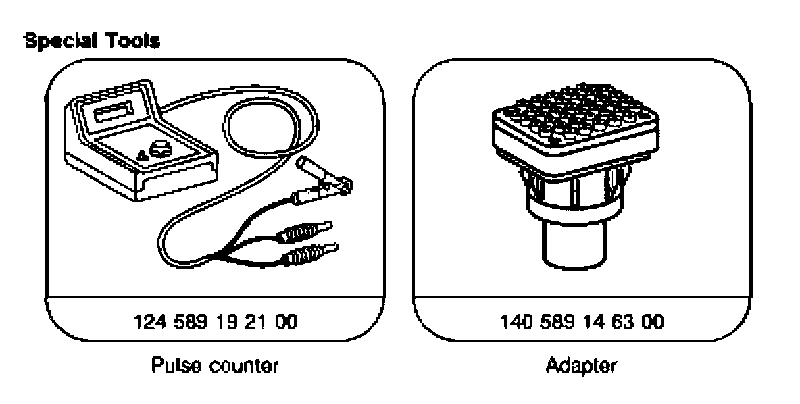

Special Tools:

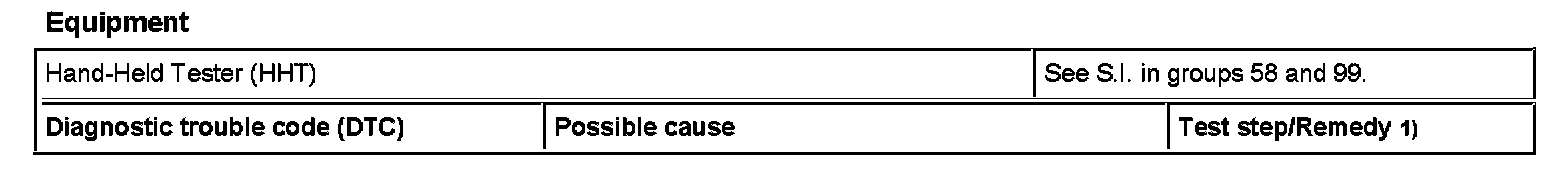

Equipment:
