Accelerator Slip Regulation (ASR)

Accelerator Slip Regulation (ASR)

Model 124.034/036, 129.063/067/076, 140

Electrical Test Program - Preparation for Test

1. Ignition: OFF
2. Disconnect ABS/ASR control module (N30/1).
3.Connect socket box (050) with contact module 2 (072) and contact box (070) according to connection diagram.

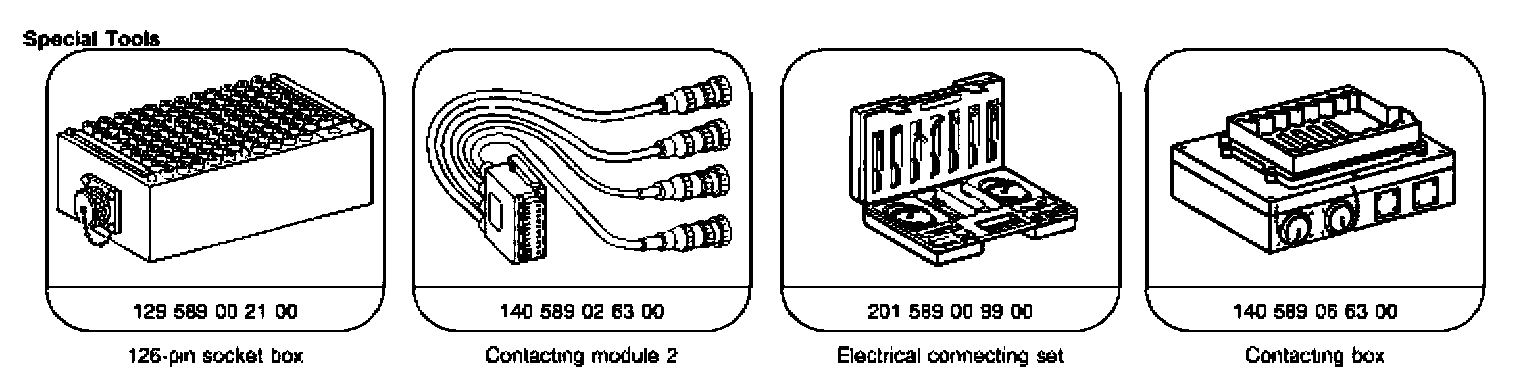

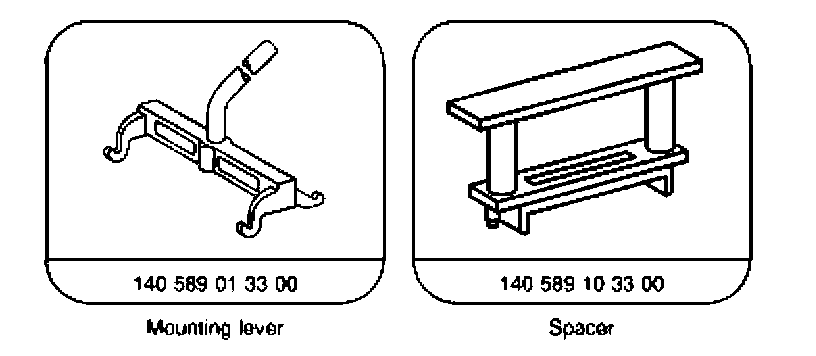

Special Tools:

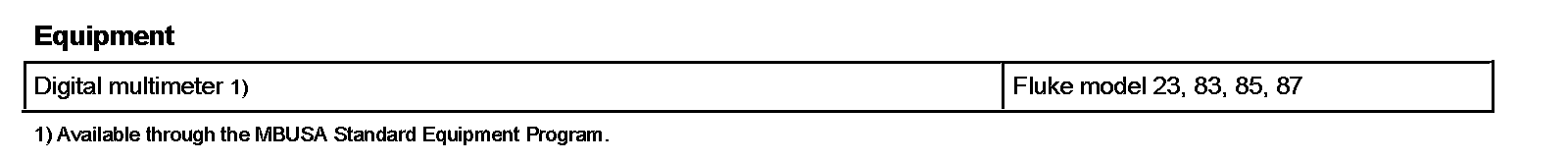

Equipment:

Connection Diagram - Model 124:

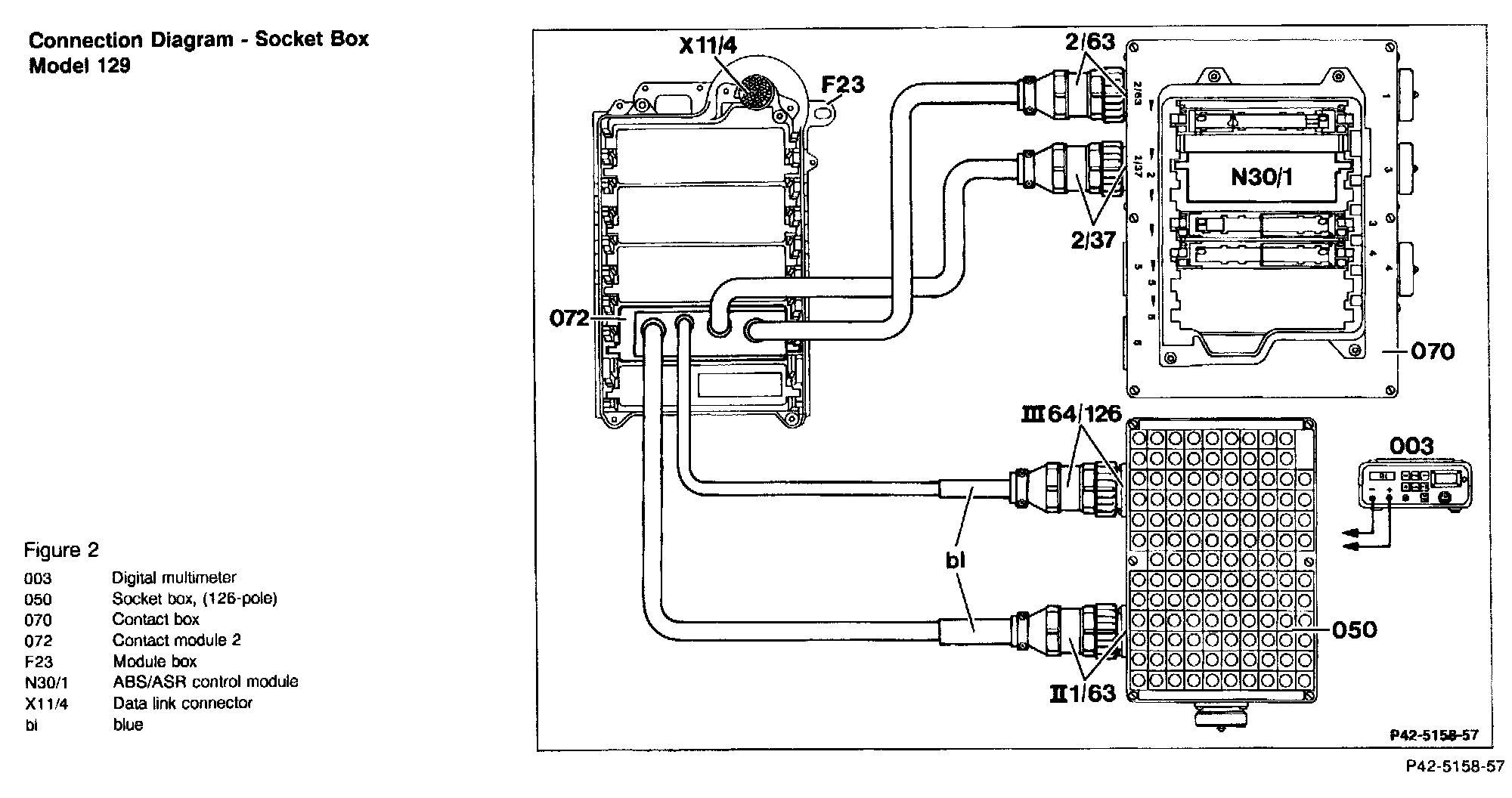

Connection Diagram - Model 129:

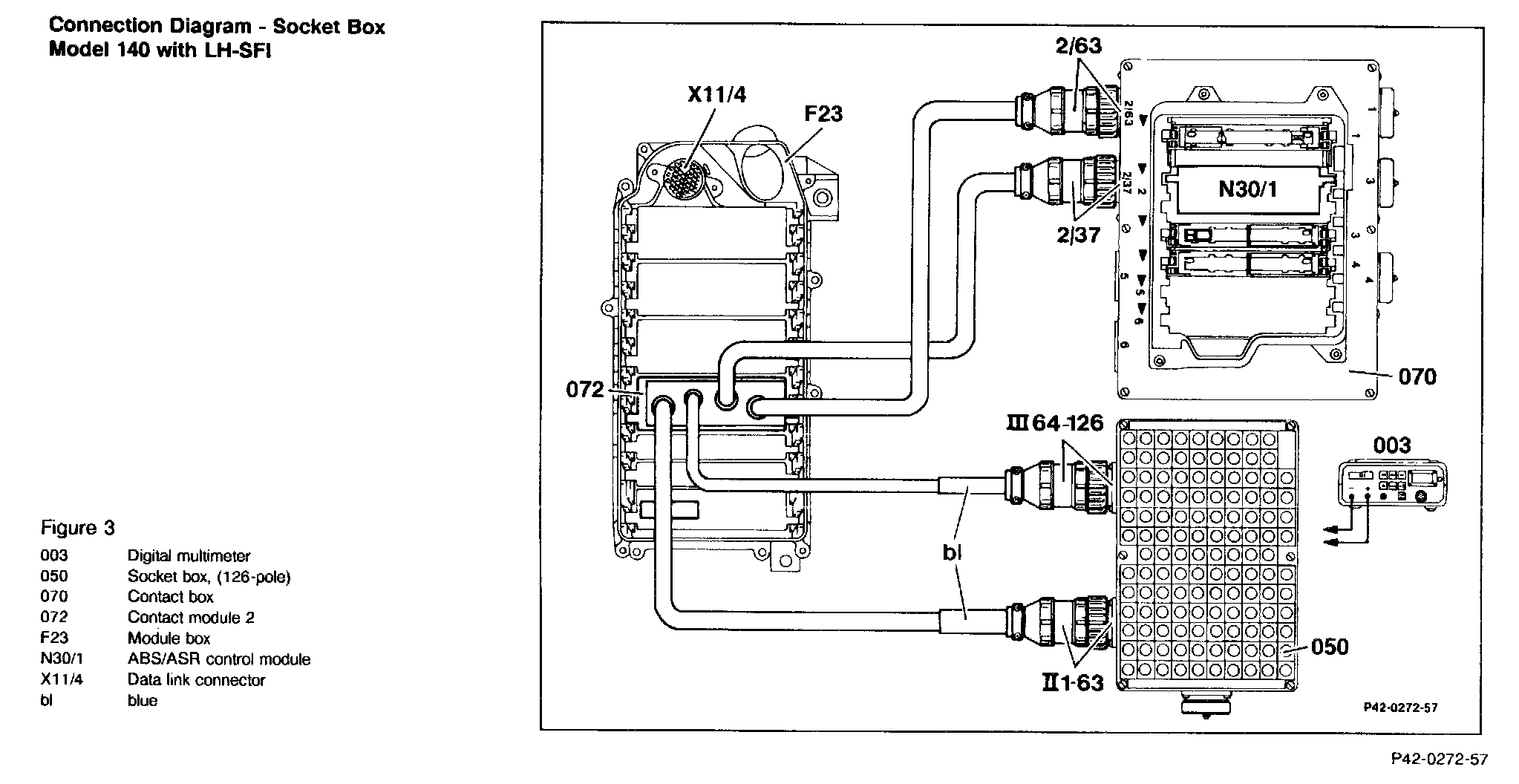

Connection Diagram - Model 140 With LH-SFI:

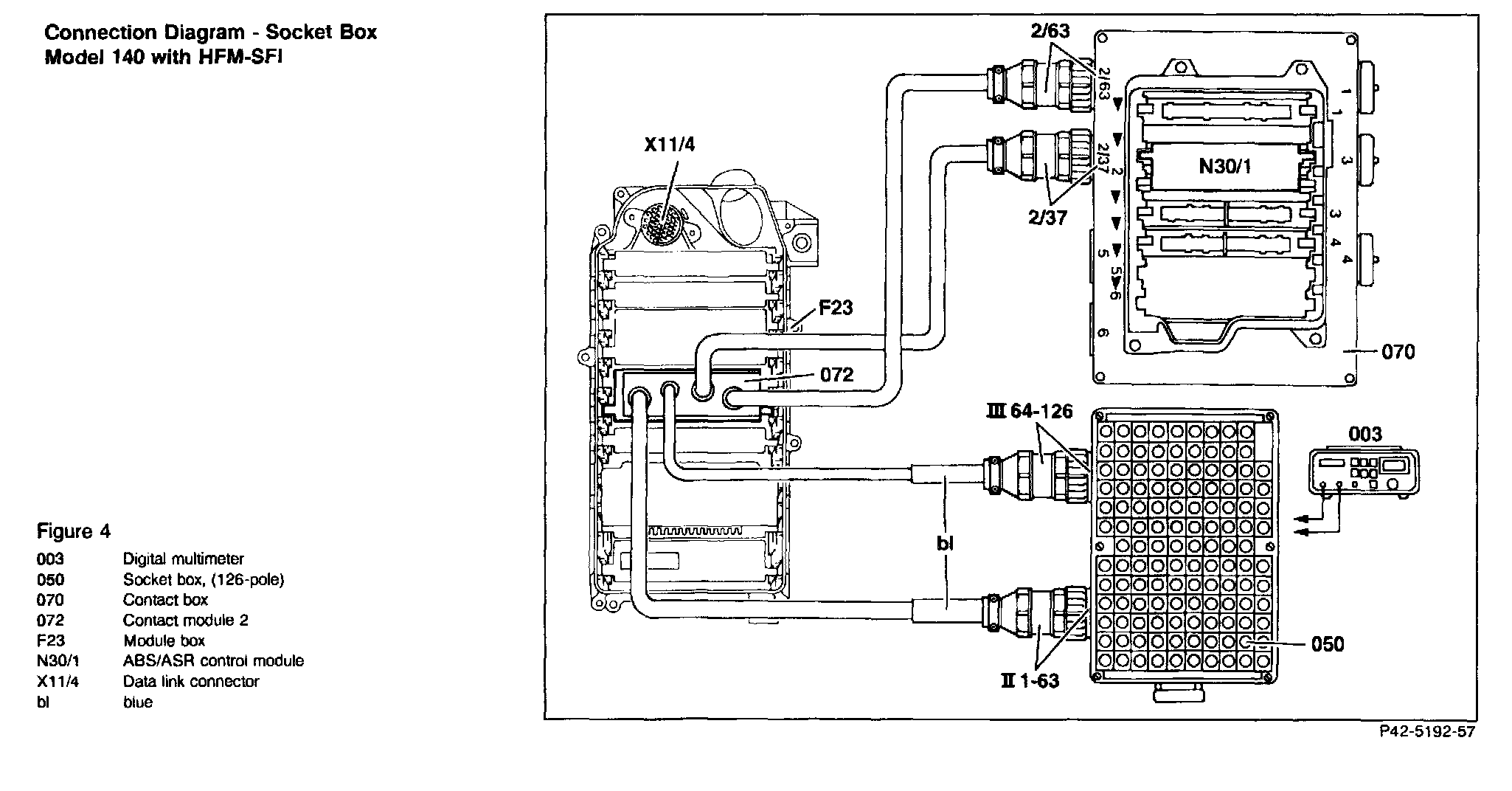

-��$Connection Diagram - Model 140 With HFM-SFI:
