ETP - Figures [23]
>>
Anti-Lock Brake System (ABS)
Anti-Lock Brake System (ABS)
Anti-Lock Brake System (ABS)
Models 124.034, 129 (HFM-SFI Only), 140

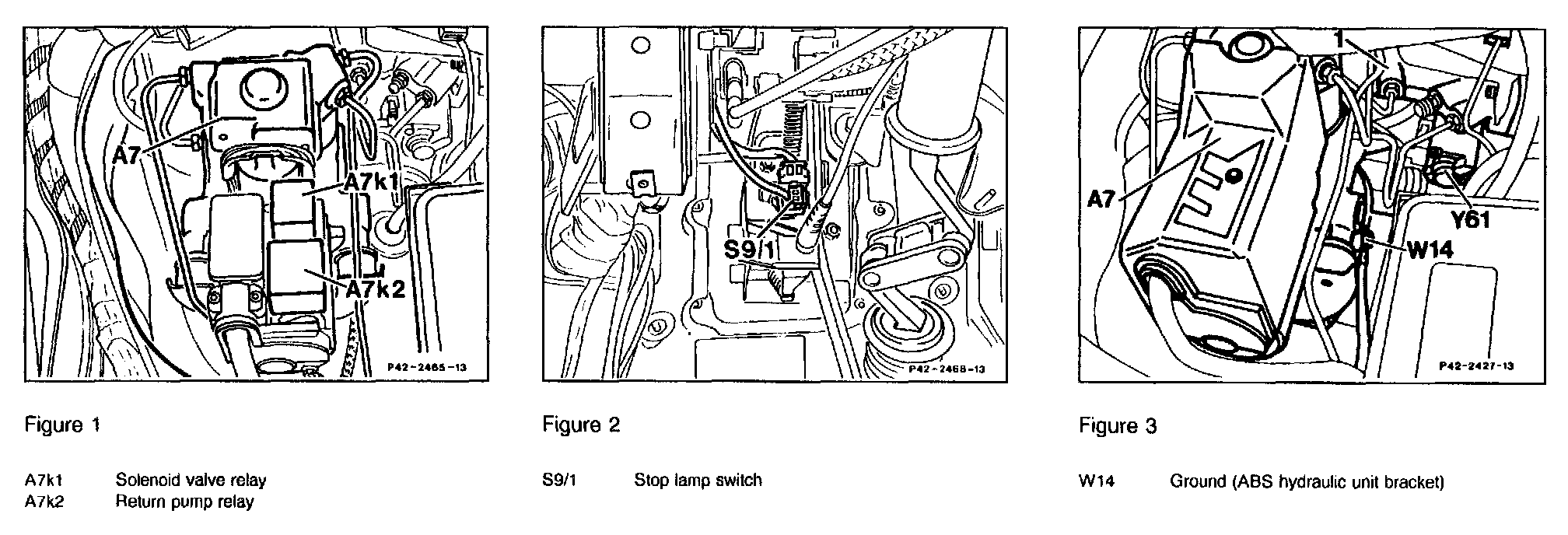

Figures 1-3:

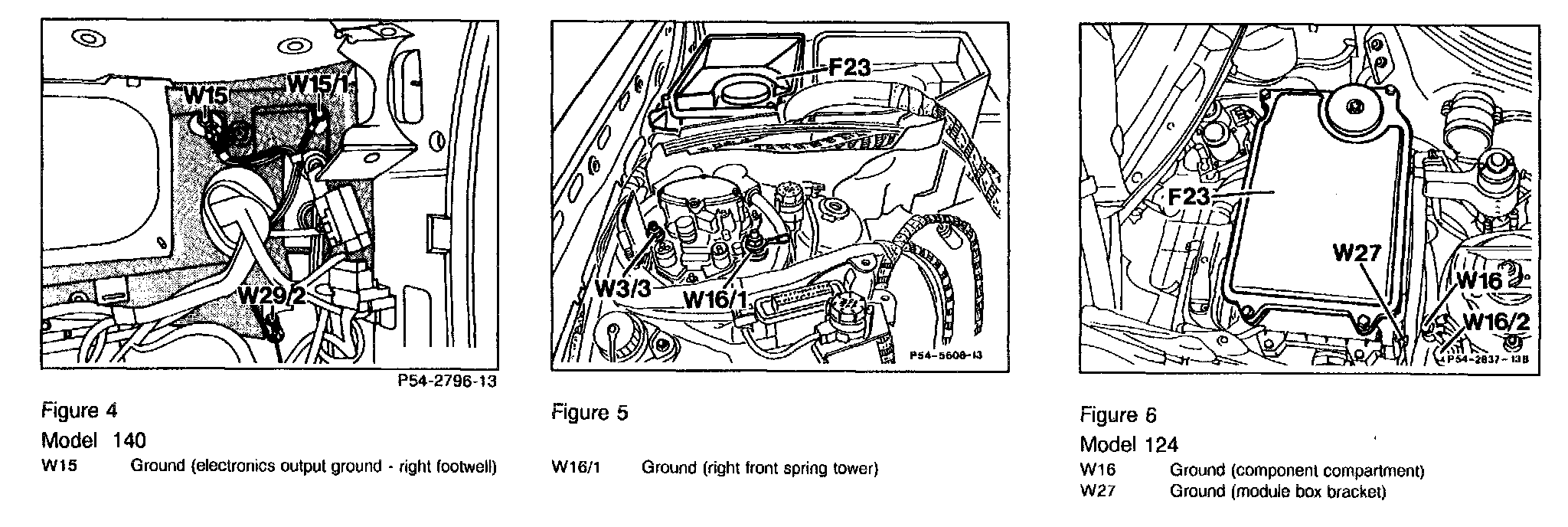

Figures 4-6:

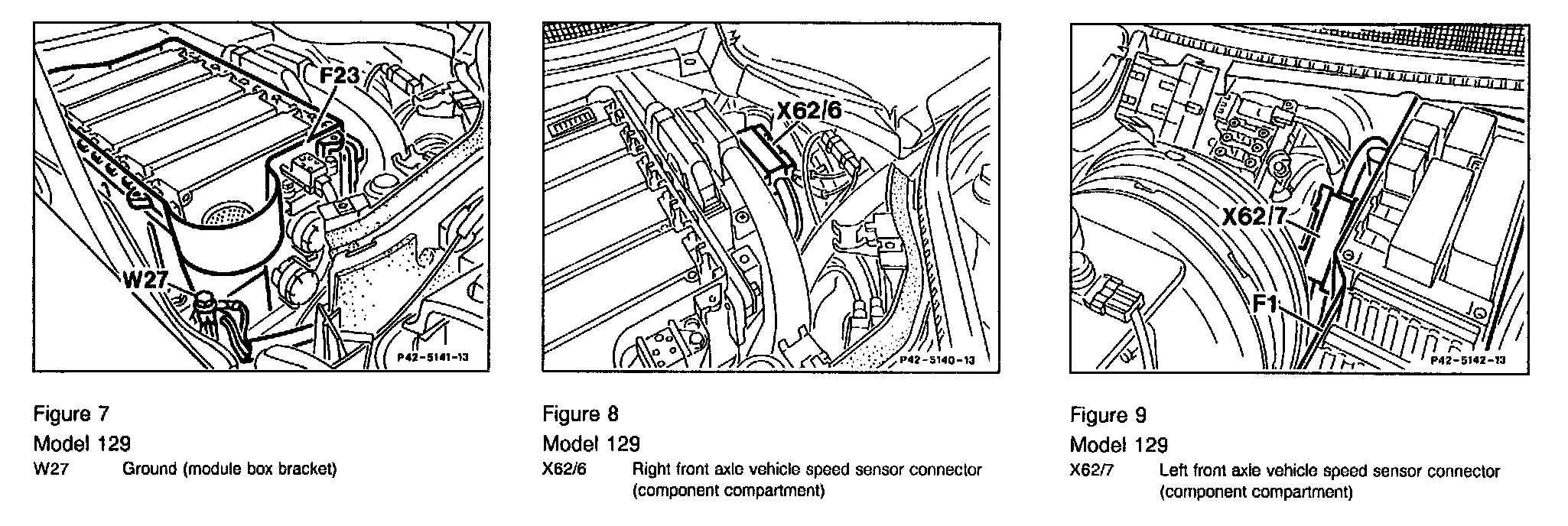

���$Figures 7-9:

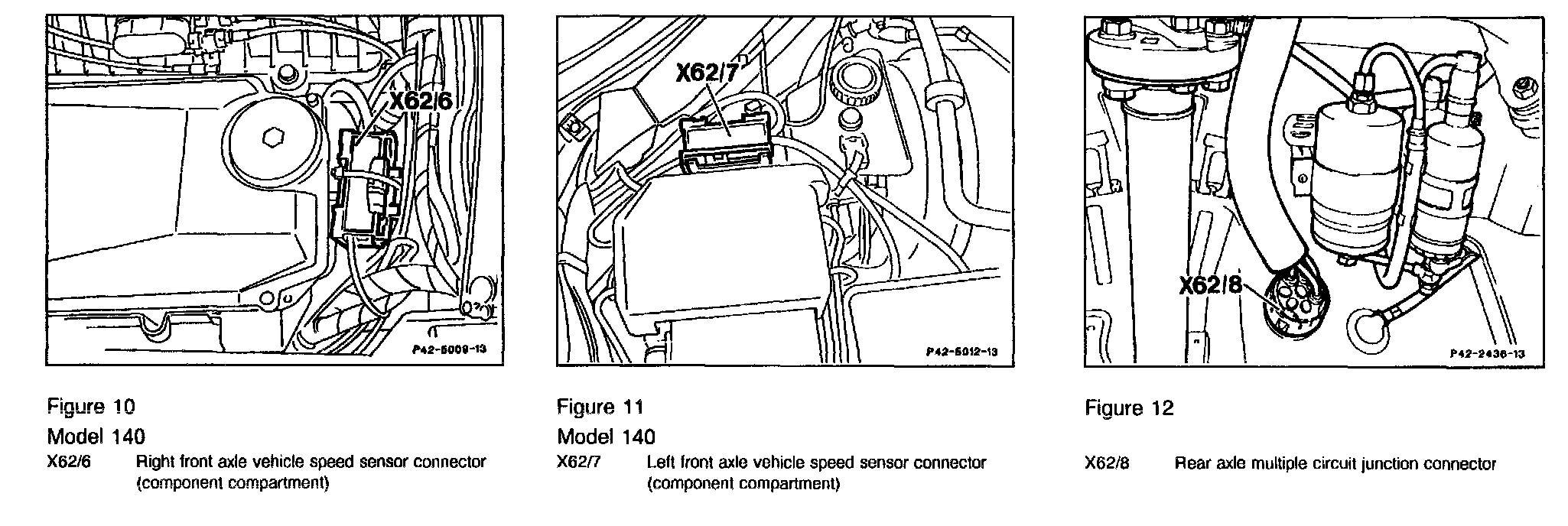

Figures 10-12:
