Vario Roof PE77.39-U-2000YB (As of 01/94)

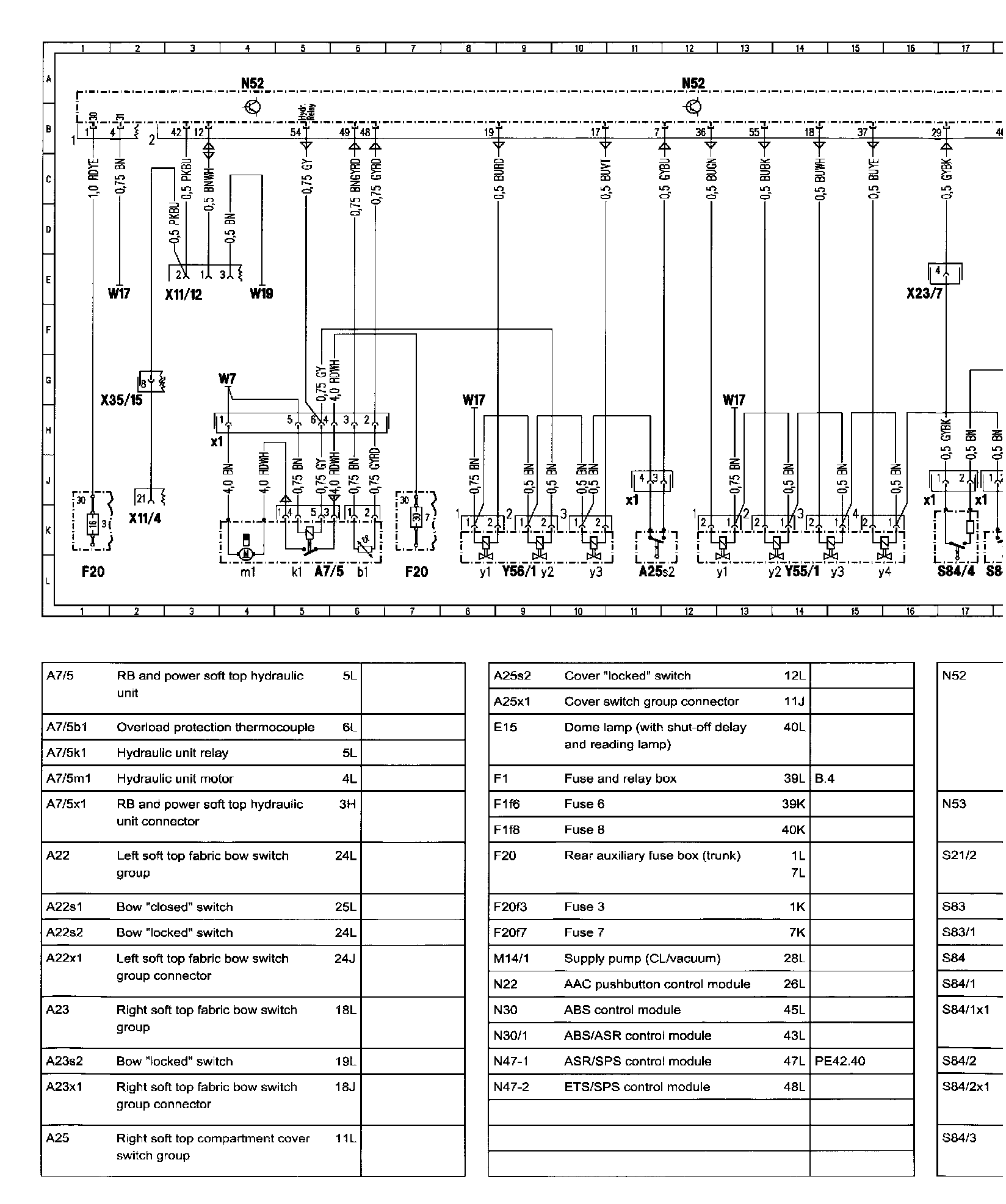

Wiring Diagram
;jH��jH�jHPE77.39-U-2000YB:

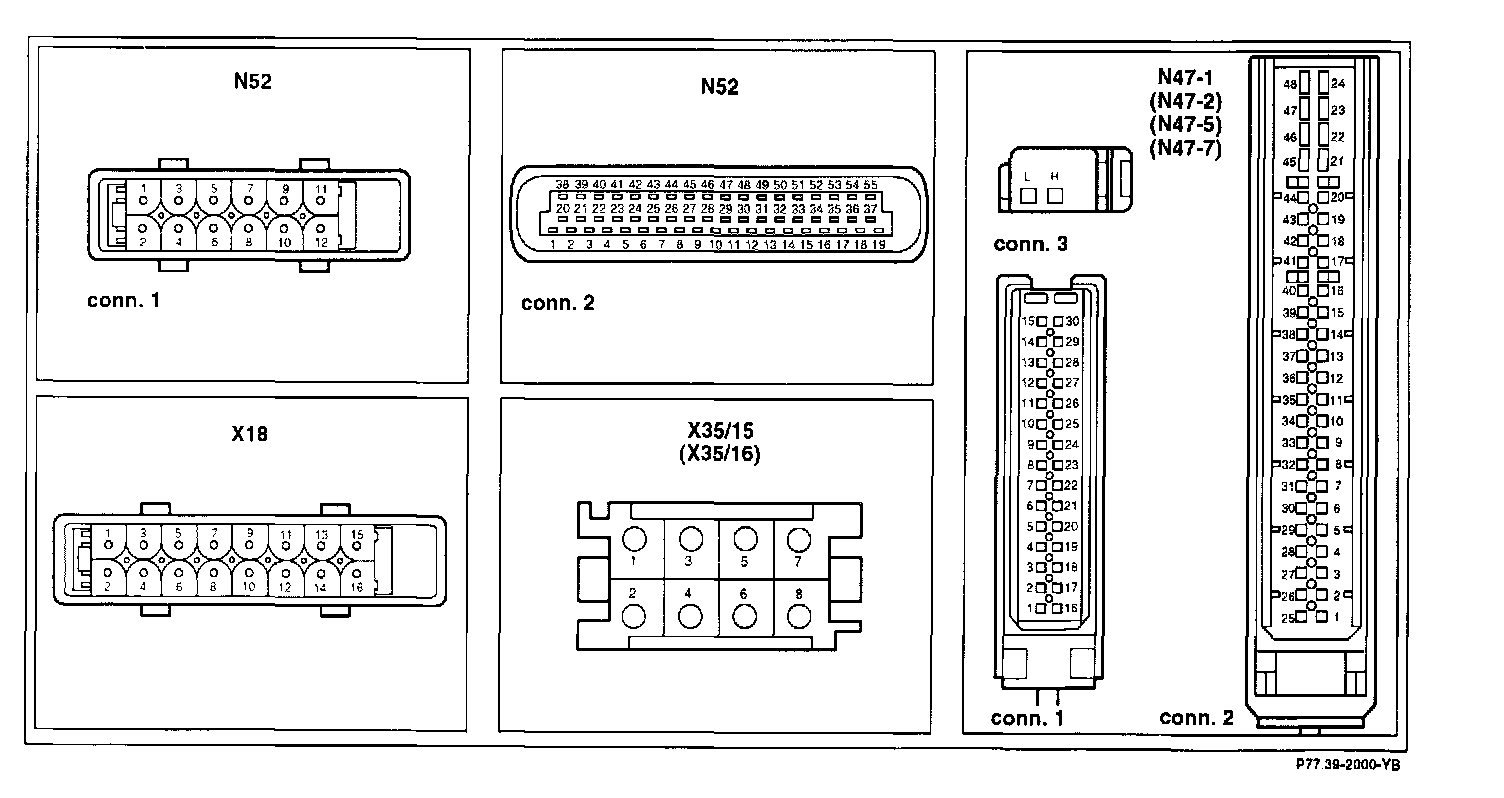

Connector Assignment:

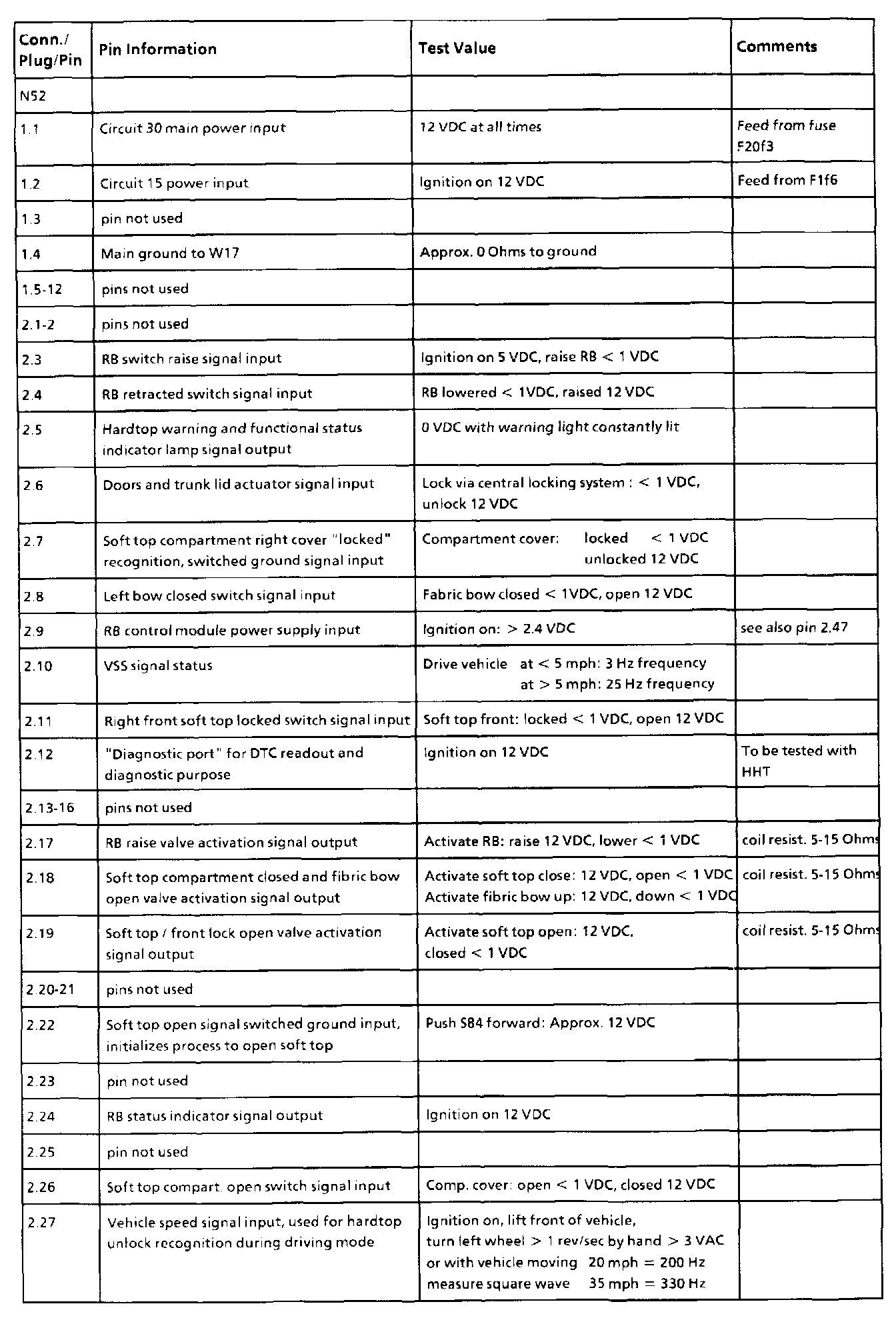

Pin Information, Part 1:

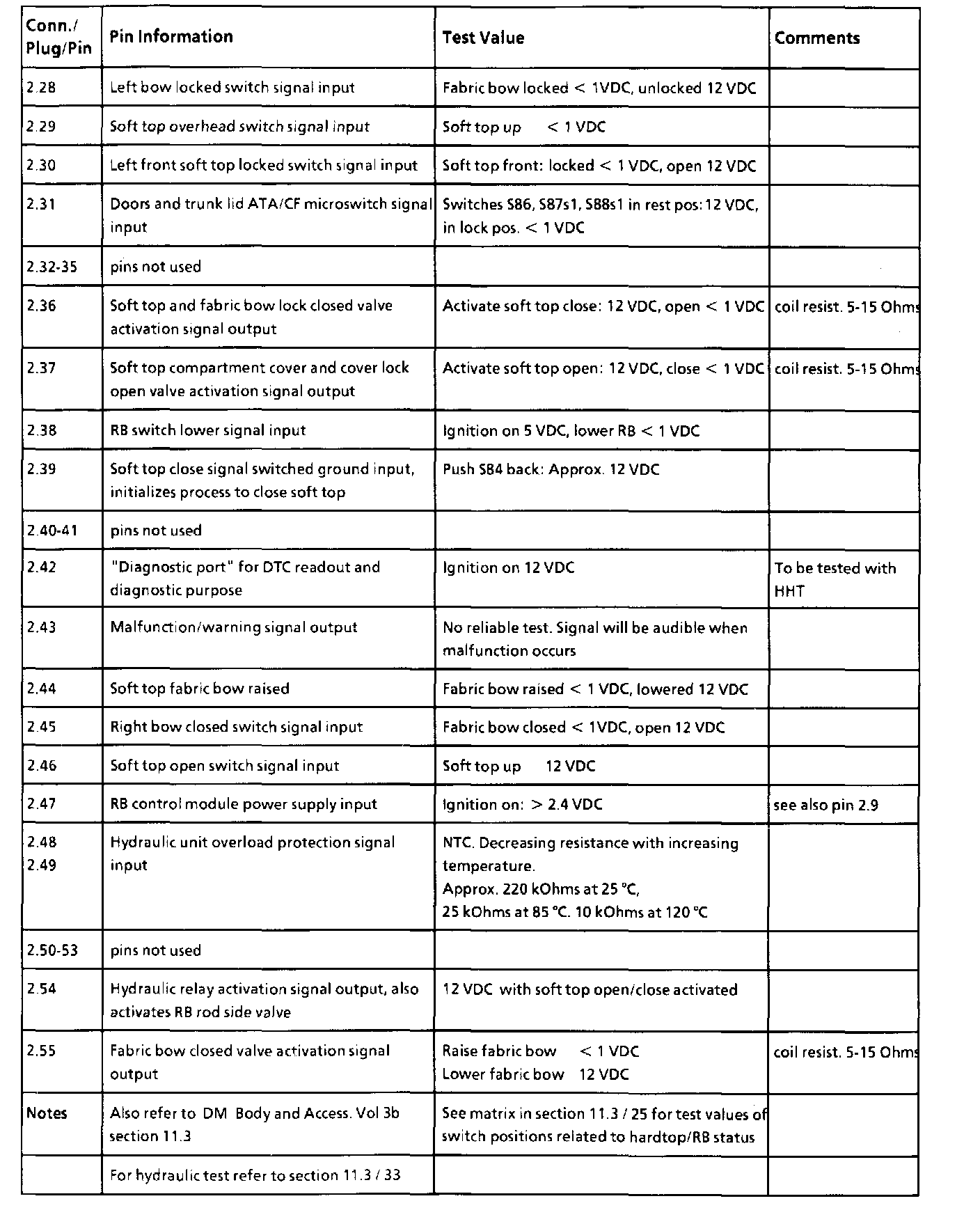

Pin Information, Part 2:
All values measure to ground unless otherwise noted.
Wiring Diagram
All values measure to ground unless otherwise noted.
