Vario Roof PE77.39-U-2000YA (Up to 12/93)

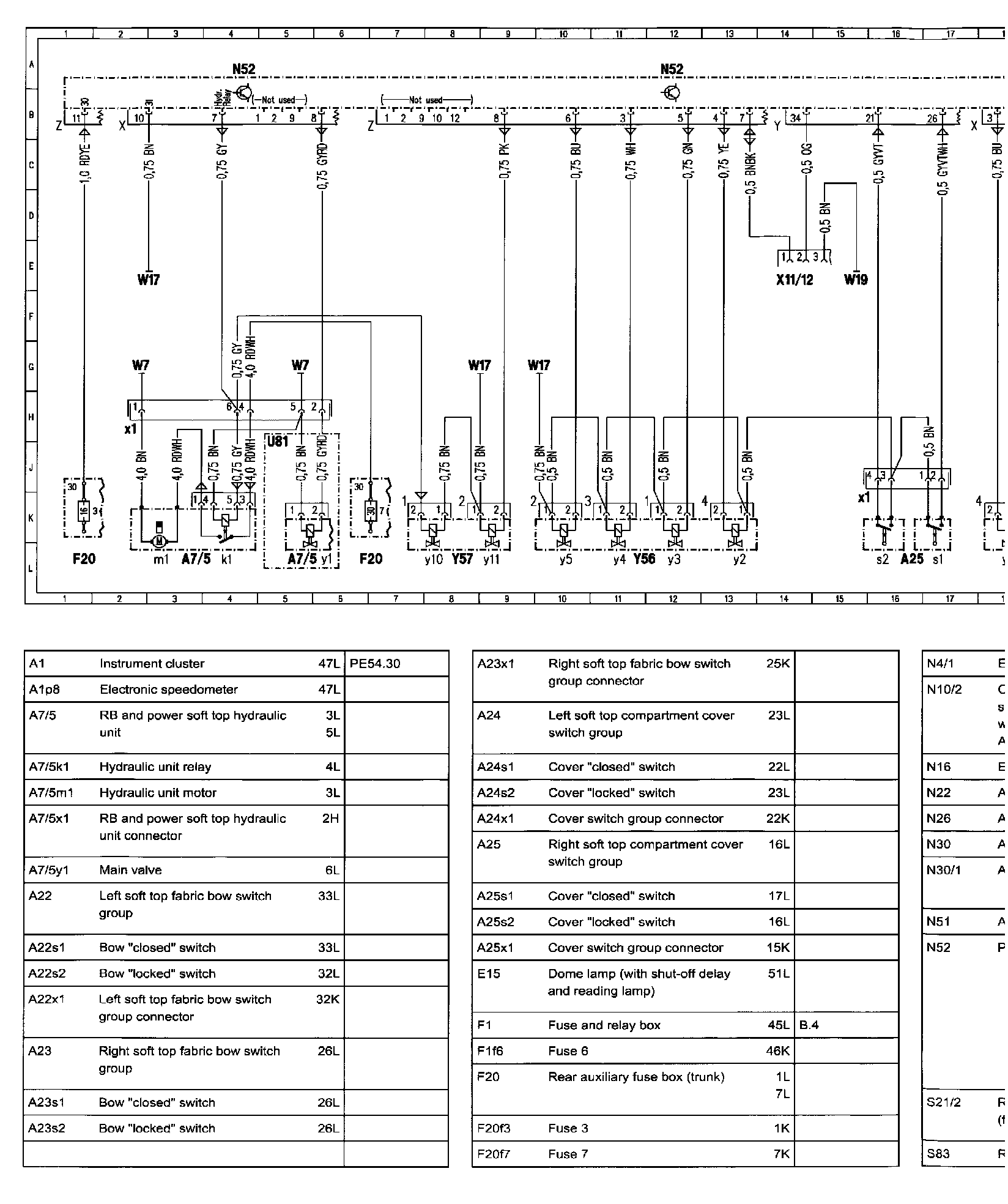

Wiring Diagram

:hHYshH��hHPE77.39-U-2000YA:

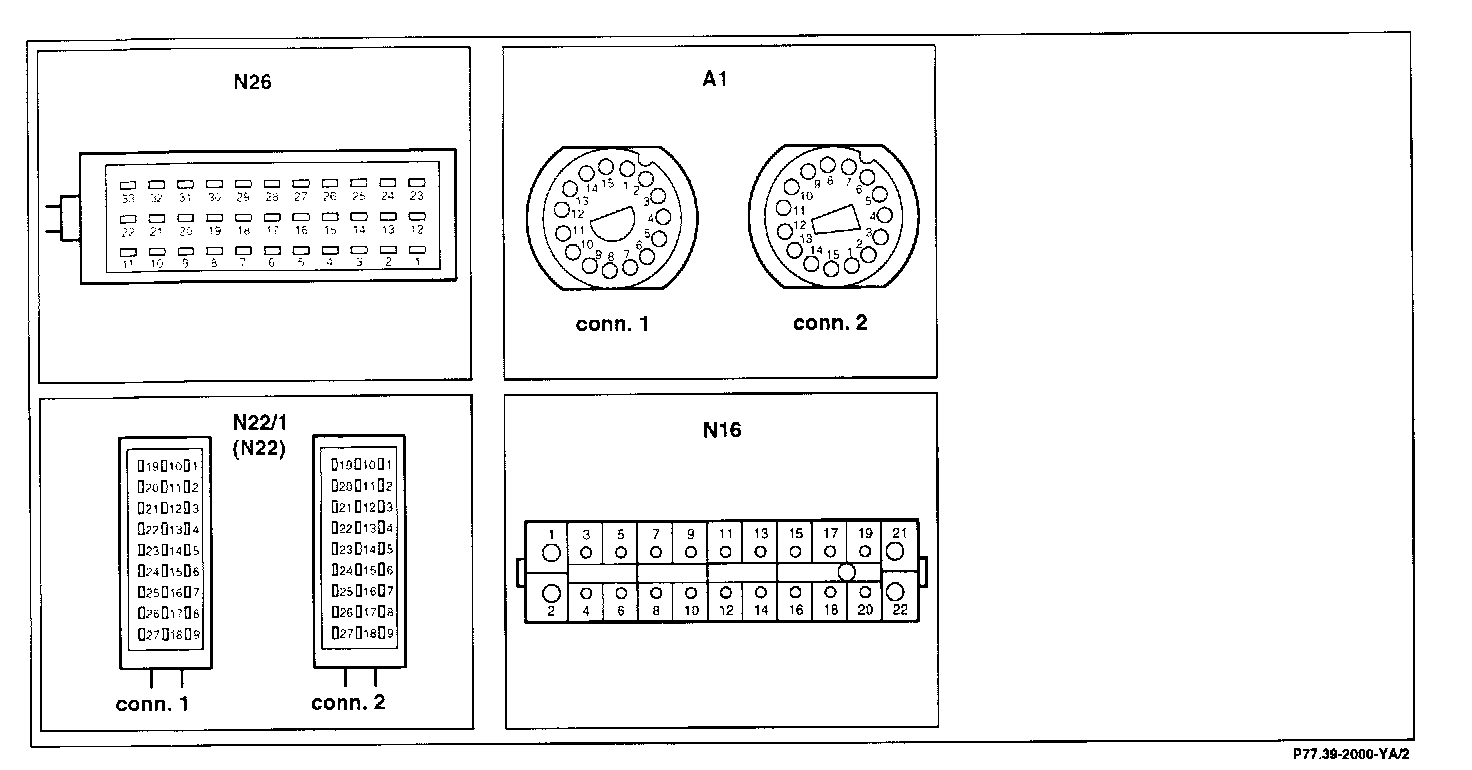

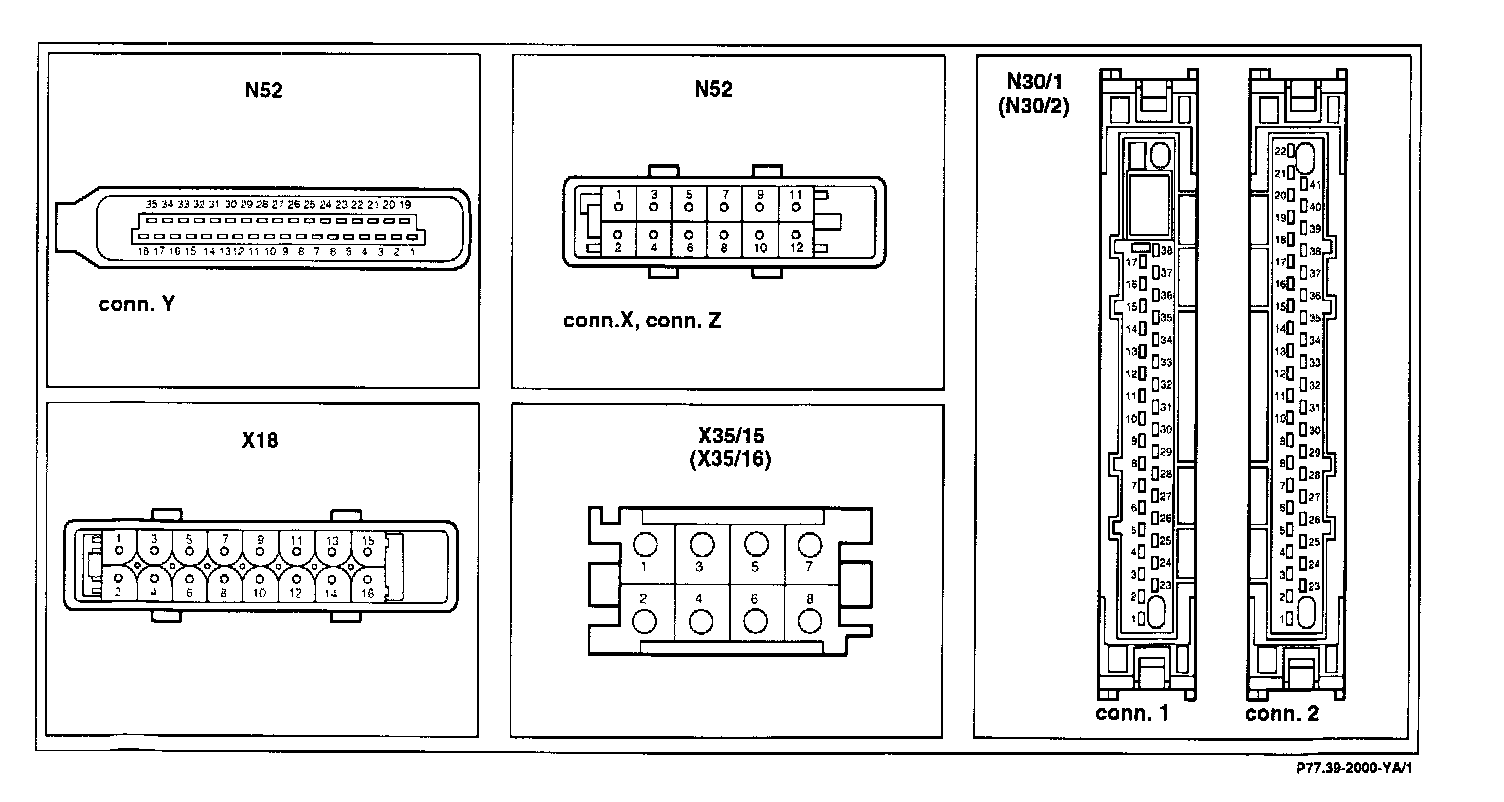

Connector Views

Connector Assignment:

Connector Assignment:

Pin Information

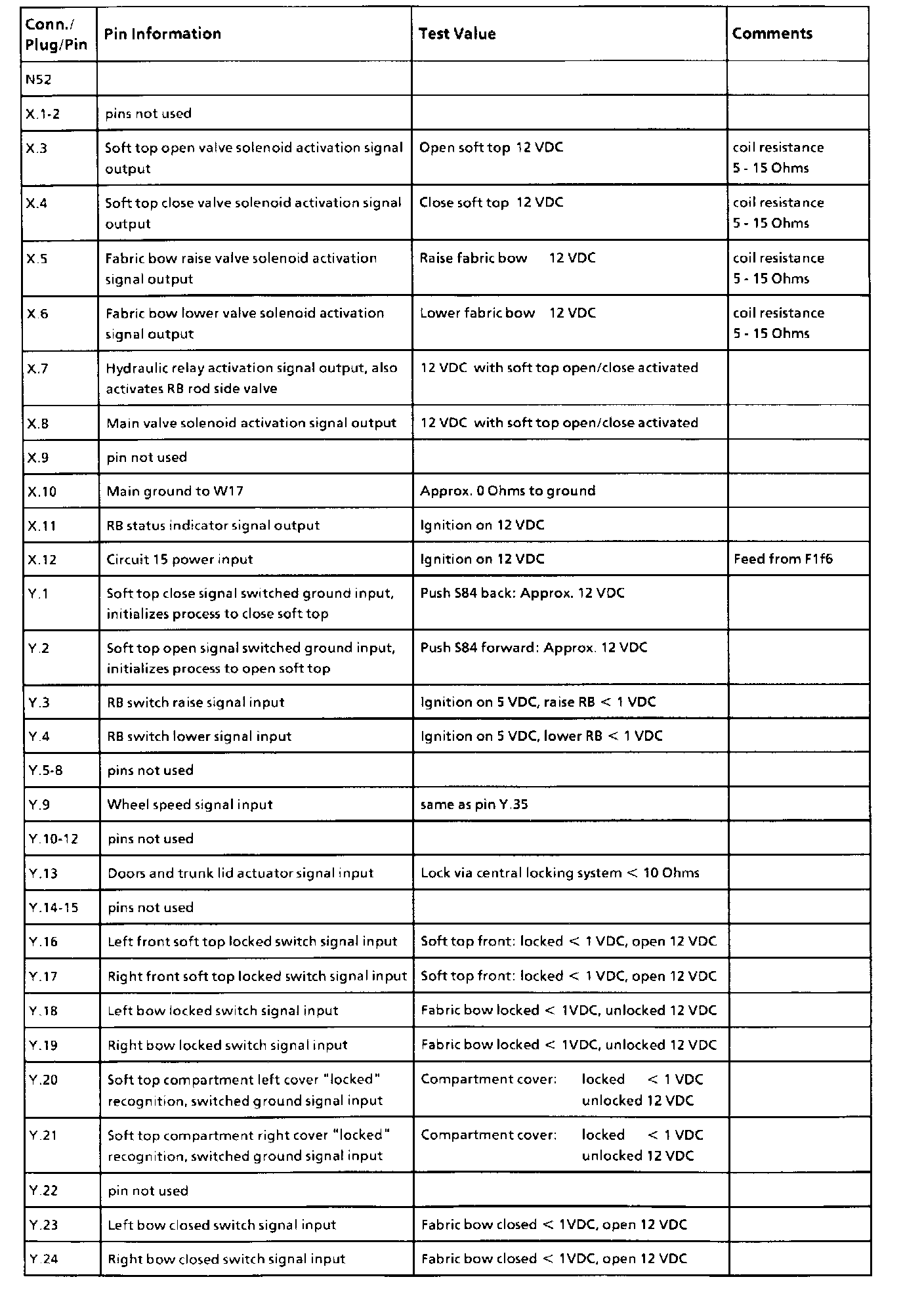

Pin Information, Part 1:

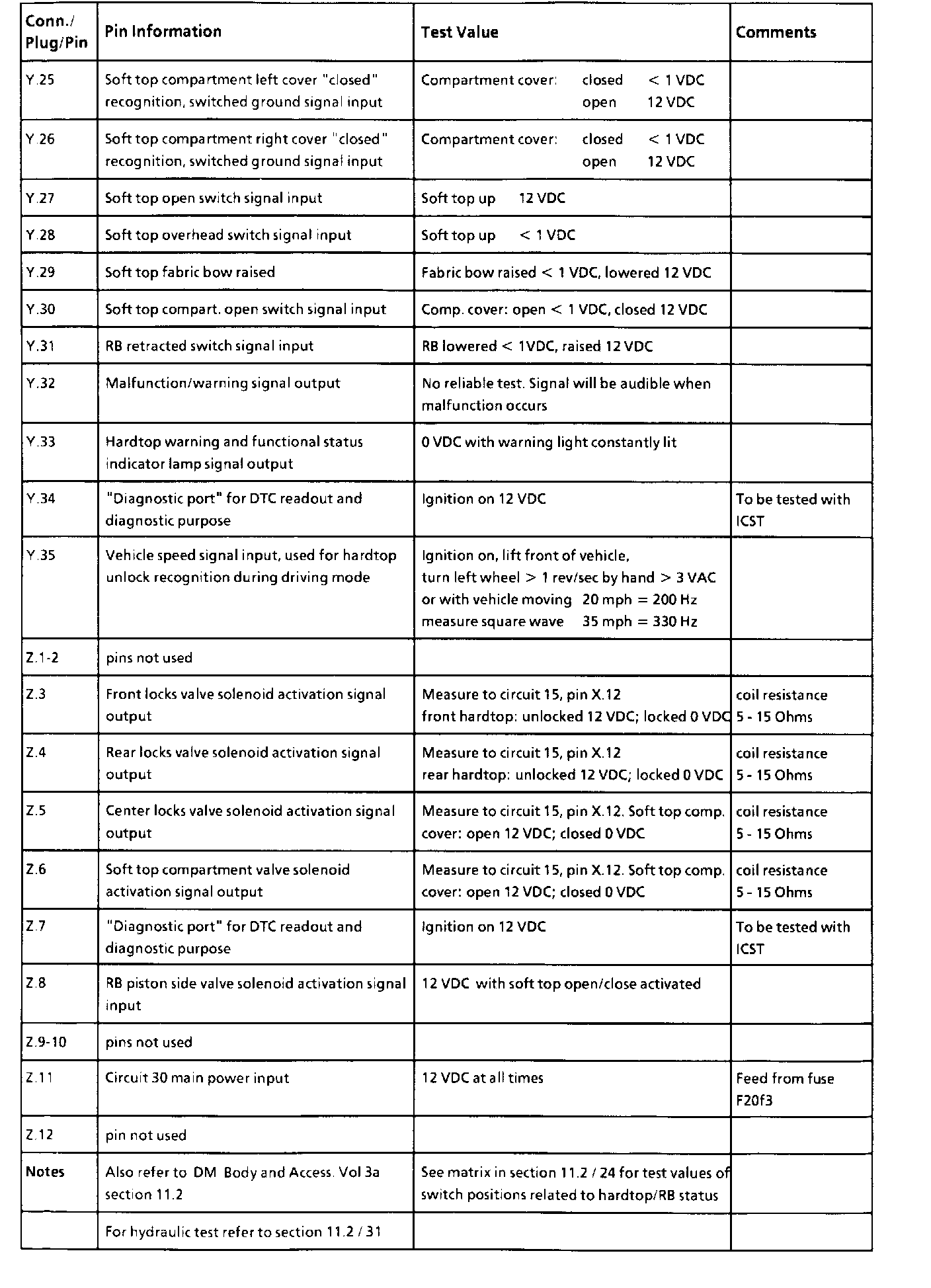

Pin Information, Part 2:

All values measure to ground unless otherwise noted.
