Mercedes Benz
>>
1994
>>
SL 320 (129.063) L6-3.2L (104.991)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Relays and Modules - Body and Frame
>>
Power Seat Control Module
>>
Locations
>>
With Memory
>>
Right Front
Right Front

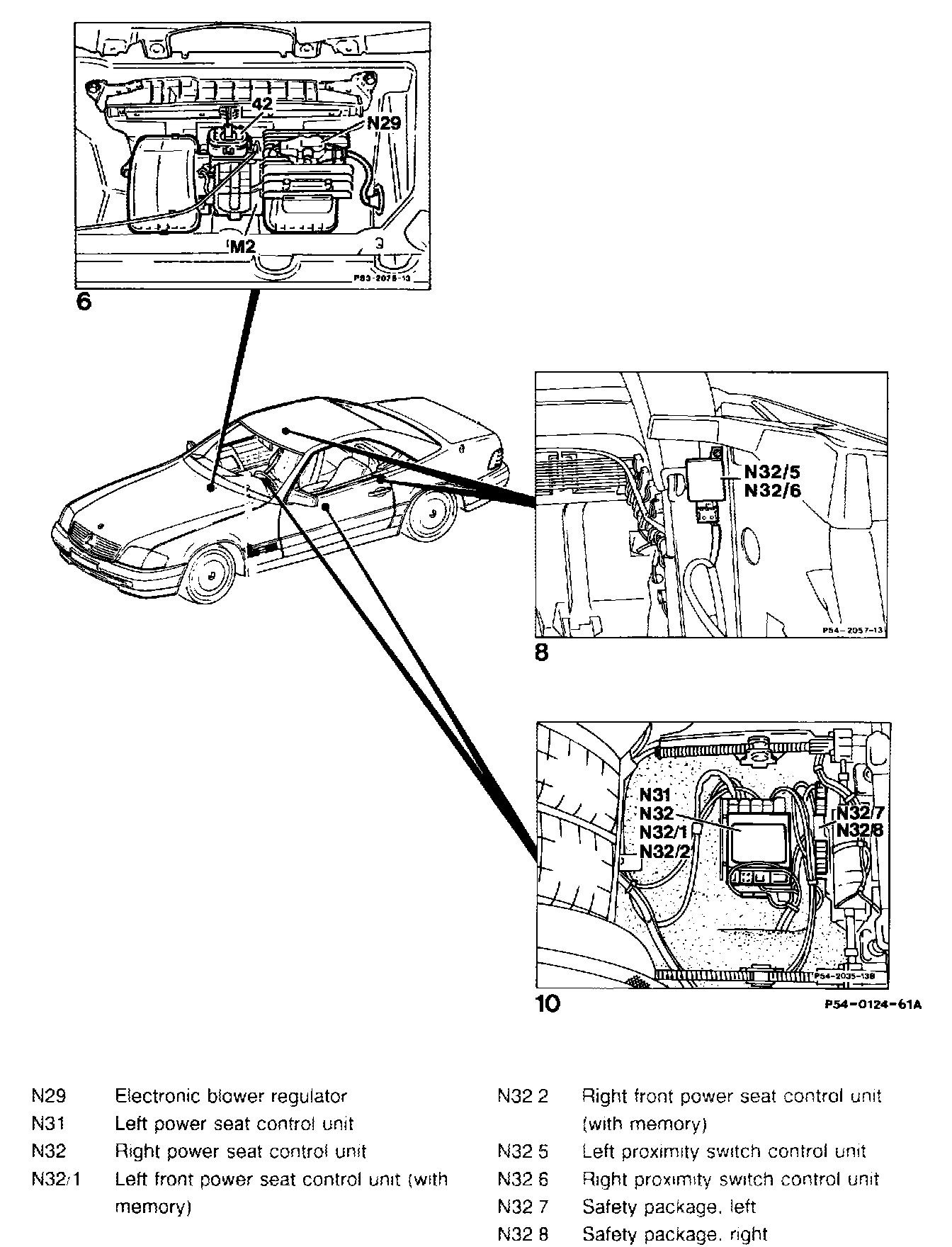

Figures 6 thru 10:
Figure
10
Component Name
Right front power seat control unit (with memory)
Component ID
N32/2
