Interior Rear-View Mirror With Memory PE68.49-U-2100YA
Interior Rear-View Mirror With Memory PE68.49-U-2100YA

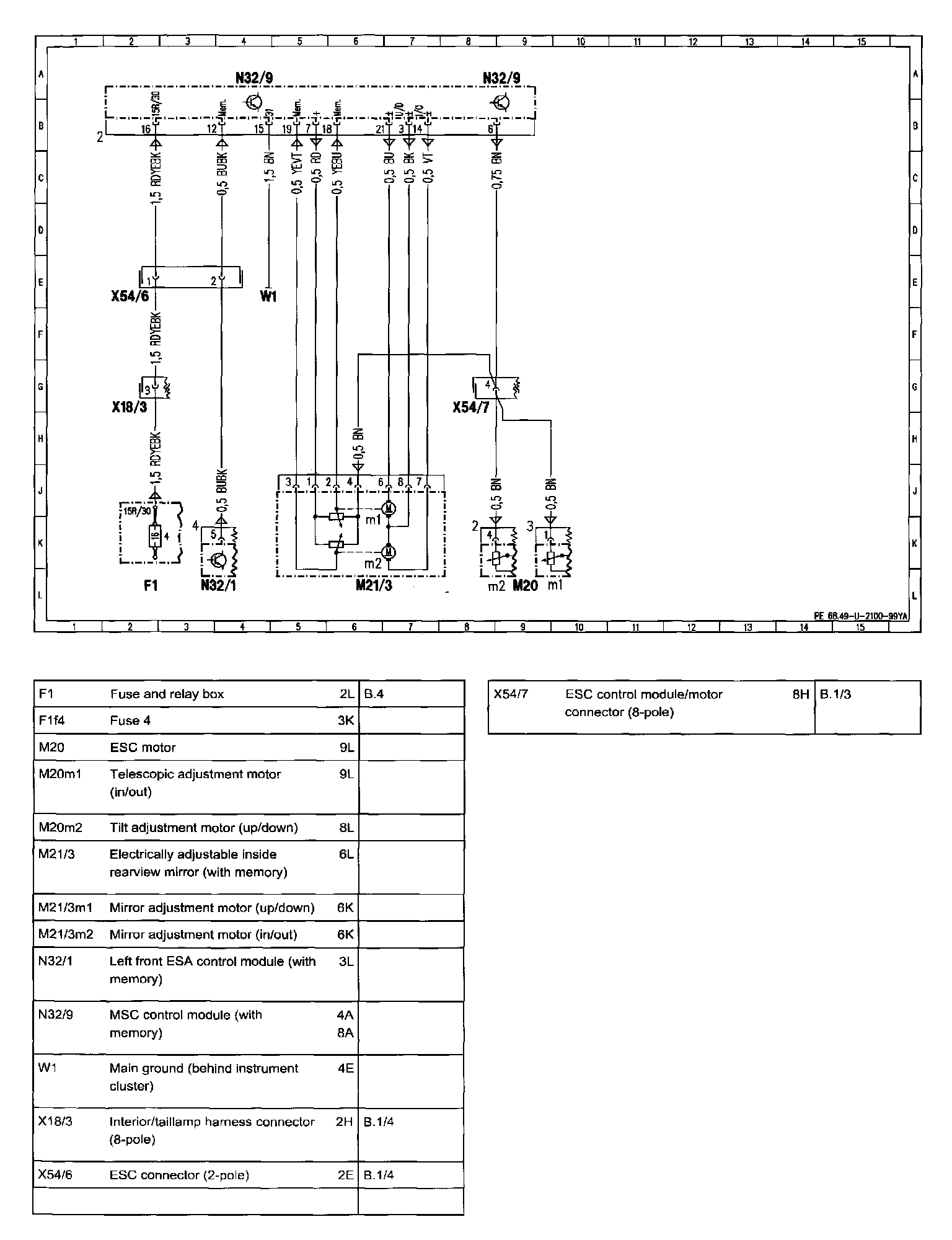

Wiring Diagram
PE68.49-U-2100YA:
Connector Assignment:
Pin Information:
All values measured to ground unless otherwise noted.
