1994
>>
SL 320 (129.063) L6-3.2L (104.991)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Soft Top, Roll Bar (ST/RB) (Manual Deployment)
>>
TP - Test Program
>>
HTP - Hydraulic Test Program
>>
Notes For Hydraulic Test
>>
Part 2
Part 2
PART 2 OF 2
CONTINUED FROM PART 1

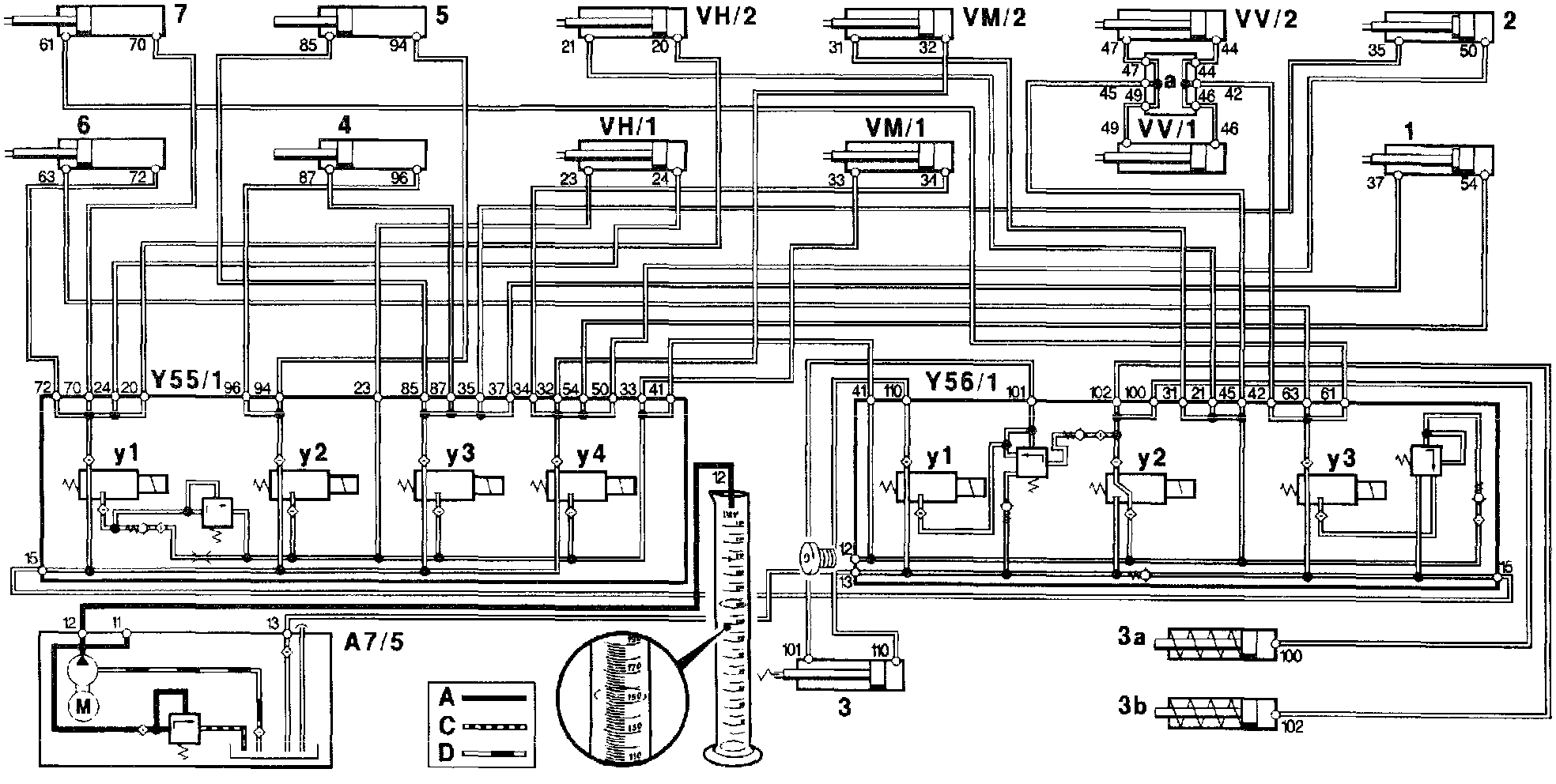

Figure 7:

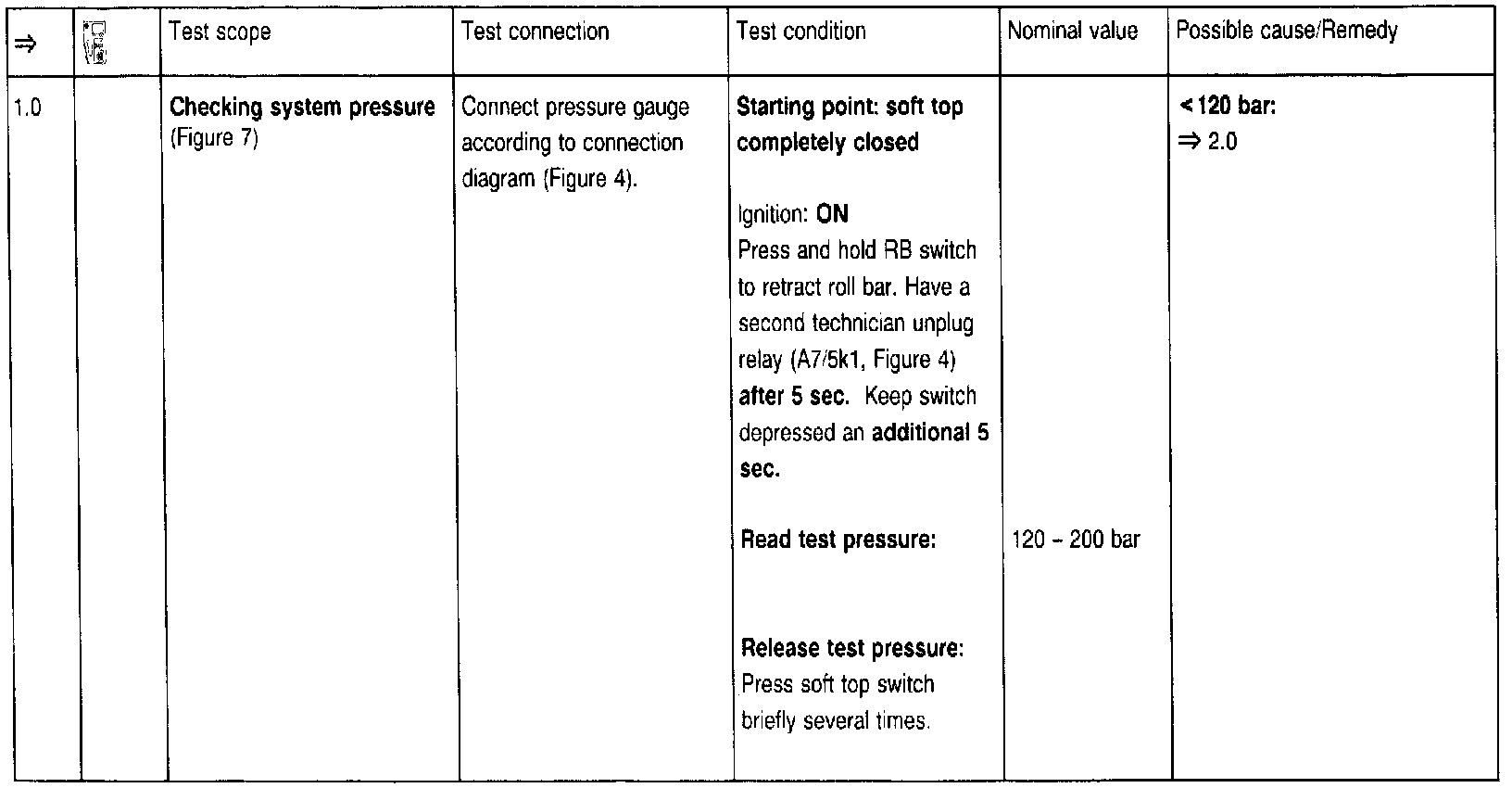

Test Step 1.0:

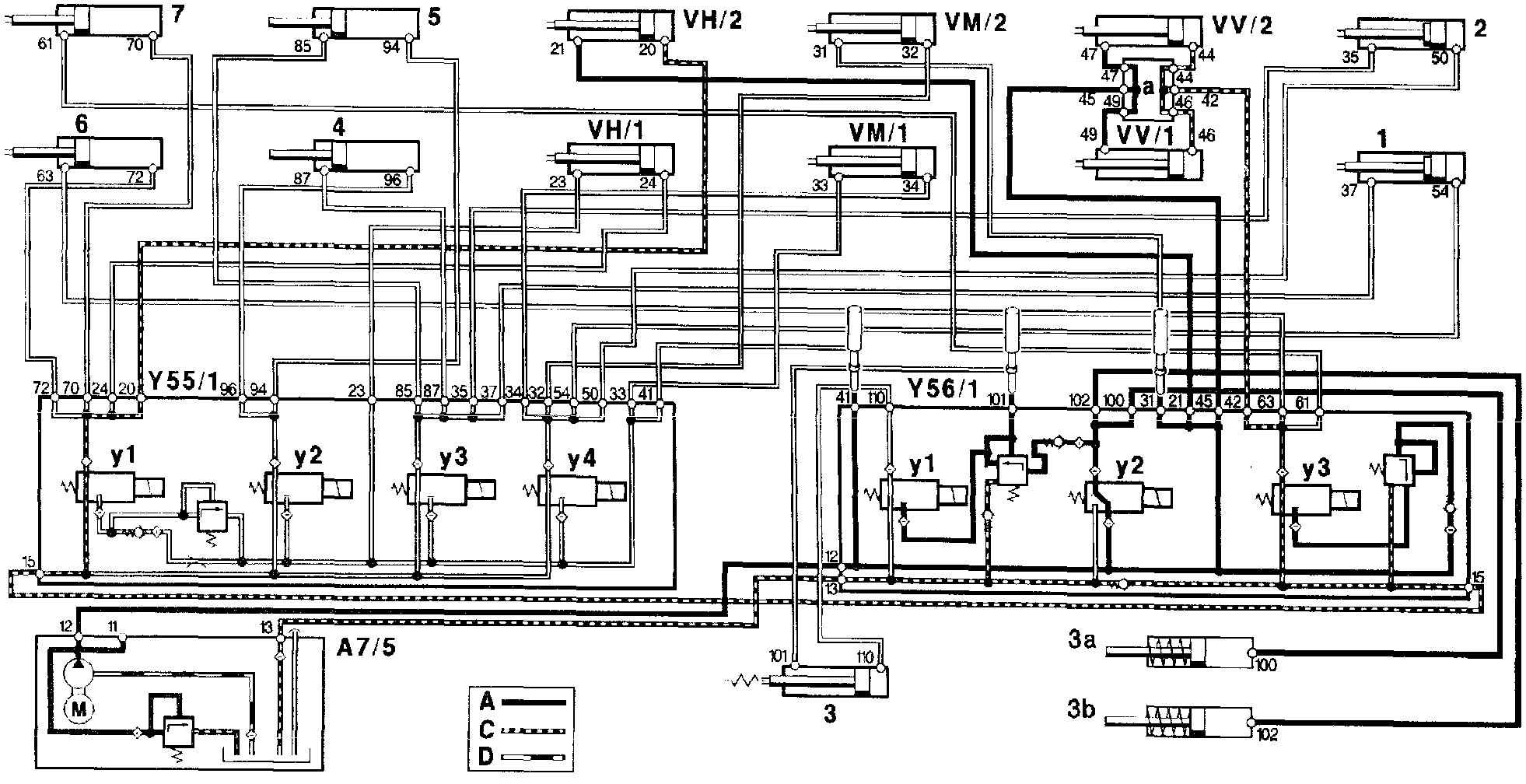

Figure 8:

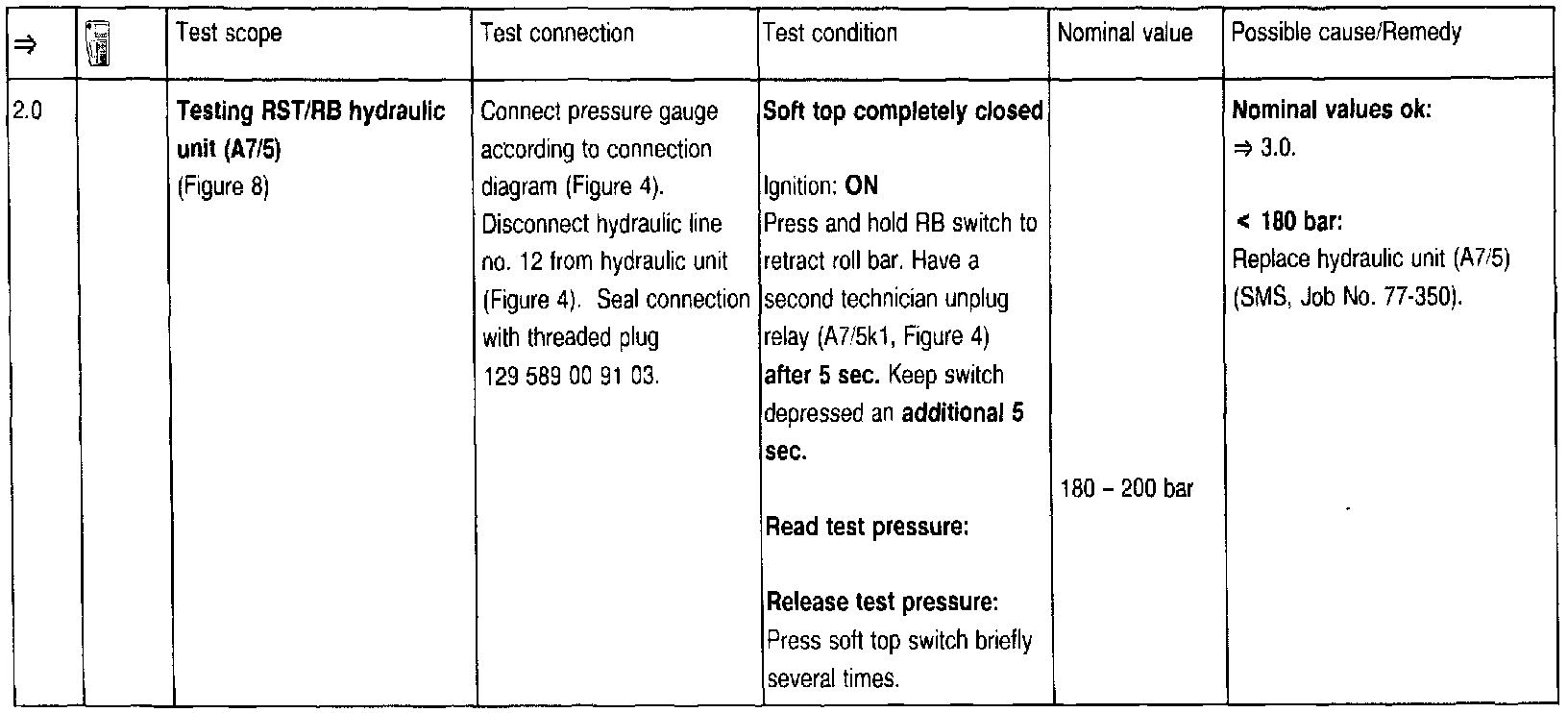

Test Step 2.0:

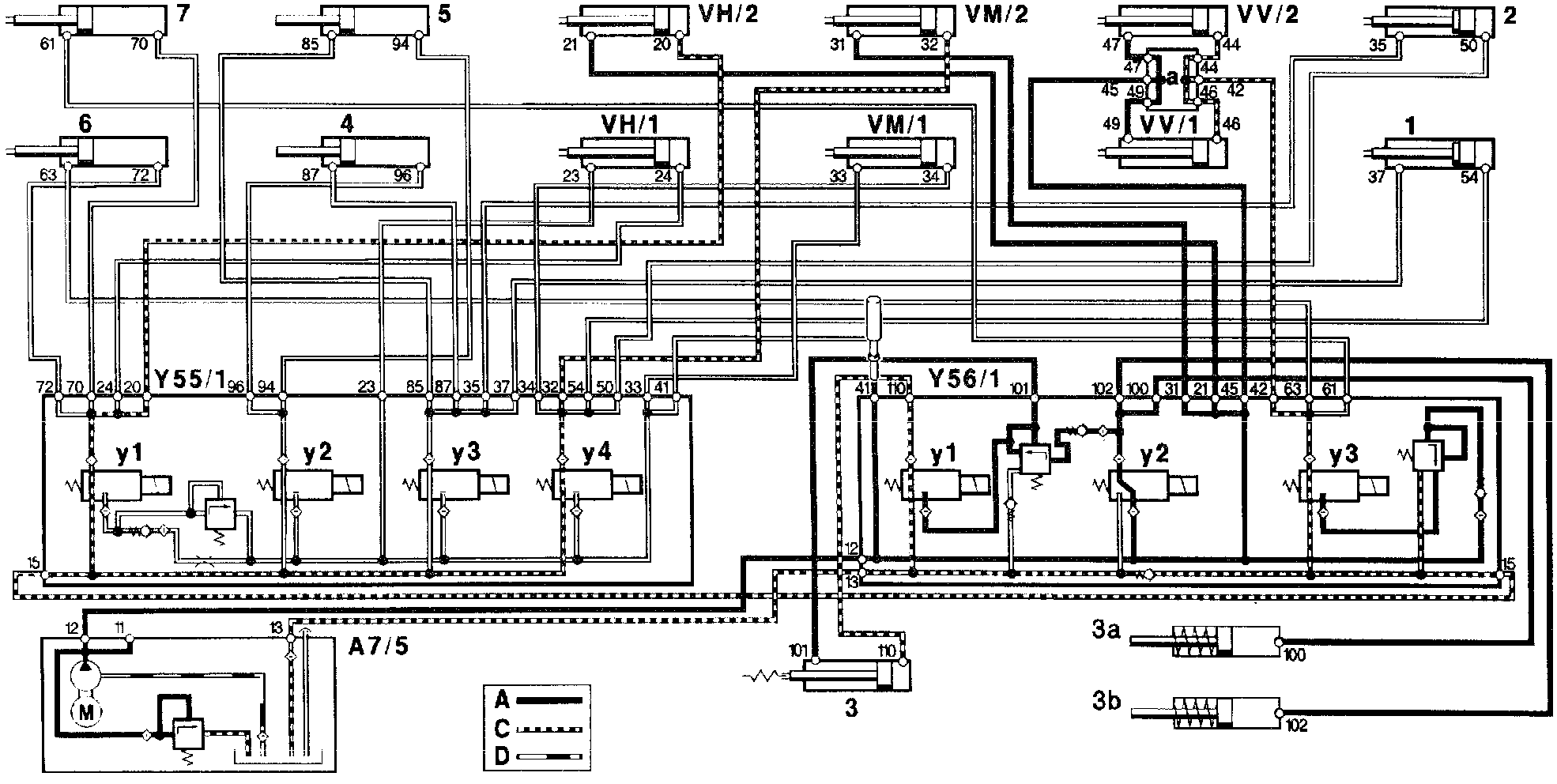

Figure 9:

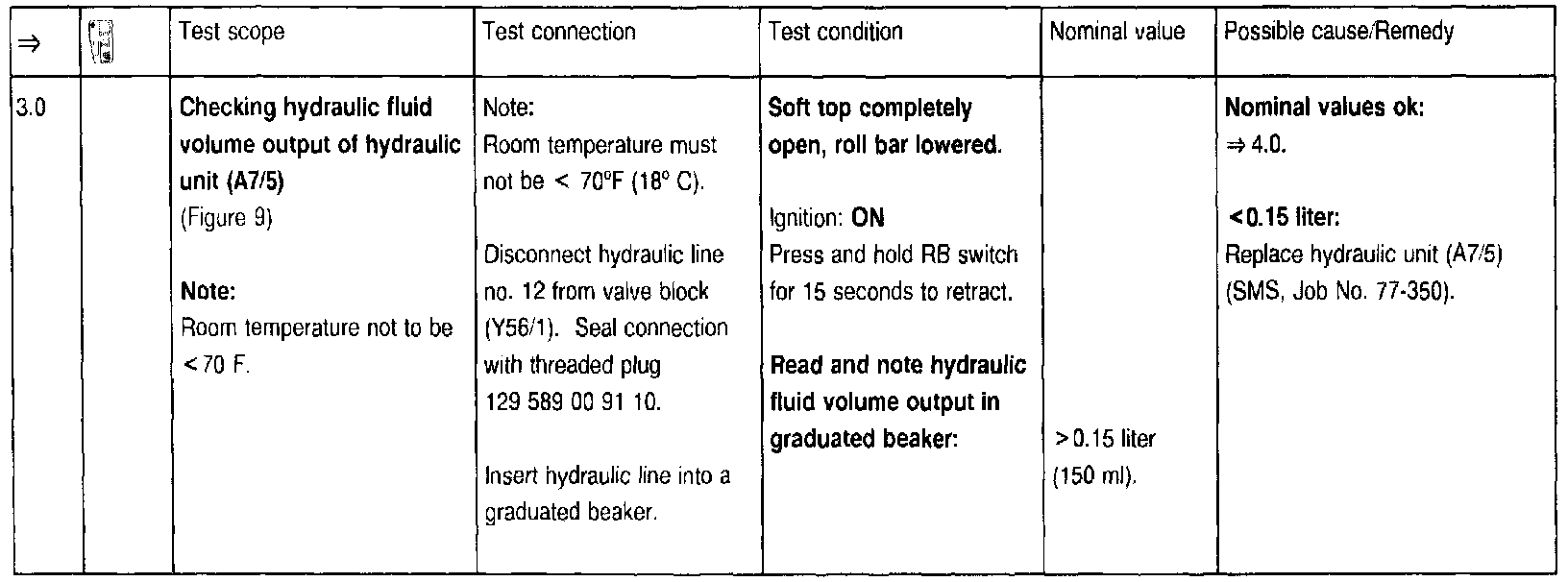

Test Step 3.0:

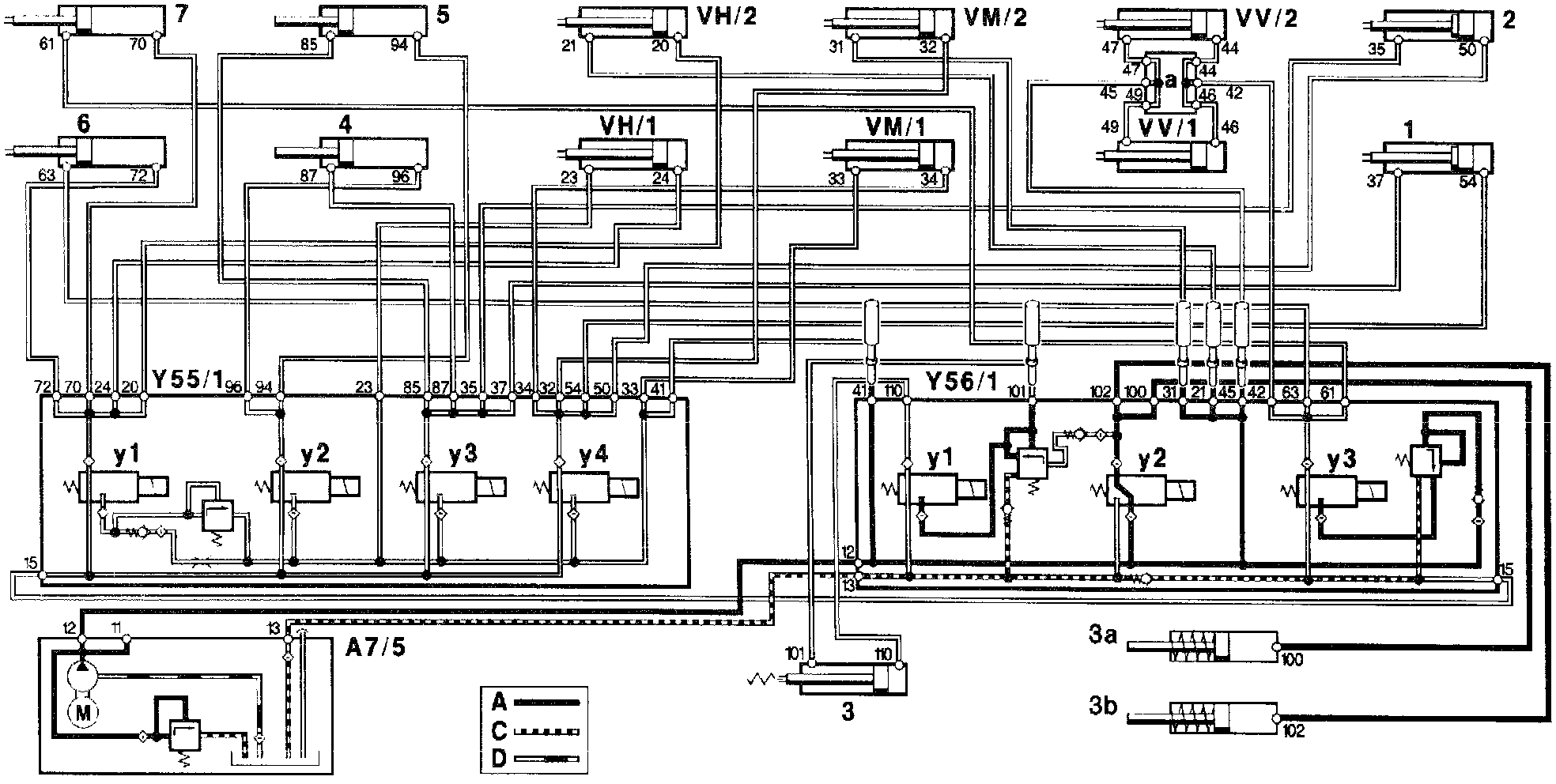

Figure 10:

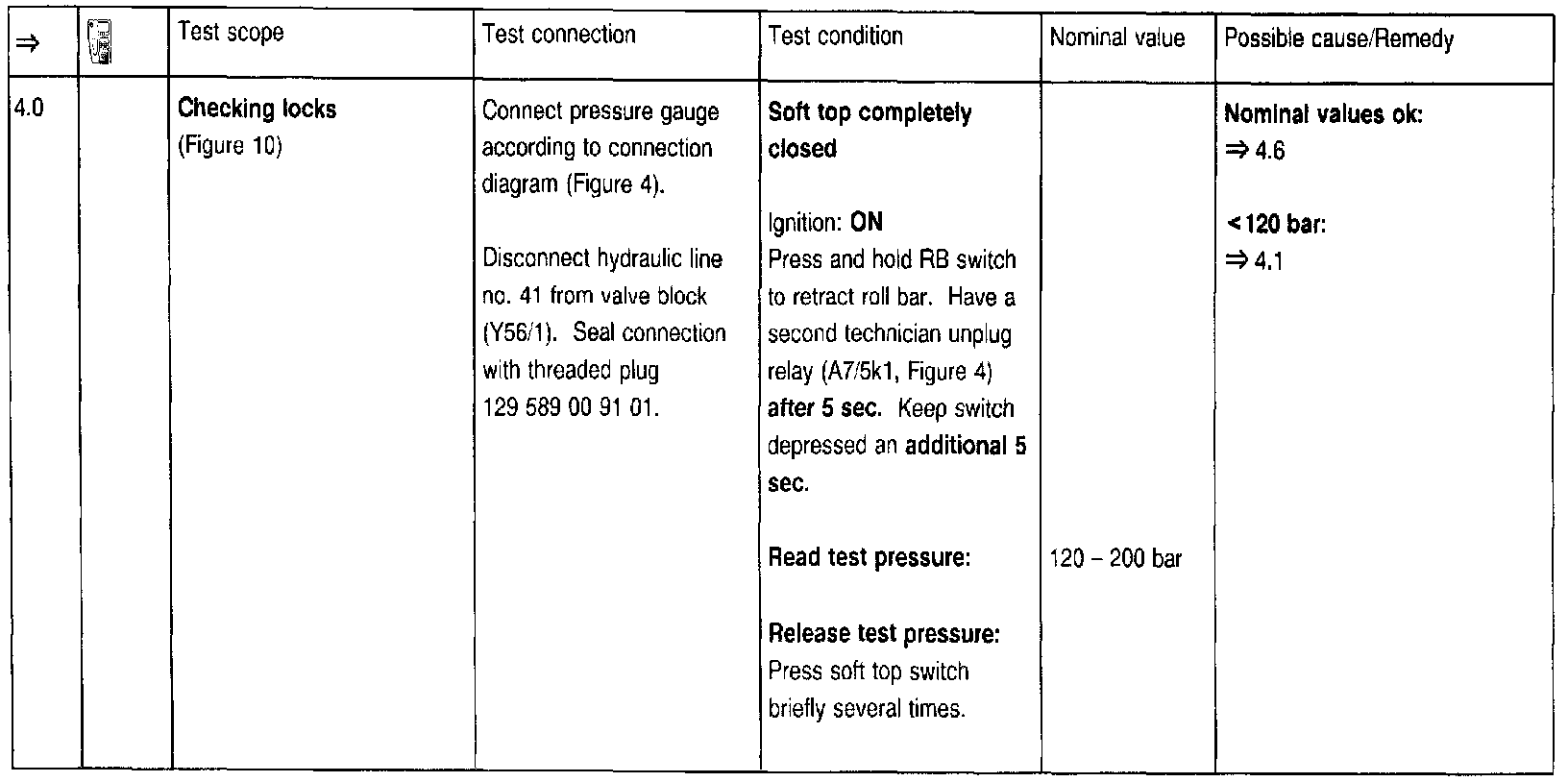

Test Step 4.0:

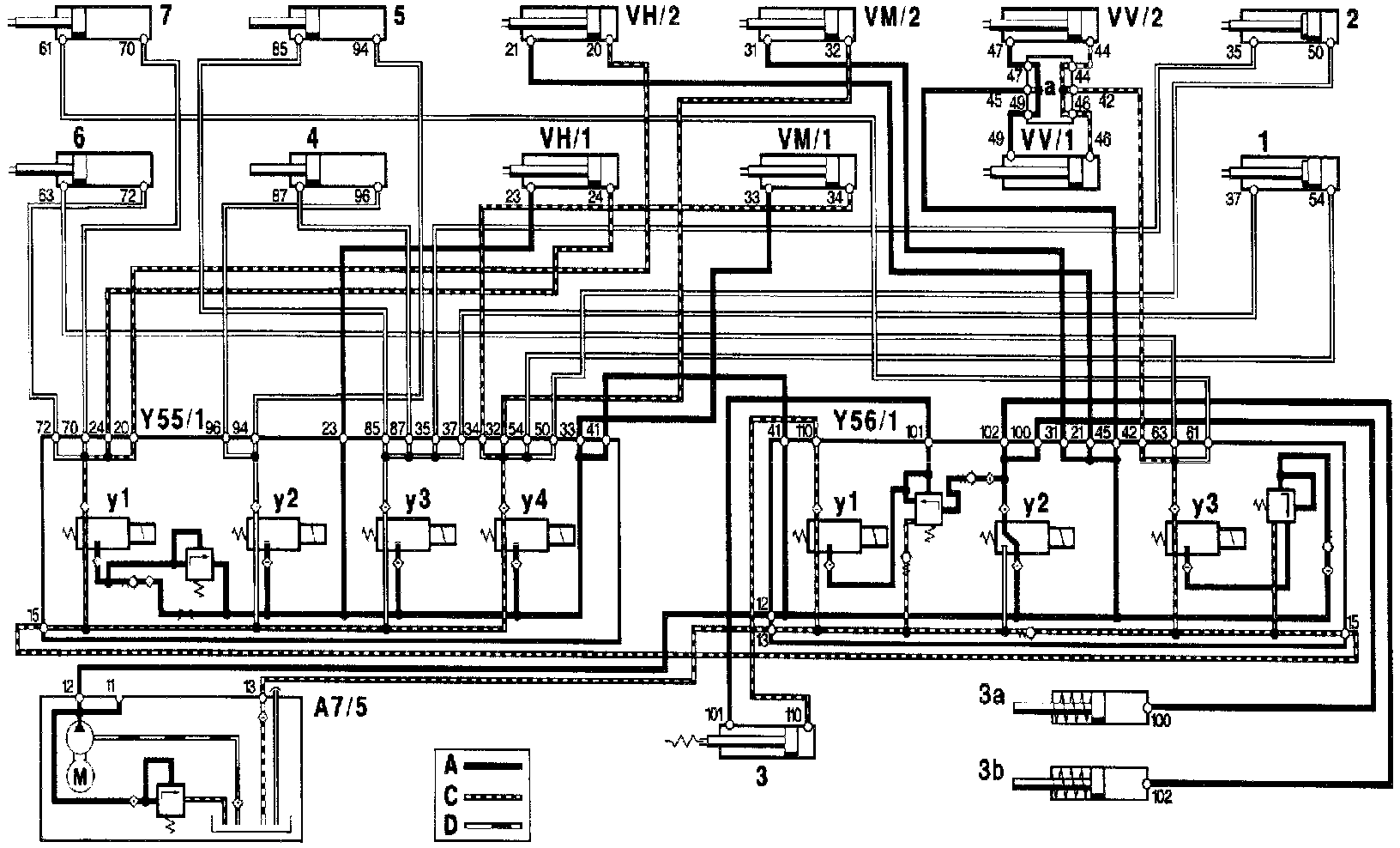

Figure 11:

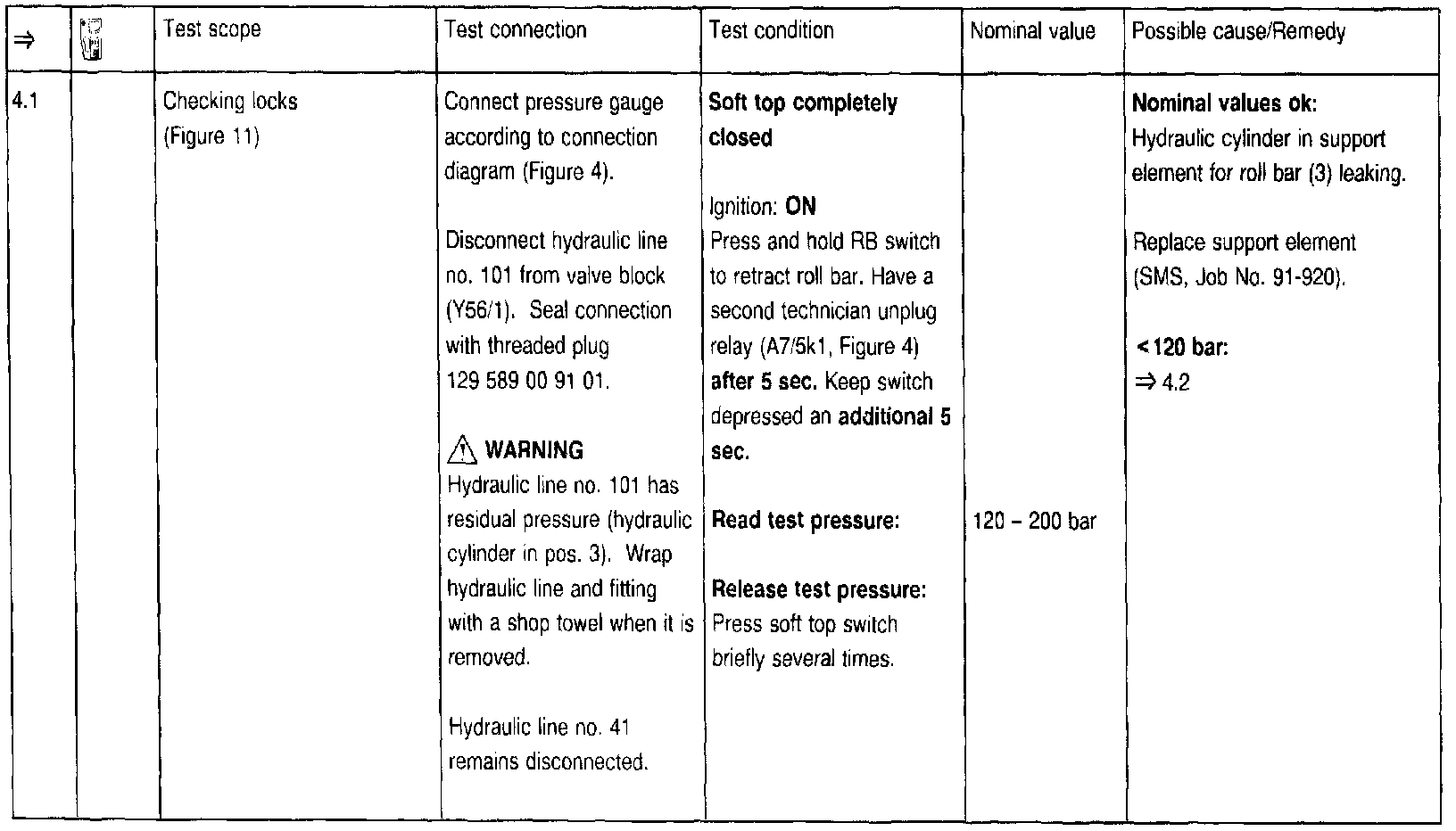

Test Step 4.1:

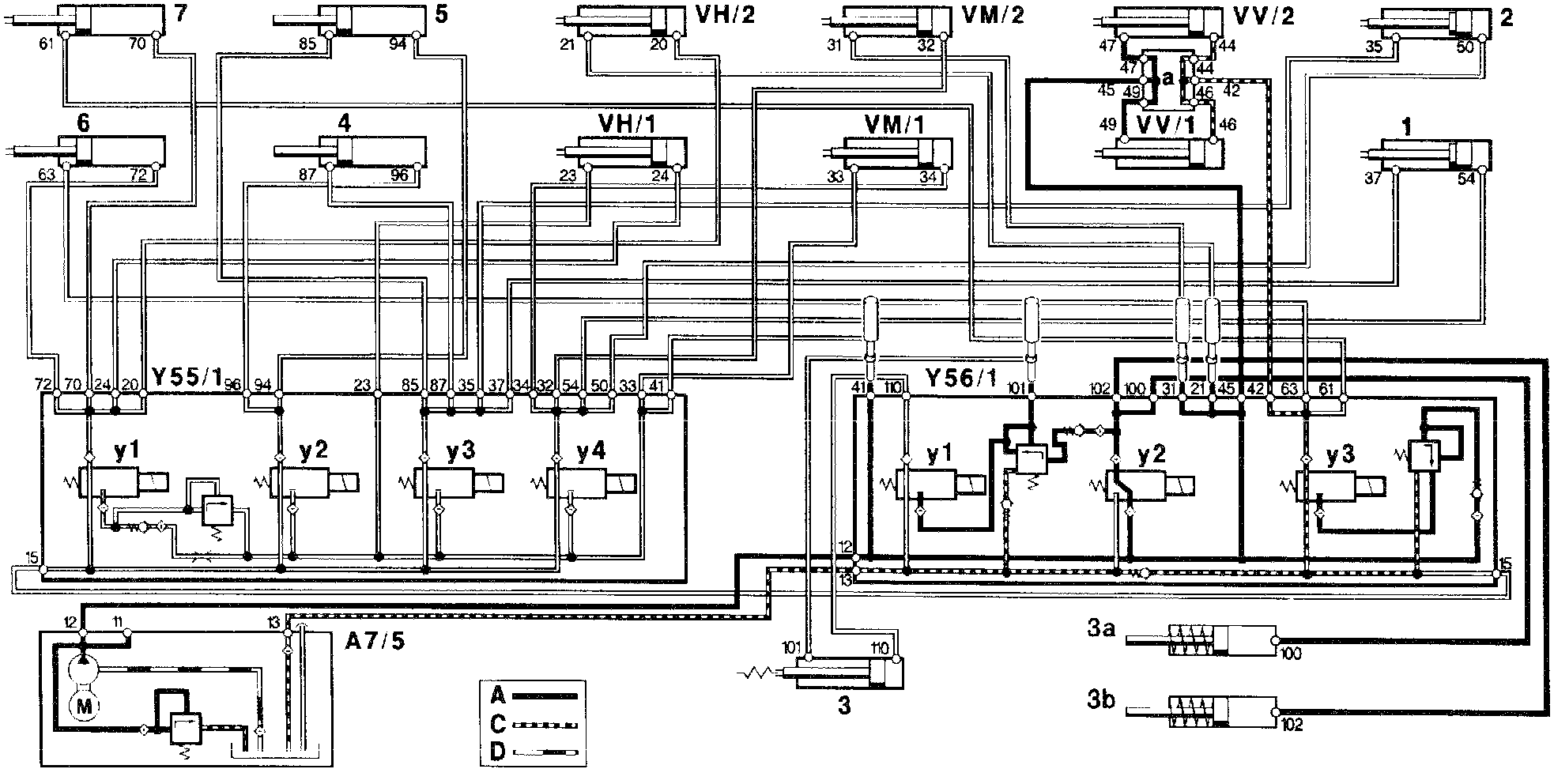

Figure 12:

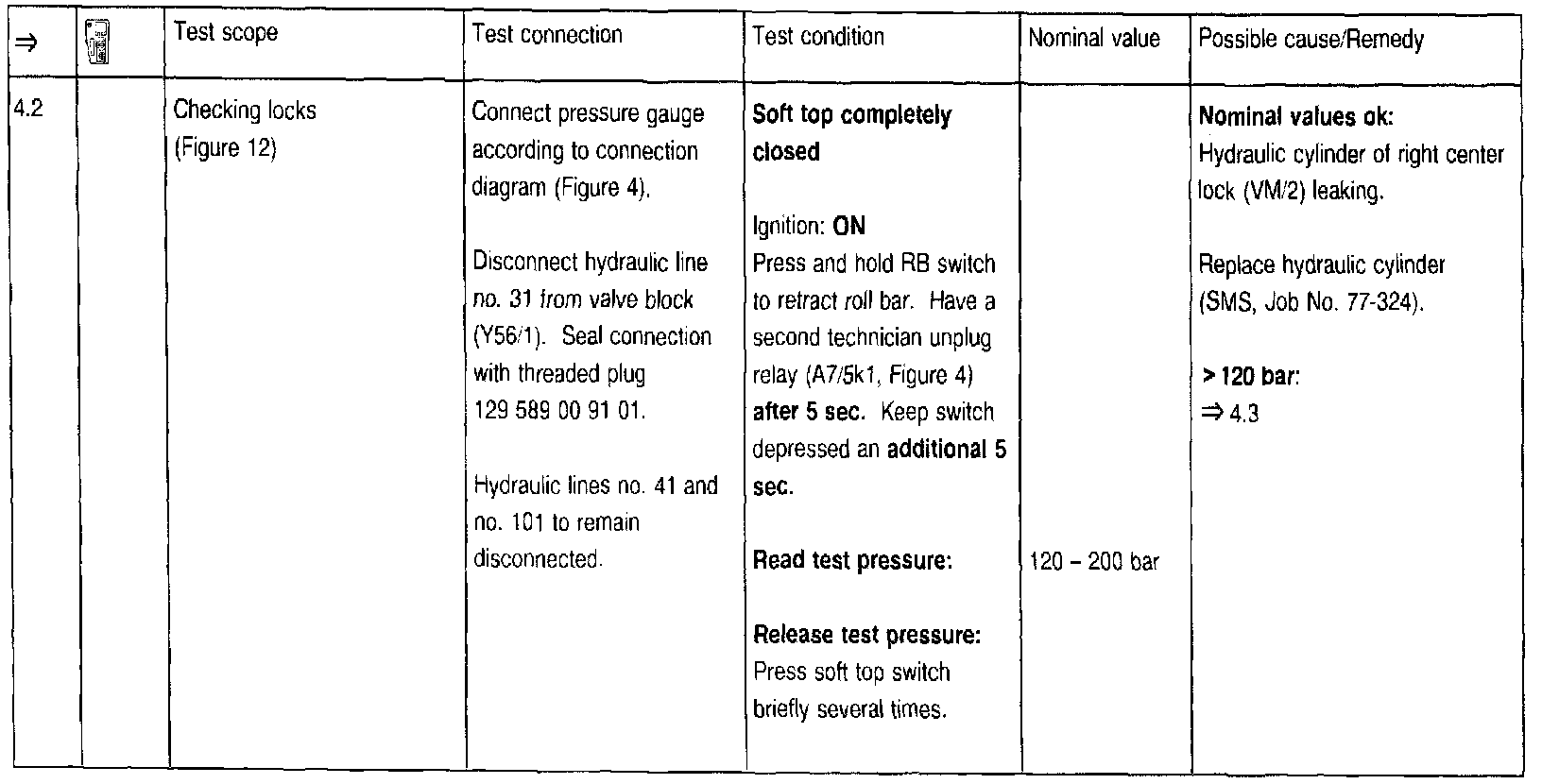

Test Step 4.2:

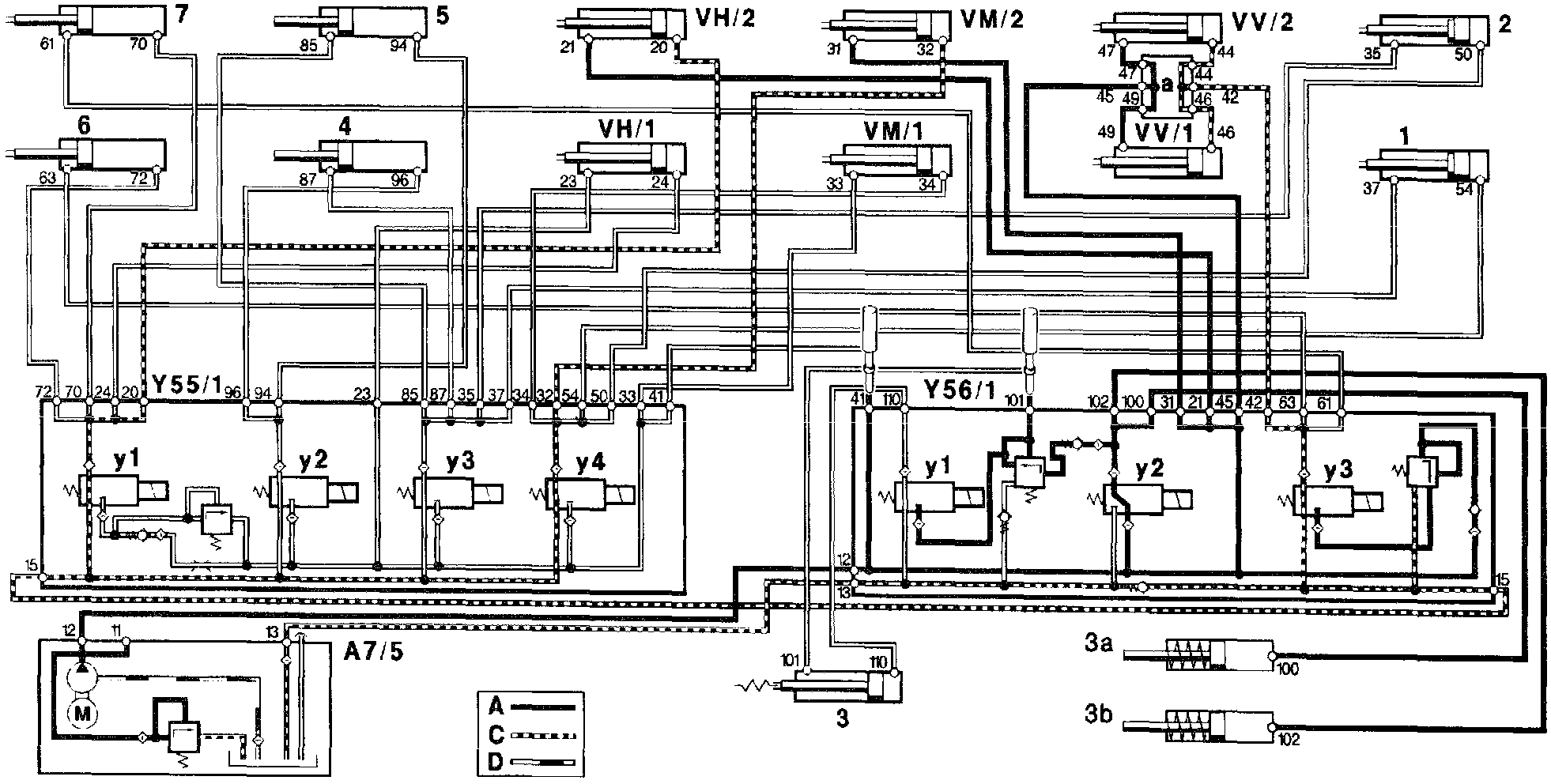

Figure 13:

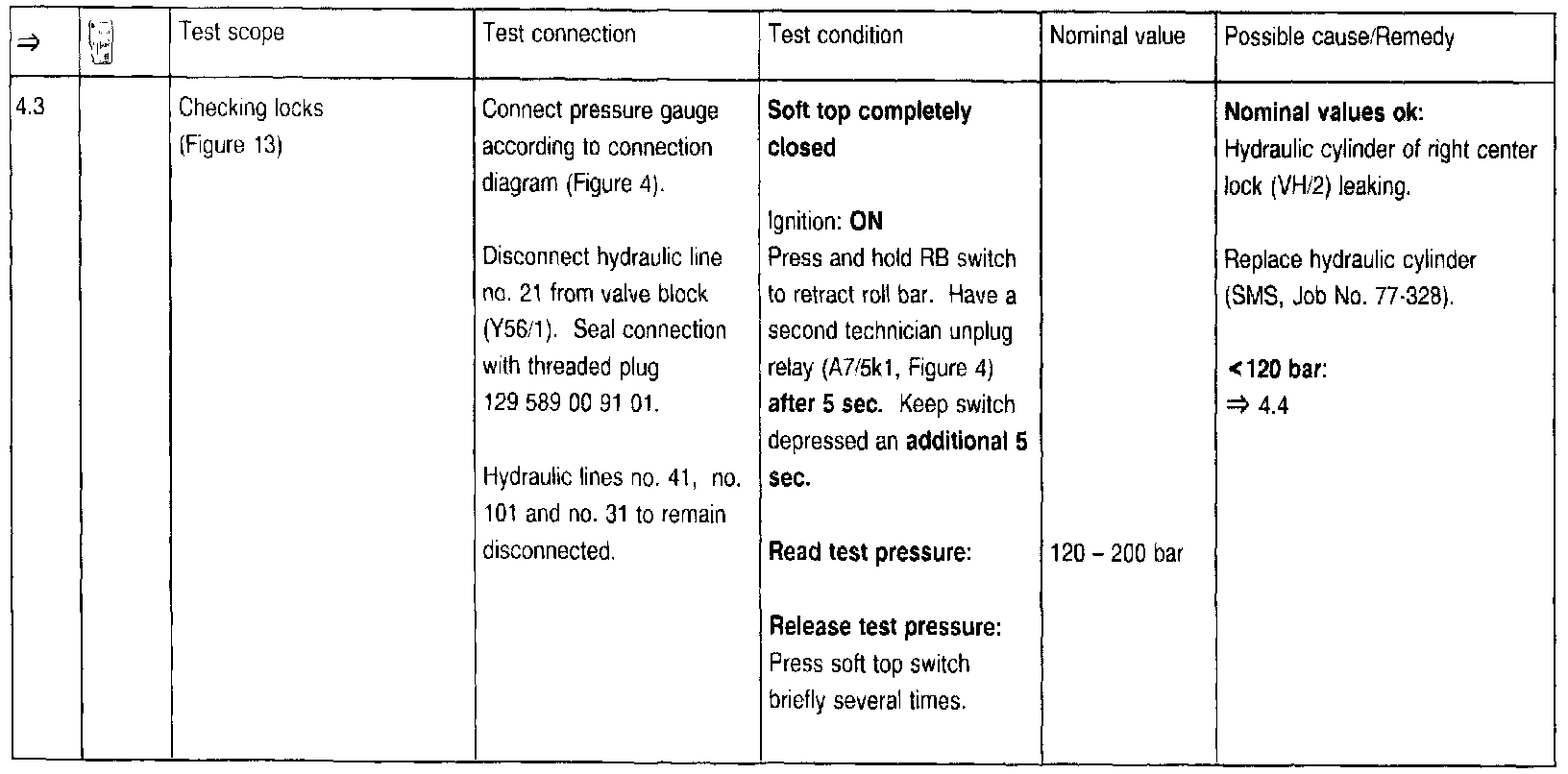

Test Step 4.3:
Figure 14:

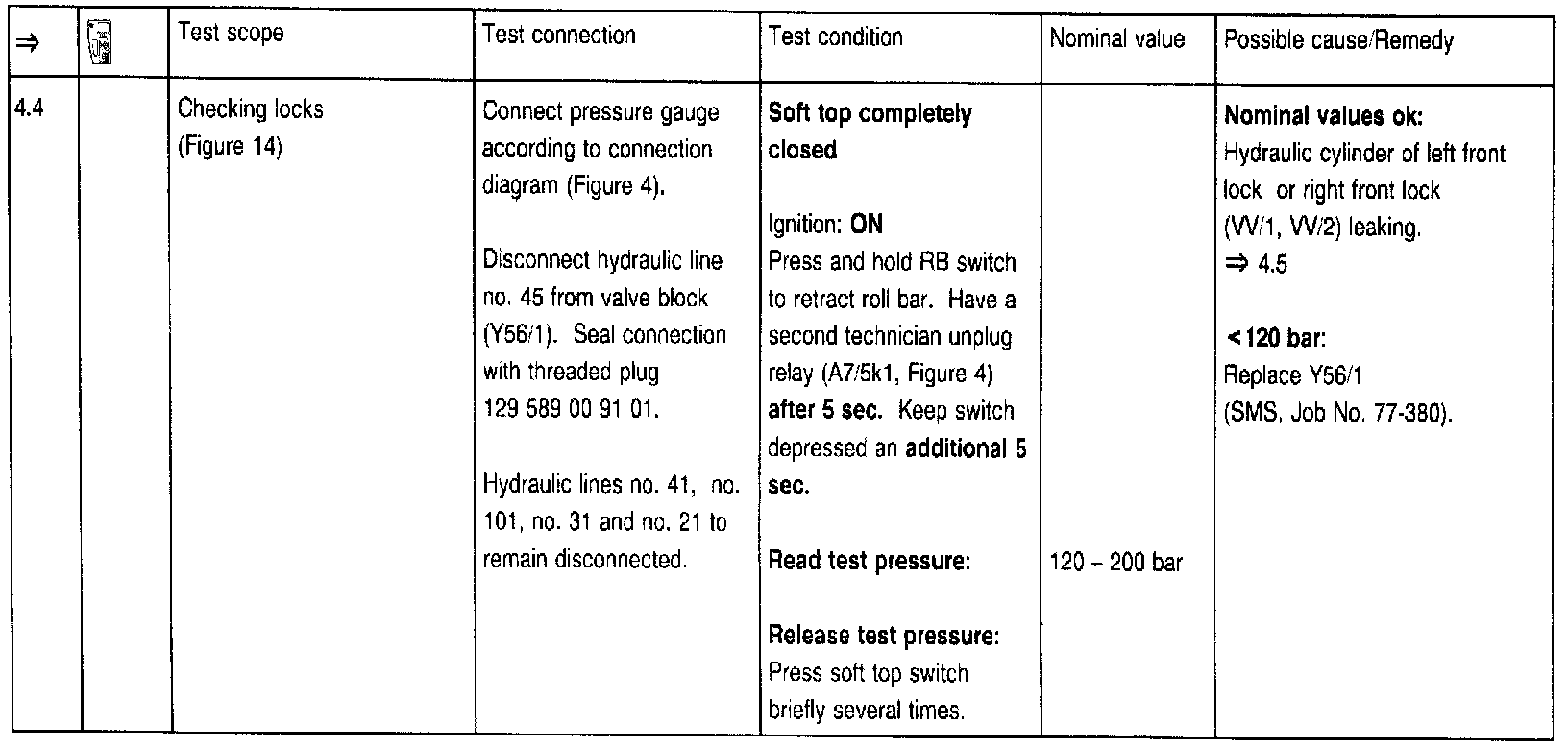

Test Step 4.4:
