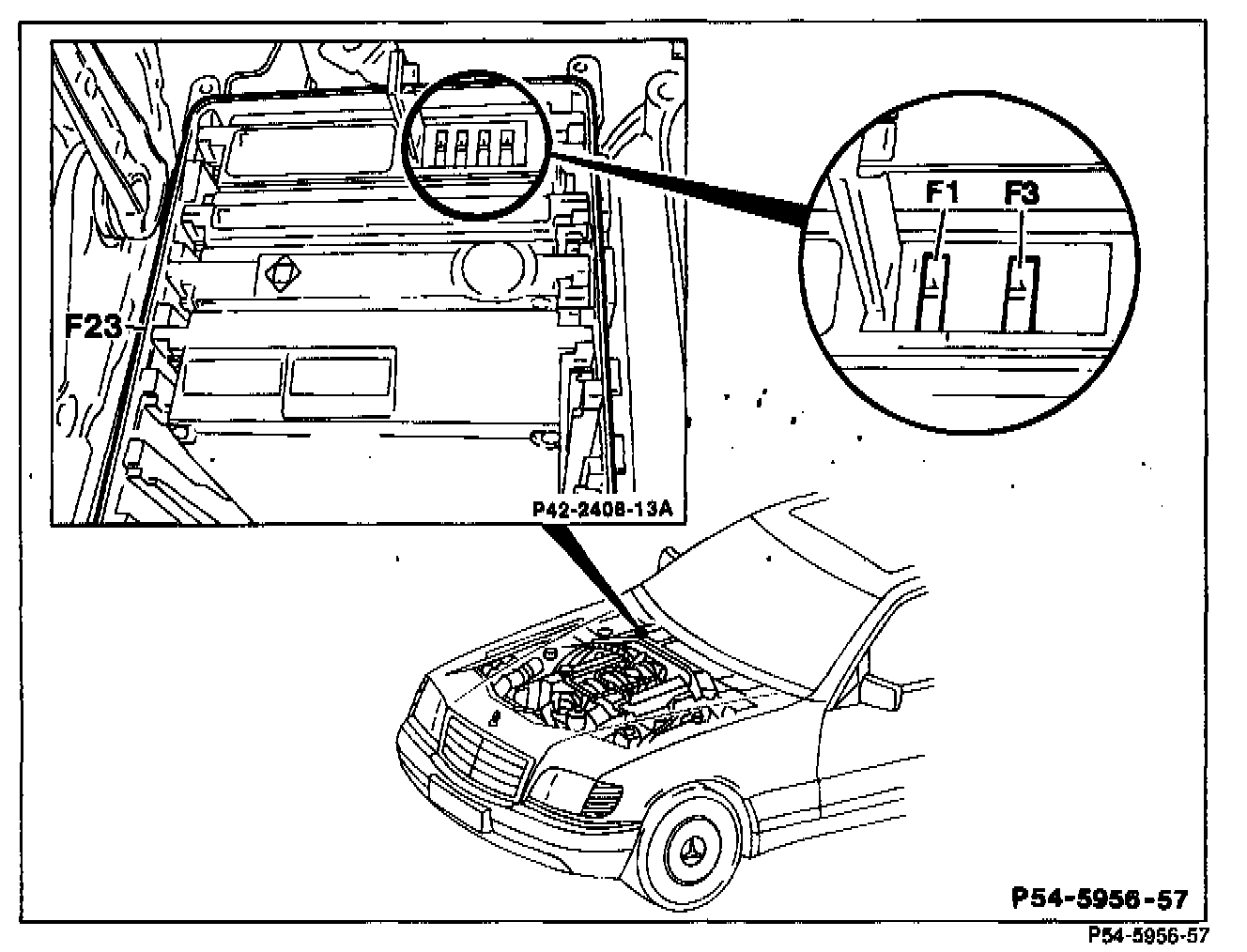

Component Locations

N16/1 Base module (BM)
F1 Fused voltage supply for stop lamp switch (S9/1), ABS (N30) or ABS/ASR (N30/1) control module, data link connector (X11/4)
F3 Fused voltage supply for SPS (N49/1), ADS (N51), Transmission (N15/1) control modules, TR "D" contact switch (S16/9), Comfort/sport switch (S45/1)
F23 Module hox
