Fuel Pump Relay: Service and Repair

Cover Replacement:

REMOVAL AND INSTALLATION
1. Turn ignition switch OFF.

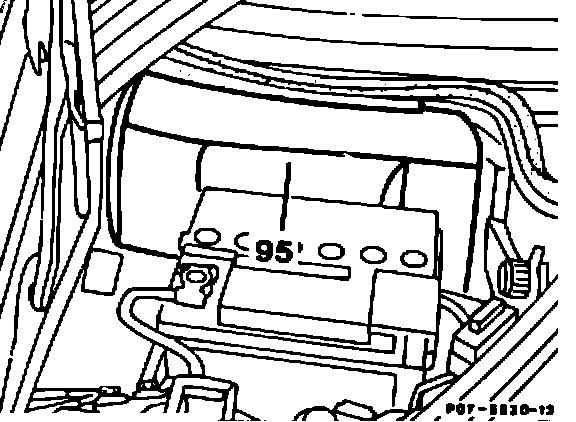

2. Remove cover (95) behind battery.

Fuel Pump Relay Replacement:

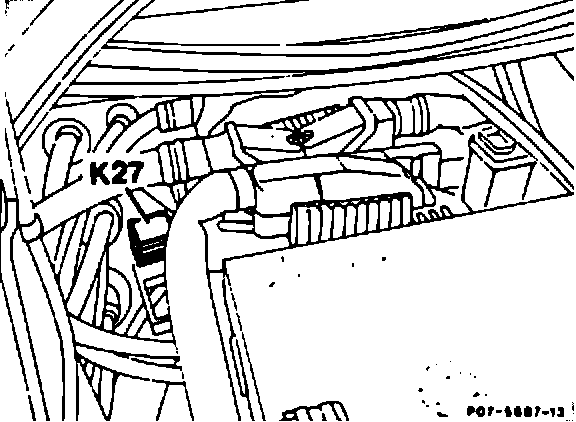

3. Remove fuel pump relay (K27).
4. Install in reverse order.
5. Read and erase HFM-SFI control module fault codes.
