Intake Air Cowl

NOTE: Before removing the intake air cowl, the air cleaner housing must be removed. After the intake air cowl is refitted, the air cleaner housing must be reinstalled.

Intake Air Cowl Replacement:

REMOVAL AND INSTALLATION

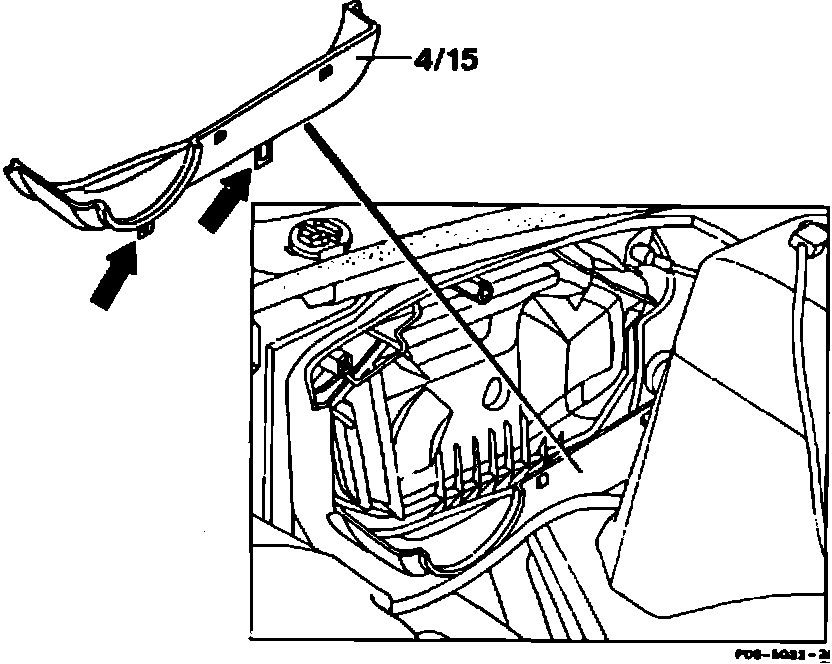

1. Remove bottom part of air intake cowl (4/15) by pushing the clips (arrow) over the lugs.
2. Install in reverse order.
