Evaporative Emissions System: Locations

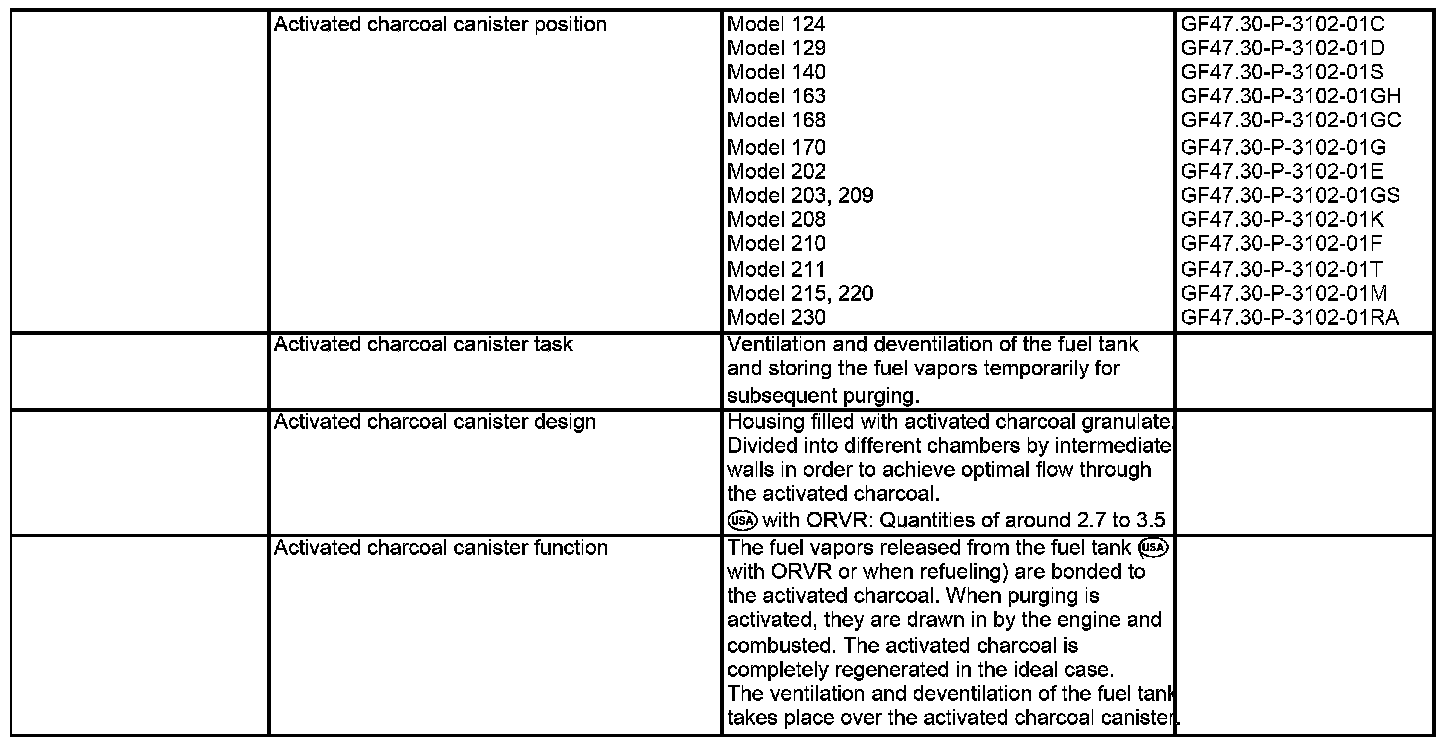

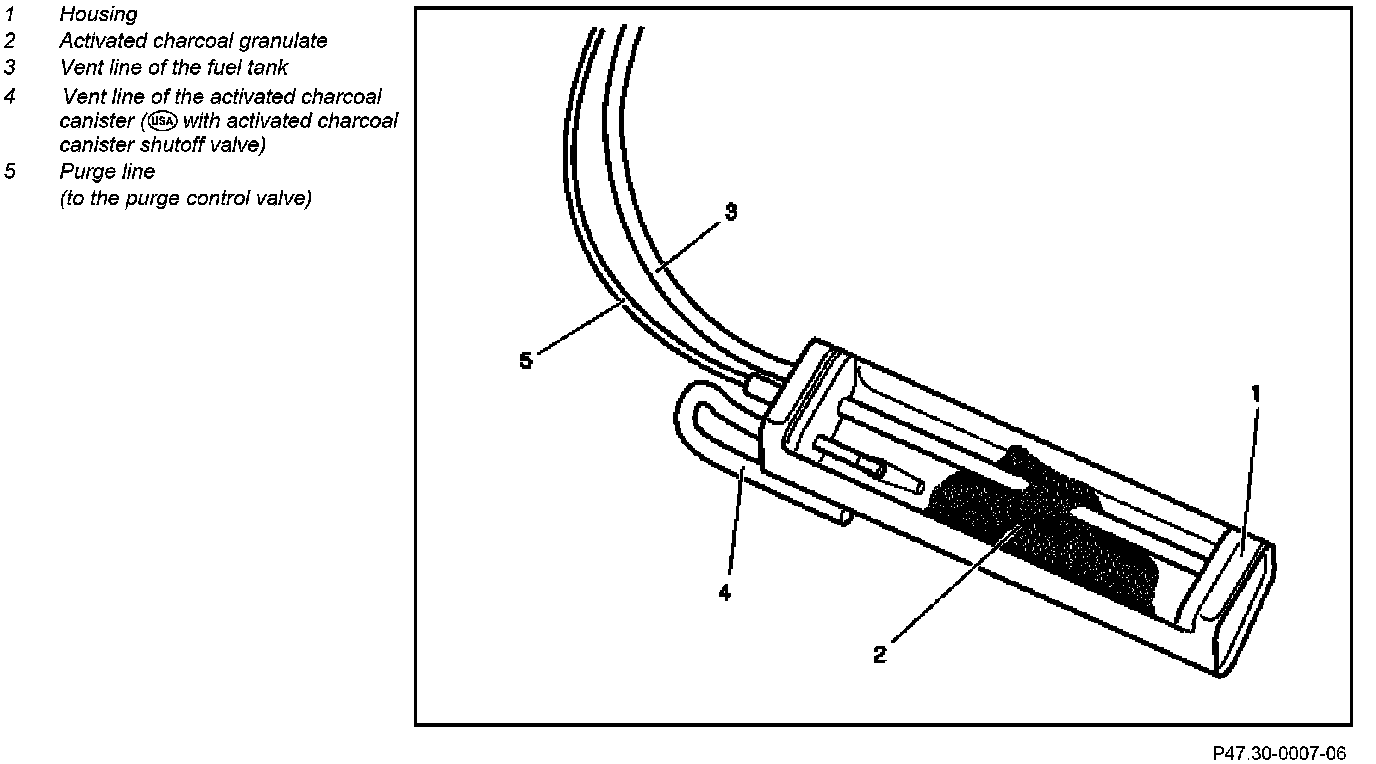

GF47.30-P-3102F Activated Charcoal Canister Location/Task/Design/Function
