HTP - Hydraulic Test Program
>>
Fuel Pump Test
>>
Test - Section 34
Test - Section 34

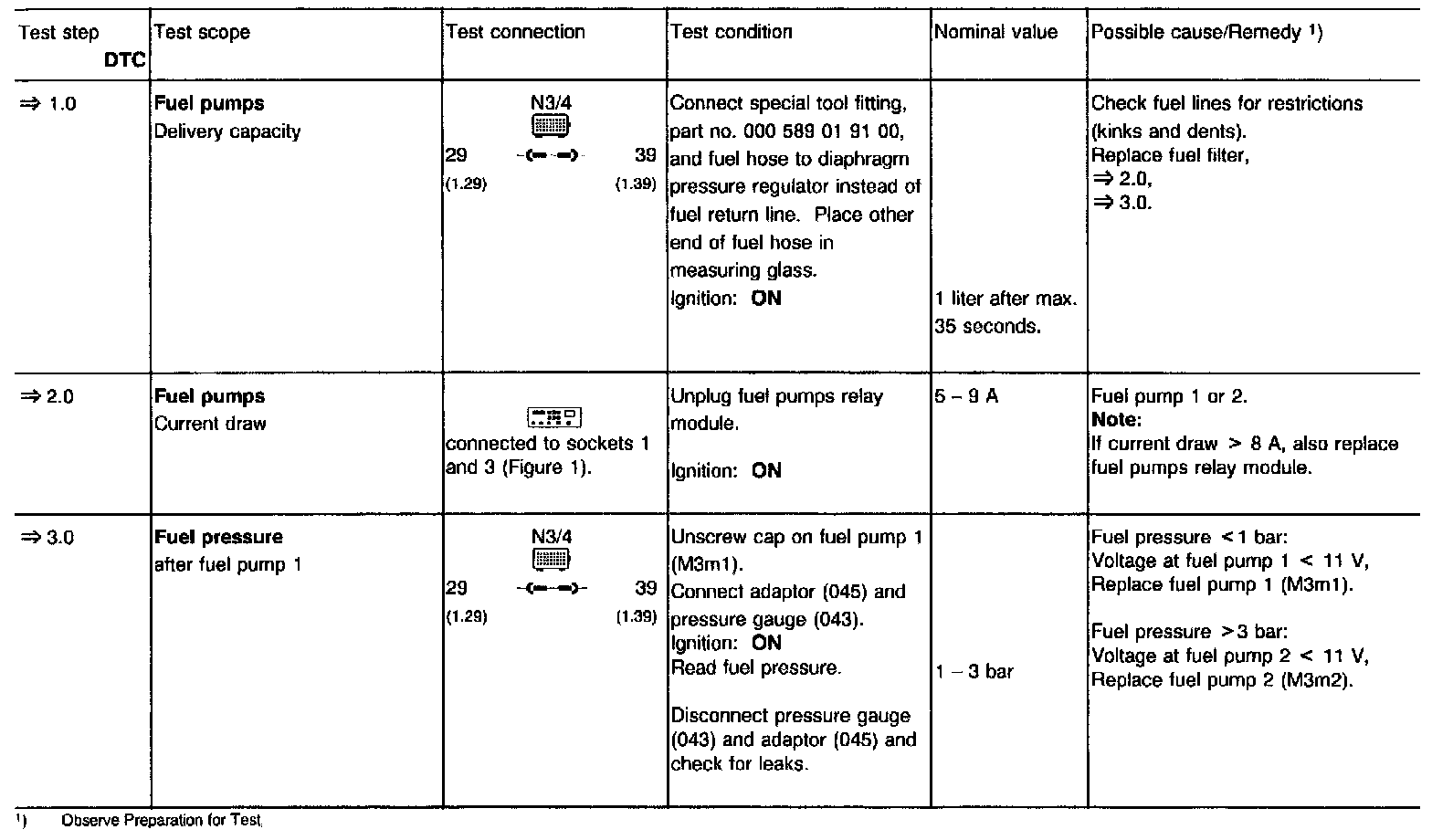

=> 1.0 - 3.0:

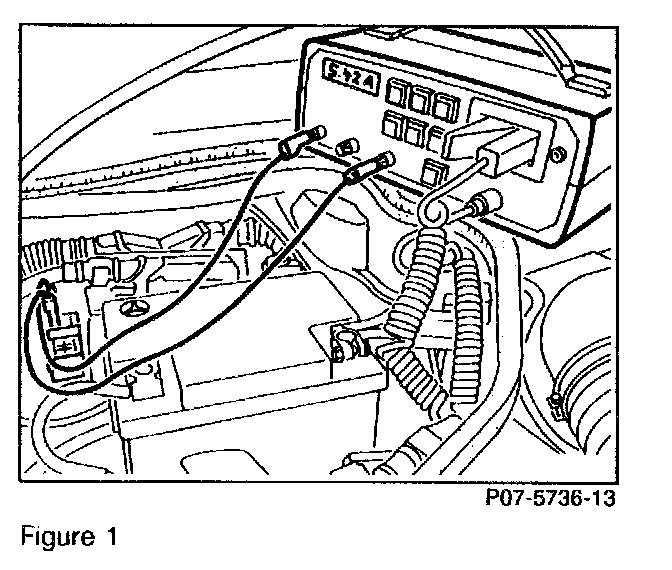

Figure 1:
