FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1994
>>
E 320 Cabriolet (124.066) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Electronic Throttle Actuator
>>
Service and Repair
Electronic Throttle Actuator: Service and Repair

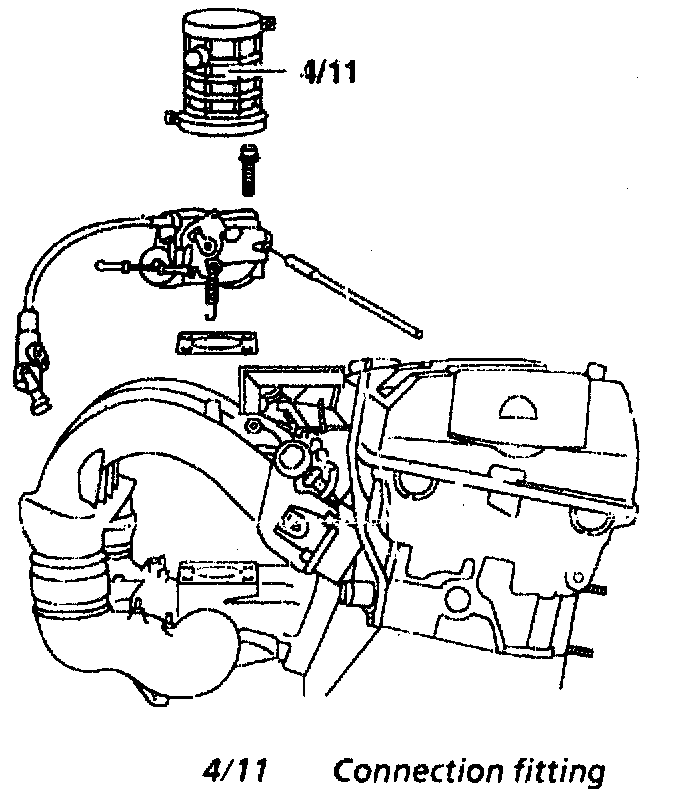

Engine 104
Shows engine 111.942/70

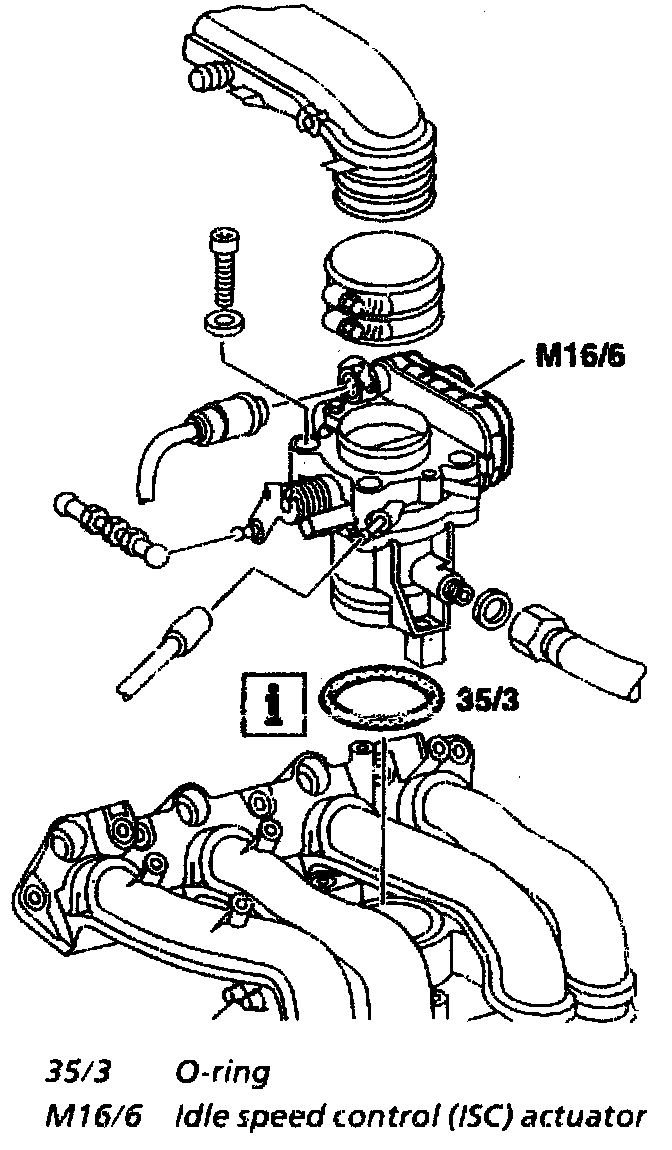

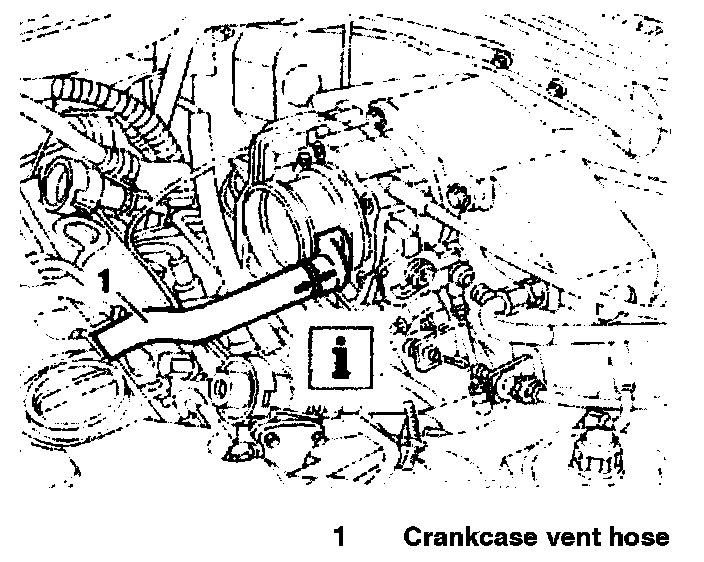

Engines 111.92/940/41/44/960/61/975

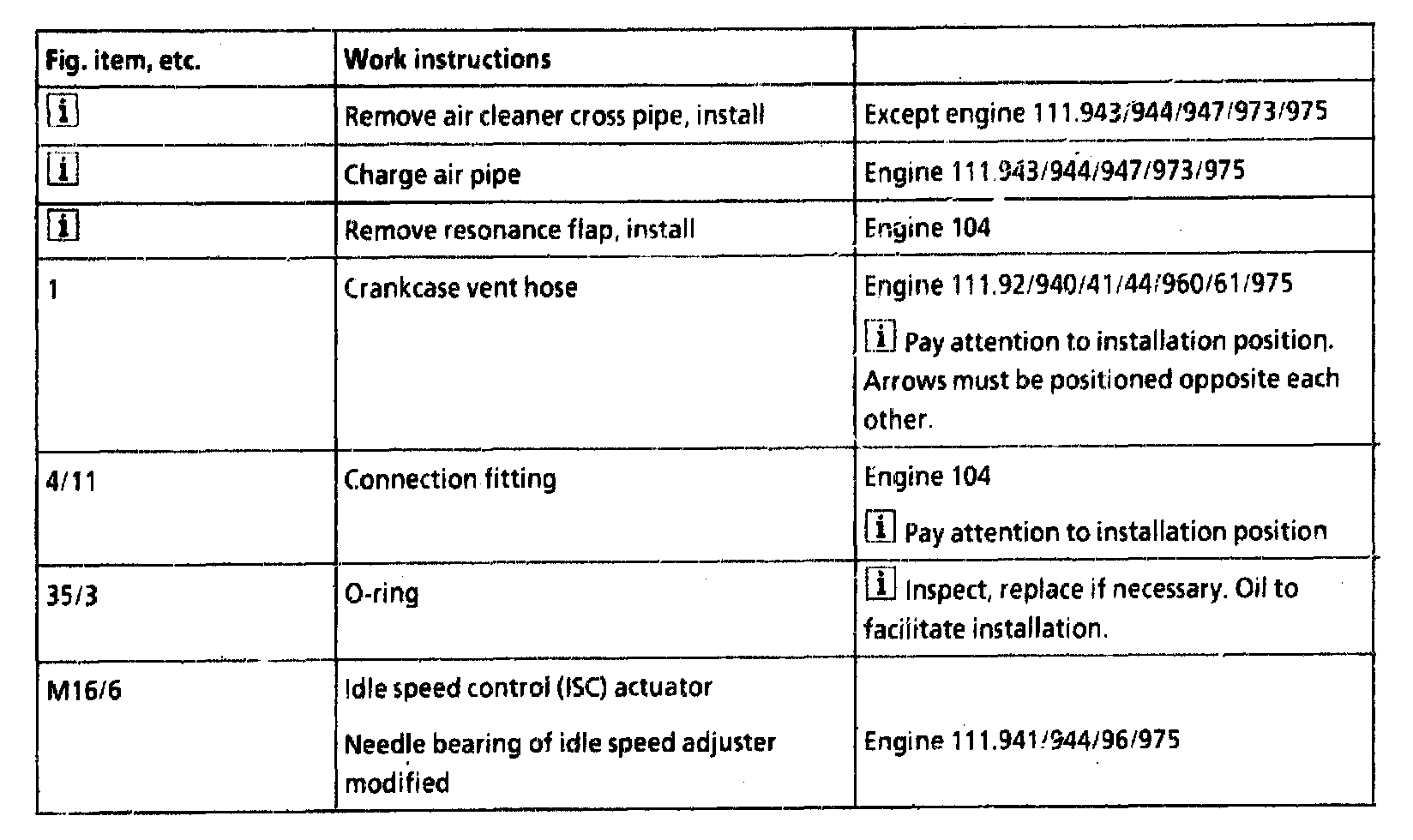

Work instructions
