E 320 Cabriolet (124.066) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
>>

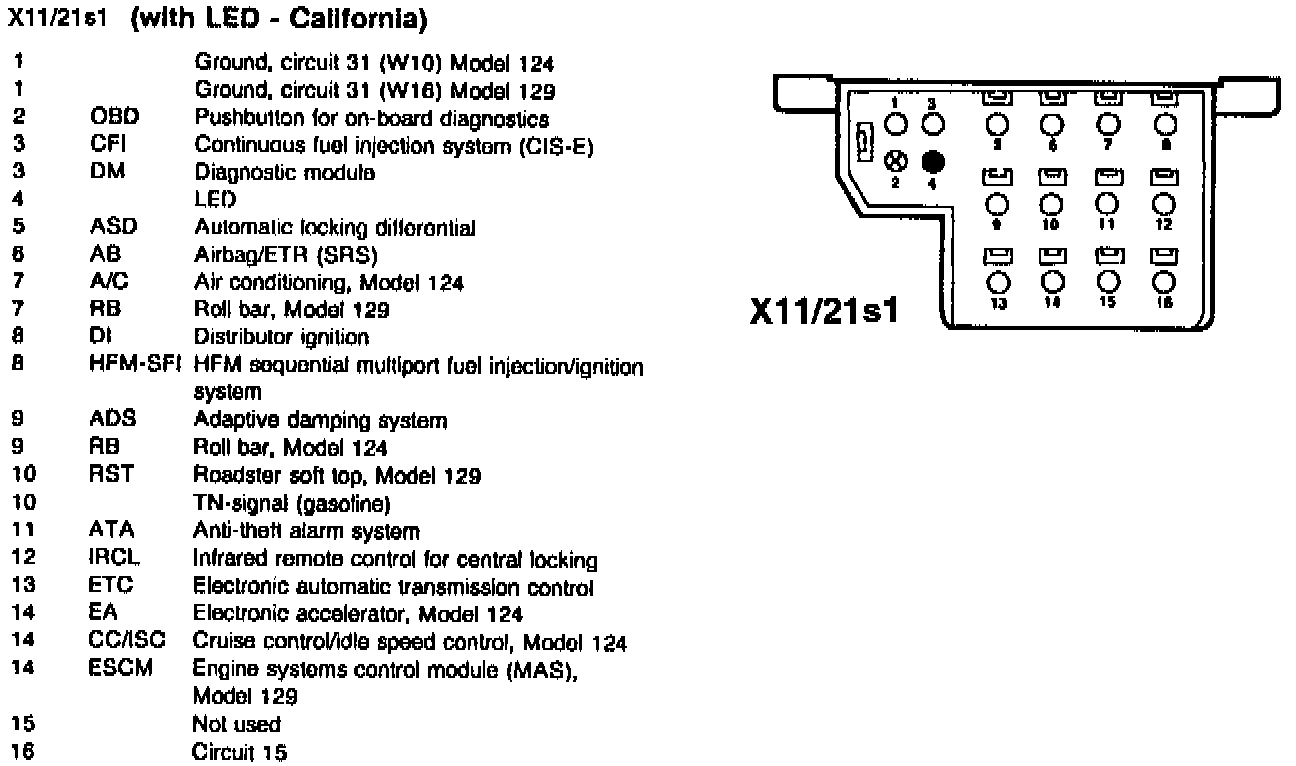

Data Link Connector (X11/21s1) (California)
Data Link Connector (X11/21s1) (California)
Diagnostic Connector (X11/21 And X11/21s1):
