E 320 Cabriolet (124.066) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Trouble Code (DTC) Descriptions and Test Procedures
>>

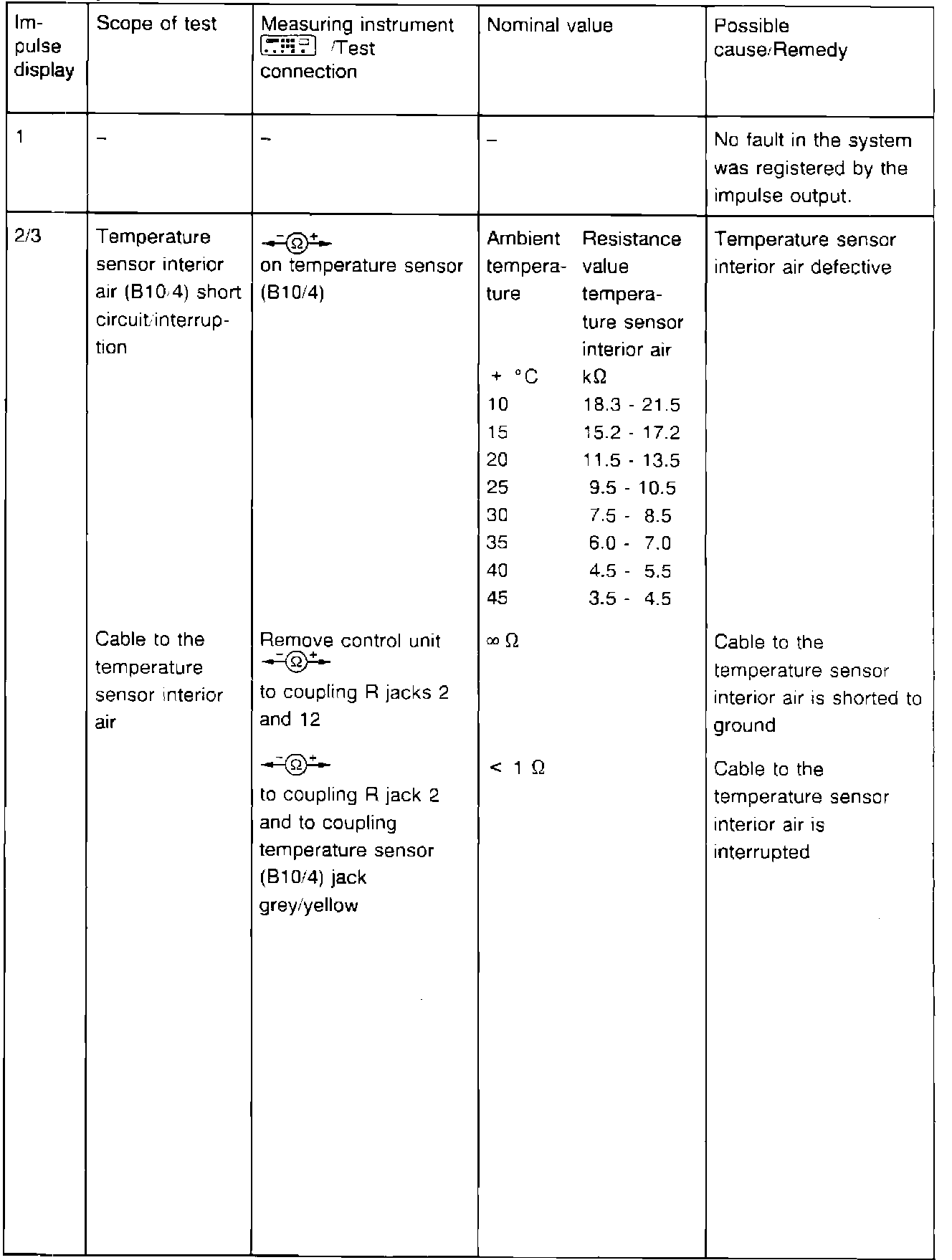

Impulse Display 1/2/3
Impulse Display 1/2/3
Fault Codes 1-3:
