Remove/Install Complete Exhaust System




Removing and installing exhaust system complete

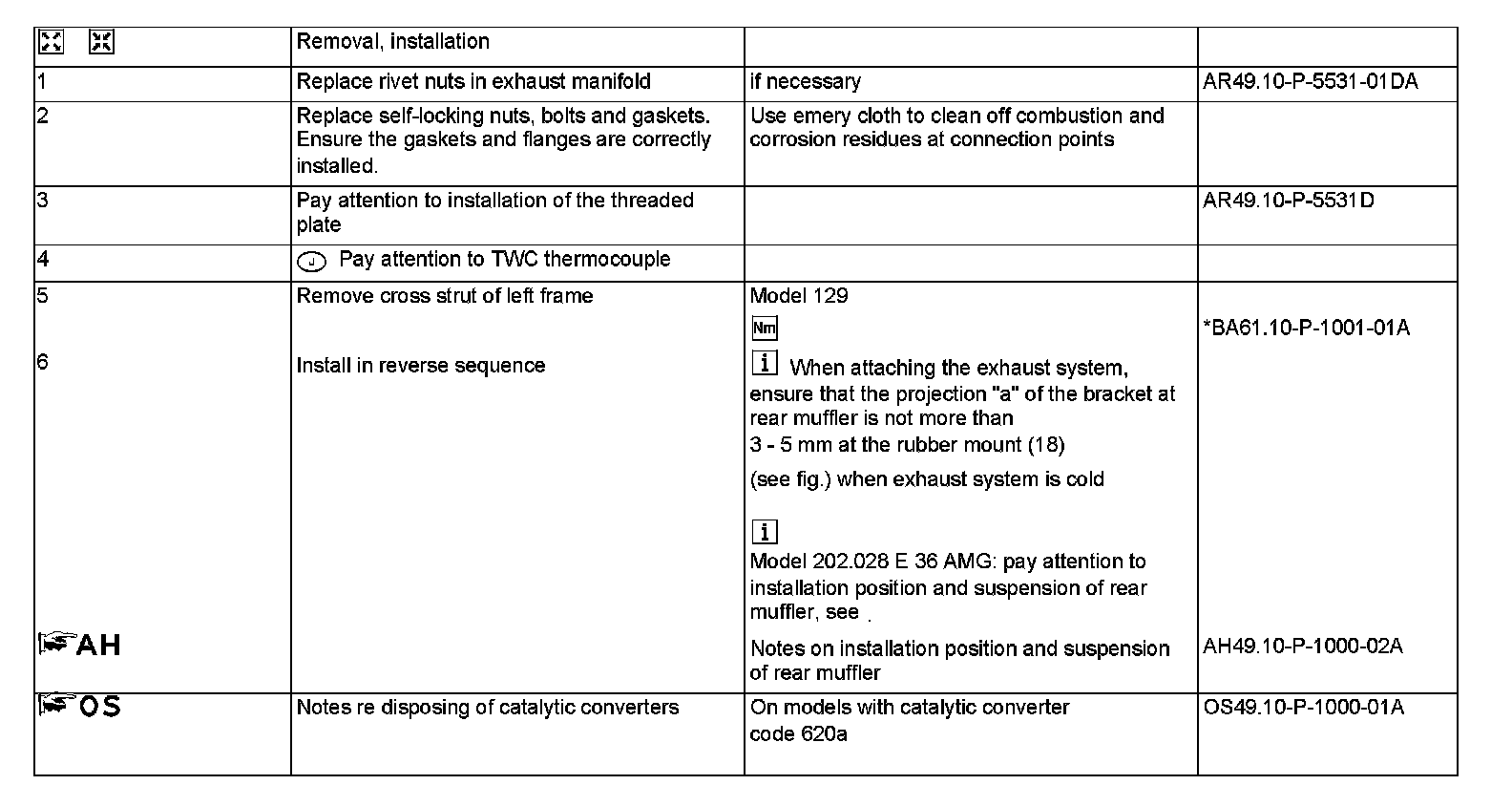

Steps 1-6:
