Diagnostic Module

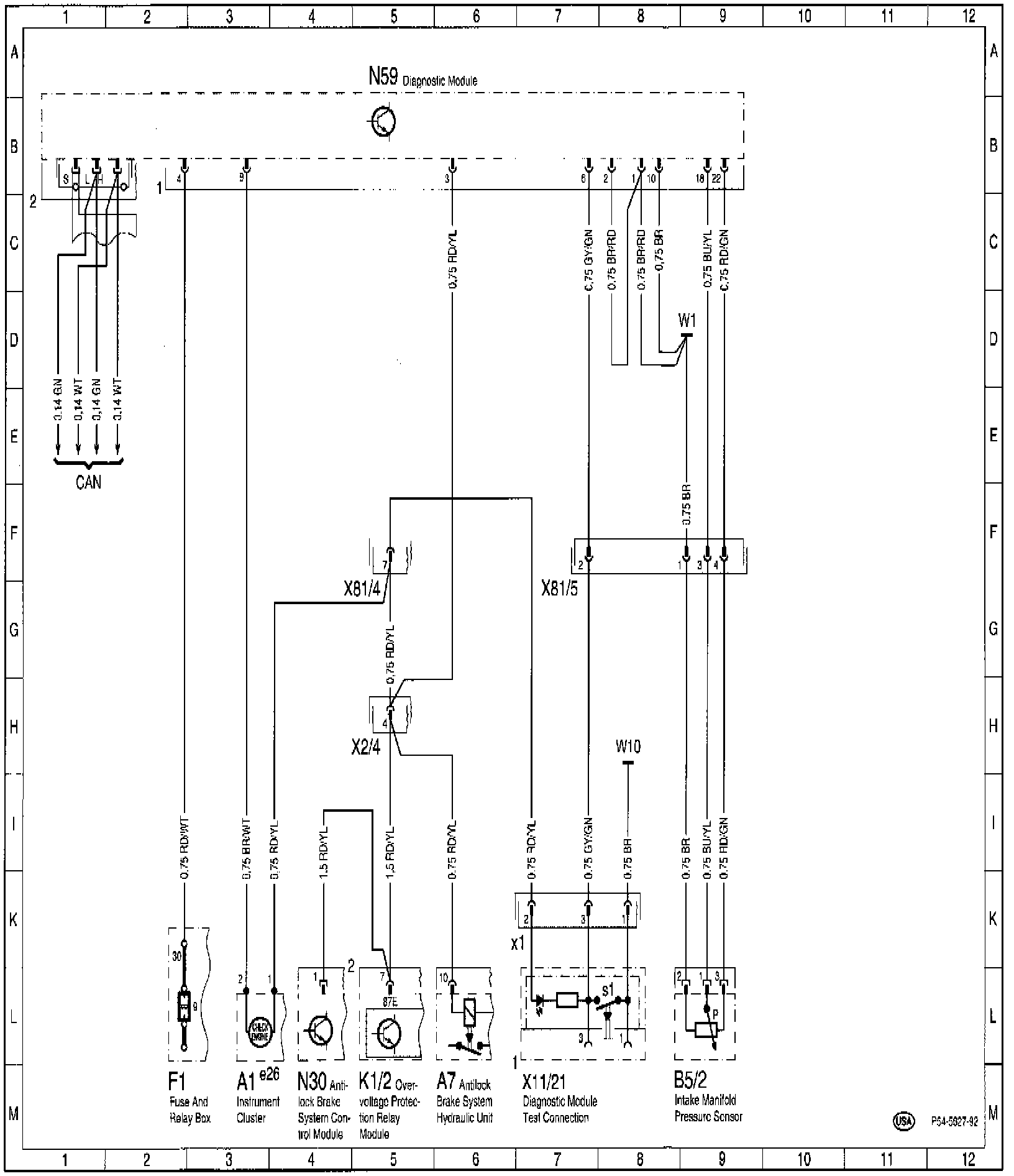

Wiring Diagram

Diagnostic Module (OBD II):

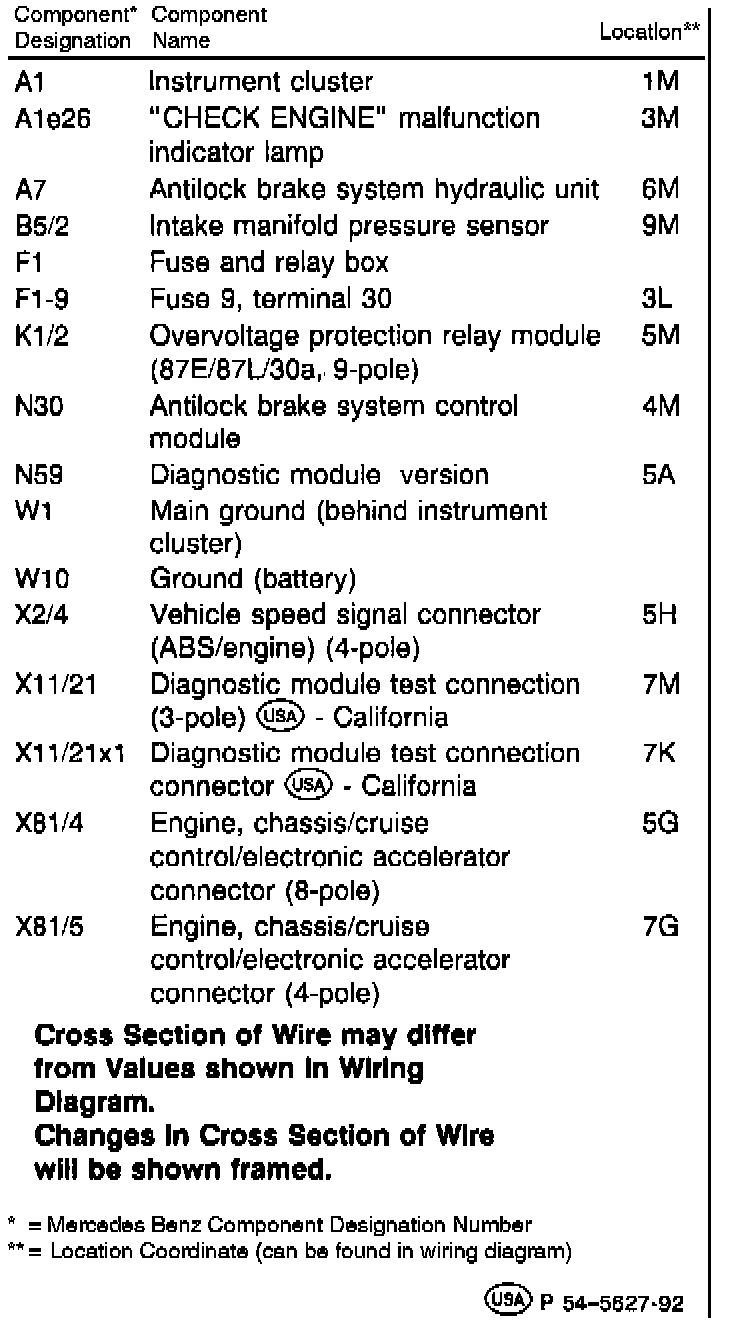

Component Index

Diagnostic Module (OBD II) - Component Index:
