4-Speed Automatic Transmission






���!4-Speed Automatic Transmission:

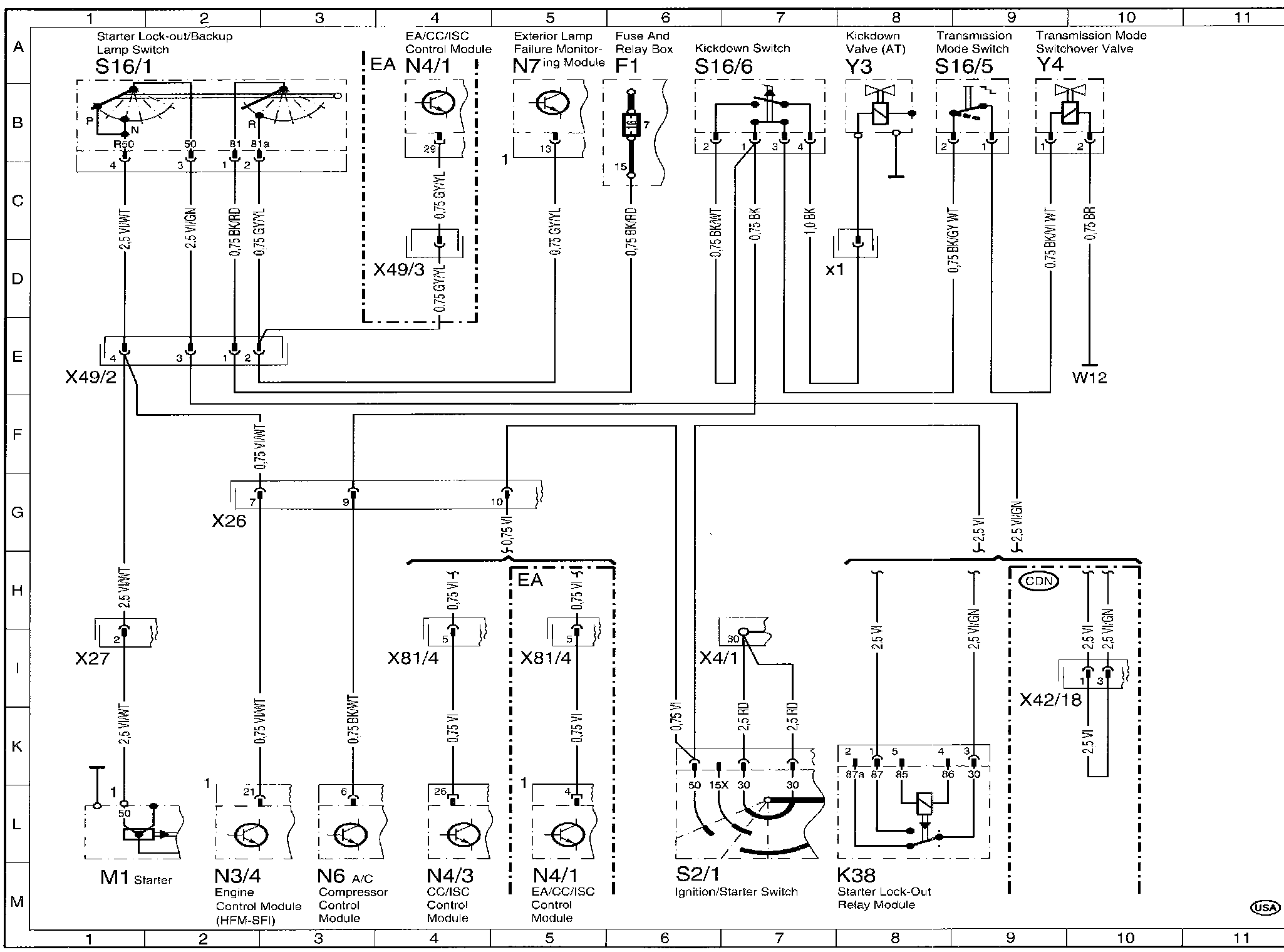

Wiring Diagram

4-Speed Automatic Transmission - Component Index:

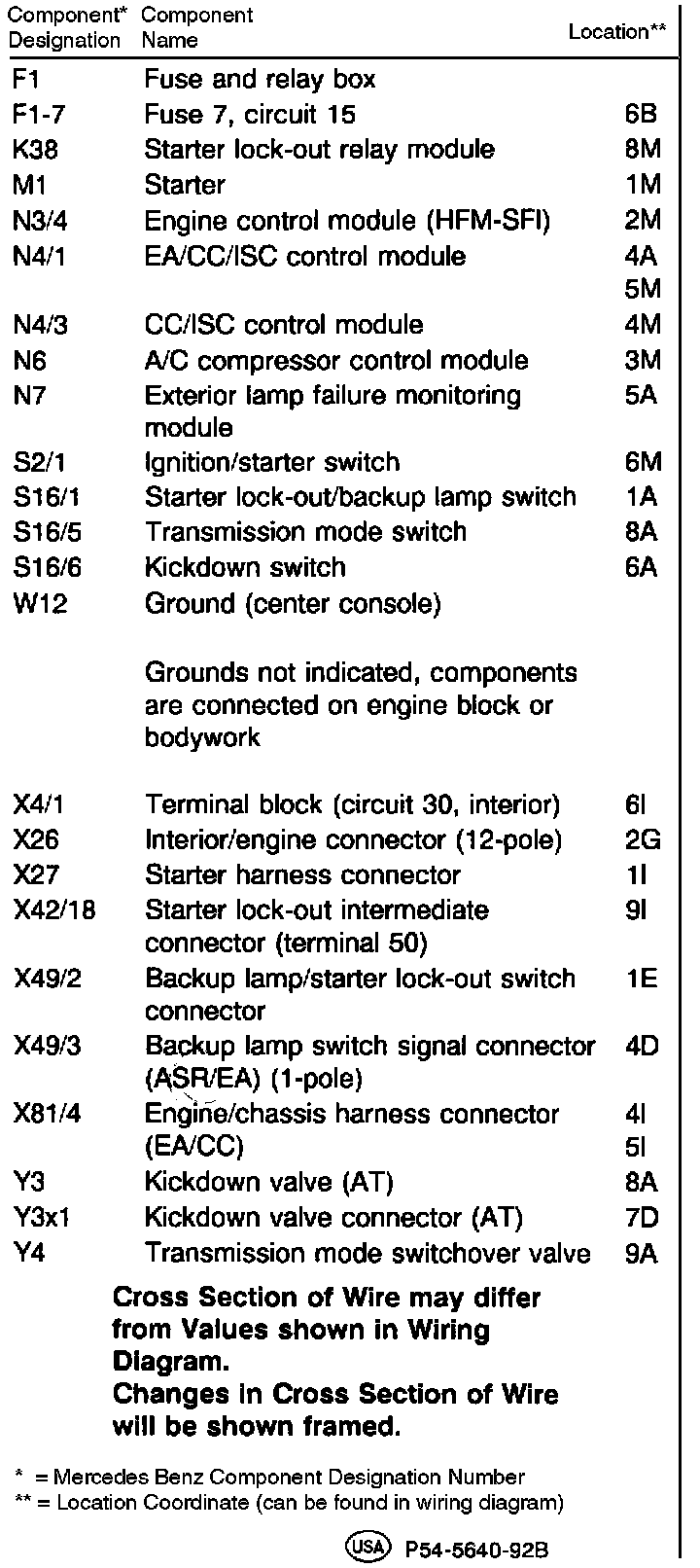

Component Index
