Automatic Dimming Mirror (ADM)

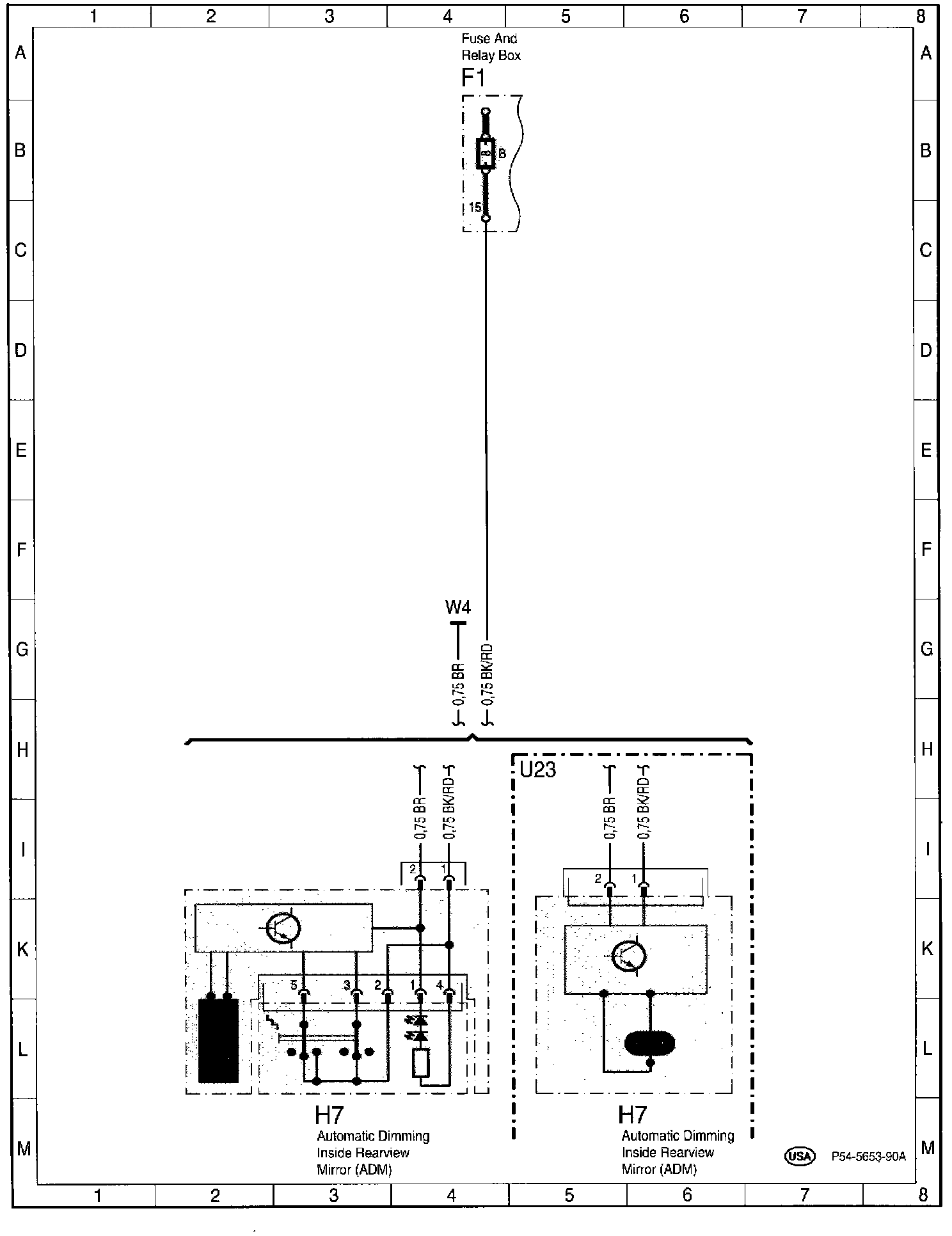

Automatic Dimming Mirror:




Wiring Diagram

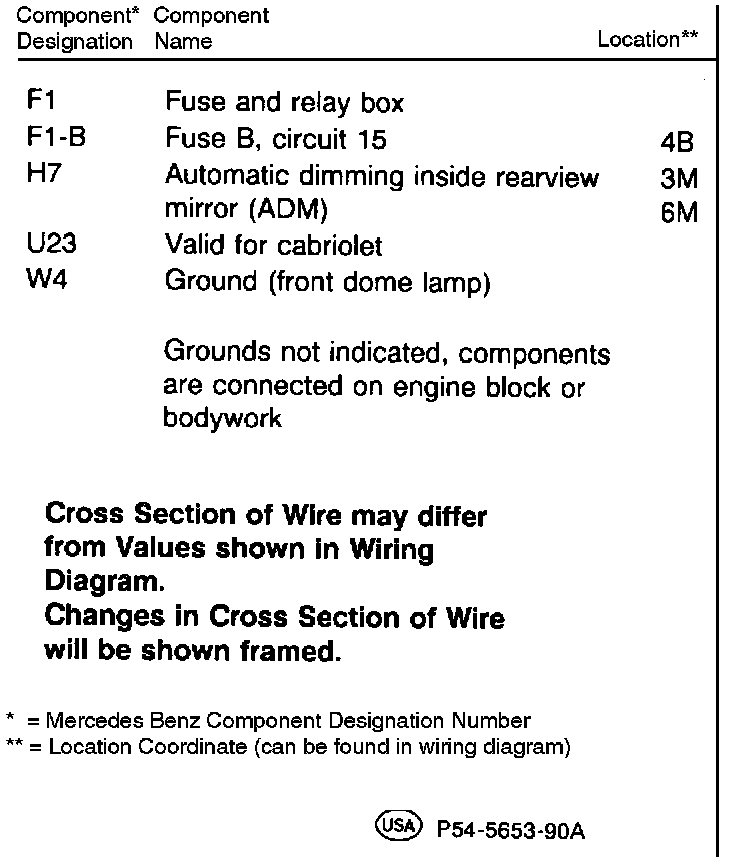

Automatic Dimming Mirror - Component Index:




Component Index
