FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1994
>>
E 320 Cabriolet (124.066) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Soft Top, Roll Bar (ST/RB) (Manual Deployment)
>>
TP - Test Program
>>
ETP - Electrical Test Program
>>
Test Steps
>>
6.1 - 7.1
6.1 - 7.1

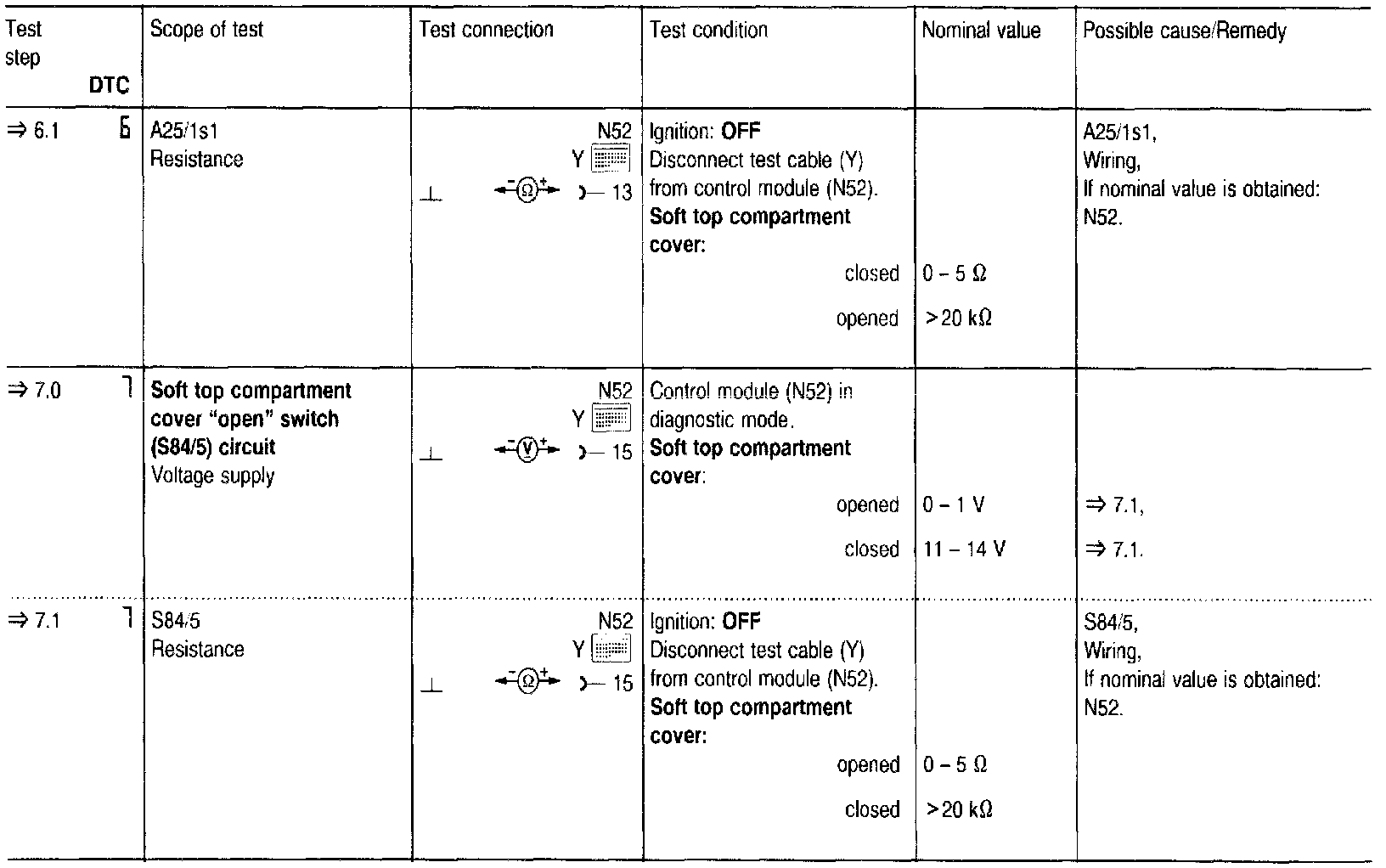

Test Steps 6.1 - 7.1:
