E 320 Cabriolet (124.066) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Soft Top, Roll Bar (ST/RB) (Manual Deployment)
>>
TP - Test Program
>>
ETP - Electrical Test Program
>>
Test Steps
>>
22.1 - 23.1
22.1 - 23.1

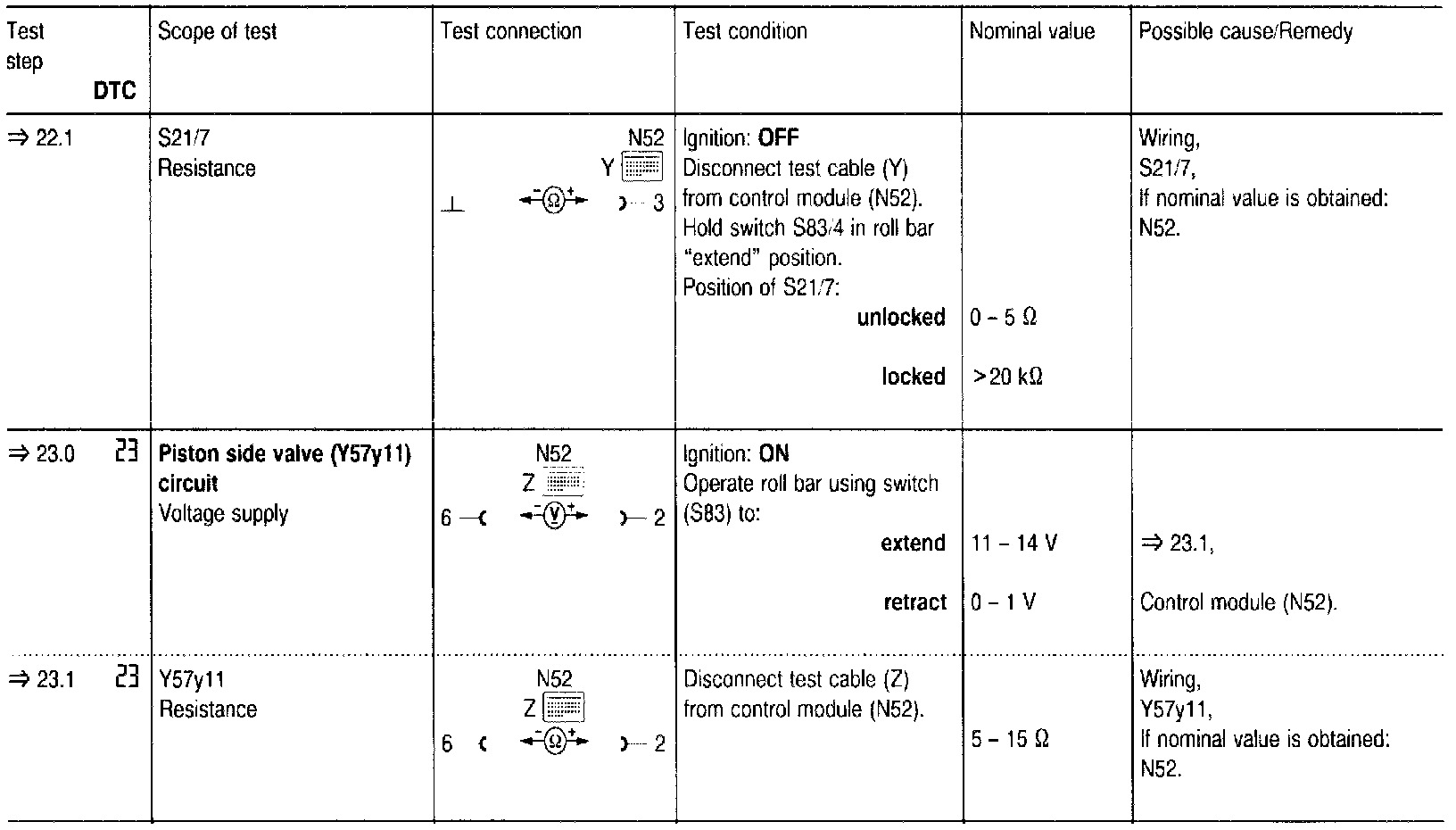

Test Steps 22.1 - 23.1:
