E 320 Cabriolet (124.066) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Soft Top, Roll Bar (ST/RB) (Manual Deployment)
>>
TP - Test Program
>>
ETP - Electrical Test Program
>>
Test Steps
>>
1.0 - 4.0
1.0 - 4.0

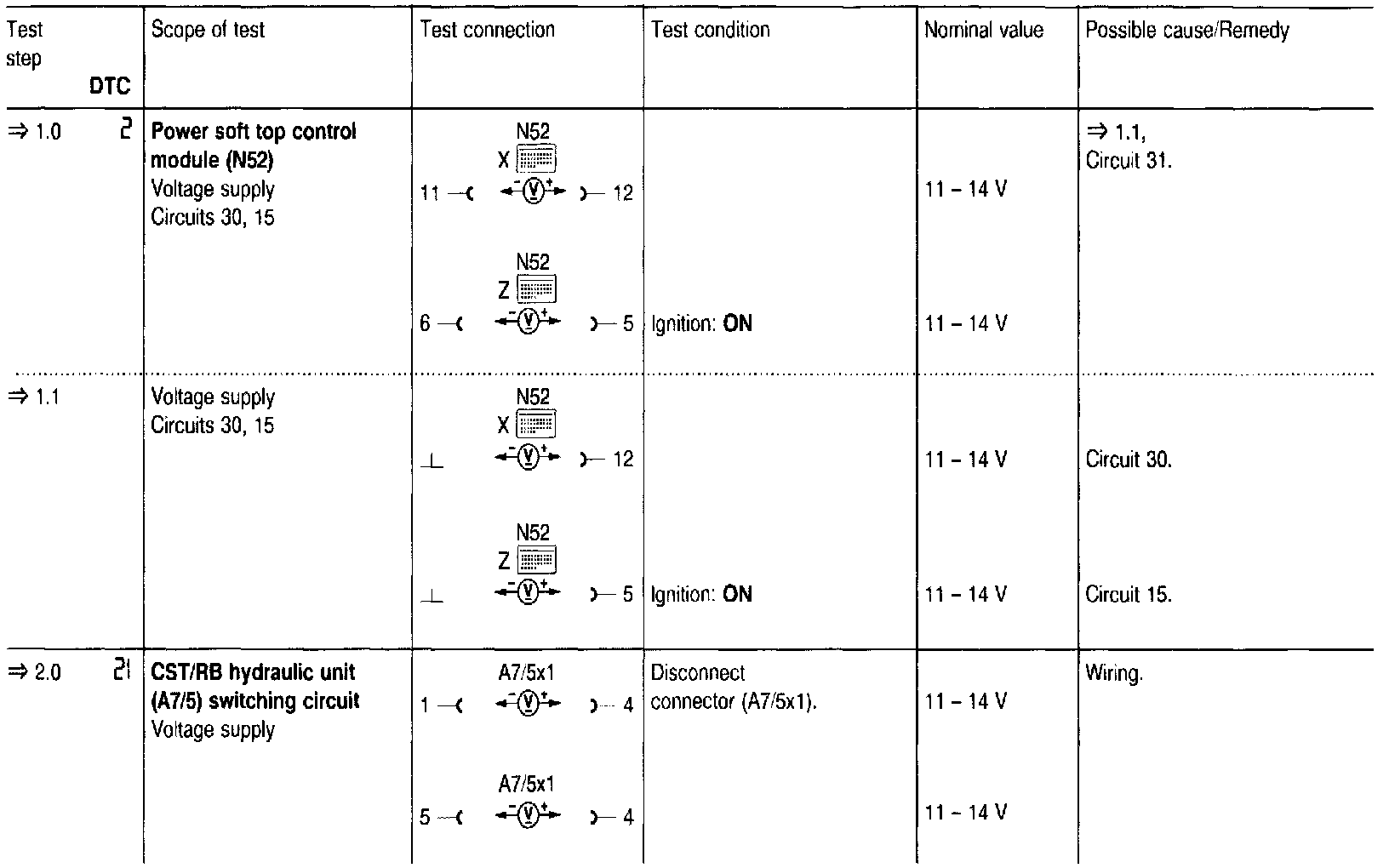

Test Steps 1.0 - 2.0:

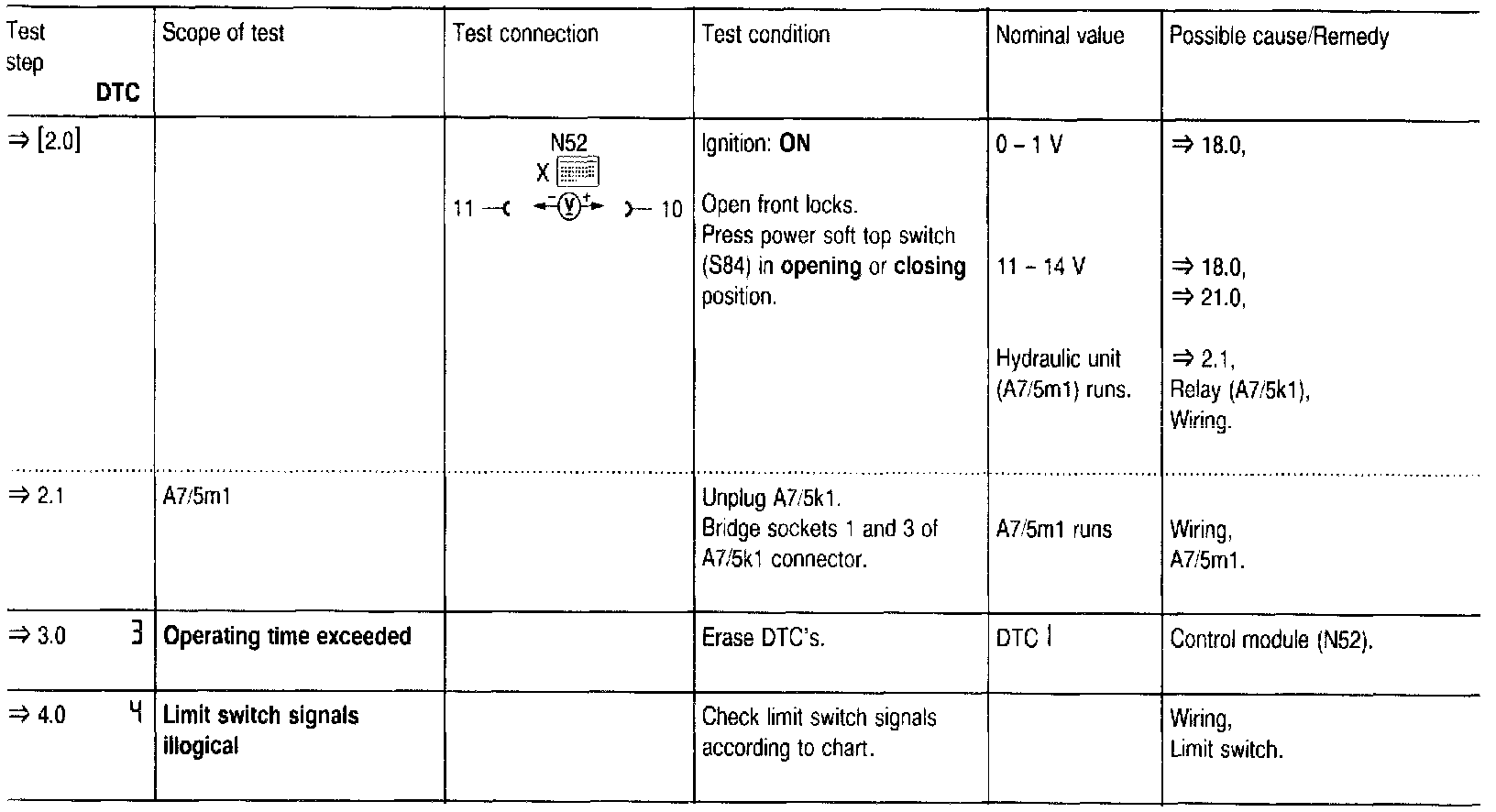

Test Steps 2.0 - 4.0:
