Connector Locations

Connector Locations

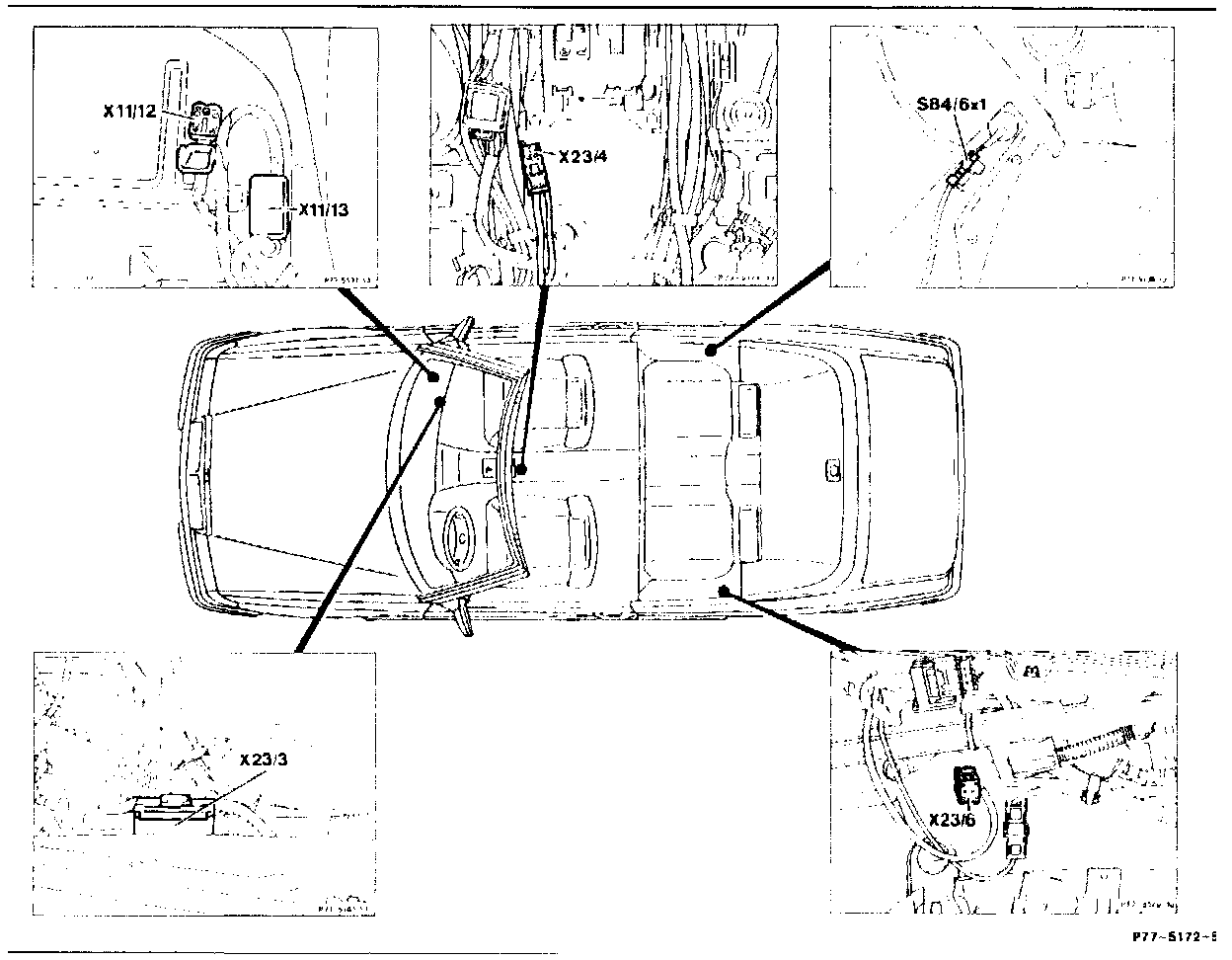

Figure 1:

S84/6x1 Soft top fabric bow "raised" switch connector
X11/12 Power soft top test connector (4-pole)
X23/3 Soft top/interior connector (14-pole)
X23/4 RB/power windows connector (14-pole)
X23/6 Soft top harness/soft top limit switch connector (4-pole)
