FT - Function Test

Soft Top Opening Sequence

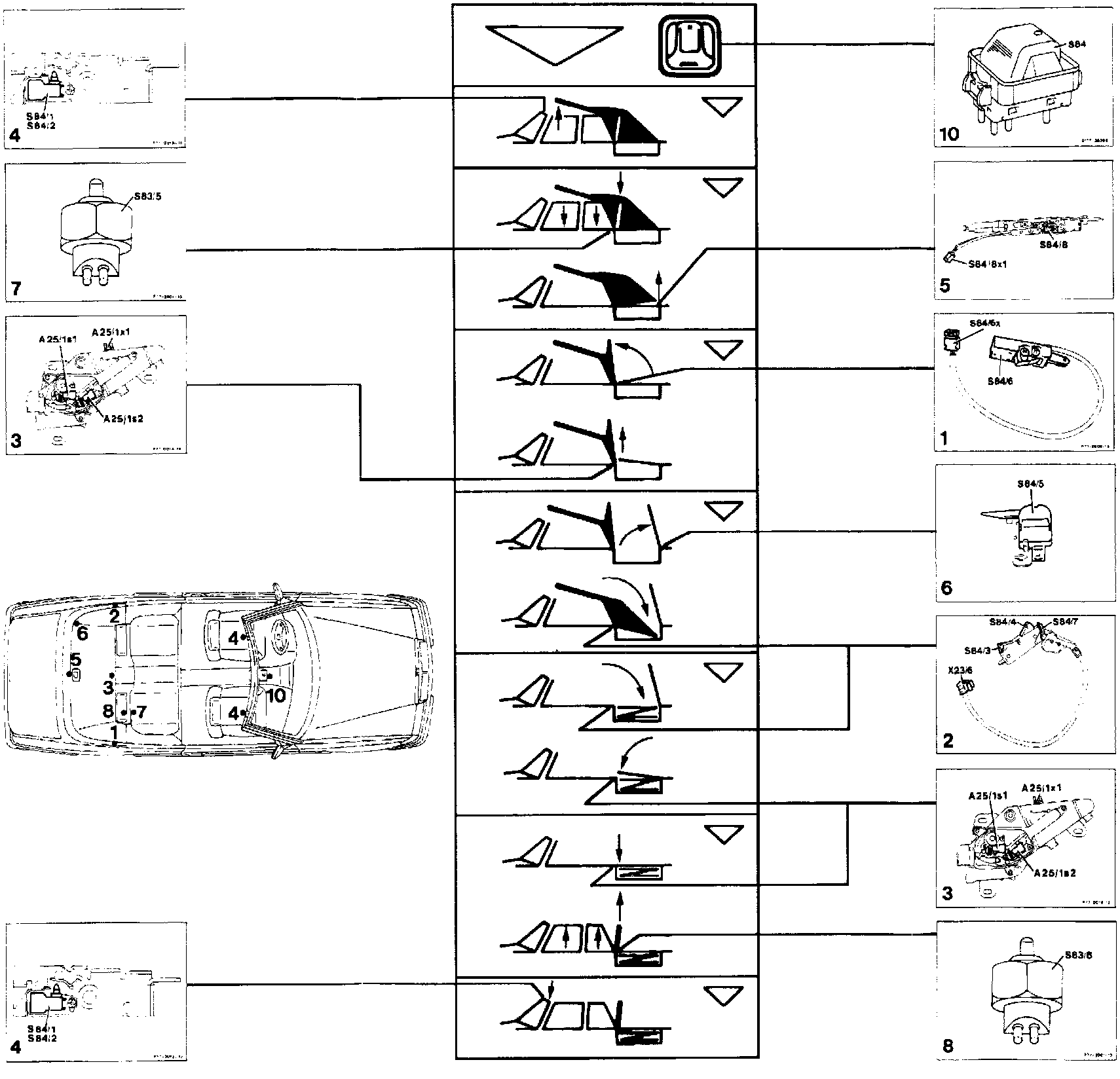

Figure 1:

A25/1 Soft top compartment cover switch group
A25/1s1 (3) Cover "closed" switch
A25/1s2 (3) Cover "locked" switch
S8315 (7) RB "retracted" switch
S83/6 (8) RB "extended" switch
S84 (10) Power soft top switch
S8411 (4) Left front soft top "locked" switch
S84/2 (4) Right front soft top "locked" switch
S84/3 (2) Soft top "open" switch (soft top in storage compartment)
S84/4 (2) Soft top "overhead" switch
S84/5 (6) Soft top compartment "open" switch
S84/6 (1) Soft top fabric bow "raised" switch
S84/7 (2) Soft top fabric bow "down" switch
S84/8 (5) Soft top fabric bow "locked" switch

Soft Top Closing Sequence

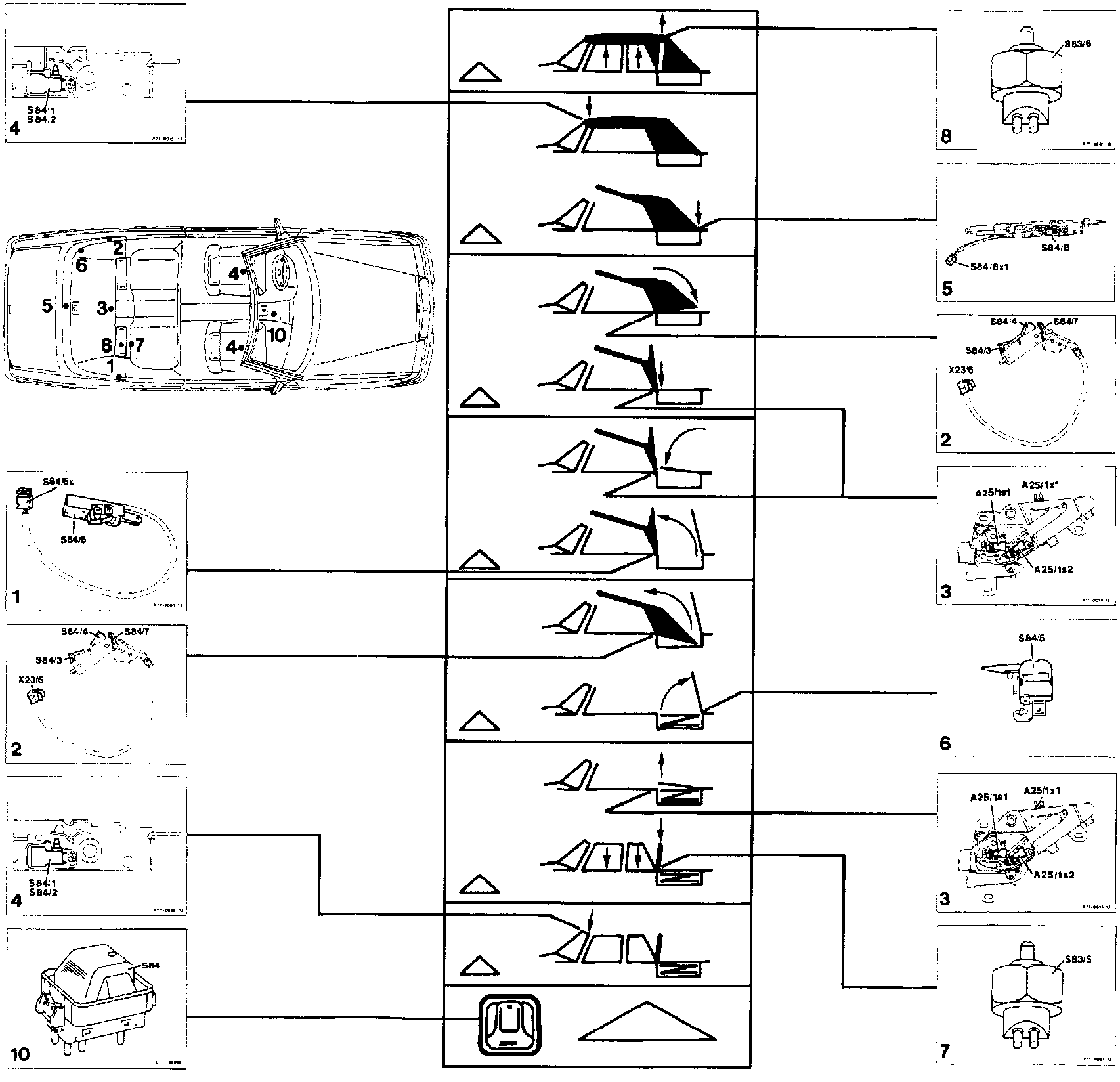

Figure 2:

A25/1 Soft top compartment cover switch group
A25/1s1 (3) Cover "closed" switch
A25/1s2 (3) Cover "locked" switch
S83/5 (7) RB "retracted switch
S83/6 (8) RB "extended" switch
S84 (10) Power soft top switch
S84/1(4) Left front soft top "locked" switch
S84/2 (4) Right front soft top "locked" switch
S84/3 (2) Soft top "open" switch (soft top in storage compartment)
S84/4 (2) Soft top "overhead" switch
S84/5 (6) Soft top compartment "open" switch
S84/6 (1) Soft top fabric bow "raised" switch
S84/7 (2) Soft top fabric bow "down" switch
S84/8 (5) Soft top fabric bow "locked" switch
