CRDC - Complaint Related Diagnostic Chart
CRDC - Complaint Related Diagnostic Chart
Complaint/Problem/Possible Couse/Remedy

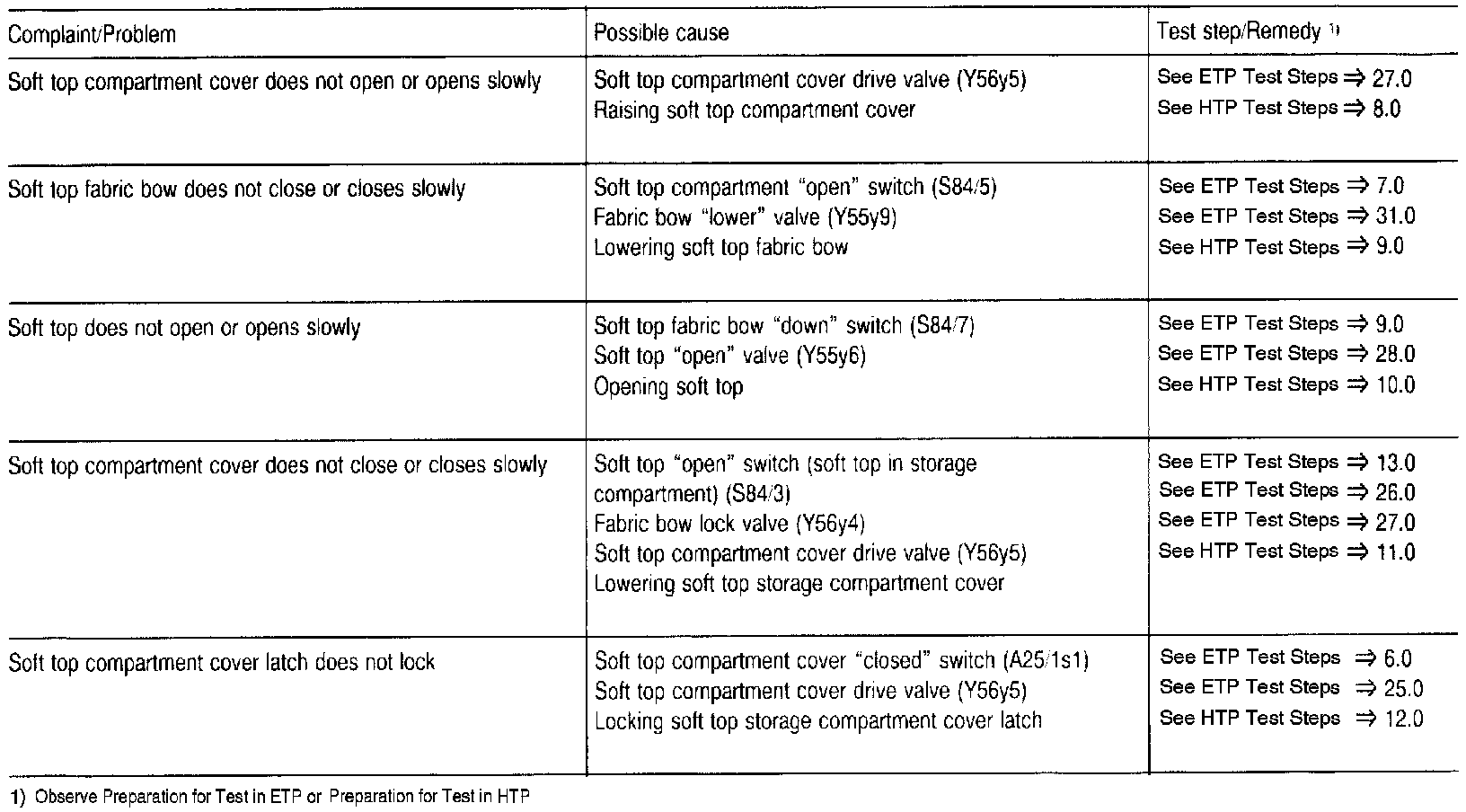

Part 1 of 7:

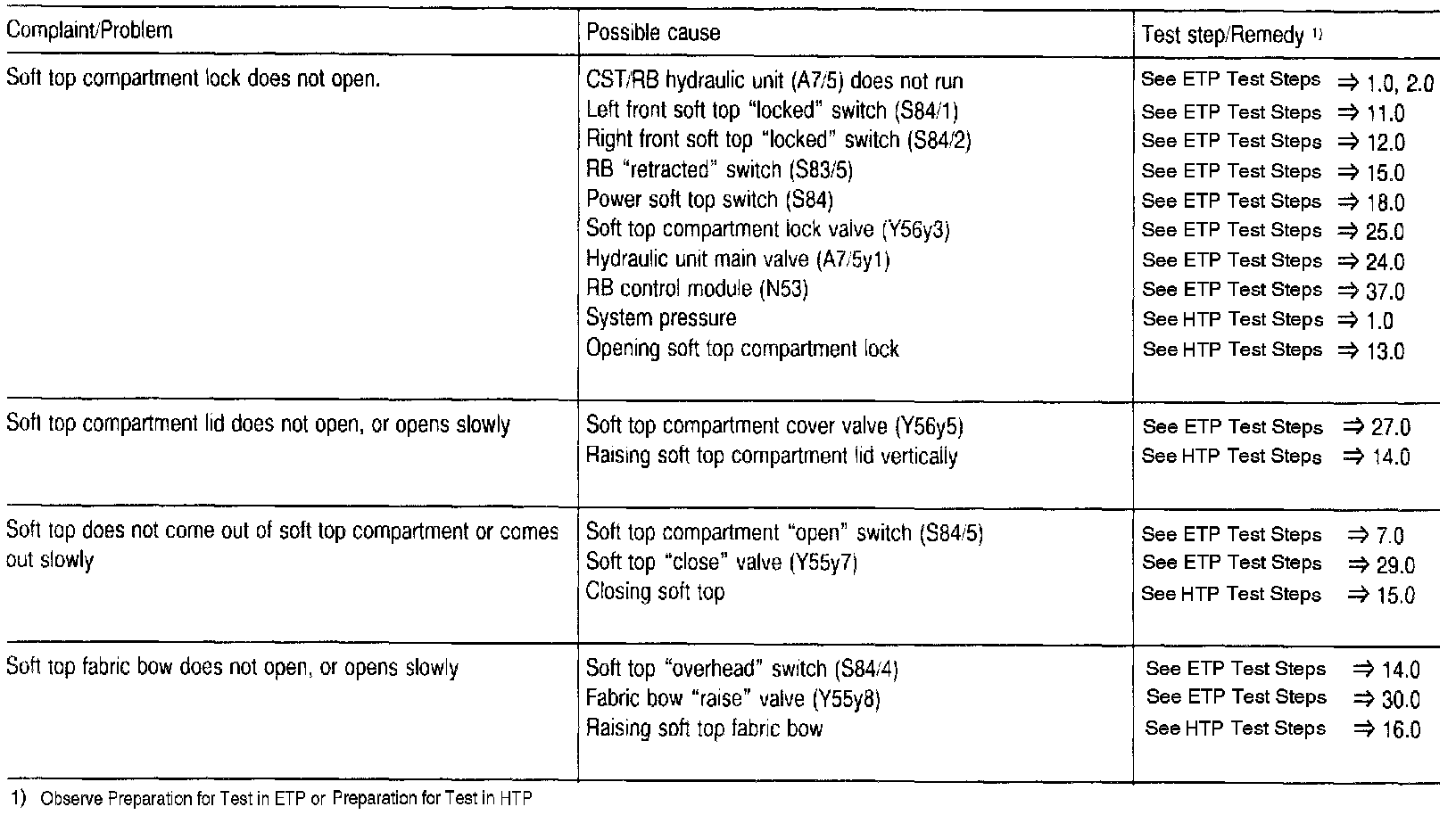

Part 2 of 7:

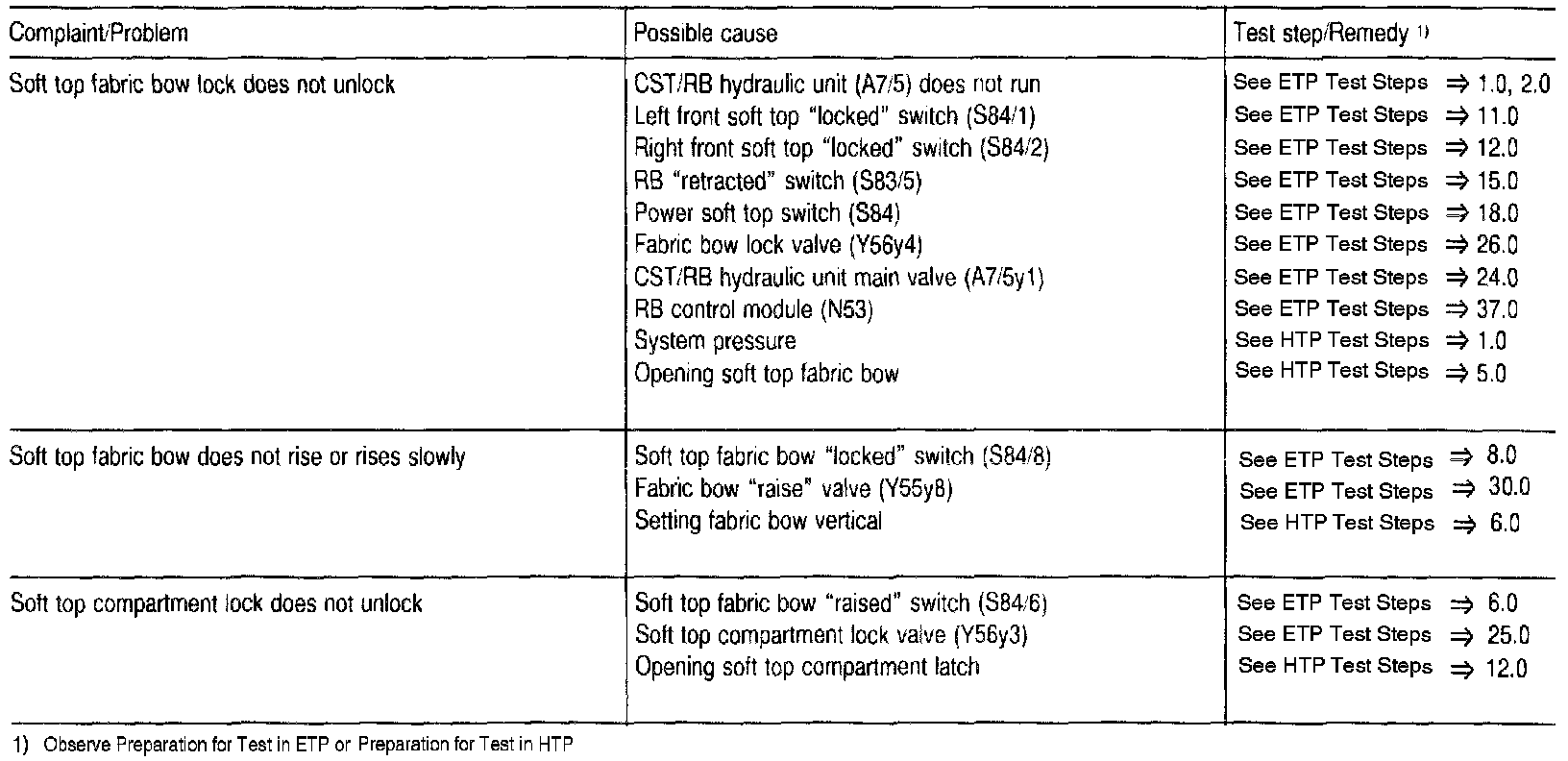

Part 3 of 7:

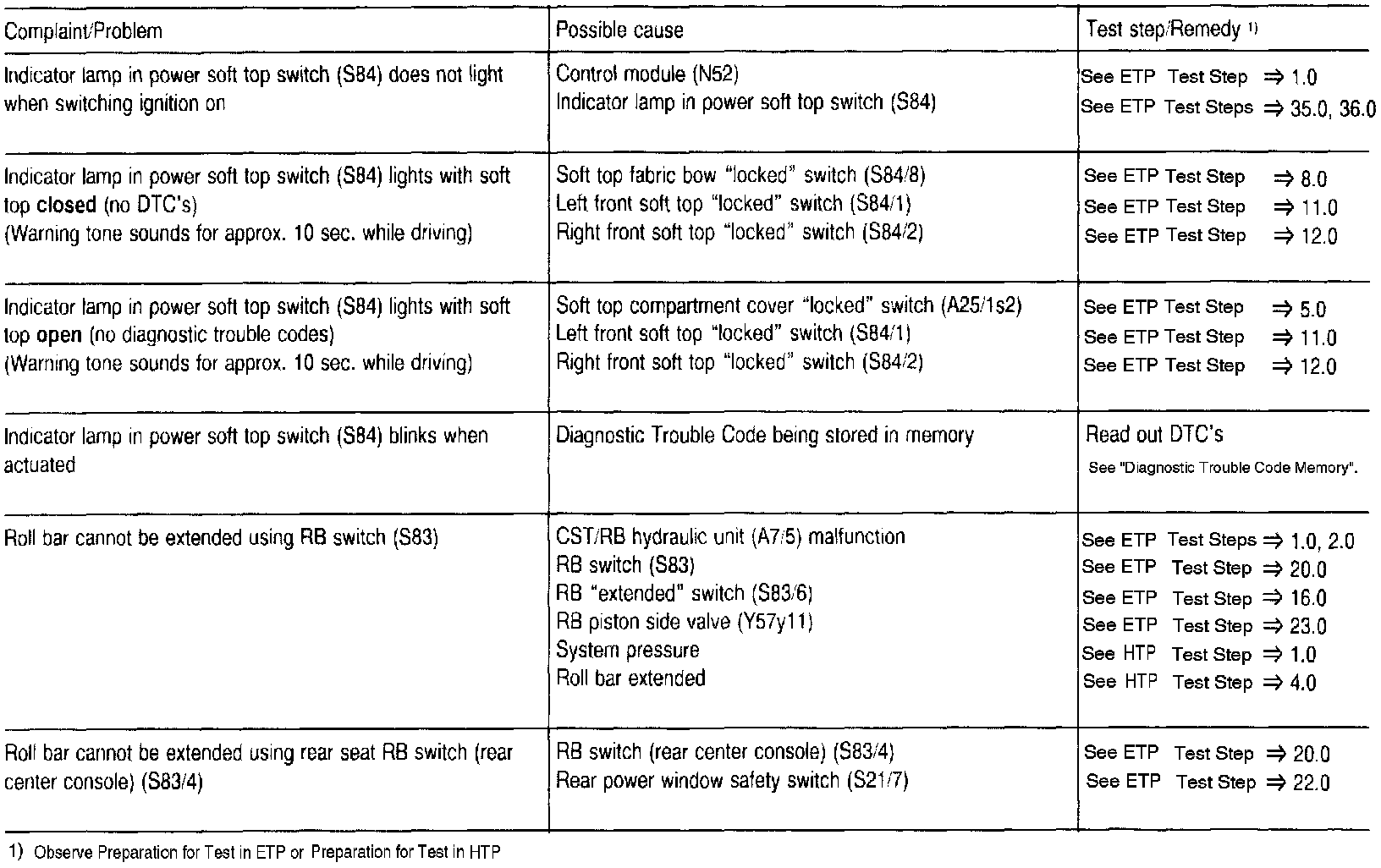

Part 4 of 7:

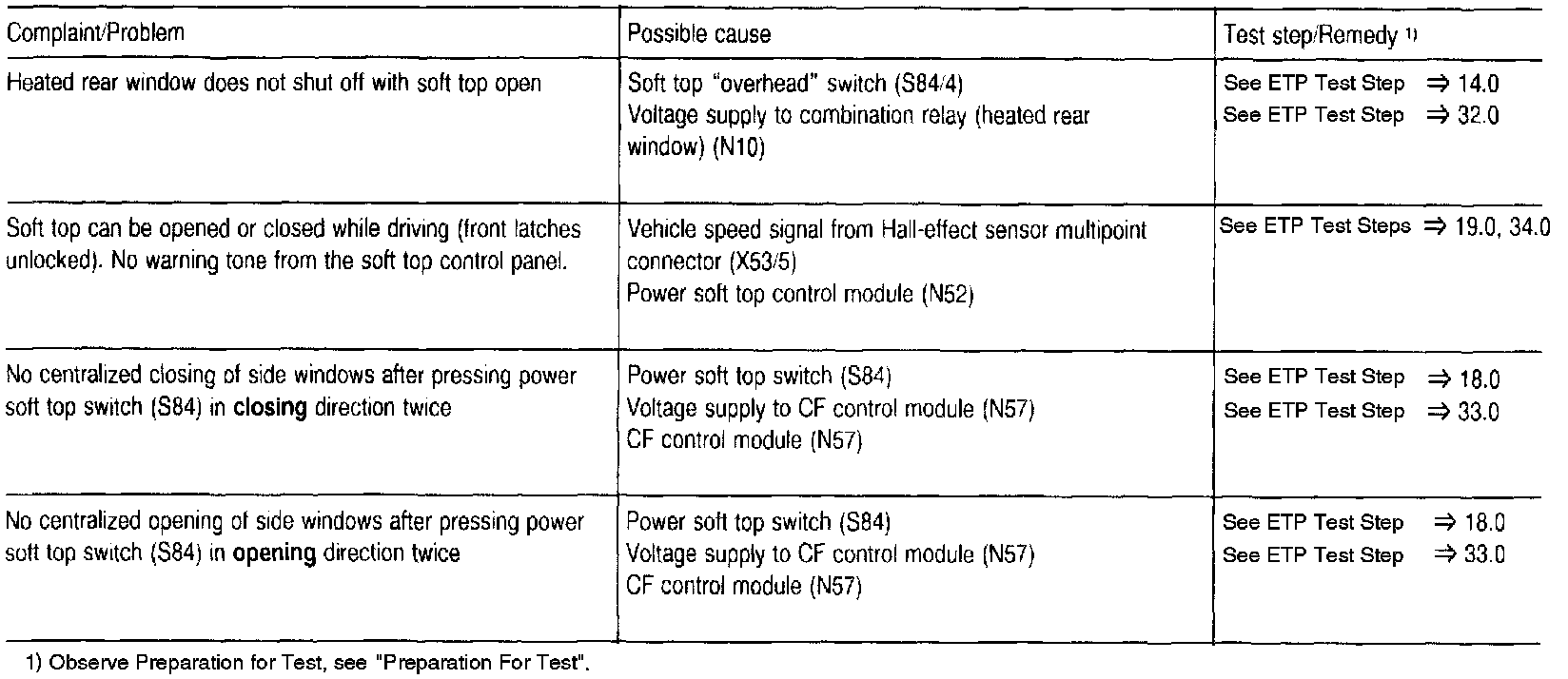

Part 5 of 7:

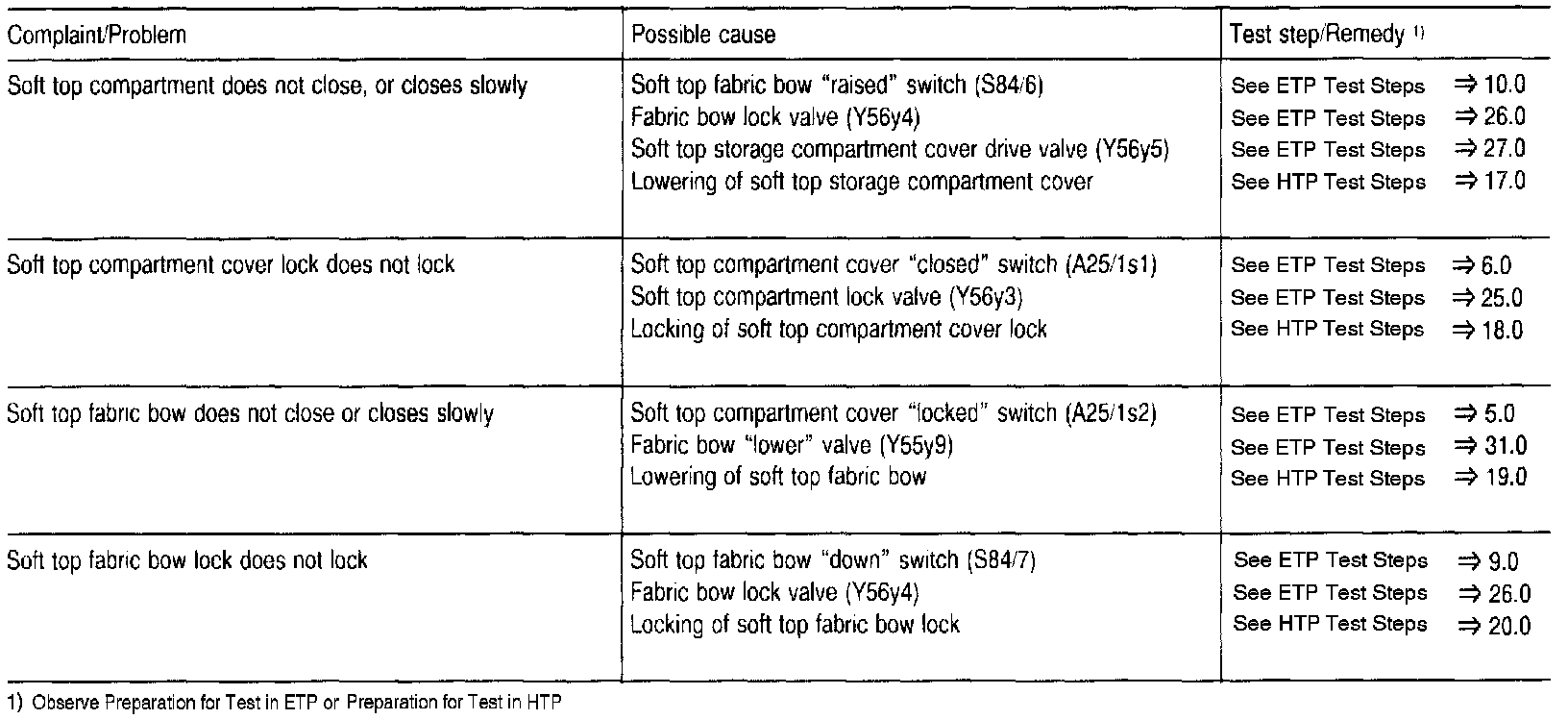

Part 6 of 7:

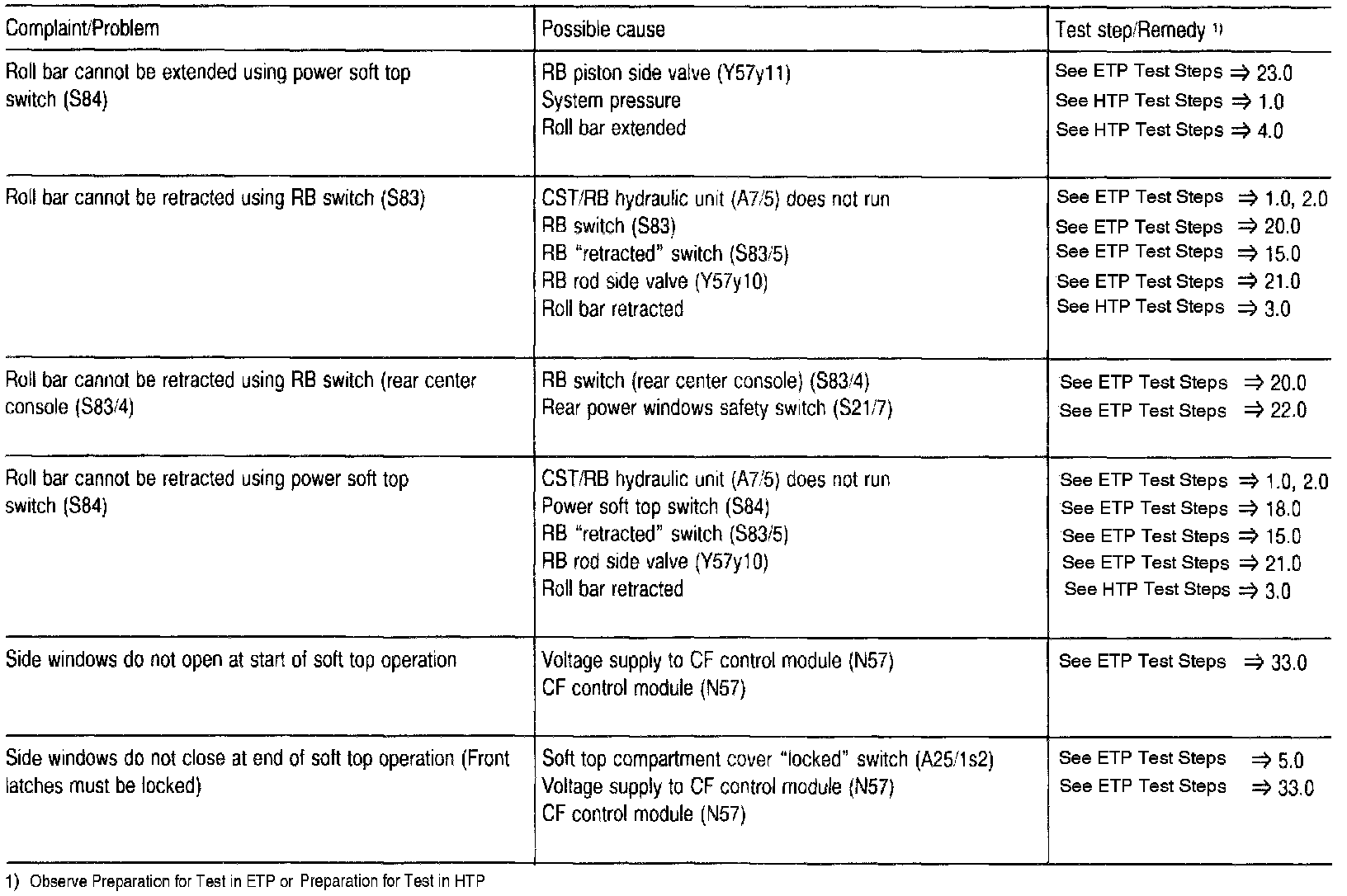

Part 7 of 7:
