Test Conditions

1. Battery voltage, 11 - 14 V.
2. Fuse 6, circuit 15 [in Fuse/Relay Box (F1)] in proper working condition.
3. Fuse in Auxiliary Fuse Holder (F24) in proper working condition.

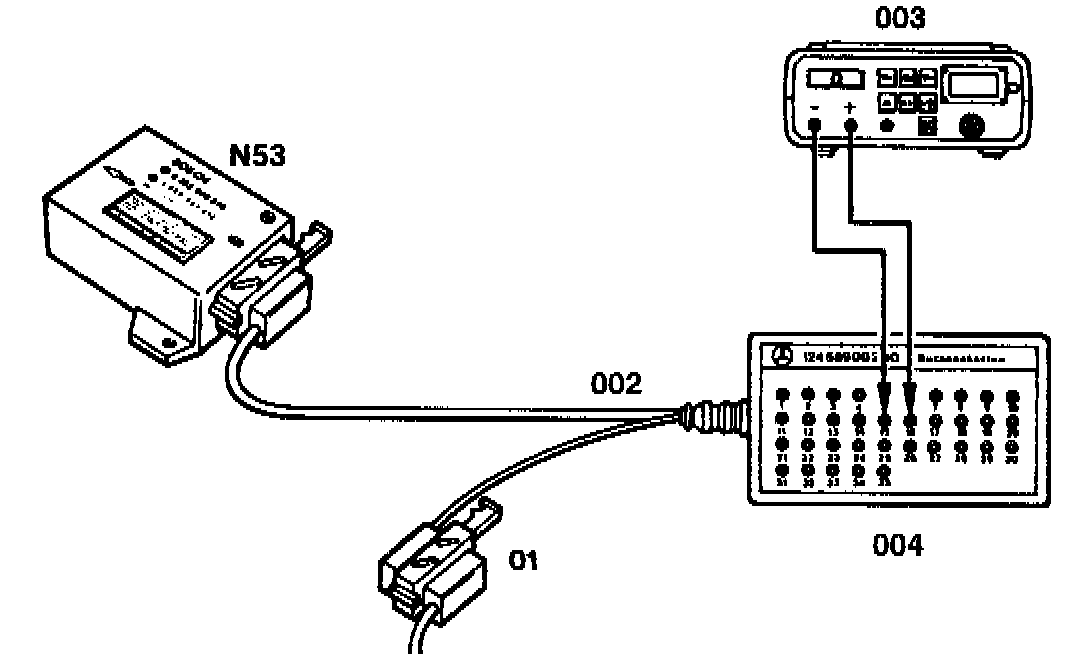

Connection Diagram:

N53 Roll bar control module
01 Vehicle harness (roll bar control module)
002 Test cable
003 Digital multimeter
004 Socket box

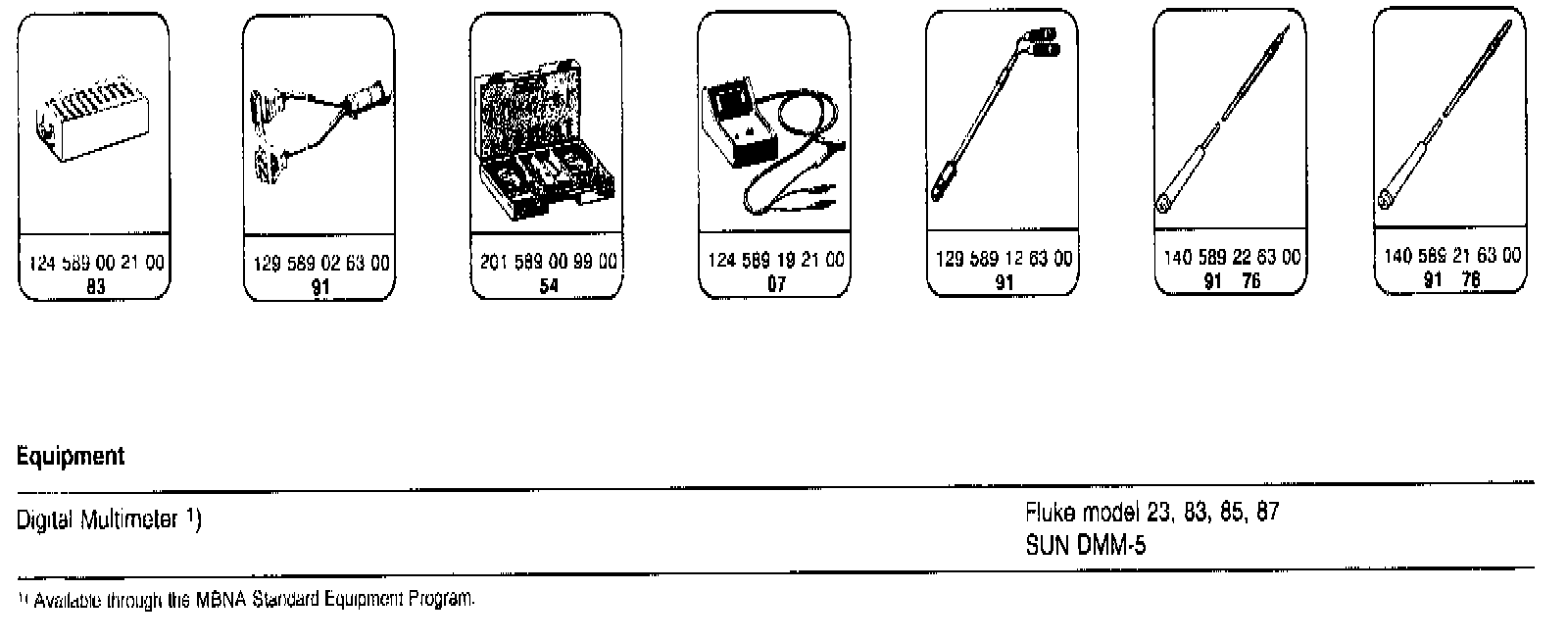

Special Tools:
