Removal and Installation of Bearing From Wheel Carrier
Removing and installing double row angular ball bearing in wheel carrierSpecial tool assignment
Models 140,163, 210.216, 215, 220:
Removal and installation tool 140 589 05 43 00
Models 129,170, 202 203, 208, 210.0:
Removal and installation tool 124 589 0543 00
Pulling out angular ball bearing
Refer to Wheel Hub for procedure on removing axle flange / bearing assembly from vehicle Procedures
Tool In Installed Position:

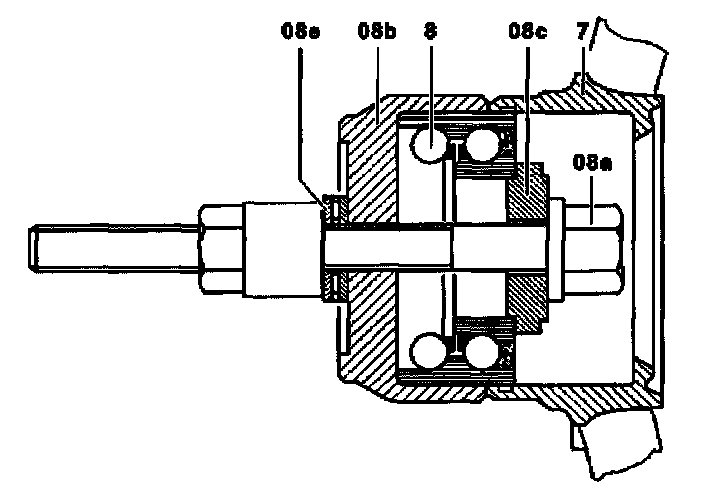

1. Pull double-row angular ball bearing (8) out of wheel carrier using removal and installation tool (08a-08c, 08e) and remove.
7. Wheel carrier
8. Double-row angular ball bearing
08a. Hexagon bolt with collared nut
08b. Puller sleeve
08c. Pressure plate (small, part 03)
08e. Thrust bearing
Pulling in angular ball bearing
Tool In Installed Position:
2. Pull double-row angular ball bearing (8) into wheel carrier using removal and installation tool (08a, 08b, 08d, 08e) until it touches the shoulder (arrow).
7. Wheel carrier
8. Double-row angular ball bearing
08a. Hexagon bolt with collared nut
08b. Puller sleeve
08d. Pressure plate (large, part 05)
08e. Thrust bearing
