Inner Bearing Race Removal
Inner Bearing Race RemovalSpecial tool assignment
Models 129, 140, 163, 170, 202, 203, 208, 210, 215, 220:
Thrust piece 124 589 02 34 00, puller 001 589 503 300
Models 140,163, 210.2/6, 215, 220:
Collet chuck 140 589 01 34 00
Models 129, 170, 202, 203, 208, 210.0:
Collet chuck 201 589 00 34 00
1. Screw collet chuck onto puller and tighten.
2. Clamp rear axle shaft flange in vise with aluminum jaws.

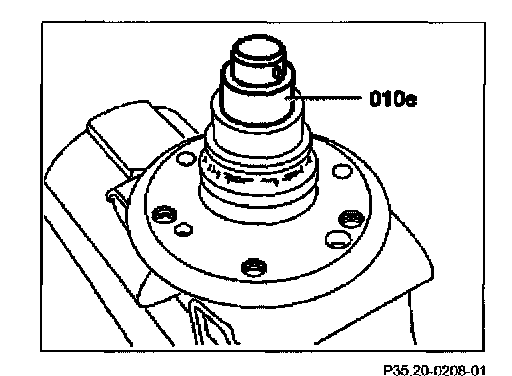

Thrust Piece Installed:
3. Fit thrust piece (010e) with large diameter on rear axle shaft flange.

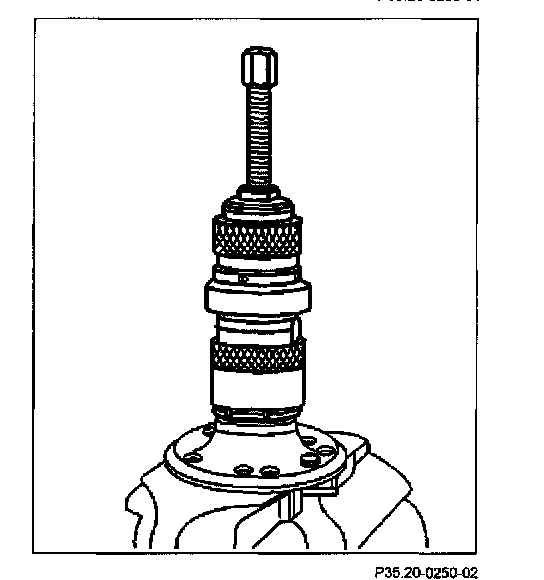

Puller Installed:
4. Insert complete puller over inner bearing race. Clamp collet chuck around upper grooves using conical sleeve of puller.
5. Pull bearing inner race off rear axle shaft flange using puller and remove.
