How to Pull and Clear Diagnostic Trouble Codes (DTC's)

Diagnostic Trouble Code (DTC) Memory

Test Preparation for DTC Readout

1. Connect impulse counter scan tool to the data link connector (X11/4) according to the connection diagram. Connecting Tester Or Scanner, Reading and Erasing DTC Memory

2. Read out any stored DTC's from ADS control module (N51).

Note: Connect yellow wire from impulse counter scan tool to socket 9 of N51.

Special Tools

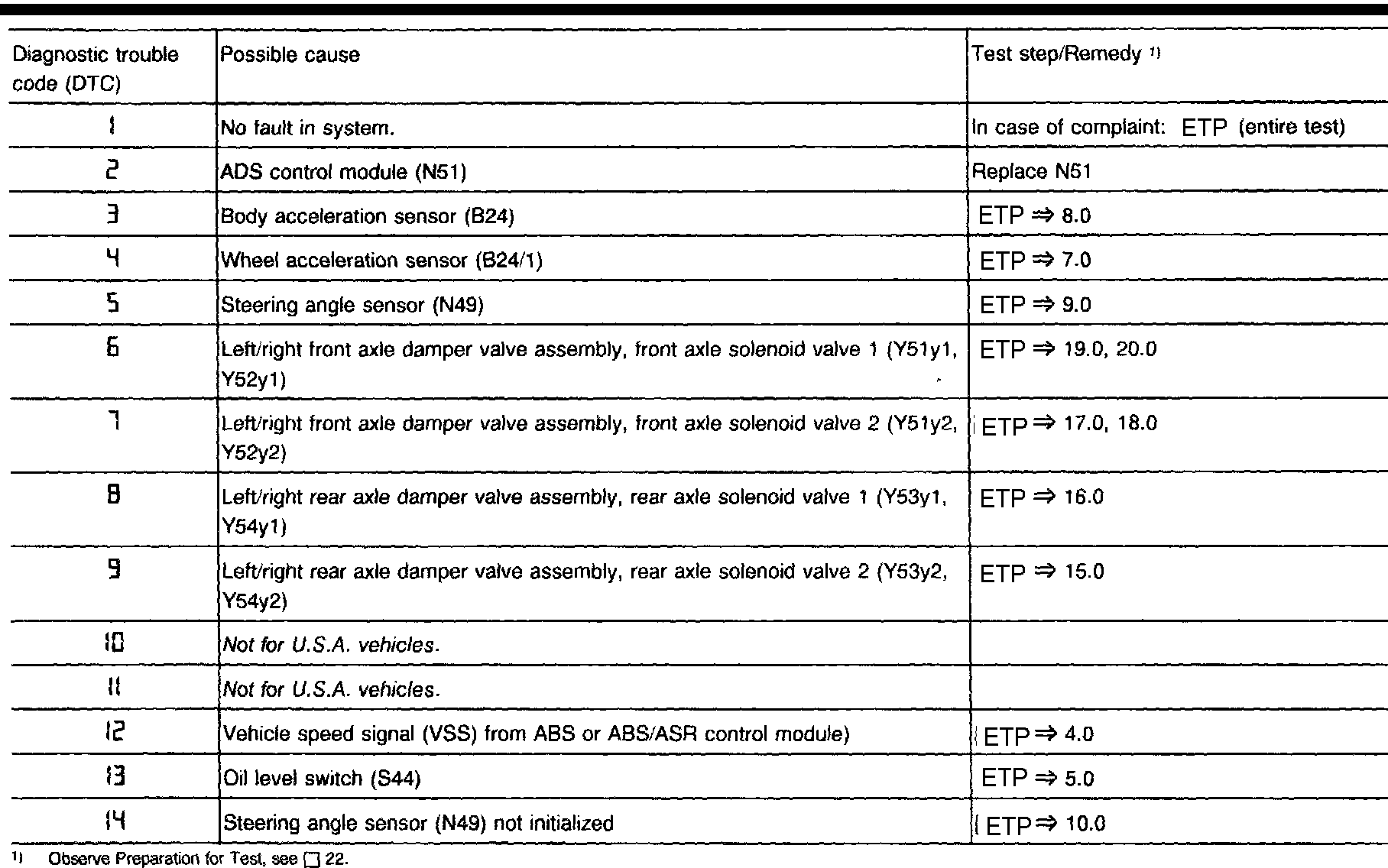

DTC Chart
