Damping Test

Hydraulic Test Program - Damping Test

Preparation for Test
1. Check oil level in reservoir, correct if necessary.
2. Connect Ohm resistance substitution unit to comfort/sport switchover test connector (X98).

Special Tools

Figure 1:

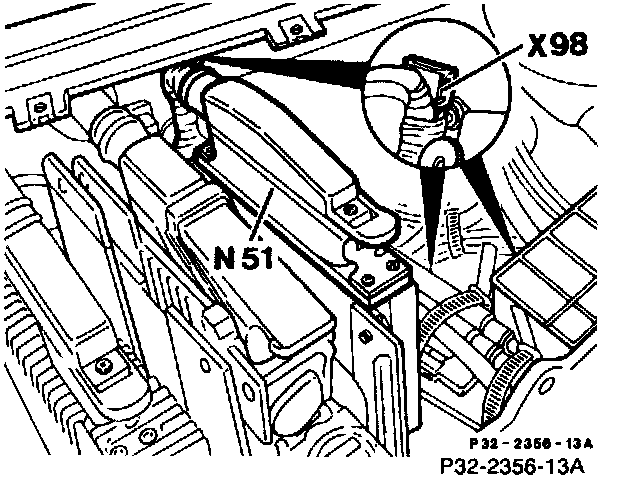

N51 ADS control module
X98 Comfort(sport switchover test connector (2-pole)

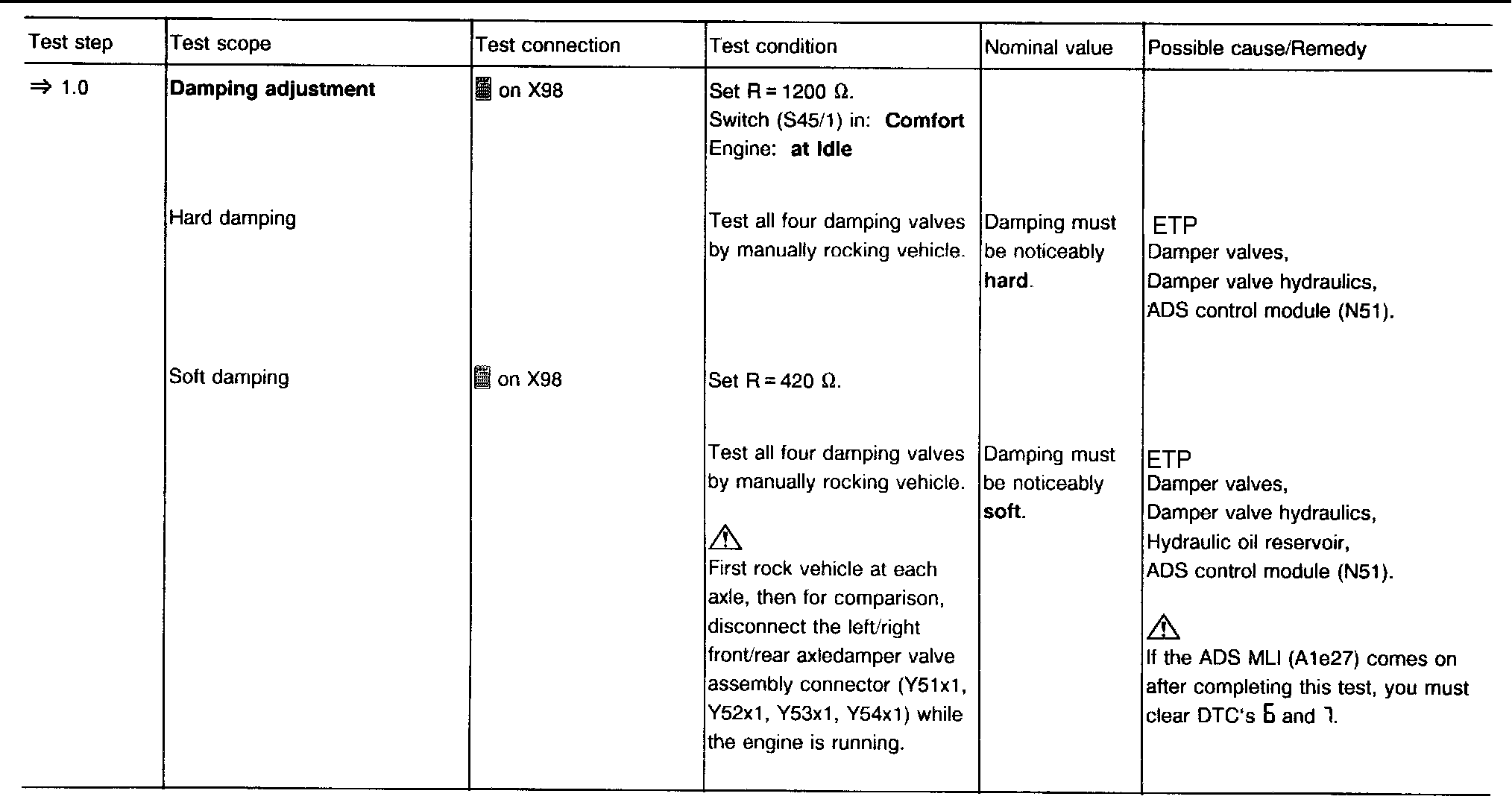

Test:

Figure 2:

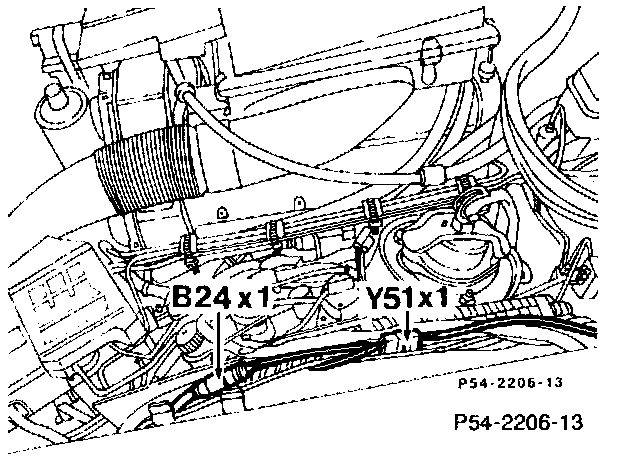

Y51x1 Left front axle damper valve assembly connector

Figure 3:

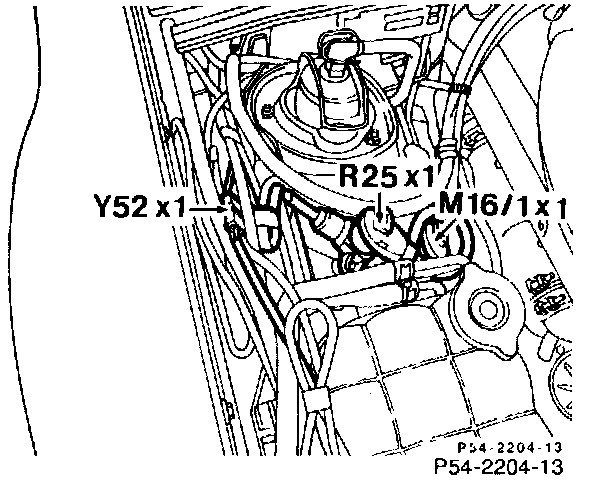

Y52x1 Right front axle damper valve assembly connector

Figure 4:

Y53x1 Left rear axle damper valve assembly connector
Y54x1 Right rear axle damper valve assembly connector
