Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Temperature Sensor

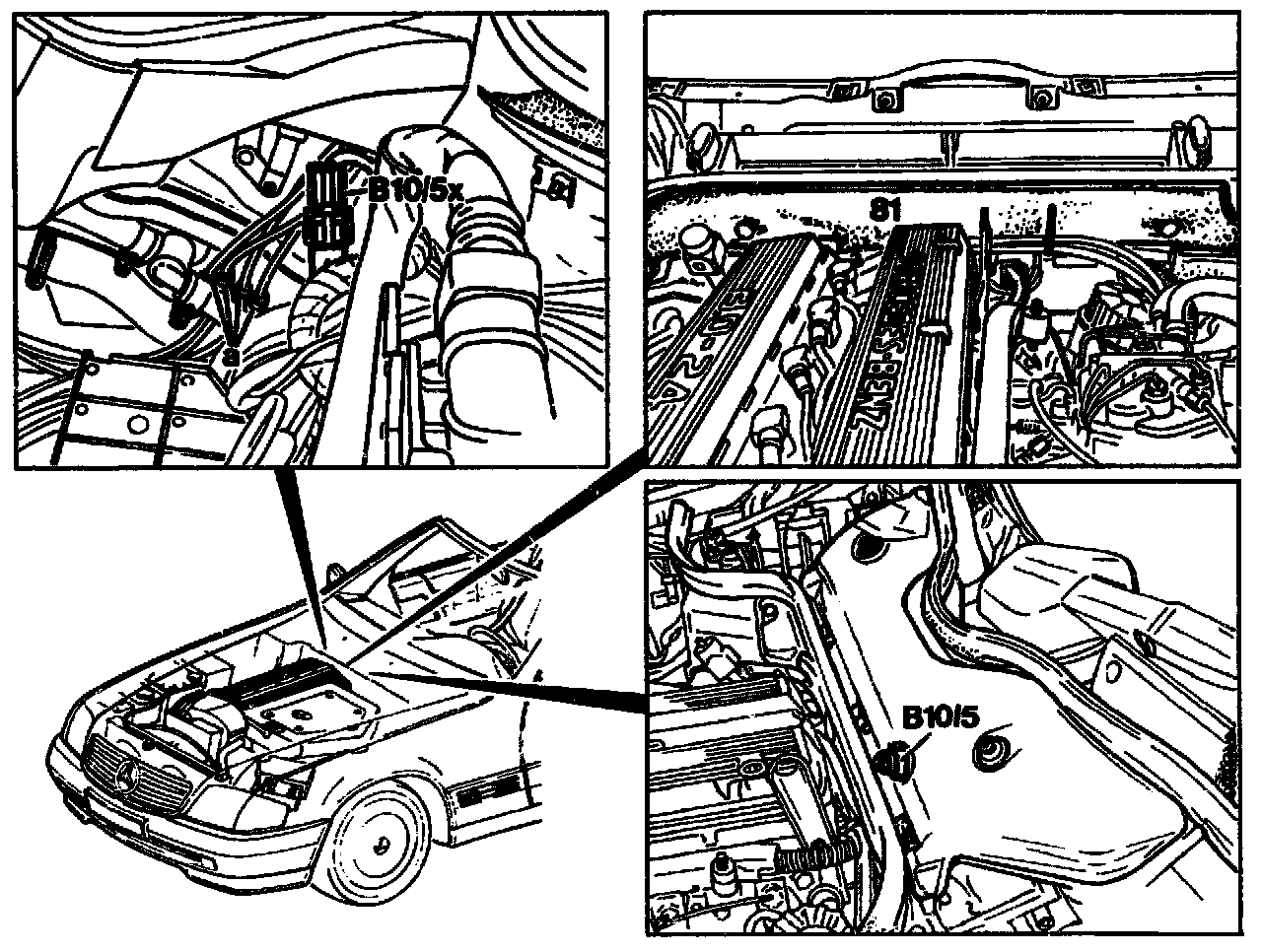

Center partition wall (81)
remove, 2 rivets, 2 screws.

2-pin plug connection (B10/5x)
disconnect.

Outside air temperature sensor (B10/5)
withdraw, test, renew if necessary.

Install
in reverse order.
