Gear Sensor/Switch: Description and Operation

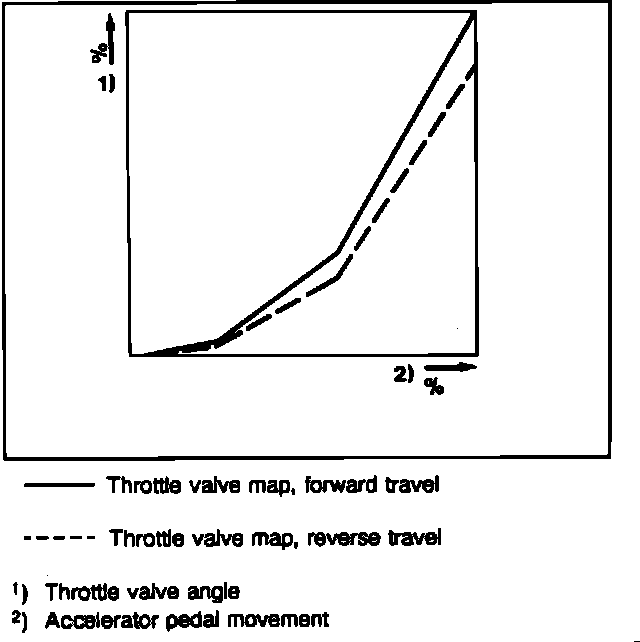

Throttle Valve Map:

If reverse gear is selected, the system control receives an input signal from the starter lockout/backup lamp switch. This selects a throttle valve map in the system control. During reverse driving up to approx. half of the pedal travel, the throttle valve opens more slowly. This improves driveability in reverse.

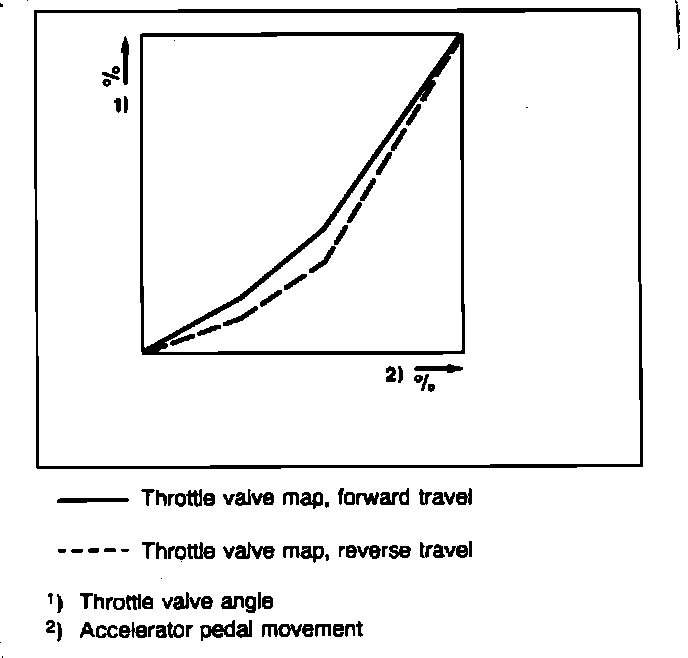

Throttle Valve Map:

If reverse gear is selected, the system control receives an input signal from the starter lockout/backup lamp switch. This selects a throttle valve map in the system control. During reverse driving up to approx. half of the pedal travel, the throttle valve opens more slowly. This improves driveability in reverse.

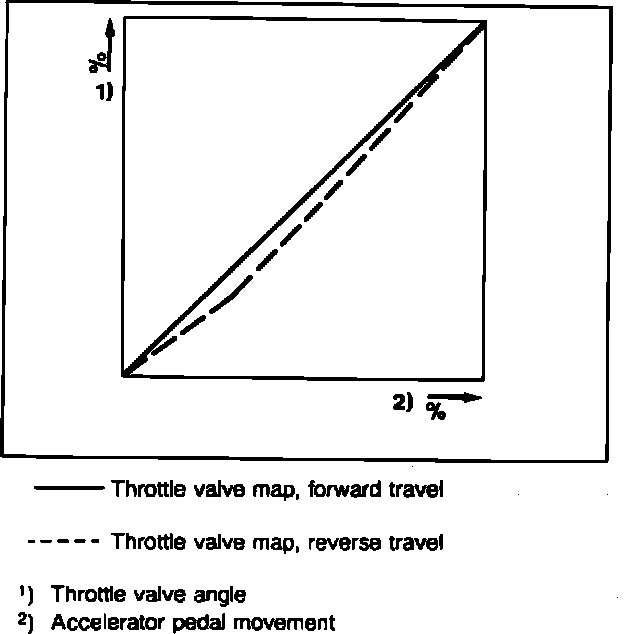

Throttle Valve Map:

If reverse gear is selected, the system control receives an input signal from the starter lockout/backup lamp switch. This selects a throttle valve map in the system control. During reverse driving up to approx. half of the pedal travel, the throttle valve opens more slowly. This improves driveability in reverse.
