Suspension Control ( Automatic - Electronic )
Adaptive Damping System (ADS) PE32.32-U-2000YA

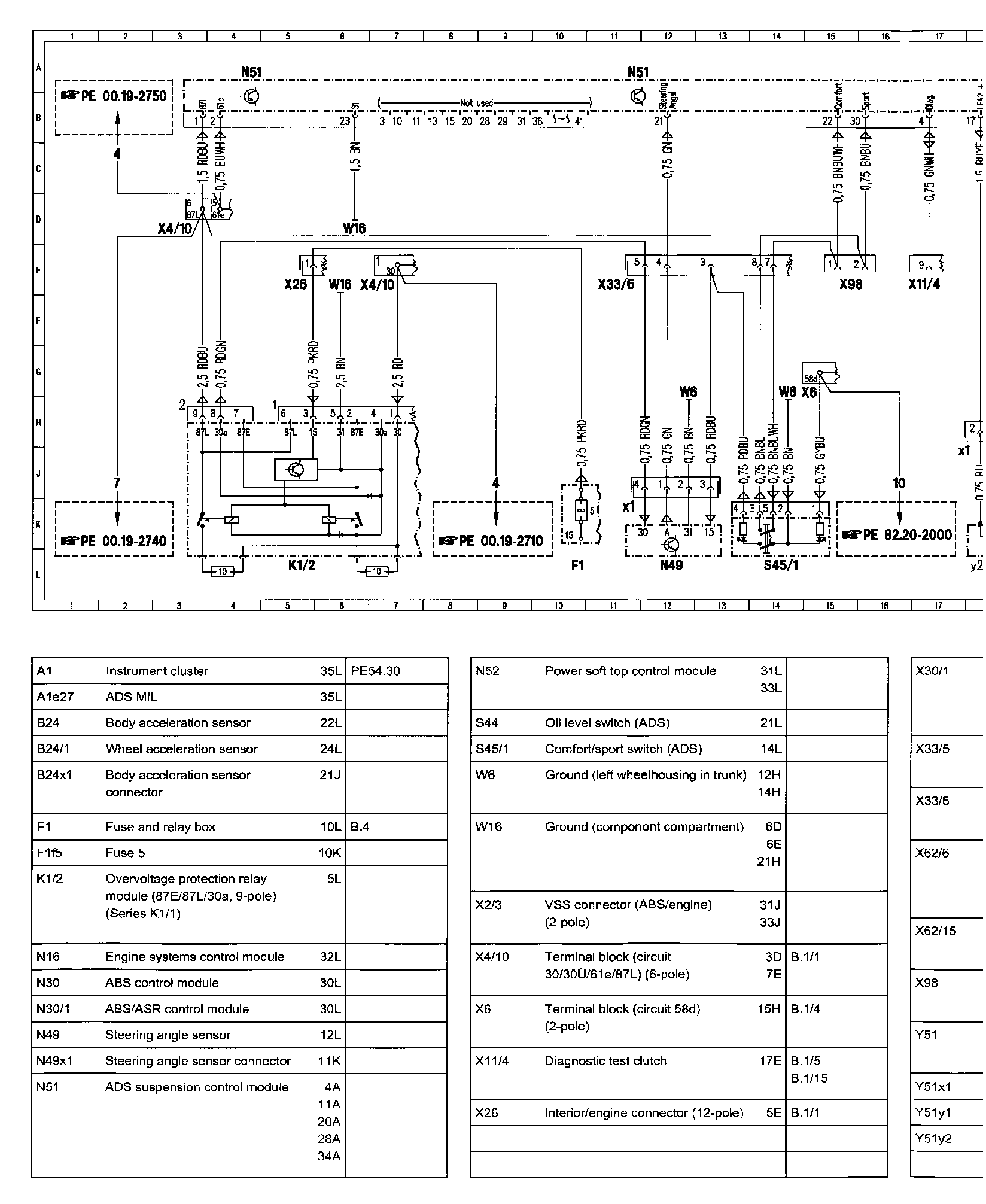

Wiring Diagram
oղ*#6�*PE32.32-U-2000YA:

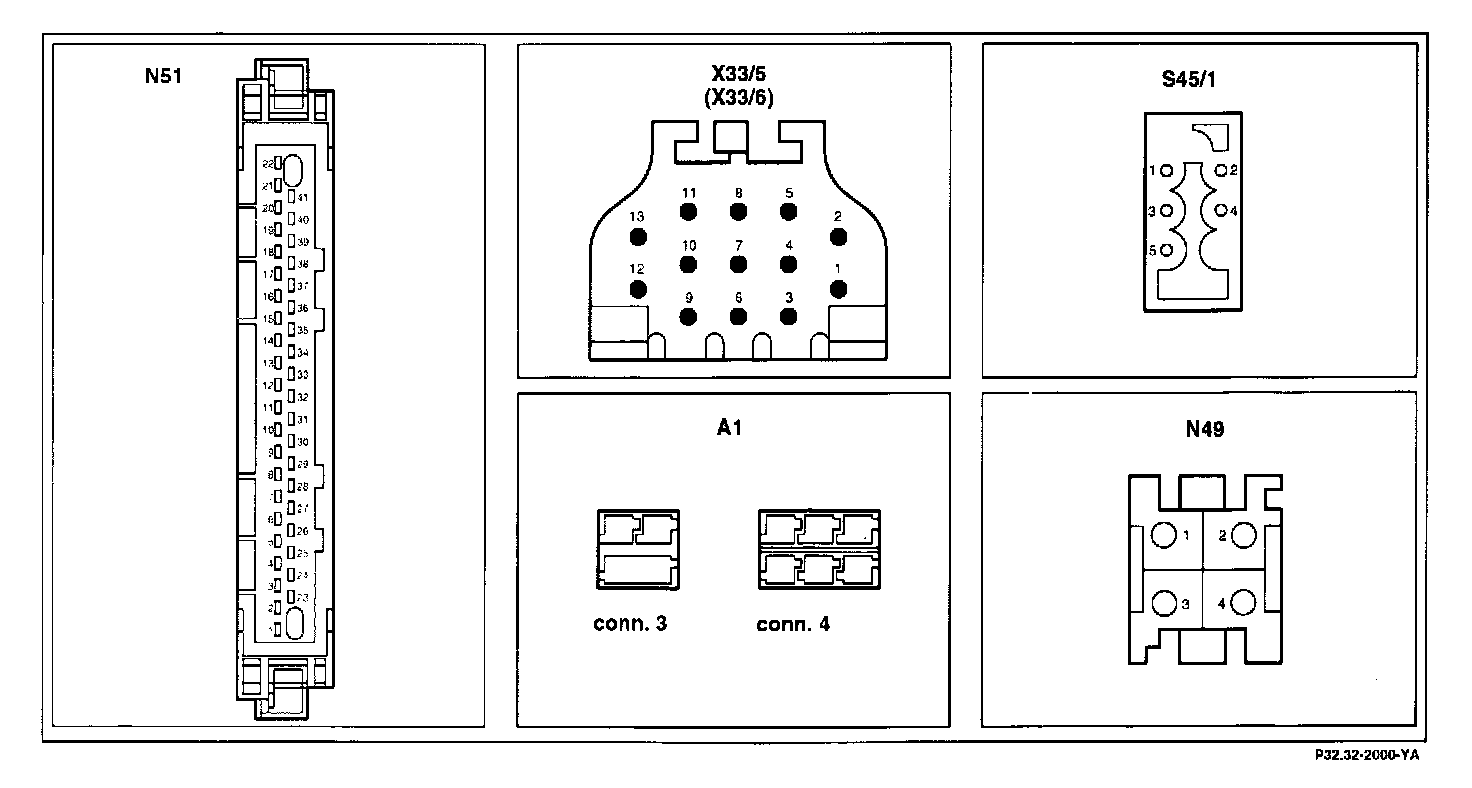

Connector Assignment:

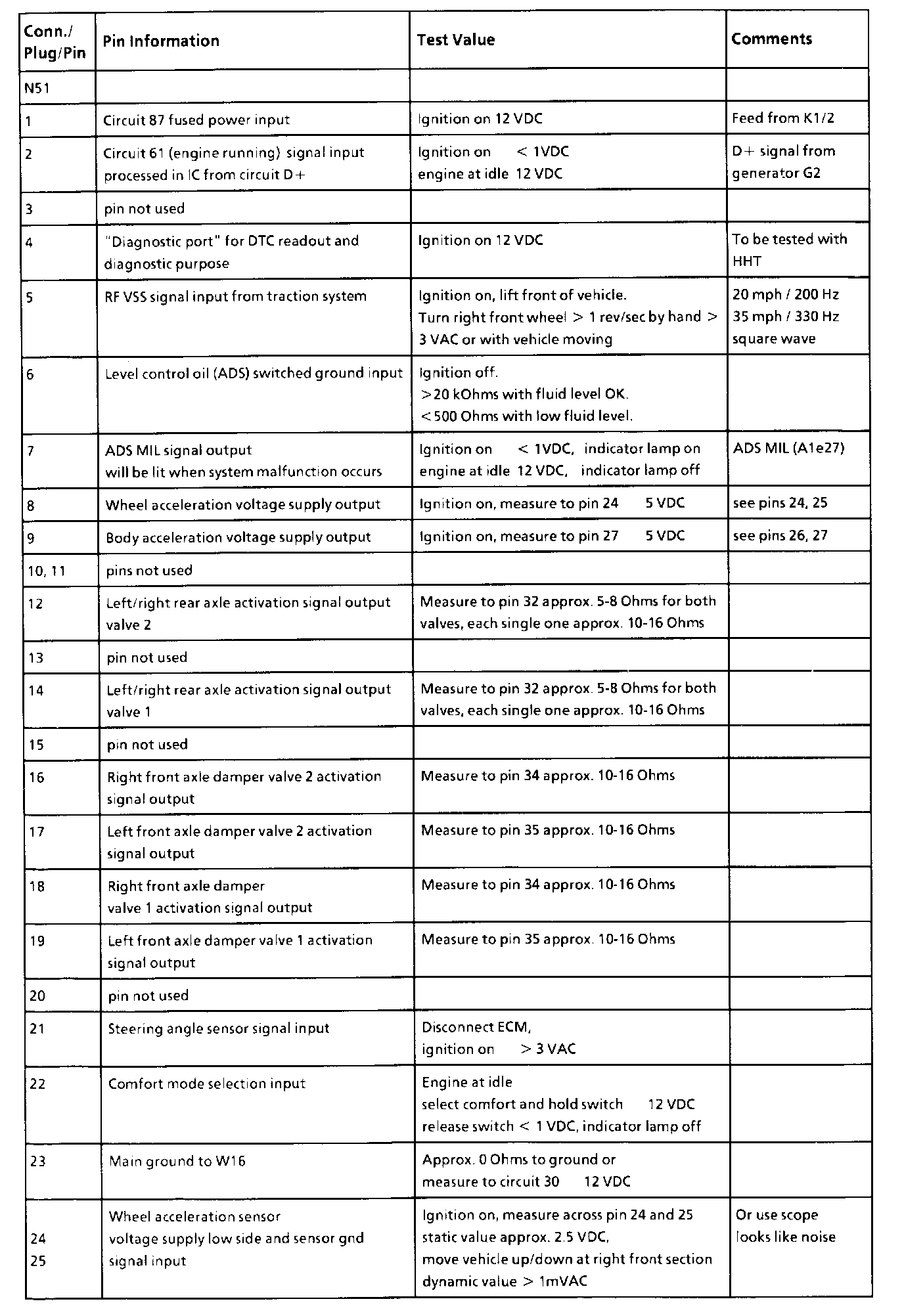

Pin Information, Part 1:

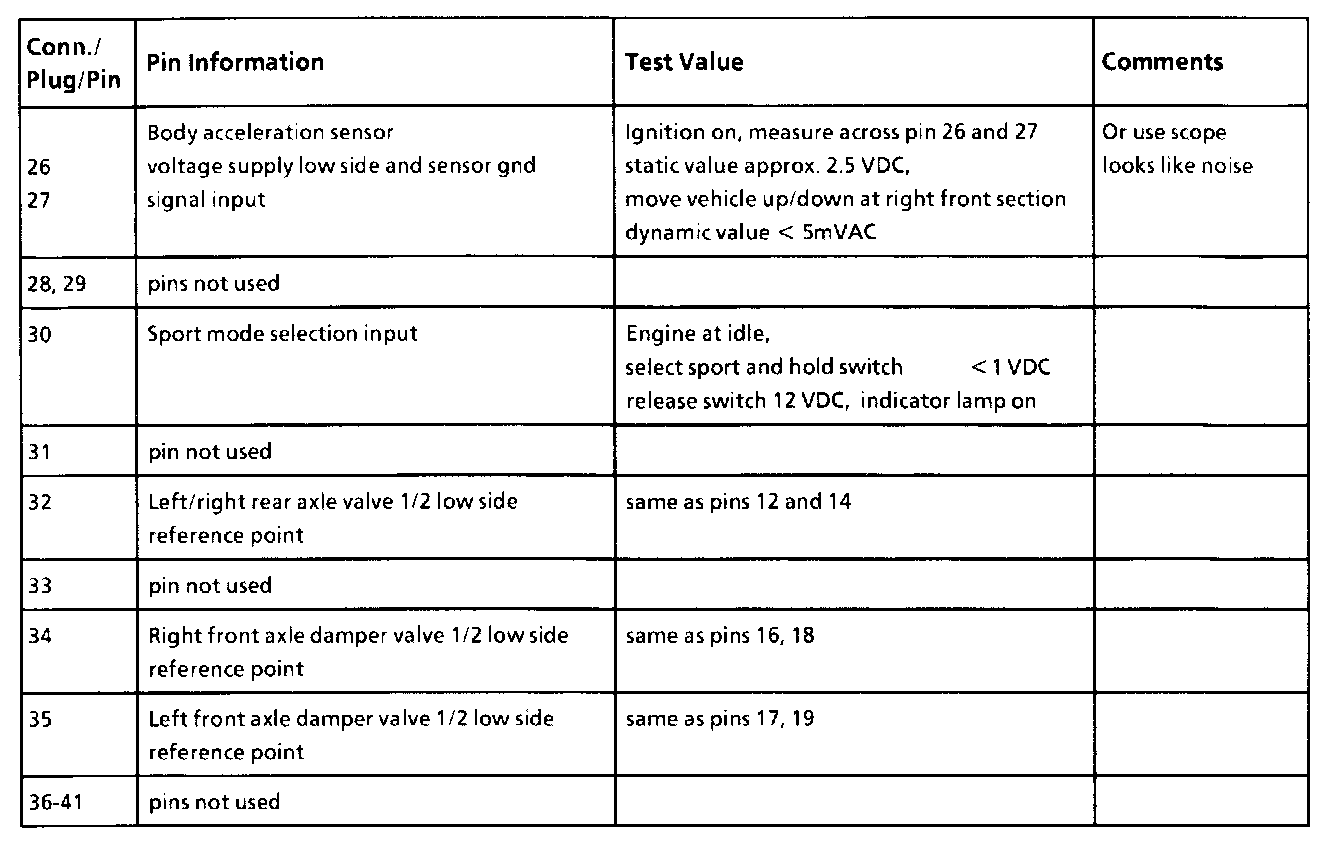

Pin Information, Part 2:
All values measured to ground unless otherwise noted.
