Mercedes Benz
>>
1993
>>
300SL (129.061) L6-3.0L (104.981)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Restraints and Safety Systems
>>
System Diagram
>>
Airbag Control Module PE91.60-U-2000YA
Airbag Control Module PE91.60-U-2000YA

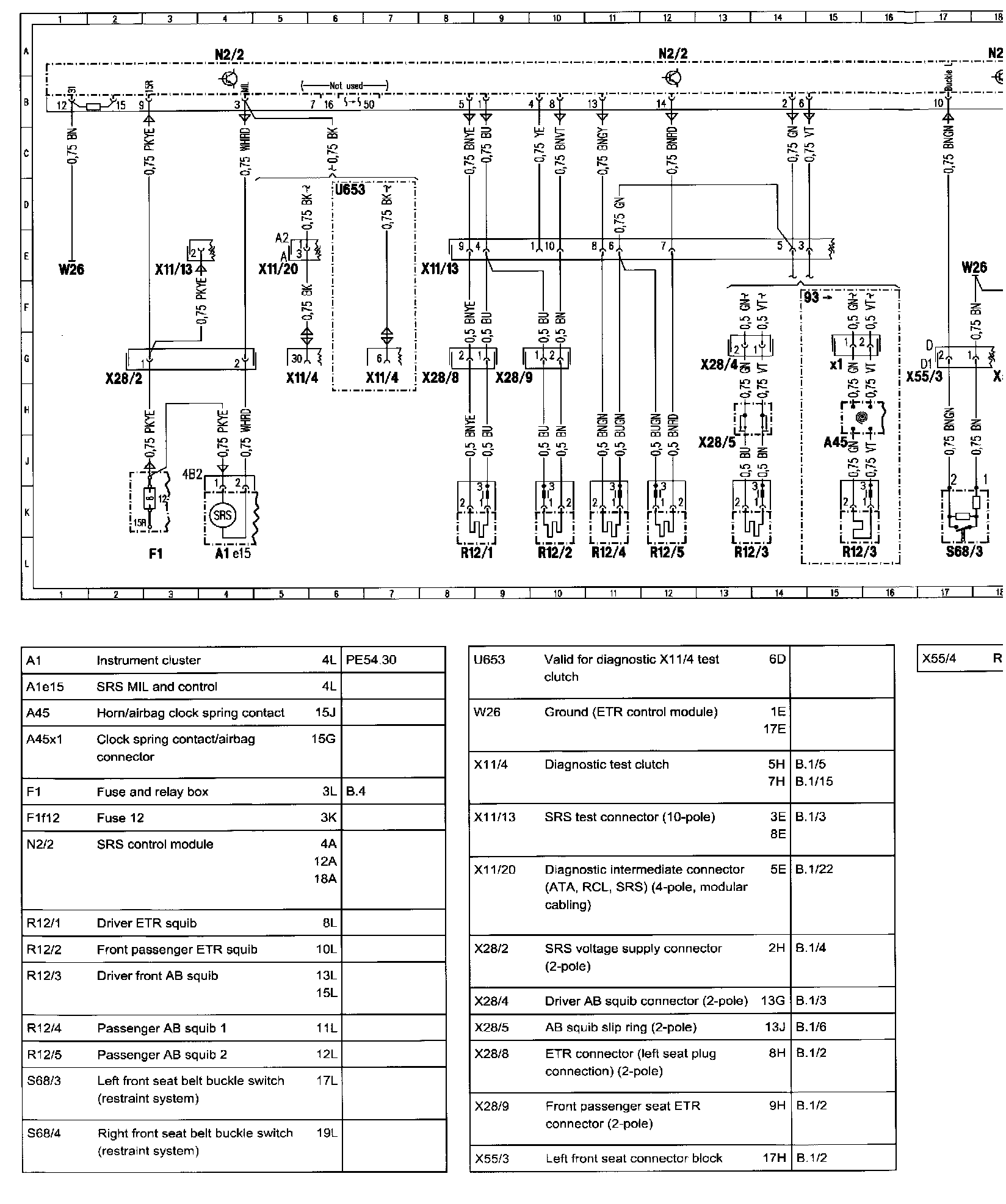

Wiring Diagram
��L;PE91.60-U-2000YA:

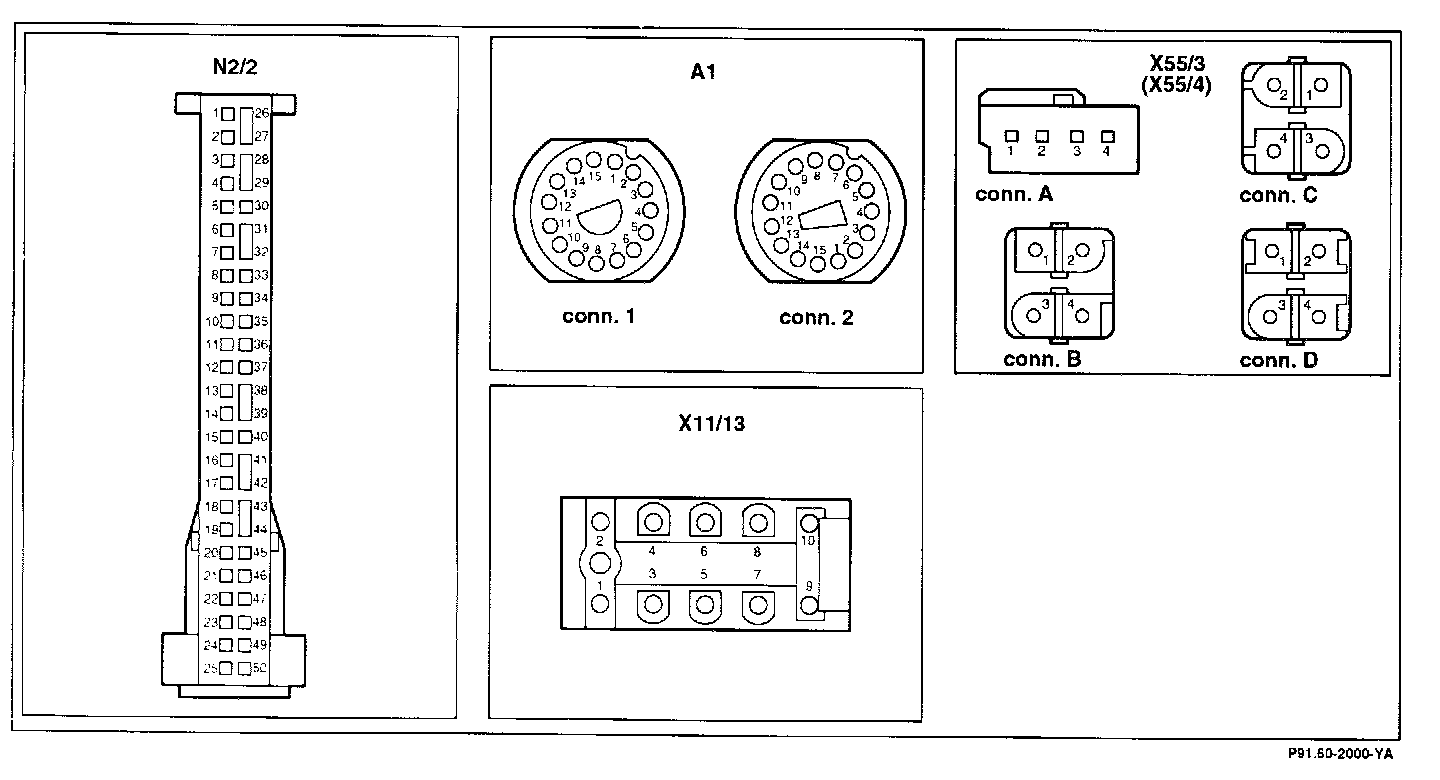

Connector Assignment:

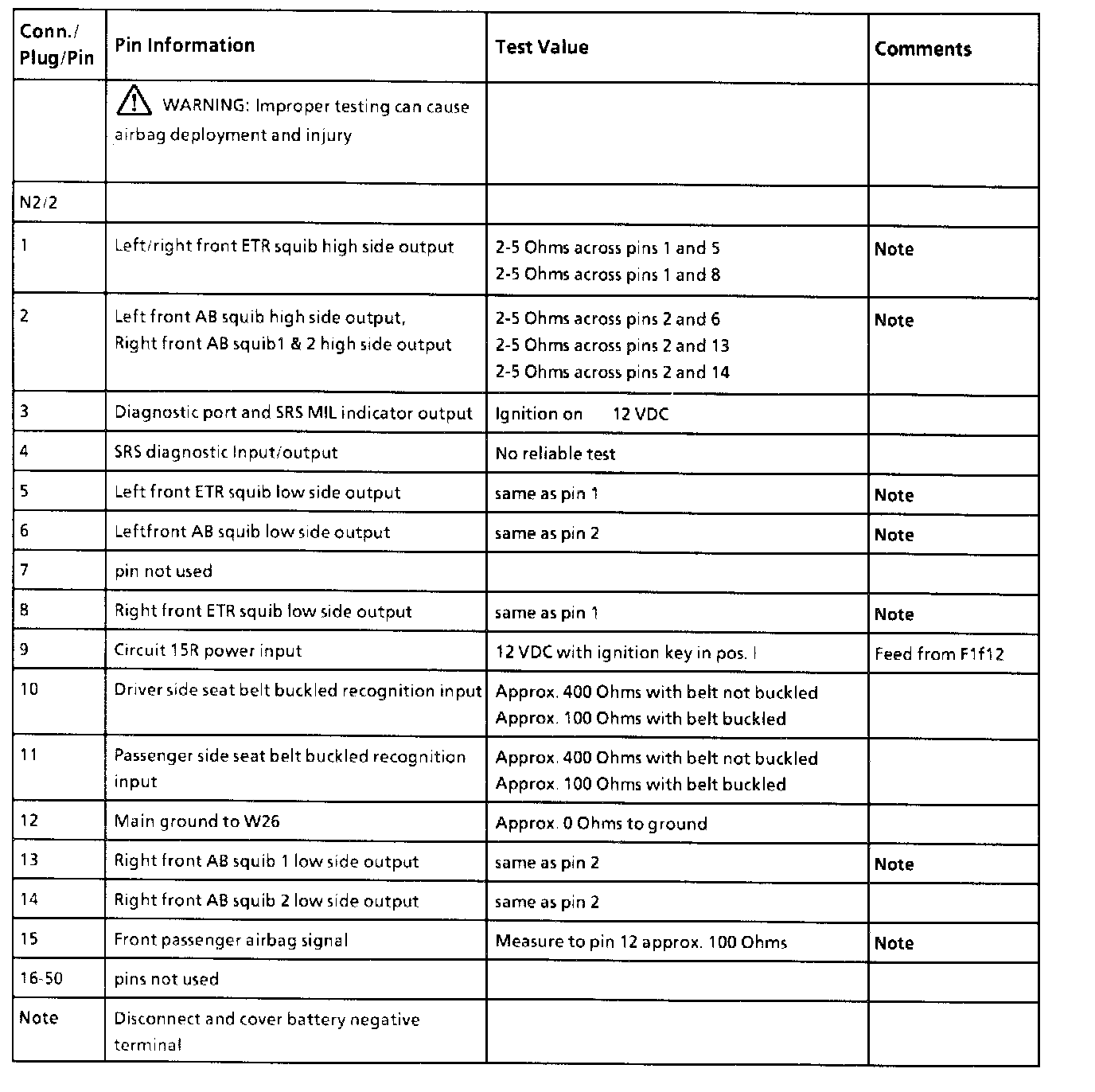

Pin Information:
All values measure to ground unless otherwise noted.
