Distributor Ignition/Knock Sensor System (DI/KSS) PE15.12-U-2000YA



Distributor Ignition/Knock Sensor System (DI/KSS)

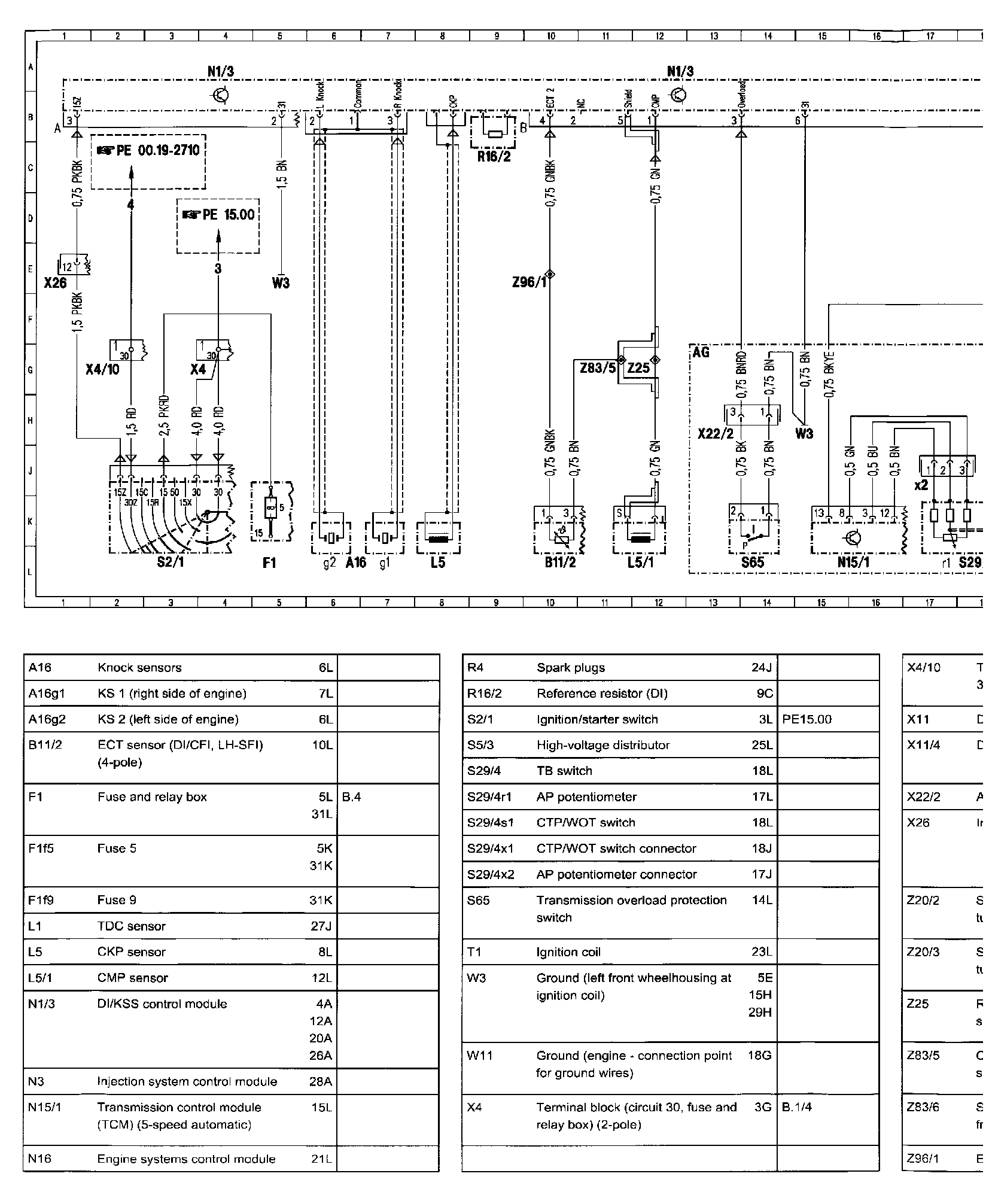

Wiring Diagram

Ϯ�PE15.12-U-2000YA - Distributor Ignition/Knock Sensor System (DI/KSS):

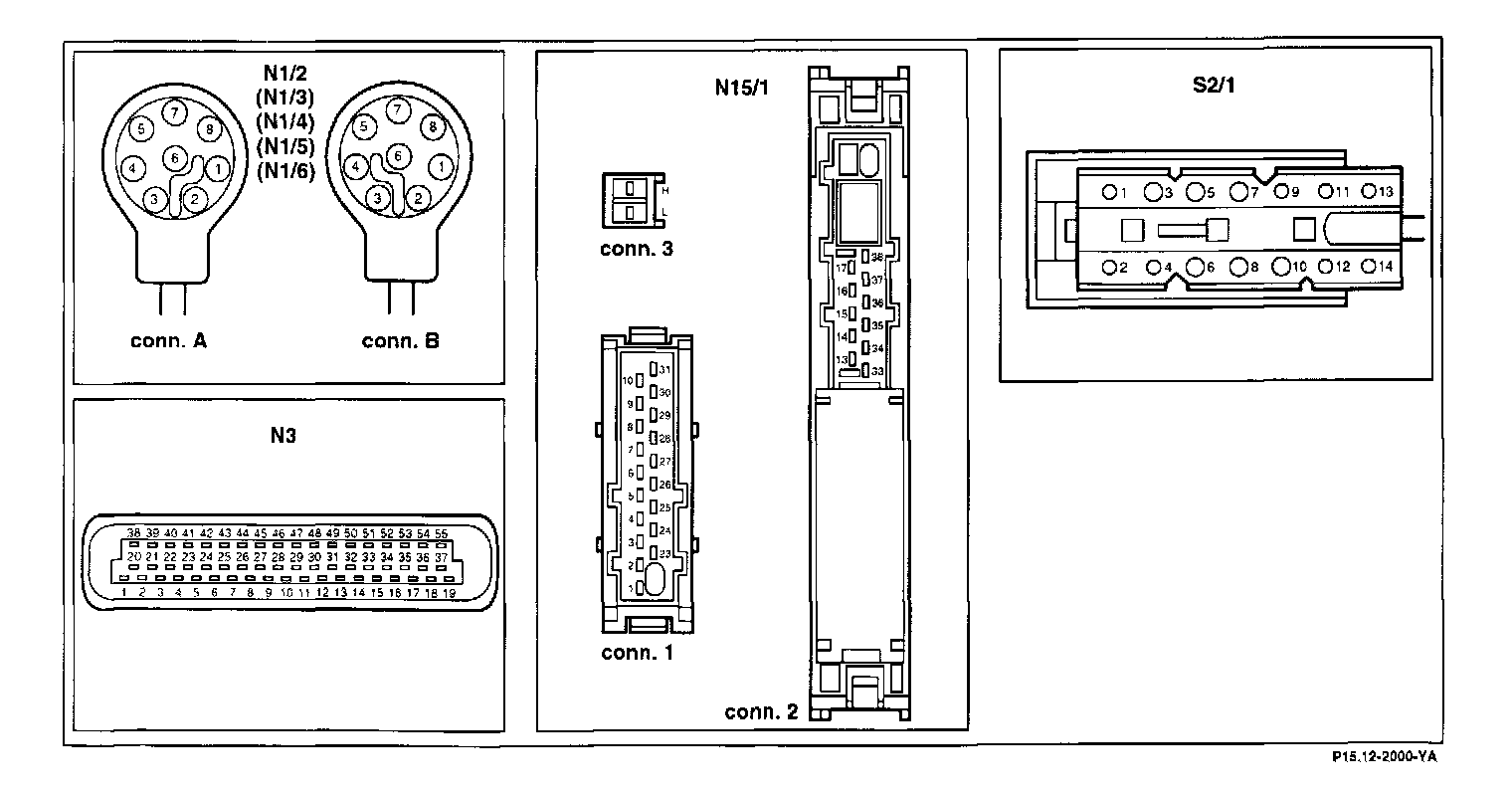

Connector Assignment:

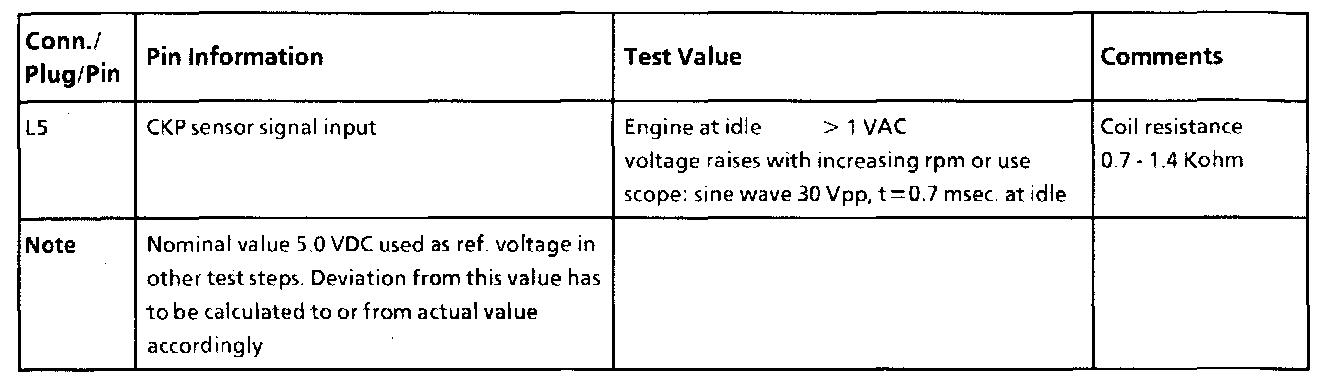

Pin Information, Part 1:






Pin Information, Part 2:






All values measured to ground unless otherwise noted.
