Home >> Mercedes Benz >> 1993 >> 300SL (129.061) L6-3.0L (104.981) >> Repair and Diagnosis >> Brakes and Traction Control >> Brake Pedal Assy >> Service and Repair >> AR29.10-P-0300A Remove/Install Foot Controls

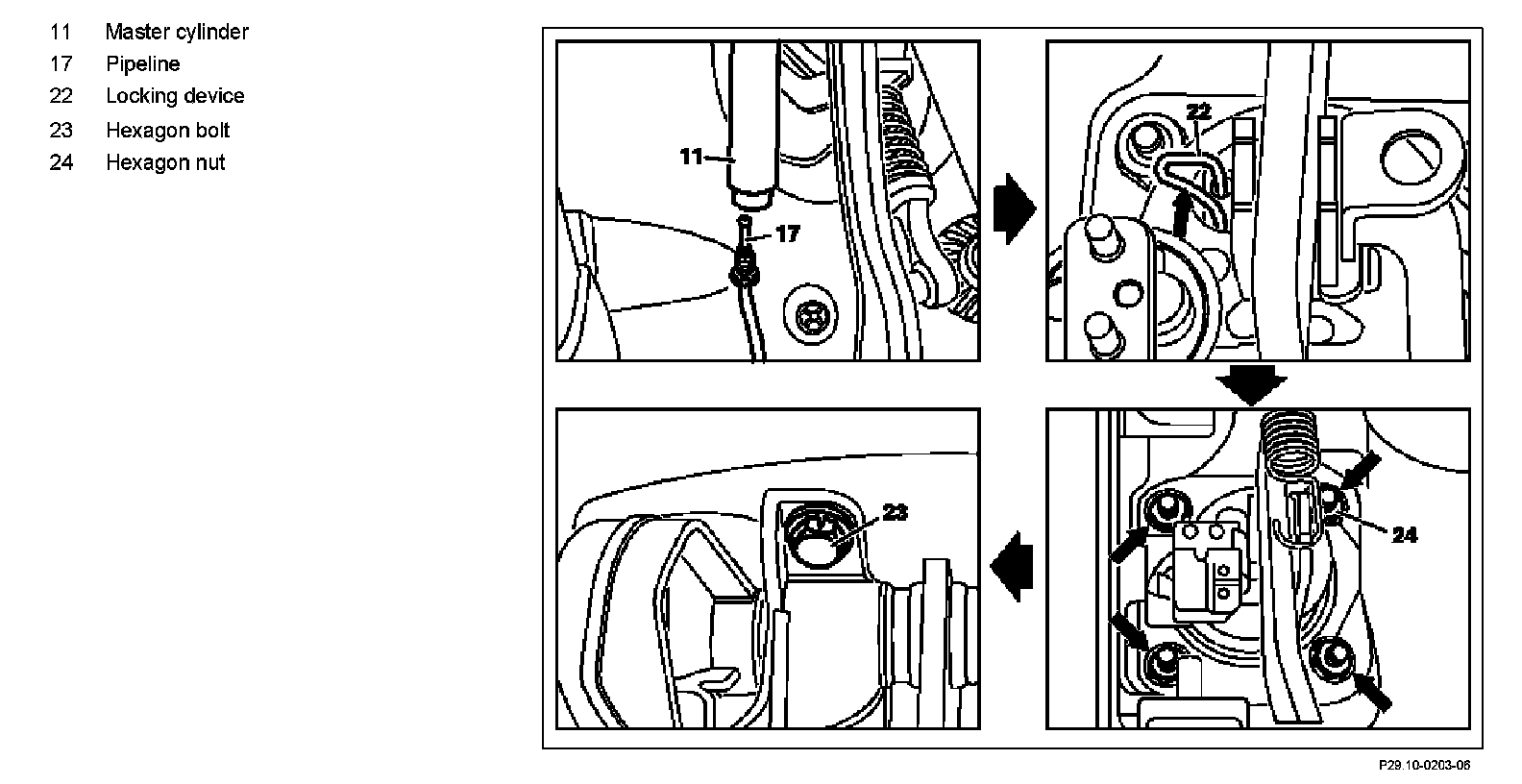

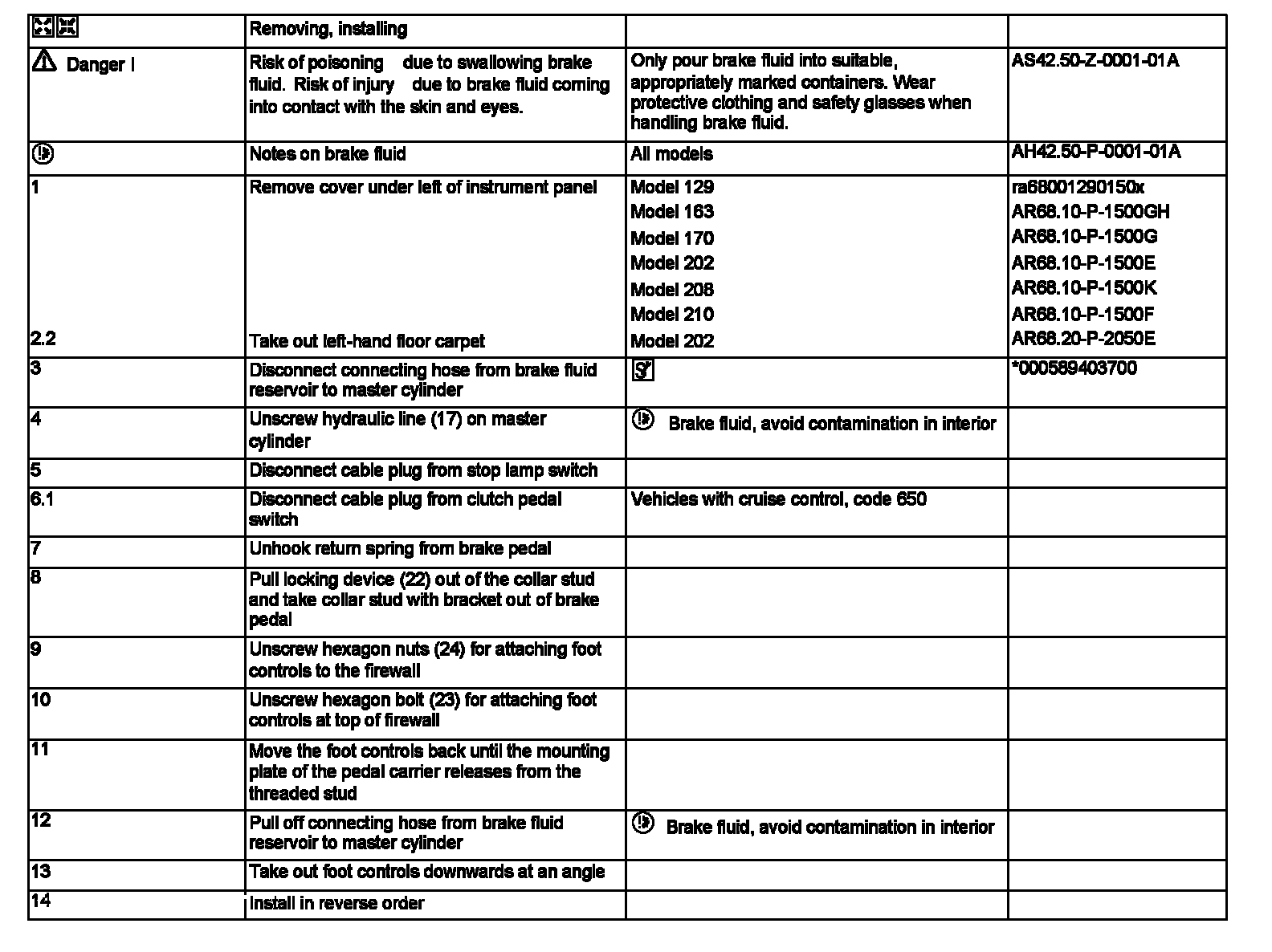

AR29.10-P-0300A Remove/Install Foot Controls




Removal and installation of foot controls
