Automatic Locking Differential (ASD)




Automatic Locking Differential (ASD)

Models 124, 129.061, 201 (as of 6/92), 202

Hydraulic Test Program [HTP]

Component Locations

Model 124 With Engine 602:

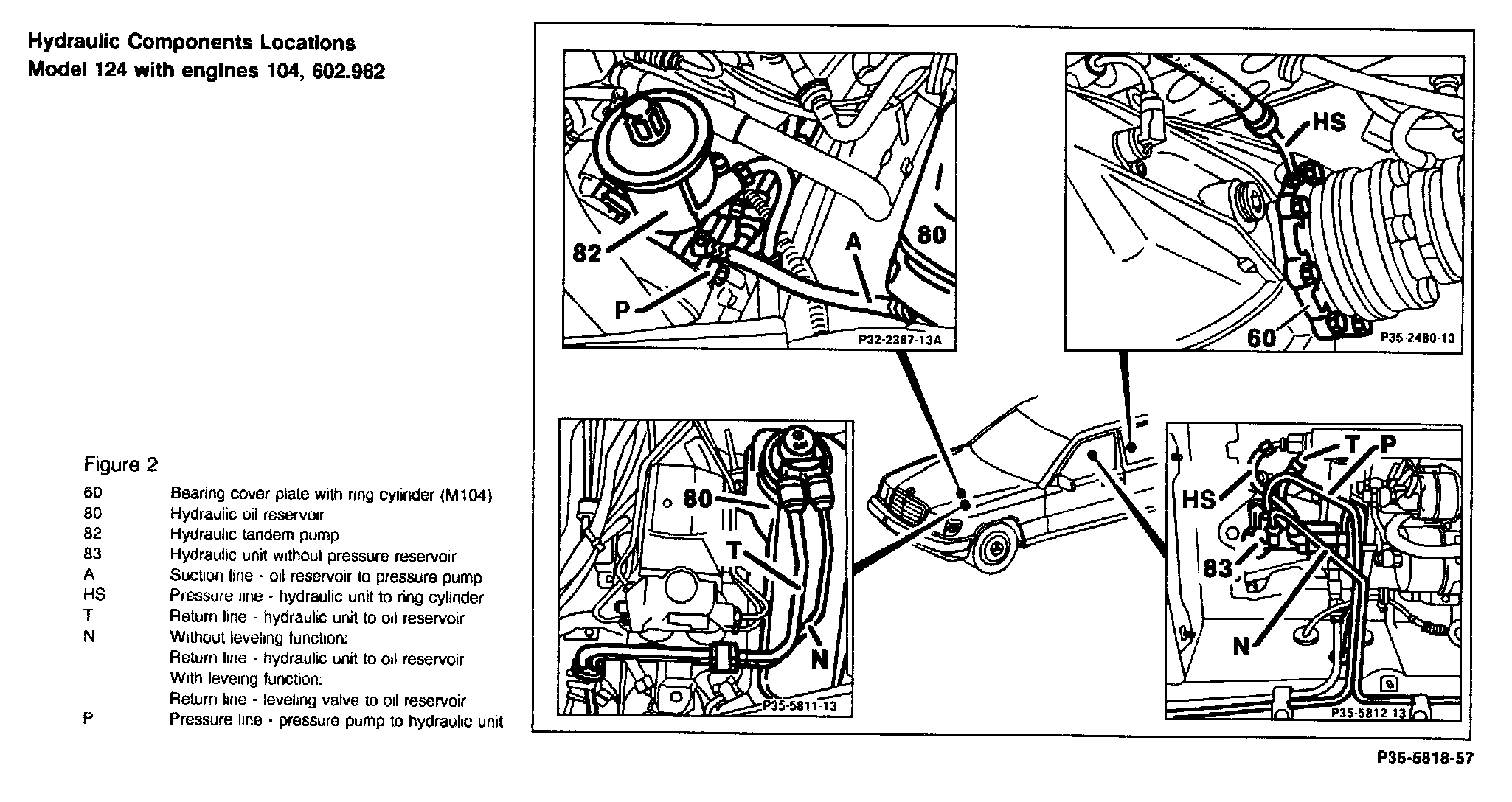

°�$Model 124 With Engines 104, 602.962:

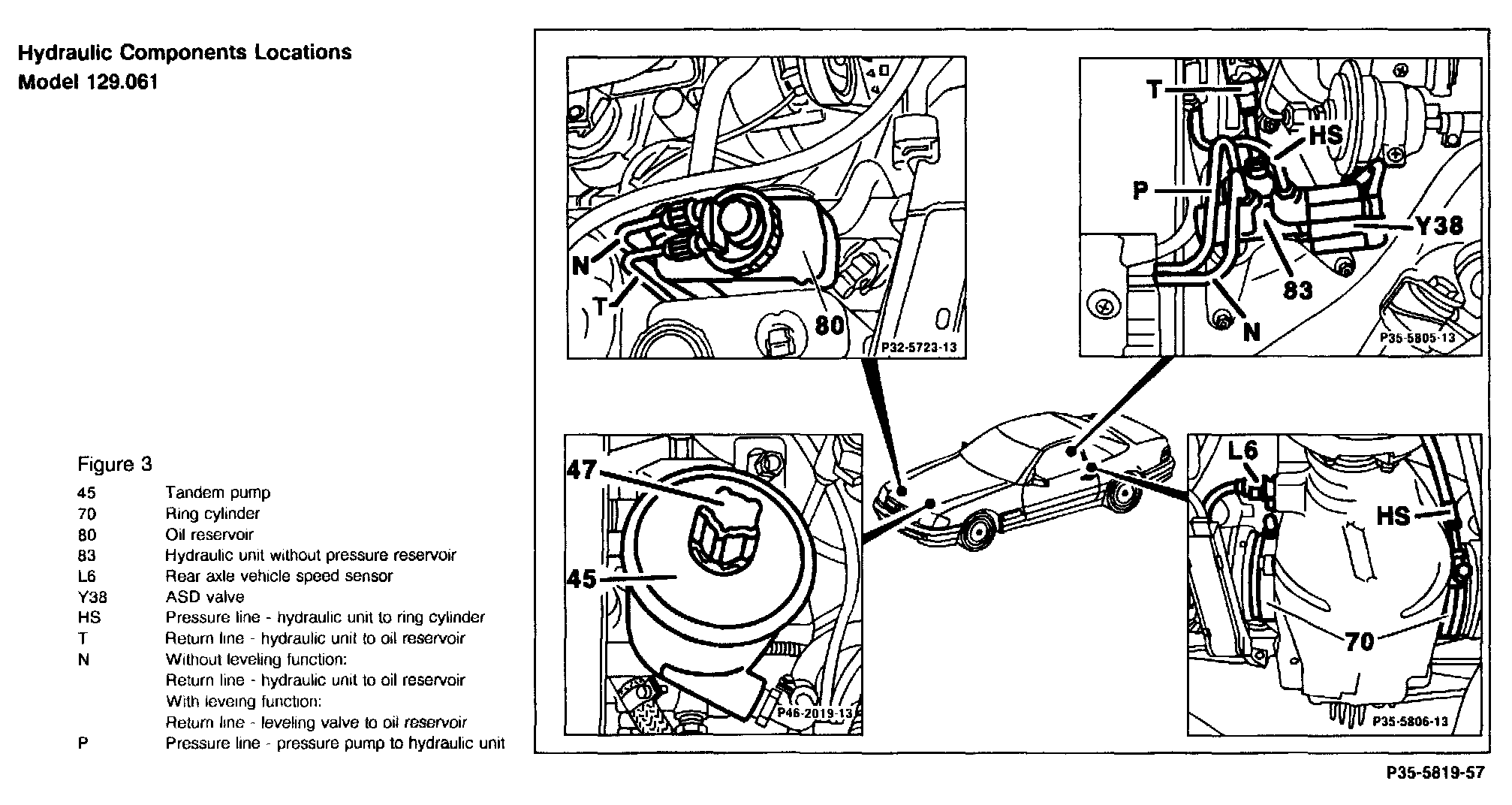

Model 129.061:

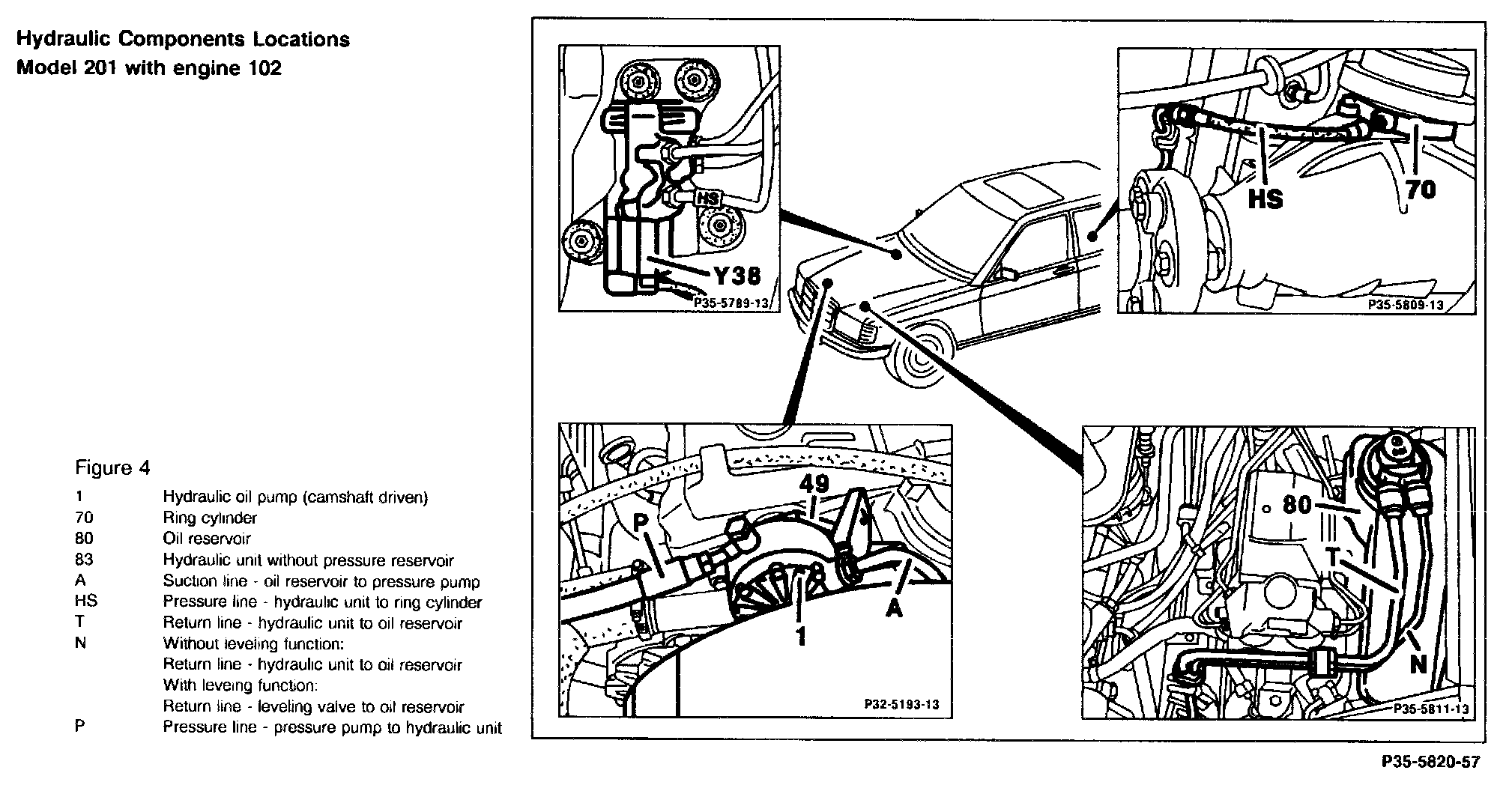

Model 201 With Engine 102:

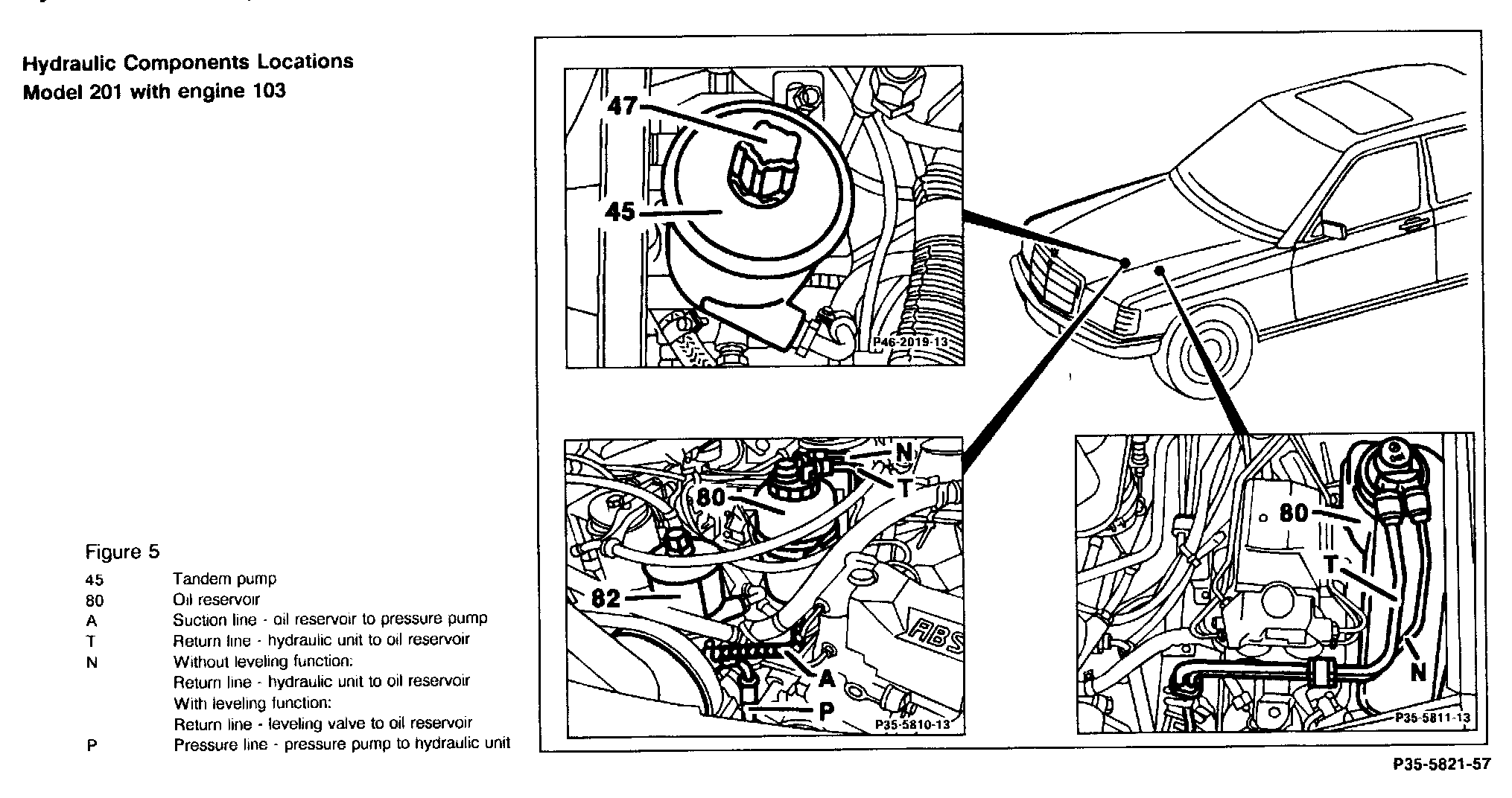

Model 201 With Engine 103:




Model 202:
