Accelerator Slip Regulation (ASR)

Accelerator Slip Regulation (ASR)

Model 129.061/066

Electrical Test Program - Preparation for Test

1. Socket box sockets 1 11 and 10 34 must be bridged during the entire ABS/ASR test.
2. In test steps which include "Ignition: ON", the LED must illuminate i.e battery voltage ok.
3. Observe the ABS and ASR malfunction indicator lamps as well as the ASR function indicator only if required to do so in the "Nominal value" column of a particular test step.
4. Always perform 38.0 and 39.0 in sequence.
5. After 39.0 (reservoir full), correct in brake fluid reservoir.

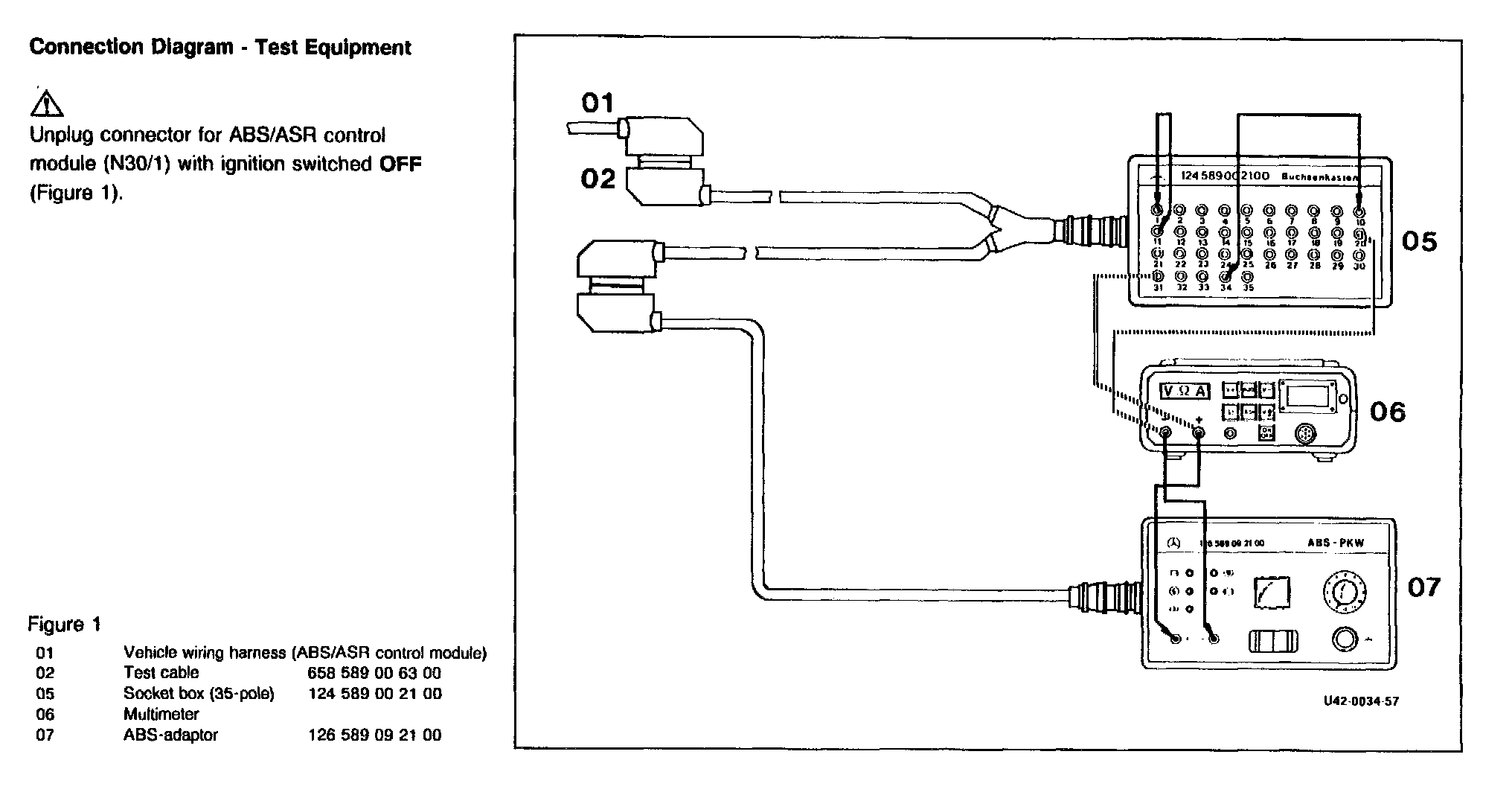

Caution Never drive the vehicle with the ABS-adaptor (07) connected!

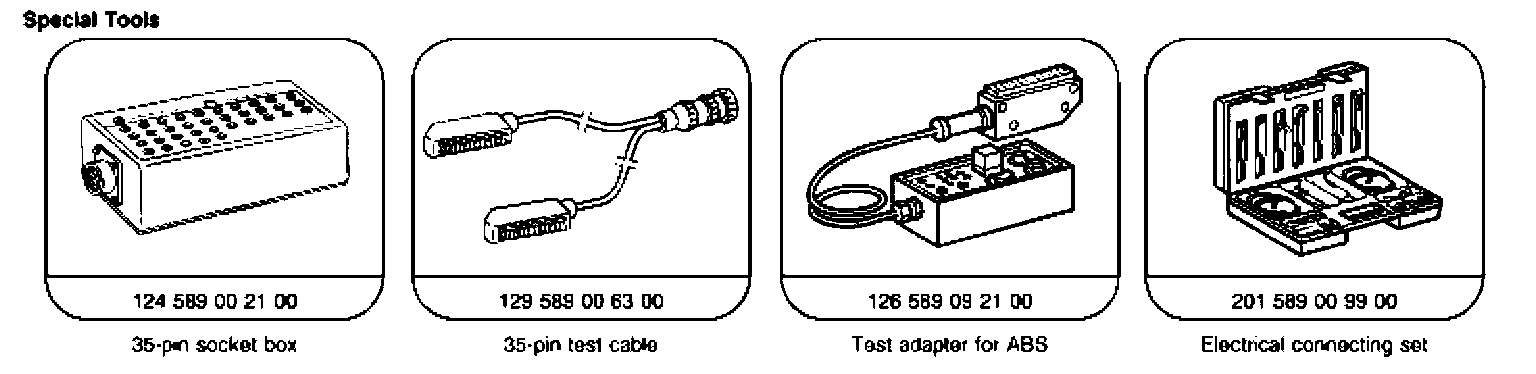

Special Tools:

Conventional Tools, Test Equipment:
