Accelerator Slip Regulation (ASR)

Accelerator Slip Regulation (ASR)

Model 129.061/066

Electrical Test Program [ETP]

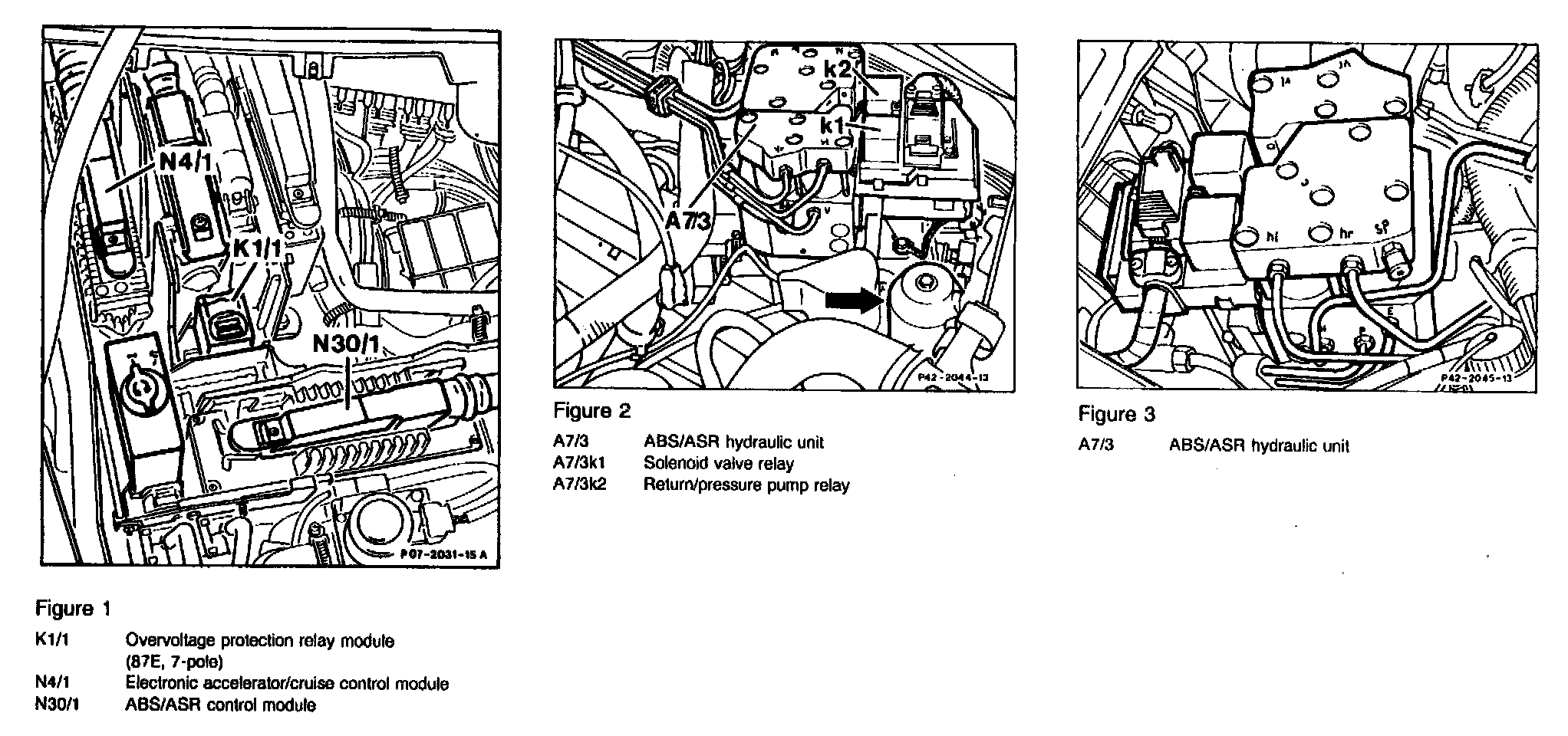

Figures 1-3:

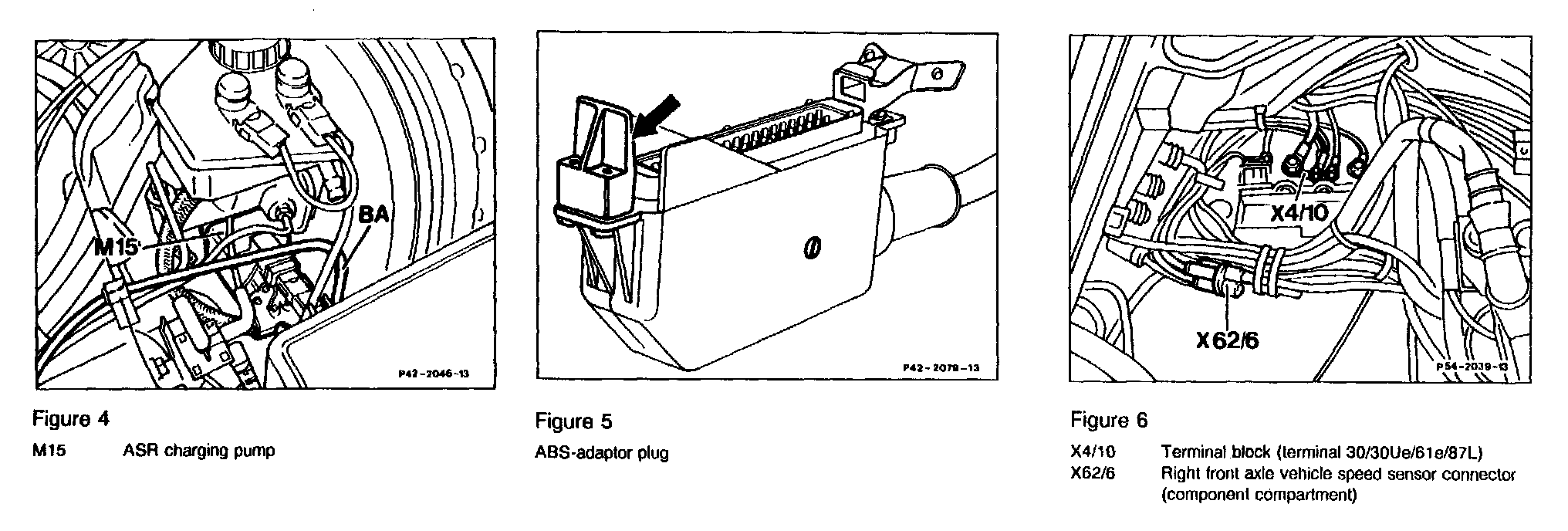

Figures 4-6:

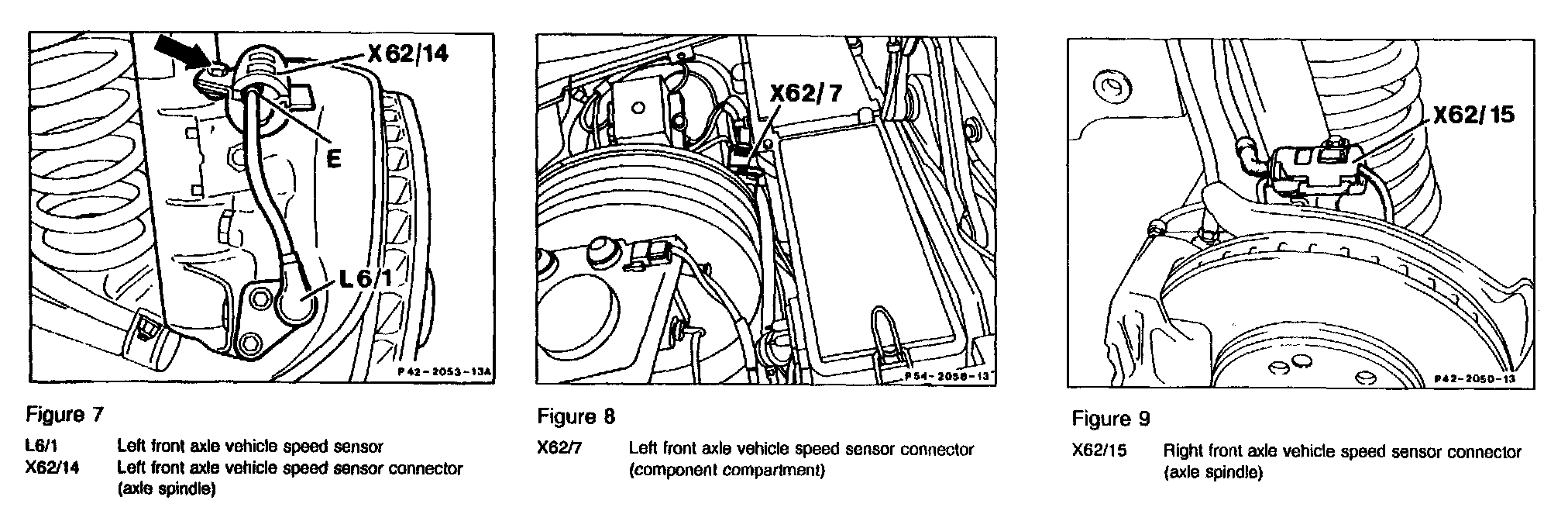

Figures 7-9:

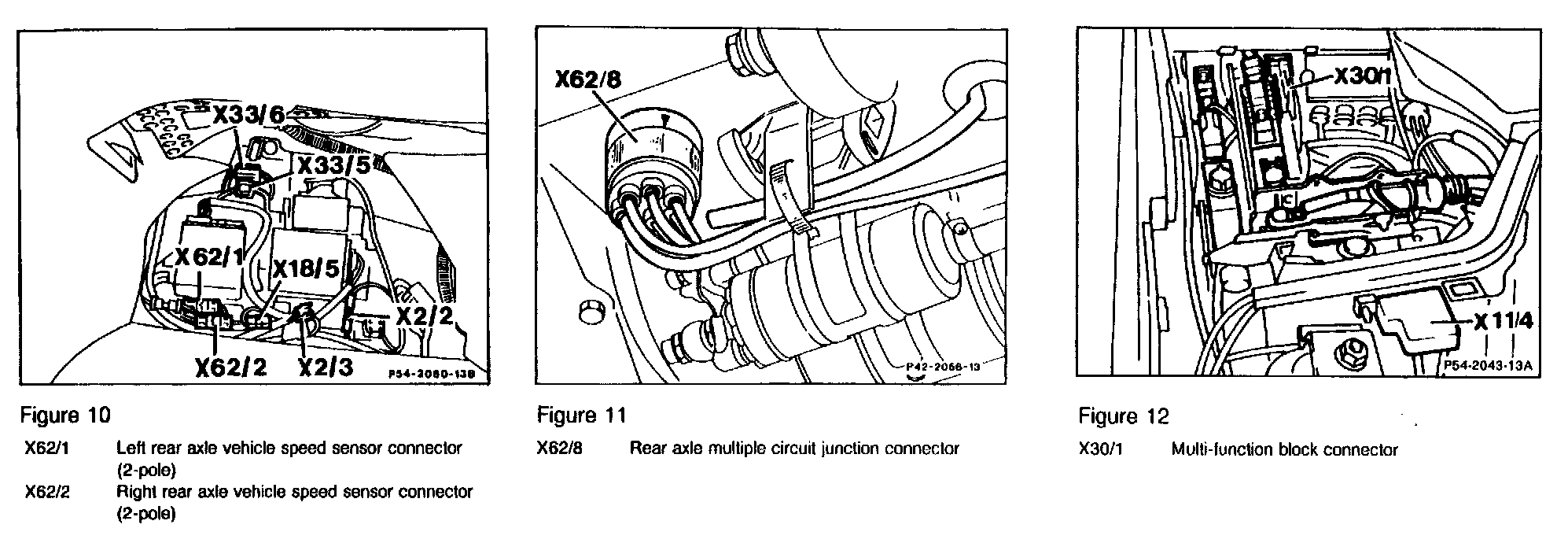

Figures 10-12:

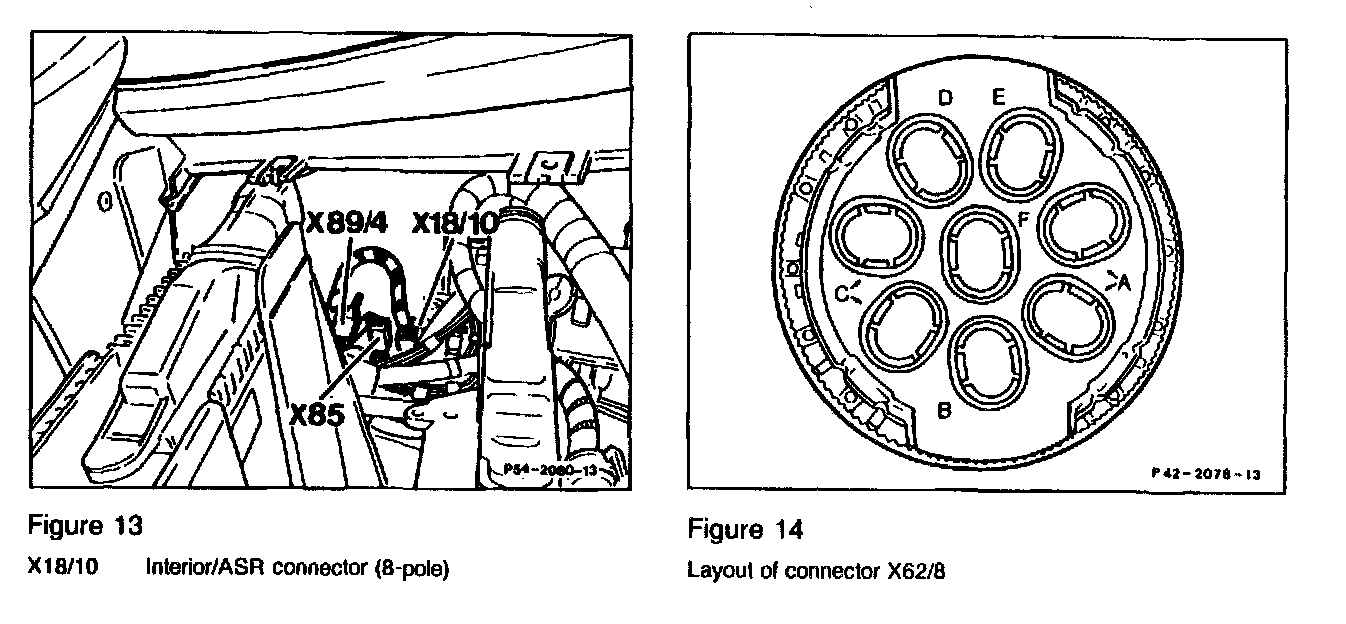

Figures 13-14:
