Home >> Mercedes Benz >> 1993 >> 300SL (129.061) L6-3.0L (104.981) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Service and Repair >> Procedures >> Removing/Installing >> 2nd Generation

2nd Generation



With single-module units, 2nd generation two-component control units and MB Radios

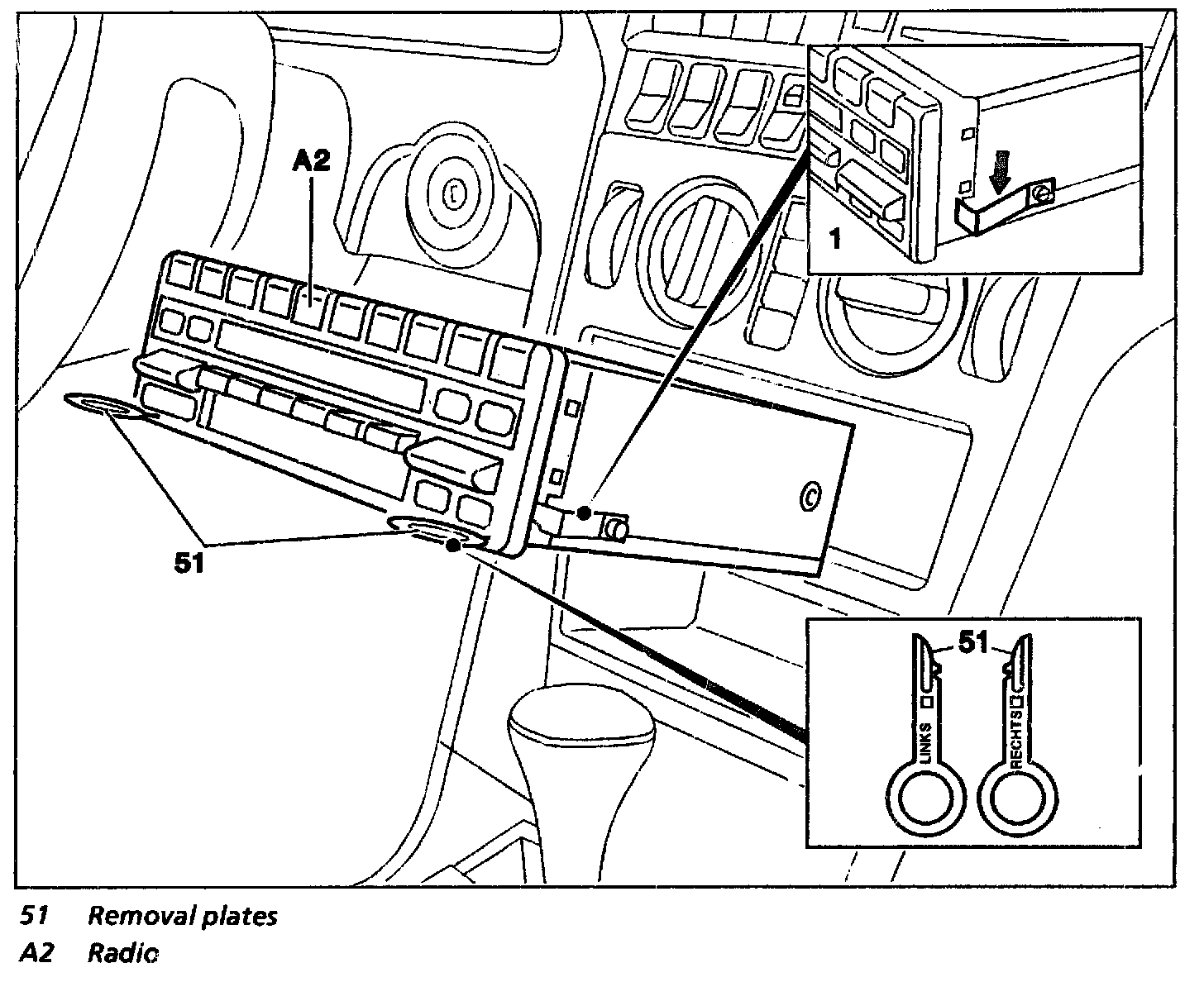

Figure shows removal of radio in model 202.

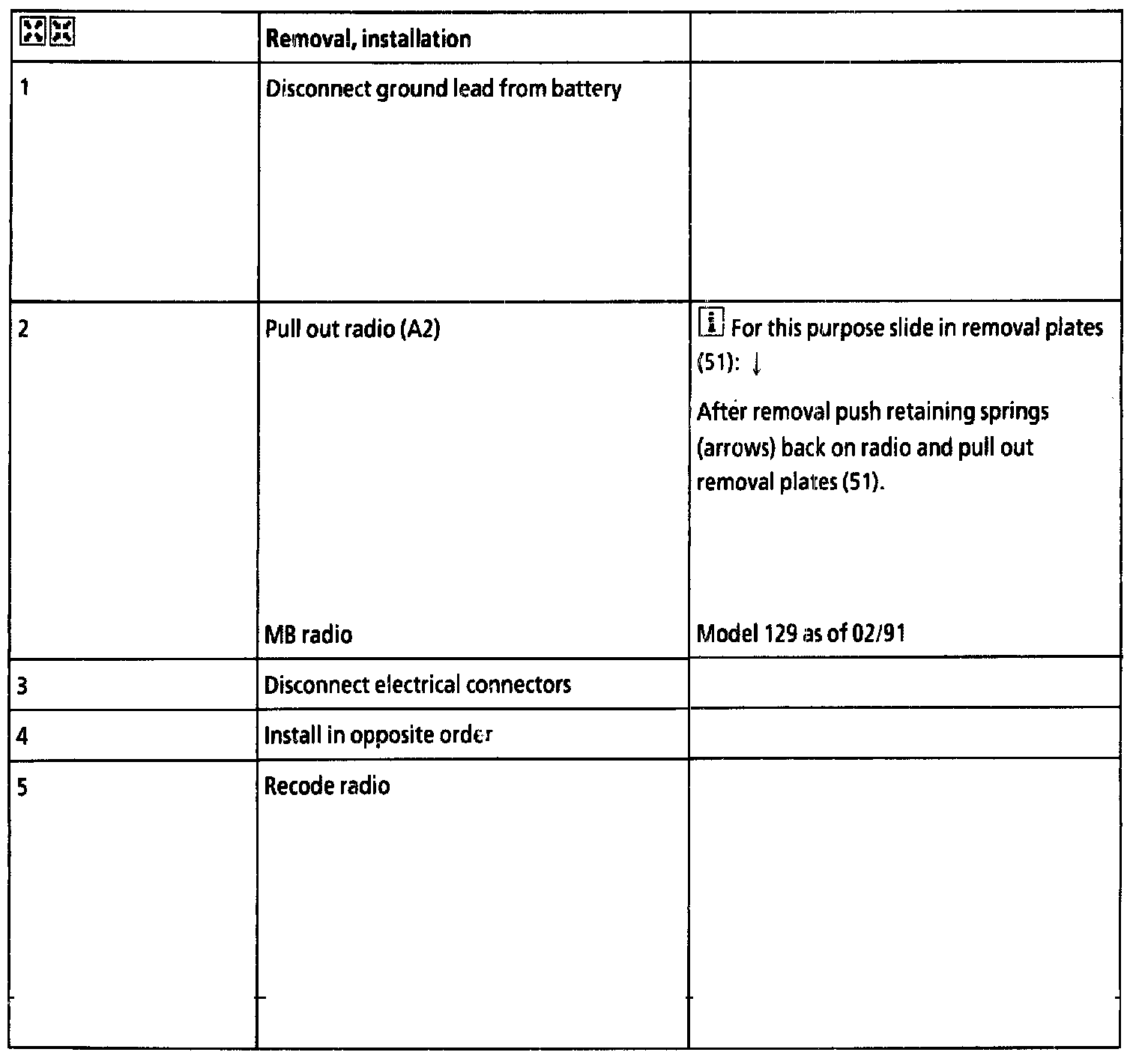

Removal, installation
