300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
>>
Part 2 of 2
Part 2 of 2

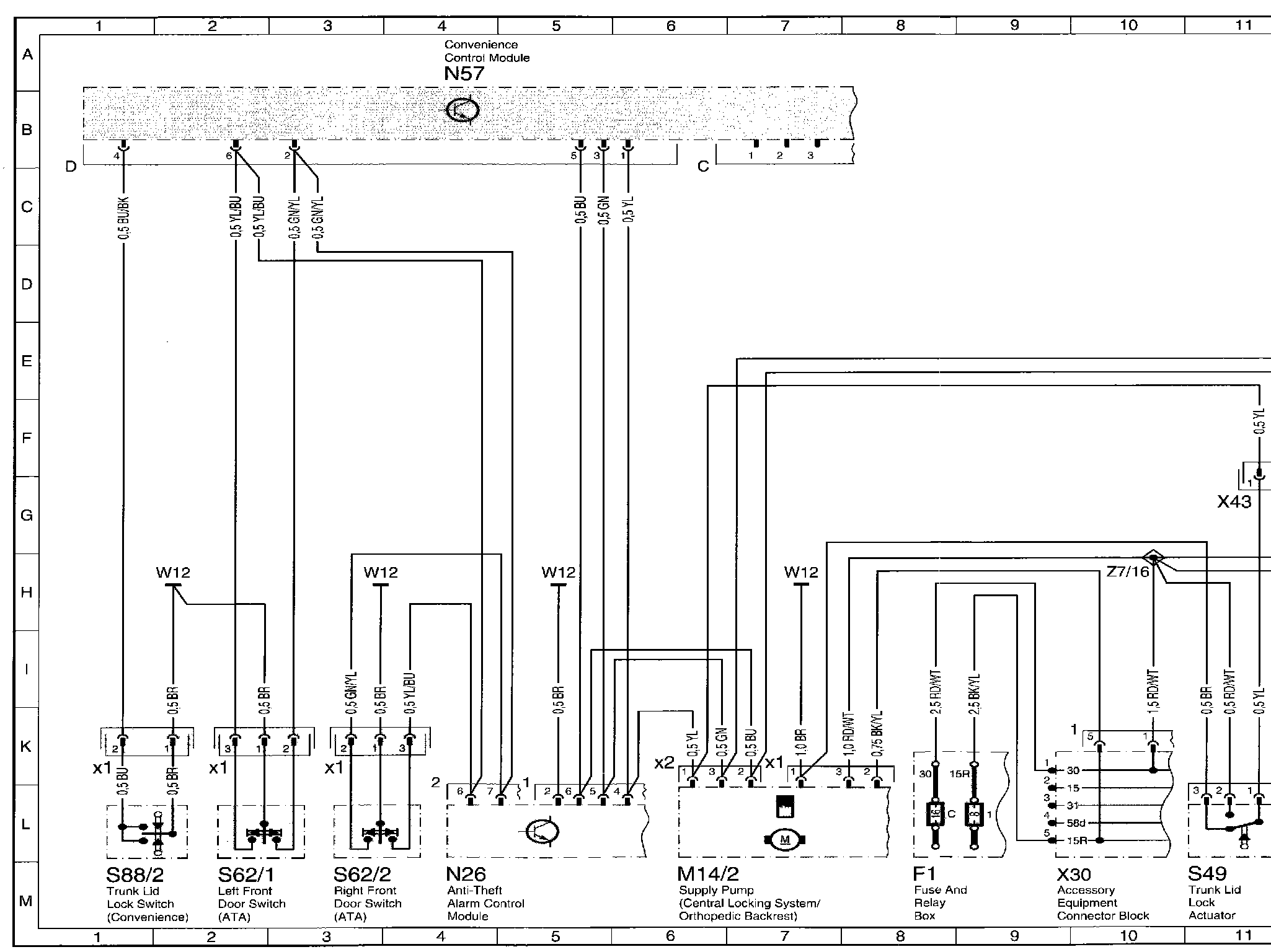

Wiring Diagram
q�0QPower Windows, Convenience Feature (Part 2 Of 2):

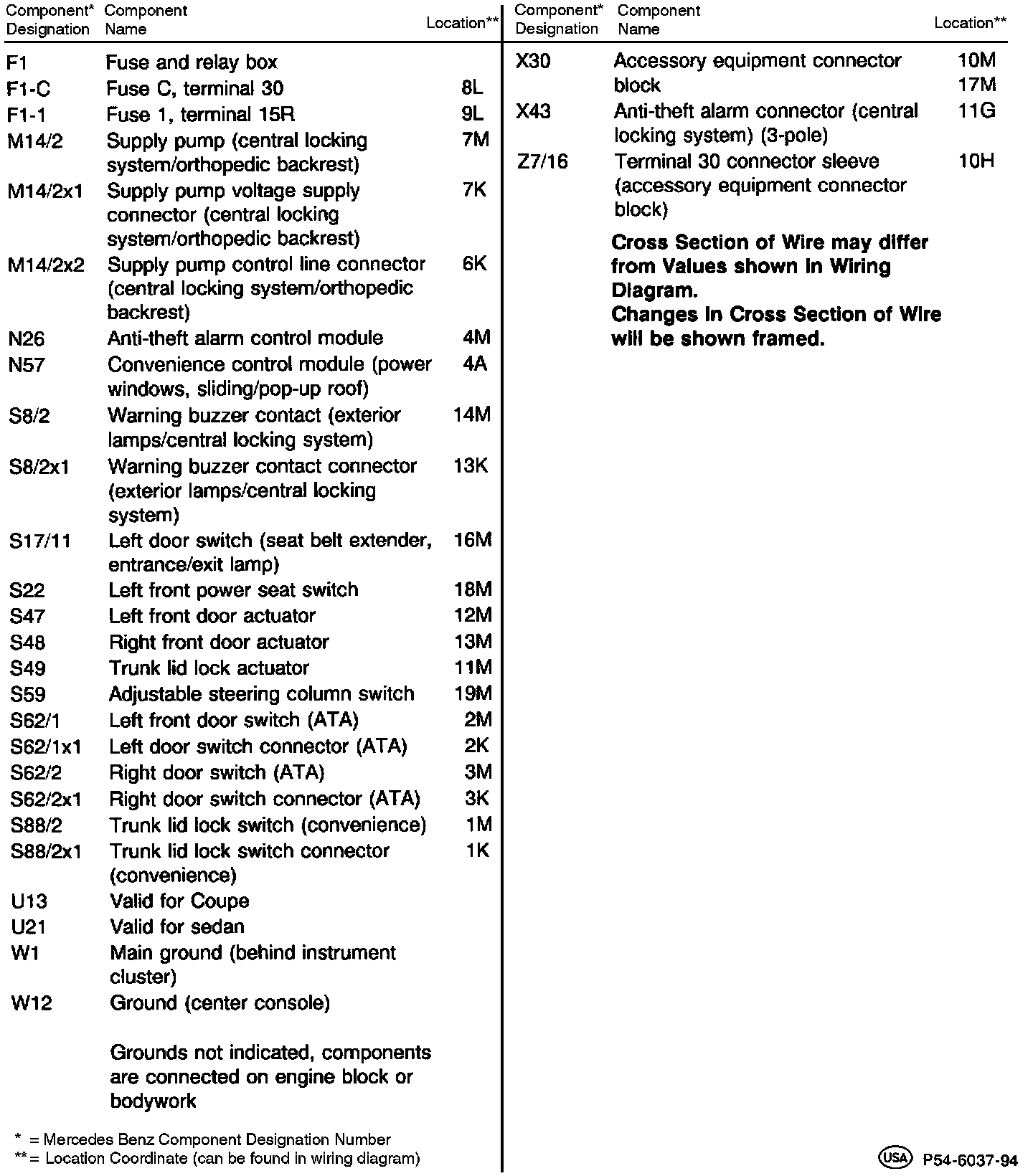

Component Index
Power Windows, Convenience Feature - Component Index:
