System Diagram

C��;V�;6=�;Anti-Theft Alarm System:

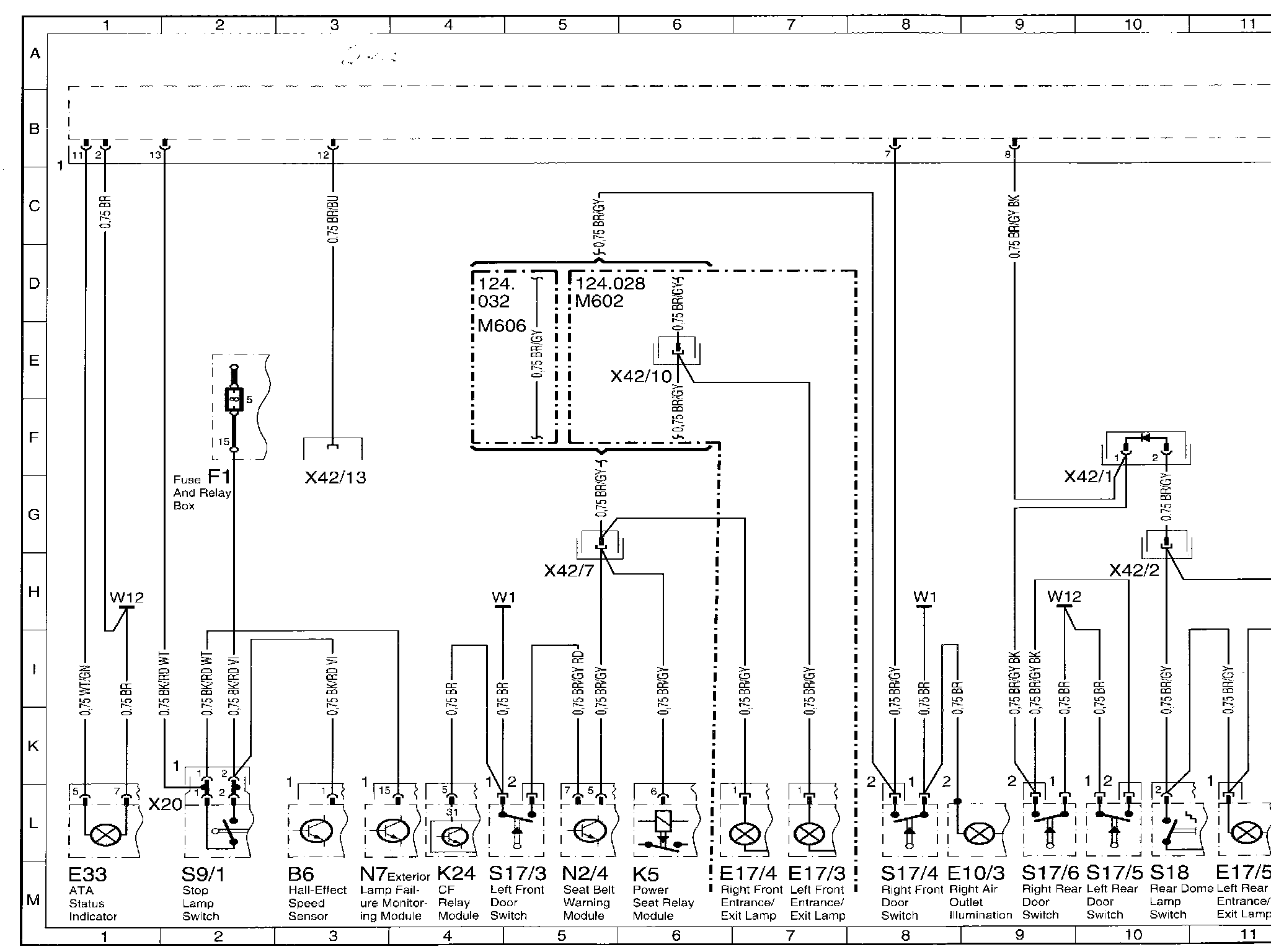

Wiring Diagram

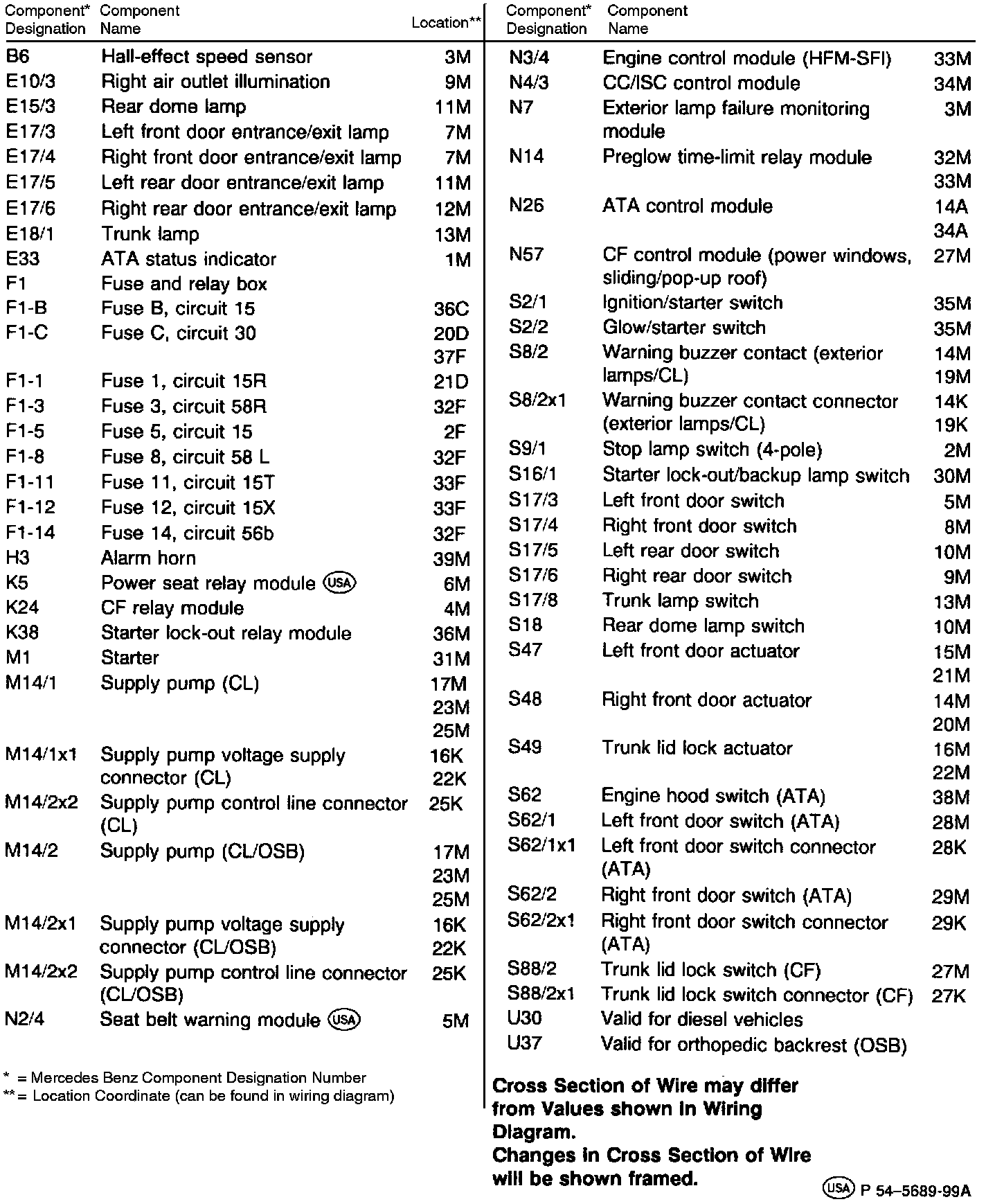

Anti-Theft Alarm System - Component Index (Part 1 Of 2):

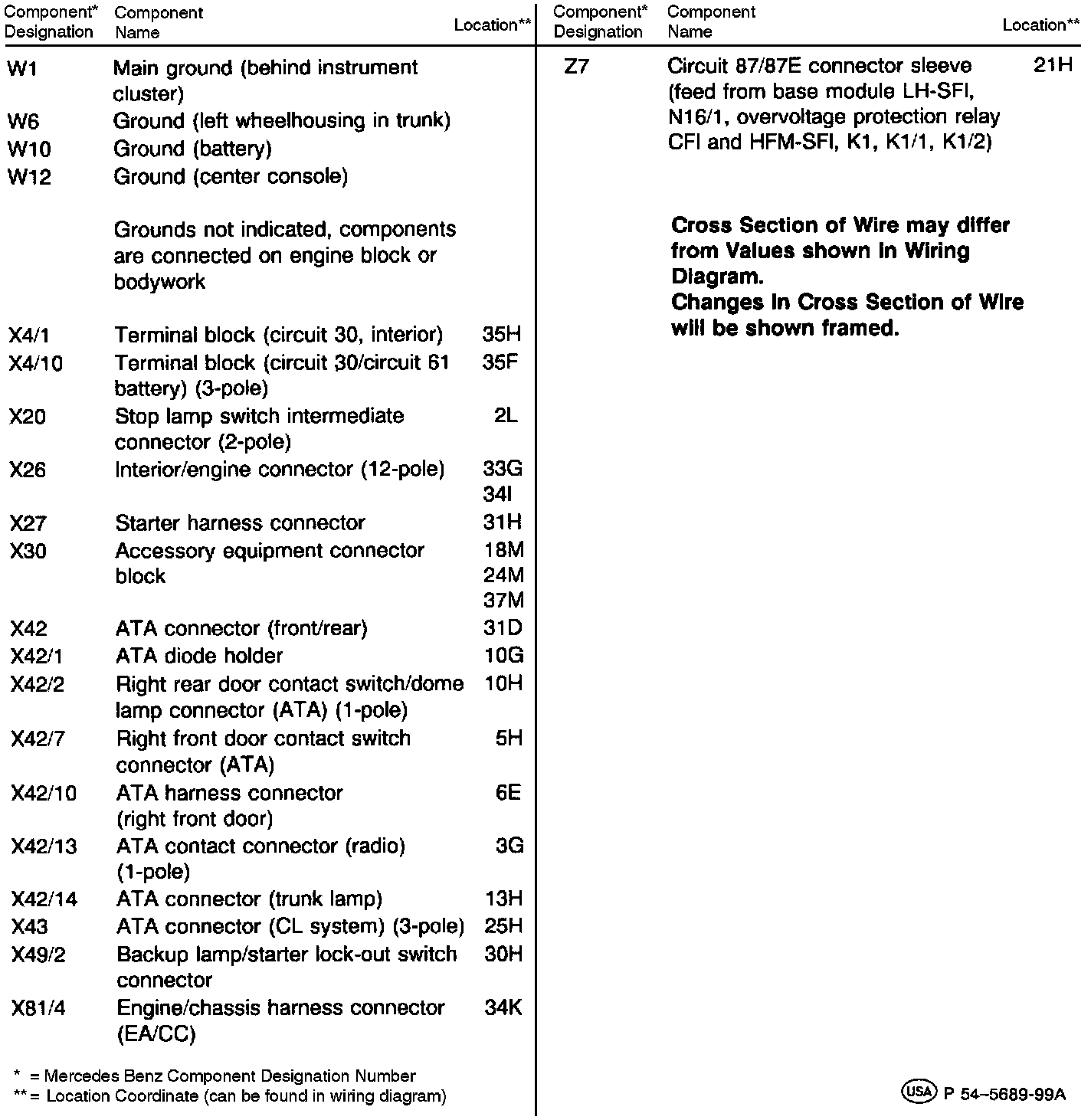

Anti-Theft Alarm System - Component Index (Part 2 Of 2):

Component Index
