1993
>>
300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Wire and Plug Connection Locations
>>
X62/8
X62/8

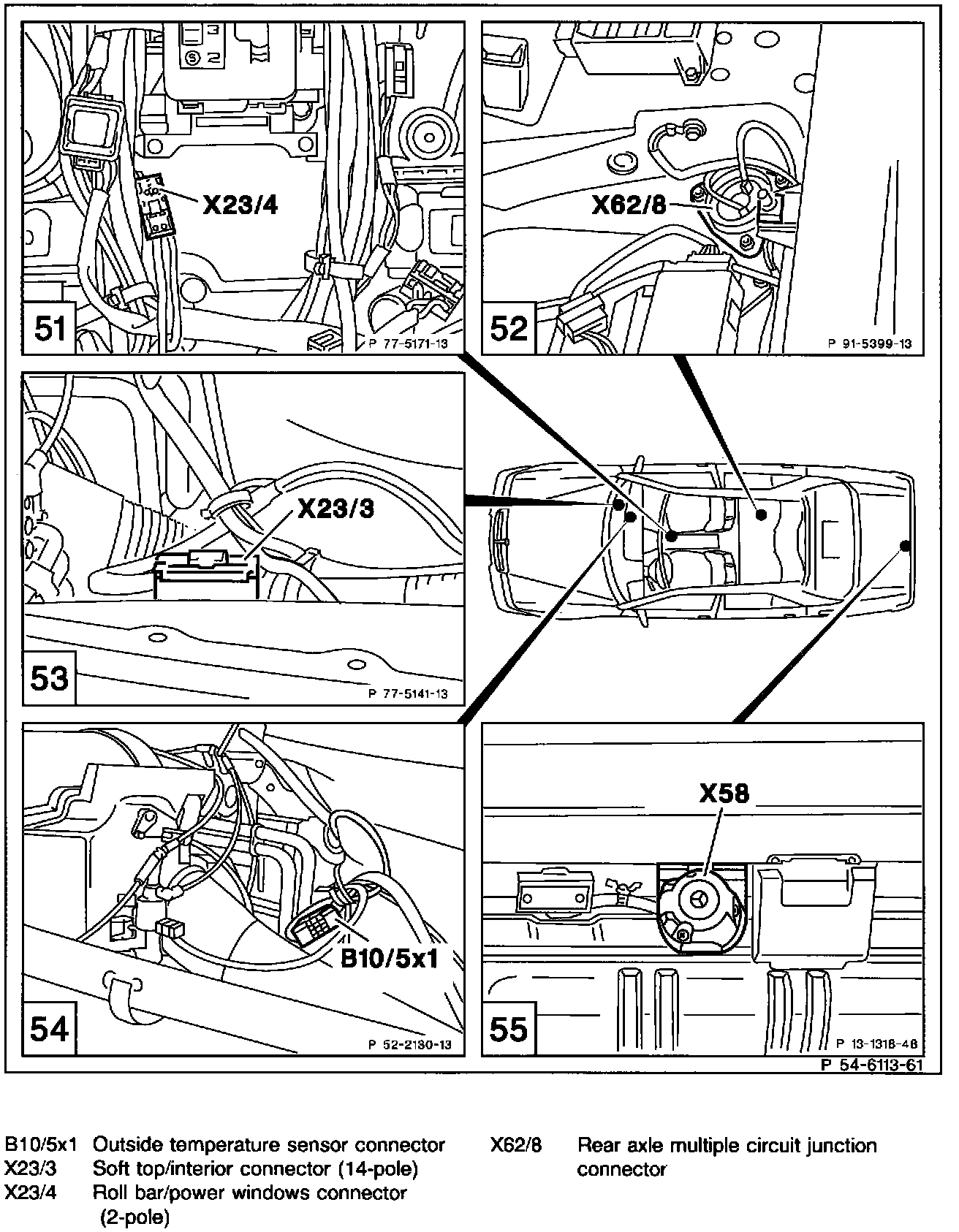

Wire And Plug Connection Locations (Figure 51 To 55):
Figure
52
Component Name
Rear axle multiple circuit junction connector
Connector ID
X62/8
