Mercedes Benz
>>
1993
>>
300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Wire and Plug Connection Locations
>>
S4x1
S4x1

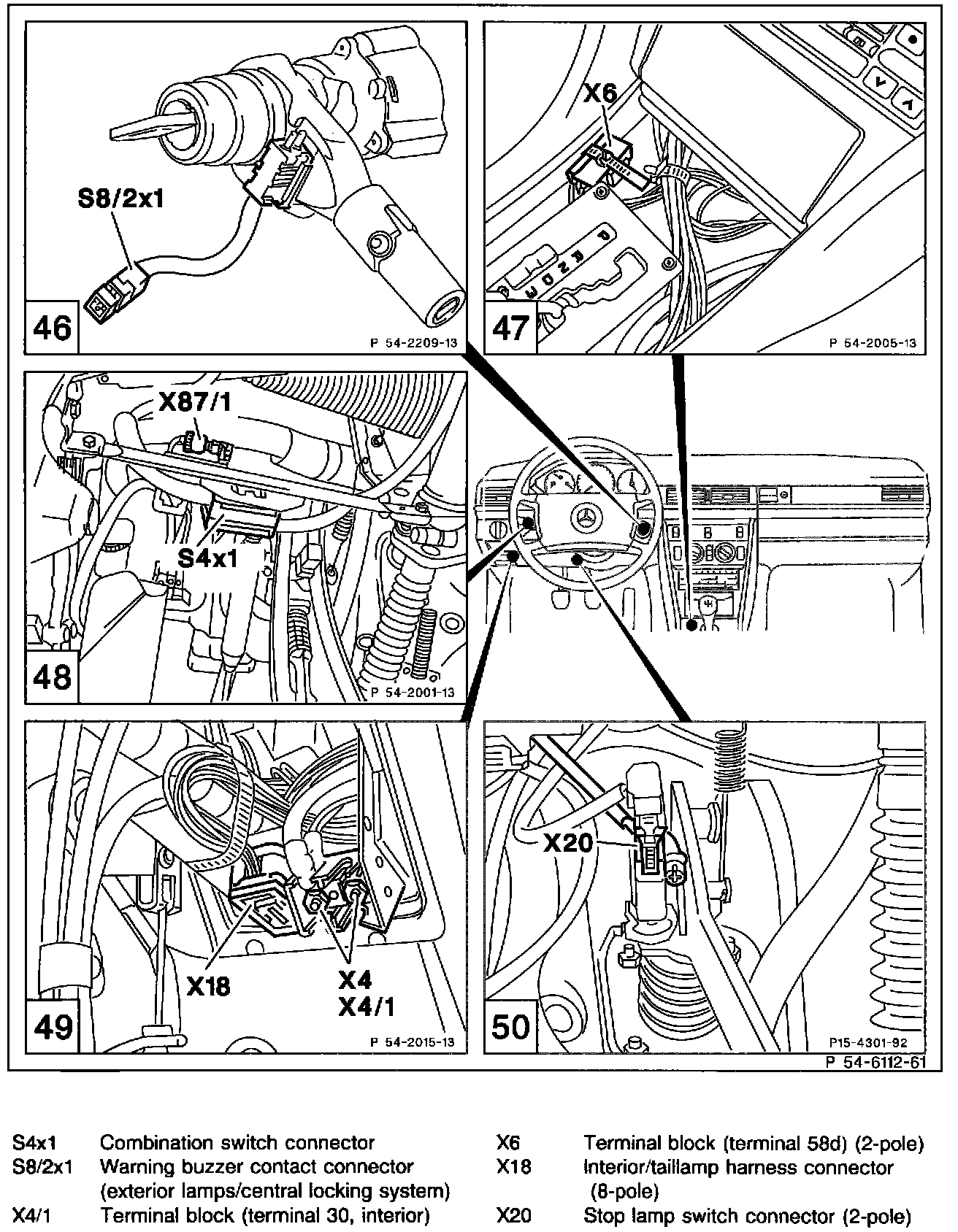

Wire And Plug Connection Locations (Figure 46 To 50):
Figure
48
Component Name
Combination switch connector
Connector ID
S4X1
